Item number: ST-C114FVC
| HD 1080P WDR Forward Facing Camera Specs | |
| Image Sensor | 1/2.9″CMOS AHD |
| Resolution | AHD 1080P |
| WDR function | Optional |
| Effective Pixels | 1920（H）X1080（V） |
| TV System | PAL/NTSC |
| Viewing angle | 95 degree( Horizontal) |
| Install position | Front windshield |
| Power supply | DC 12V |
| Camera housing Material | ABS |
| Image | Mirror or Normal optional |
| Maximum current: | 100mA±10% |
| Minimum Illumination | 0.1Lux/F1.2 |
| Video Output | 1.0 Vp-p/75 Ohm |
| Connector | 4pin aviation |
| Operating Temperature | -20℃～70℃, RH 95% MAX |

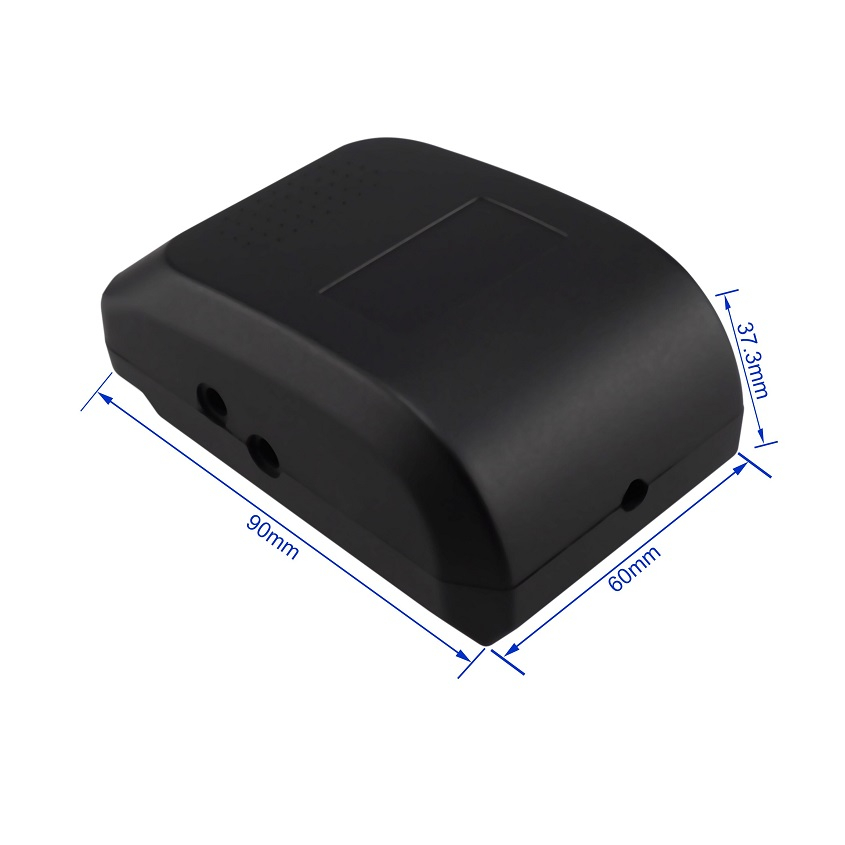

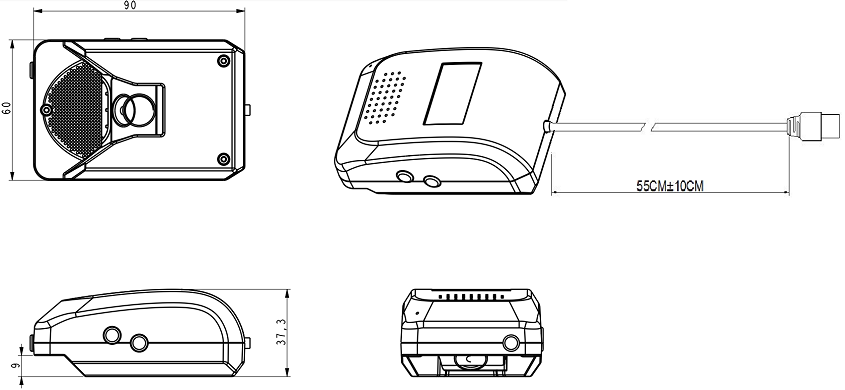

Camera Size:

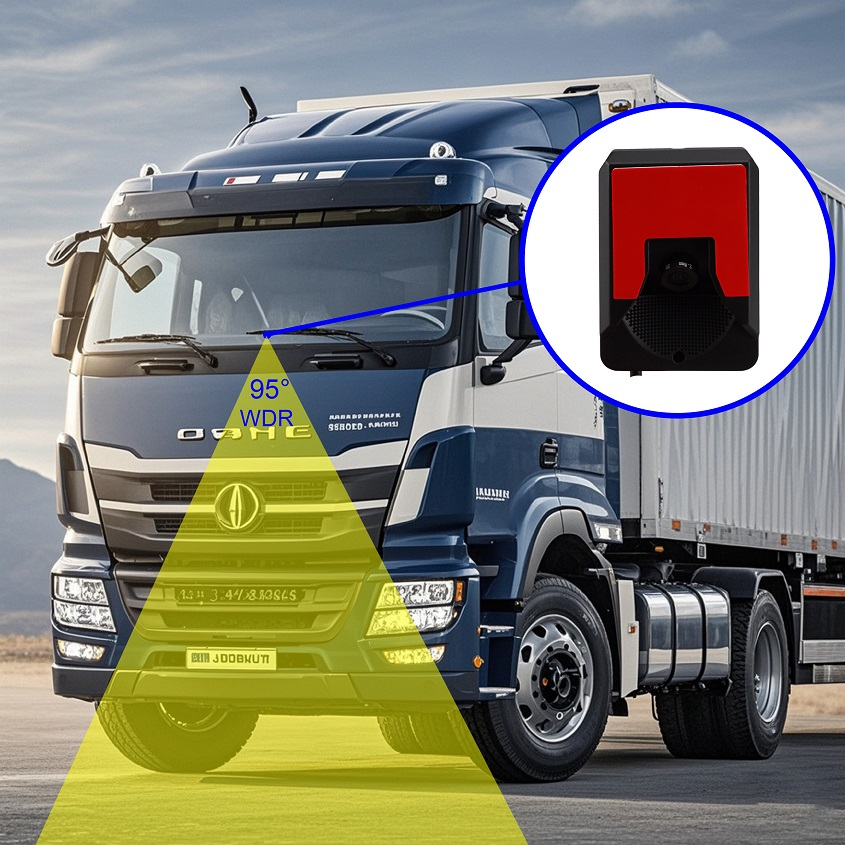

Install Position:
