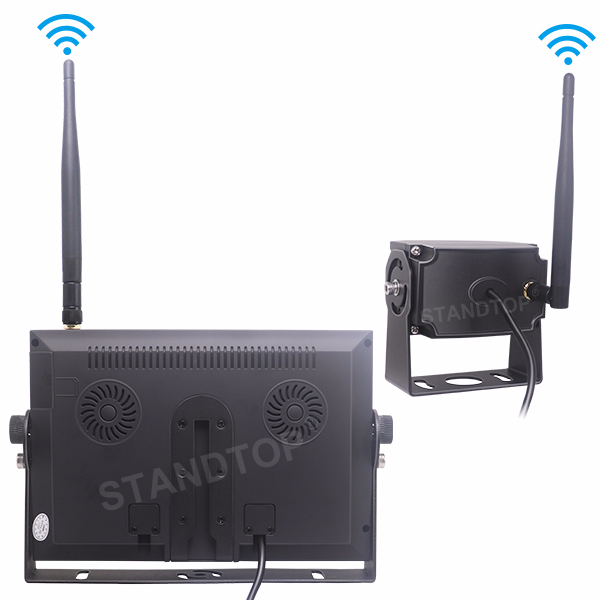

7 Inch HD 1080P Wireless Kits



Wireless Monitor Specification
 Products Name  7inch AHD 1080P Rearview Monitor
 Video Format  AHD 1080P
 Resolution  1024*600*RGB
 TV System  PAL/NTSC
 Power supply  DC 9-36V
 Power Consumption  7.5W
 Screen ratio  16:9
 Backlight luminance  LED, Luminance  400 cd/m2
 Signal input  4ch AHD 1080P  input
 Trigger  The signal is turned on, then monitor display the camera image
 Operating Frequency  Digital wireless
 Video Decode  H.264

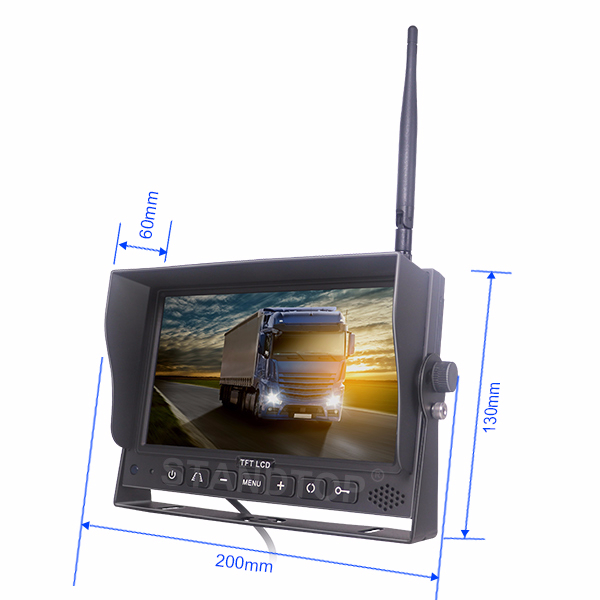

  Size: 200*130*60mm
 OSD menu  Yes
 Connector   Power lead with lock
 Shockproof level   4G
 Accessories  User manual/Screws/Antenna/Power cable/Sunshade/Bracket
 Operating Temperature   -20℃~70℃, RH 95% MAX
 Storage Temperature  -30℃~80℃, RH 95% MAX
Wireless Camera Specification
 Image Sensor  1/3 AHD H65 sensor
 Resolution  AHD 1080P
 Effective Pixels   1920(H) x 1080(V)
 TV System  PAL/NTSC
 Viewing angle  120 Degree
 Power supply  DC 12V
 Waterproof Level  IP68
 IR lights  4Pcs
 Image  Mirror
 Transmission Distance  200M
 Operating Frequency  Digital wireless
 Video Decode  H.264

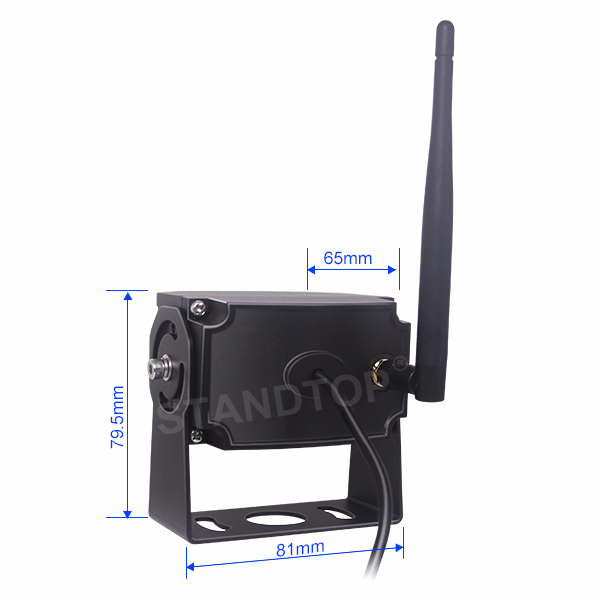

 Size: 81*79.5*65MM
 Shockproof level   4G
 Power Consumption <3W
 Maximum current: <250mA
 Minimum Illumination  0.1 Lux (day), 0 Lux (with IR)
 Video Output  1.0 Vp-p/75 Ohm
 IR cut  Yes
 Connector  Power lead with lock
 Operating Temperature   -20℃~70℃, RH 95% MAX
 Storage Temperature  -30℃~80℃, RH 95% MAX

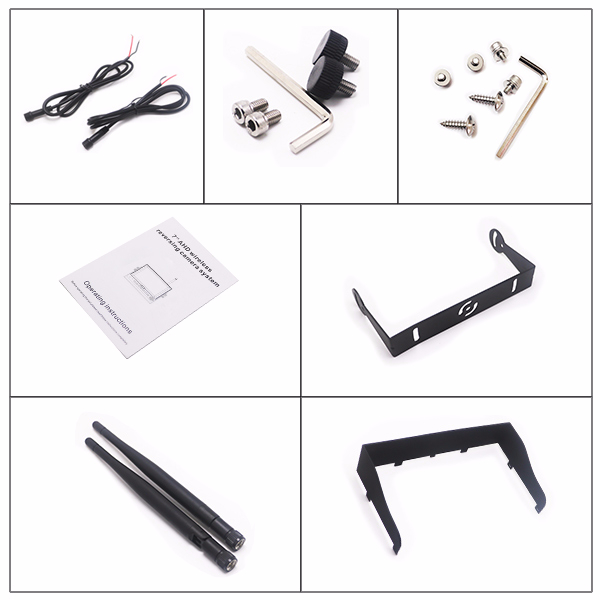

Spare Parts:

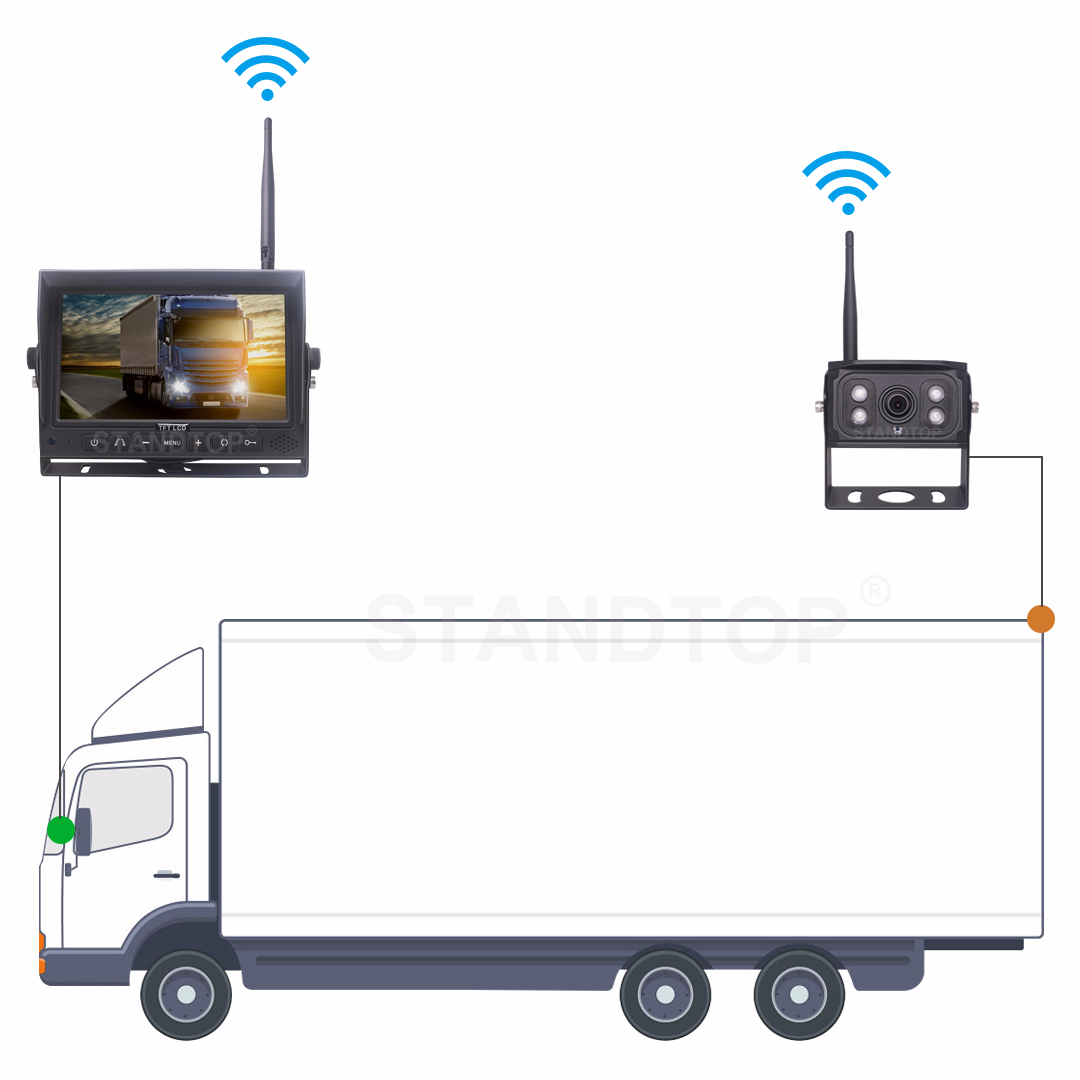

Install Position:
