PRODUCT INTRODUCTION

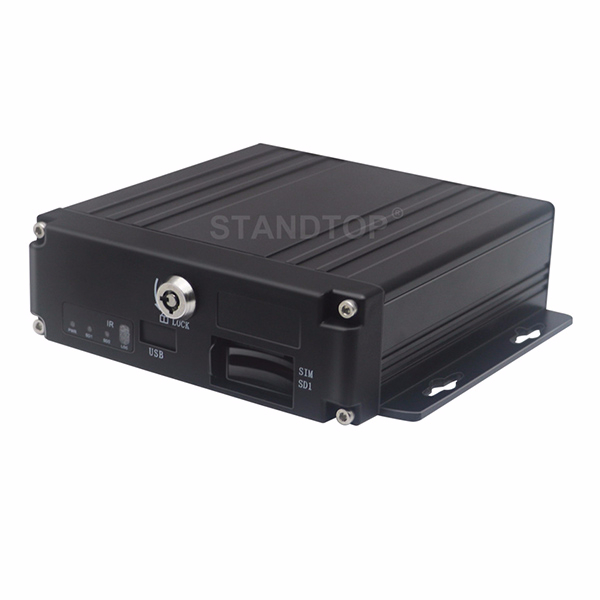

Item number: ST-MDVR-4S

4 Channel HD 1080P SD Carder DVR

Built-in high performance chipsets
H.264 main profile coding system
4 channels 1080P/720P AHD video recording
4 channels audio recording
Built in GPS,WIFI
Max support 256GB SD carder
3G/4G,Optional
If 3G/4G or Wifi, will match CMS fleet management platform
Or you can building in your owner platform
Certificate: CE FCC

TECHNICAL SPECIFICATION
Model			4 Channel SD Carder DVR ST-MDVR-4S
Main Processor			HI3520DV300/MC6630
Operating System			Embedded Linux
System language			Chinese/English, others (Customized)
Video compression format			H.264 Main profile
Password Security			2Levels:Administrator or User
Operating Interface			GUI, Support mouse and remote control

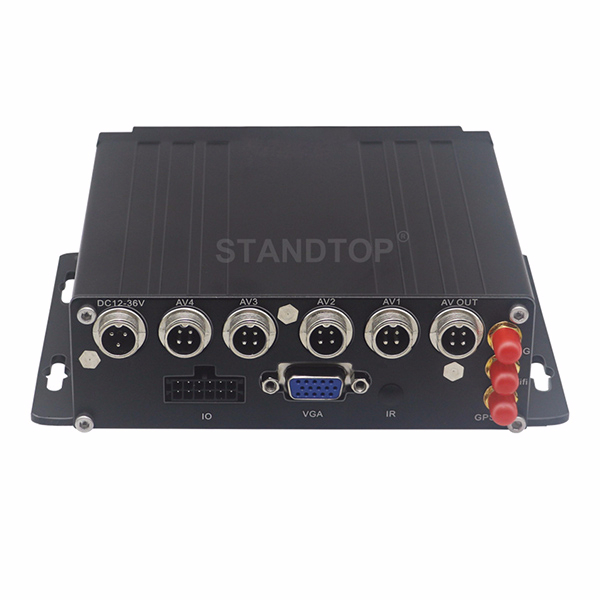

Video	Video input		4 channels, 1080P/720P AHD video input, aviation interface, 1.0Vp-p, 75Ω
	Video output		1 composite video output +VGA output, 1.0Vp-p, 75Ω, support 1 full screen and 4/9 split
	Signal system		PAL@100 frame/s 1080P NTSC@120 frame/s 1080P
	Image display		Single/QUAD display optional
	Video Resolution		Support 1080P, 720P, D1, HD1, CIF optional
			Maximum support 4 channels 1080P or 720P
	Video quality		Class 0-7 optional
	Recording Method		Default automatic recording, support ignition recording, manual recording, alarm recording, etc.
Audio	Audio input		4 channels, aviation head interface, external call handle input
	Audio output		1 way, front headphone jack output and rear extension interface cable output
	Compression format		G.726 compression format, rate 8KB/s
Storage Size			1GB per hour (1080P)
			0.5GB per hour (720P)
Alarm input			4 digital inputs
Alarm Output			2 -way switch output, linked audible and visual alarm, oil and power off, etc.
Communication interface (choose one)			1 RS232, expandable credit card machine, fuel sensor,LED advertising screen, etc.
			1 way 485 interface, expandable PTZ
Wireless transmission			Support built-in 3G wireless transmission function, WCDMA, CDMA2000,
			TD-SCDMA compatible GPRS, EDGE
			Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Positioning			Support built-in GPS/BD module, can report to the department standard platform
Disk		SD card	Max 256G
		Upgrade method	USB disk/Wireless network/SD card
			FTP remote automatic upgrade
		Storage method	Exclusive proprietary bare disk storage method
Video playback		Video search	Search video data by recording time, recording method, etc.
		Replay	Maximum support 4-channel synchronous playback, pause,
			fast forward, fast rewind
			Support 2, 4, 8, 16 times fast forward or backward
Power Supply		Power management	Adaptive wide-range power input, with protection functions,such as overload, undervoltage, short circuit, reverse connection, etc.
			Support timer switch, delay shutdown function
		Power Input	DC:+10V ~ +36V
		Power output	+12V@2A，+5V@1A
		Power consumption	Normal working state <5W (without peripherals)
Others		Size	Include security cover 15213141MM
		Net weight	550g

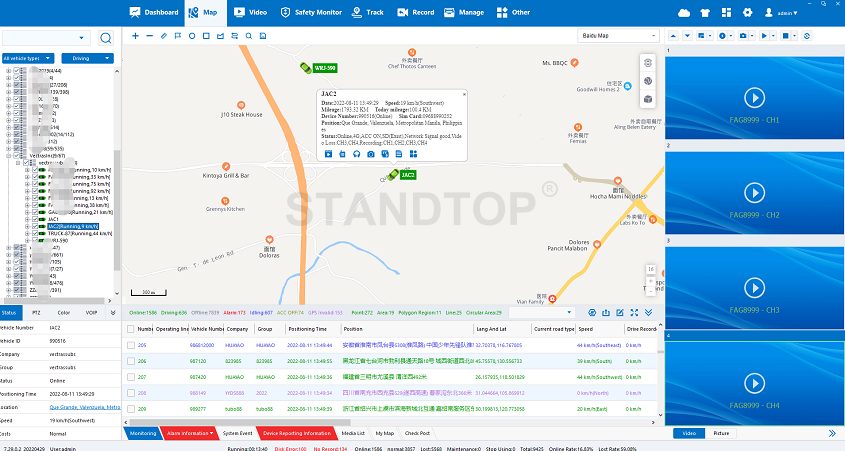

CMSV6 Software and Mobile APP Fleet Management Platform

GPS Tracking and Monitoring Image

Playback HD 1080P Image Quality
