PRODUCT INTRODUCTION

Item number: ST-711WLC

  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
  • 7inch 1080P Waterproof Camera System
Inquiry Now

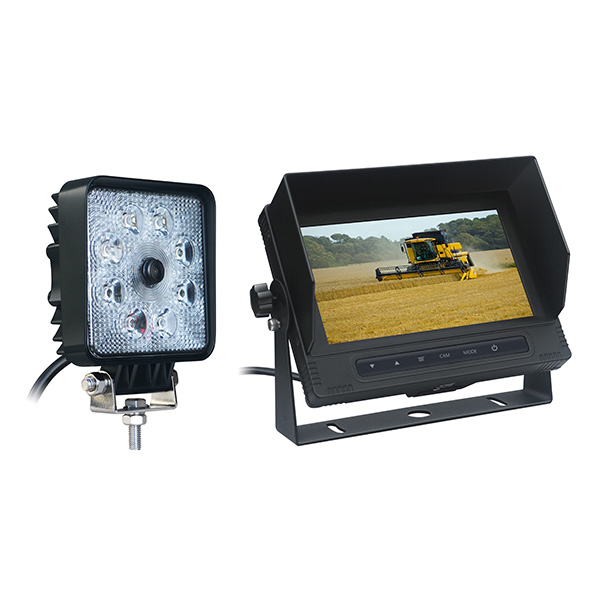

7inch 1080P Waterproof Camera System

     It is a 7" HD 1080P Waterproof camera system , monitor with IP67 Waterproof rating, touch button,12-24V wide voltage for differnt vehicle models, can be connect with 2pcs AHD cameras.Industrial vehicle camera in LED work light,with IP69K, 8pcs LED,24W, 6000k LED color temperature,with its wide 150° angle view providing high resolution images,it is used to solve the problem of auxiliary lighting and video monitoring at night,ideal for reversing and monitoring of vehicles, this wateproof camera system applicate for  agricultural machinery, engineering vehicles, tractors,  harvester trucks, excavators, cranes, forklift, boat etc.


 Waterproof Monitor Technical Specs:
 LCD Size:    7Inch  IPS
 Resolution: 1024(W)*600(H)*RGB
 Video Format: AHD/CVBS Hybrid
 TV System: PAL/NTSC
 Power supply:  DC 12-24V
 Brightness:  550 cd/m2
 Contrast:     800:1
 Power consumption    : <9W
 Screen ratio:  16:9
 Waterproof rating:    IP67
 Viewing angle:  L/R/U/D:85/85/85/85°
 Signal input:  2 channels video input
 Trigger:     1 channel reverse trigger control
 Operating temperature:   -20℃~+70℃
 Storage temperature:  -30℃~+80℃

 Work Lamp Camera Technical Specs:
 Image Sensor:  1/3 GC 2053
 Resolution: 720P or 1080P optional
 Effective Pixels:  1920(H) x 1080(V)
 TV System:  PAL/NTSC
 Lens:  1.7MM
 Viewing angle:  150 Degree
 Camera power supply:  DC 12V
 Work light power supply:  DC 12-24V
 Waterproof Level: IP69K
 IR lights:    8Pcs
 LED color temperature/light:  6000K/60 degree flood light
 LED lamp board power: 24W
 Night vision distance: ≤100M
 Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
 Video Output: 1.0 Vp-p/75 Ohm
 Connector:  4Pin aviator
 Operating Temperature: -20℃~70℃, RH 95% MAX

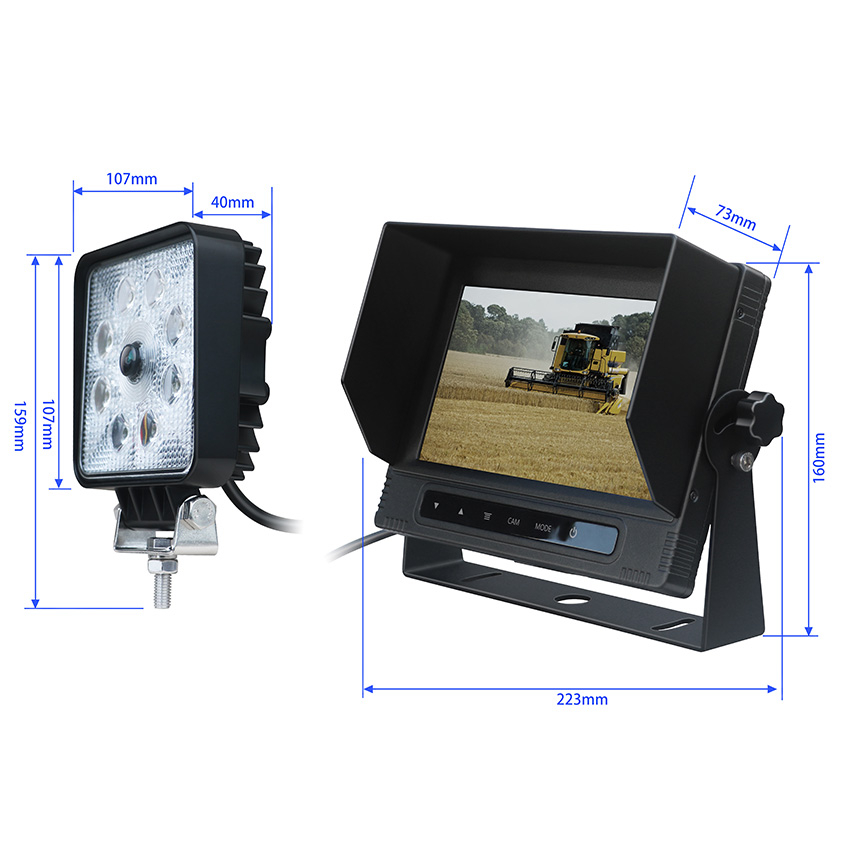

Products Size:

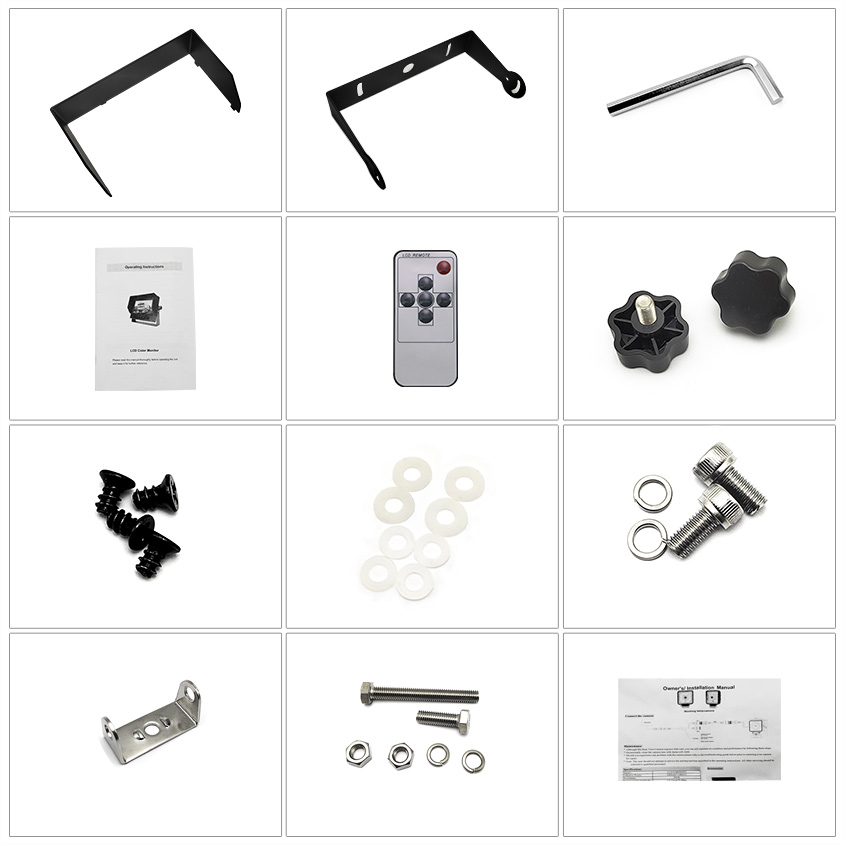

Spare parts:

System Applications:
