Products Specs:

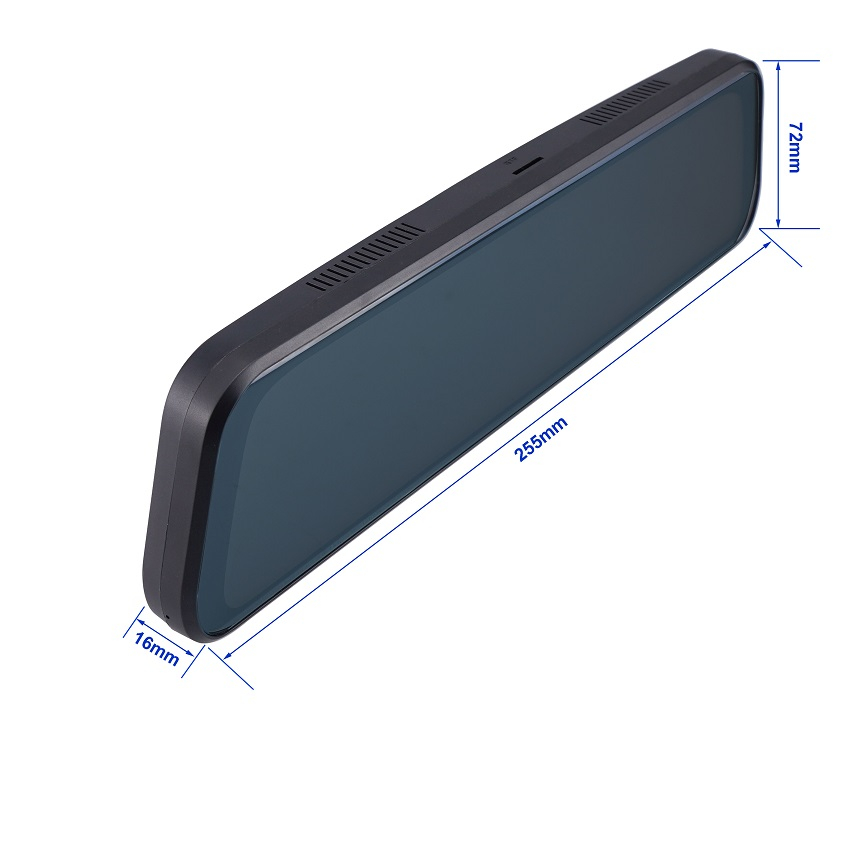

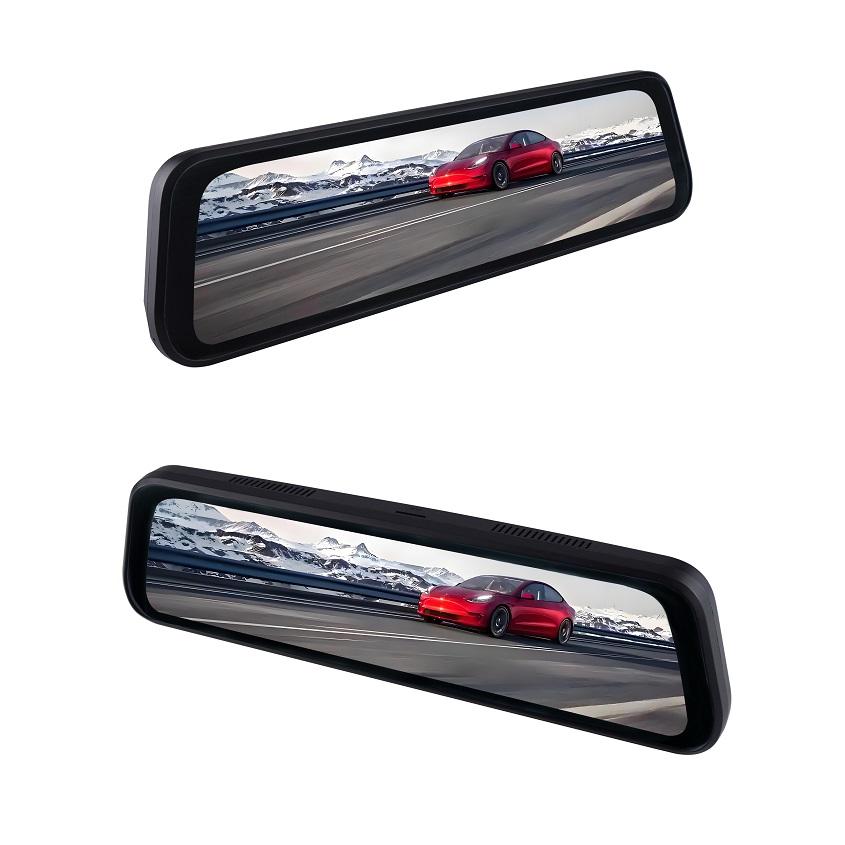

9.35inch Full Screen Display HD 1080P Mirror Monitor

Screen size: 9.35inch IPS HD 1080P

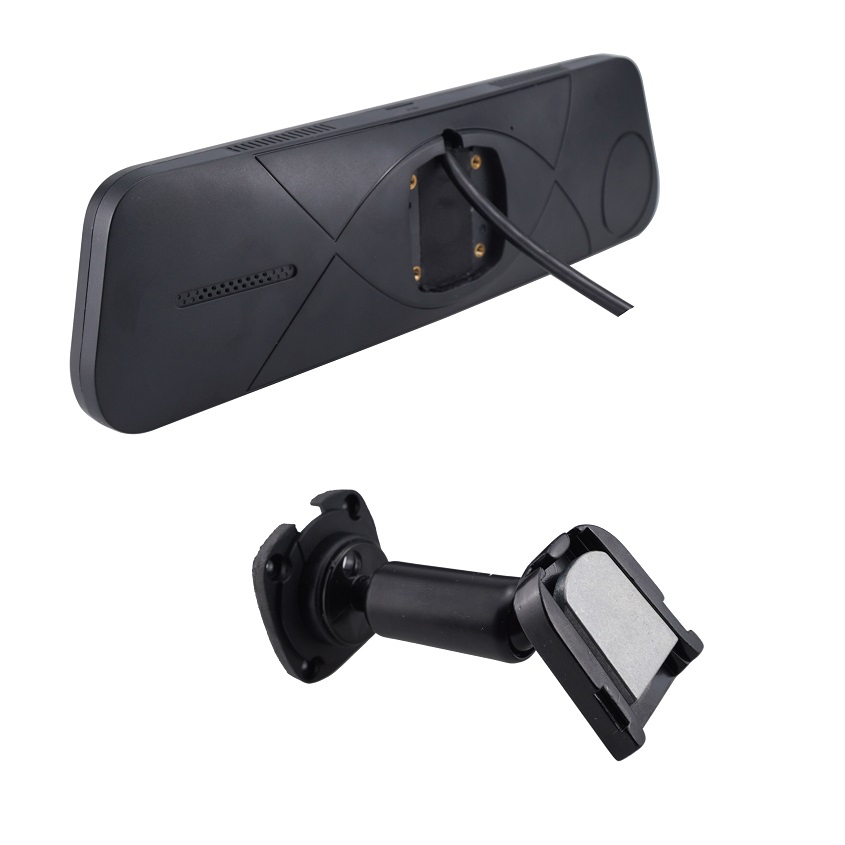

Mounting Method: Mirror Stalk

Video format: AHD

Resolution: 320*RGB*1280

System: PAL/NTSC

Voltage:DC 9-24V

Brightness: LED Luminance 650cd/m2

Color: black

2 Video AV input,1 Trigger wire

Viewing angle: L/R 85/85 U/D 85/85

Connector: 4Pin aviation

Operating Temperature: -30℃～70℃

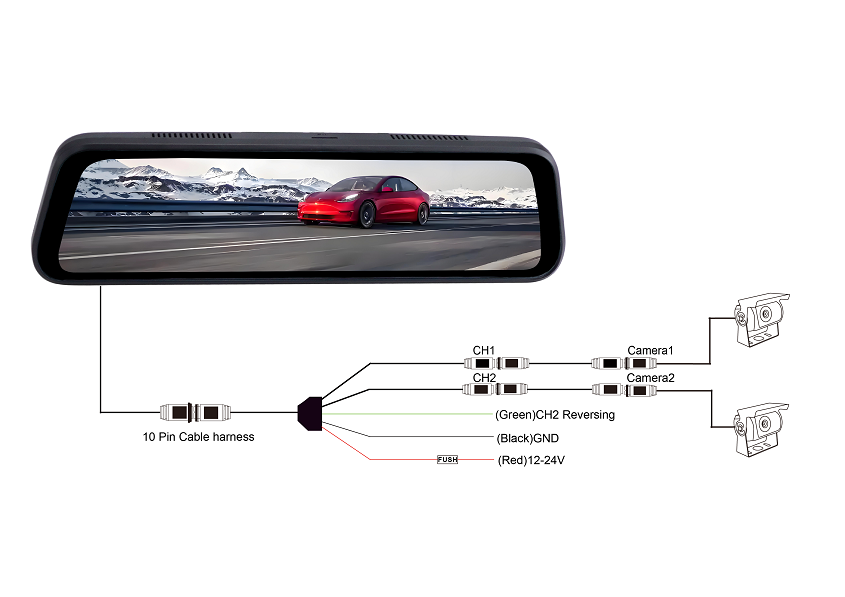

Wire Diagram:
