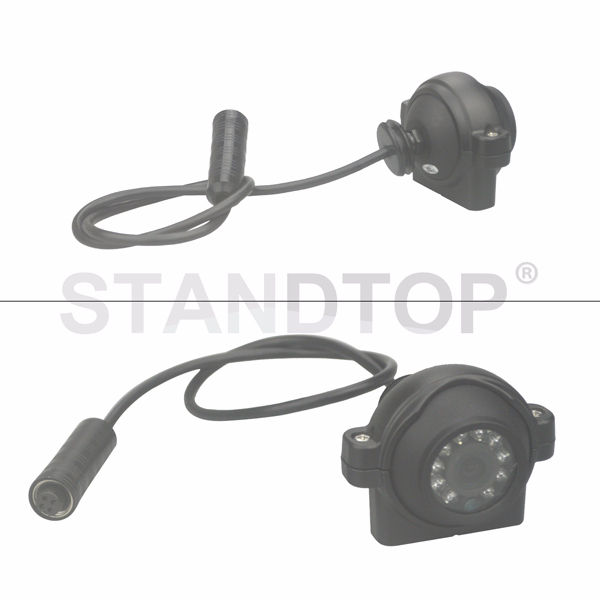

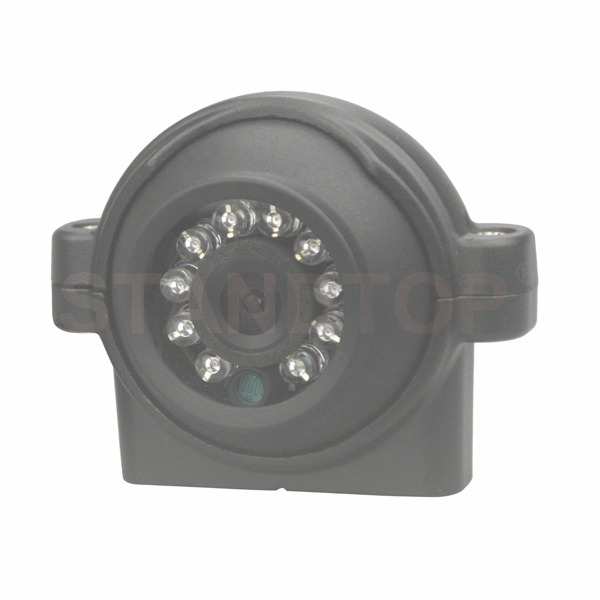

Item number: ST-C03A
Specification:
| Image Sensor | 1/3 CMOS or Sony sensor optional |
| Resolution | 720P or 1080P optional |
| Effective Pixels | 1280(H) x 720(V)/1920(H) x 1080(V) |
| TV System | PAL/NTSC |
| Viewing angle | 120 Degree |
| Power supply | DC 12V |
| Waterproof Level | IP68 |
| IR lights | 10Pcs |
| Image | Mirror or Normal optional |
| Shockproof level | 4G |
| Power Consumption | ＜3W |
| Maximum current: | ＜250mA |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Video Output | 1.0 Vp-p/75 Ohm |
| IR cut | Yes |
| Connector | 4pin or RCA optional |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |
Shell material: Aluminum alloy
For Front/rear/side view
Suitable for Commerical trucks/Snowplow/Fire Trucks/Mining etc.

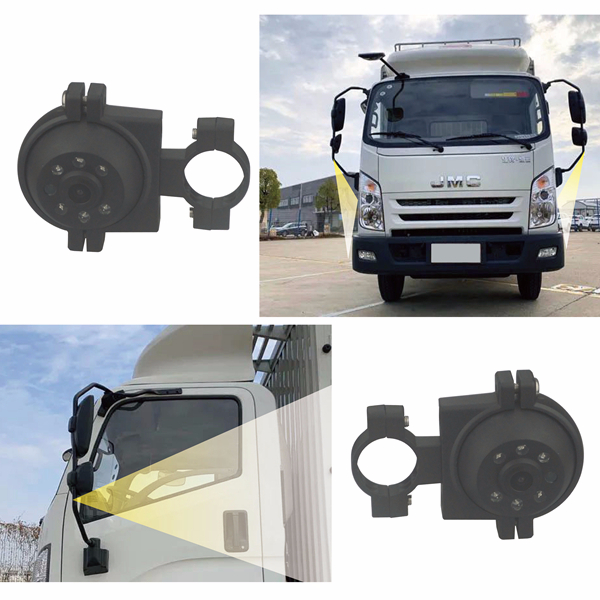

Camera Install postion:
