Item number: ST-C03A

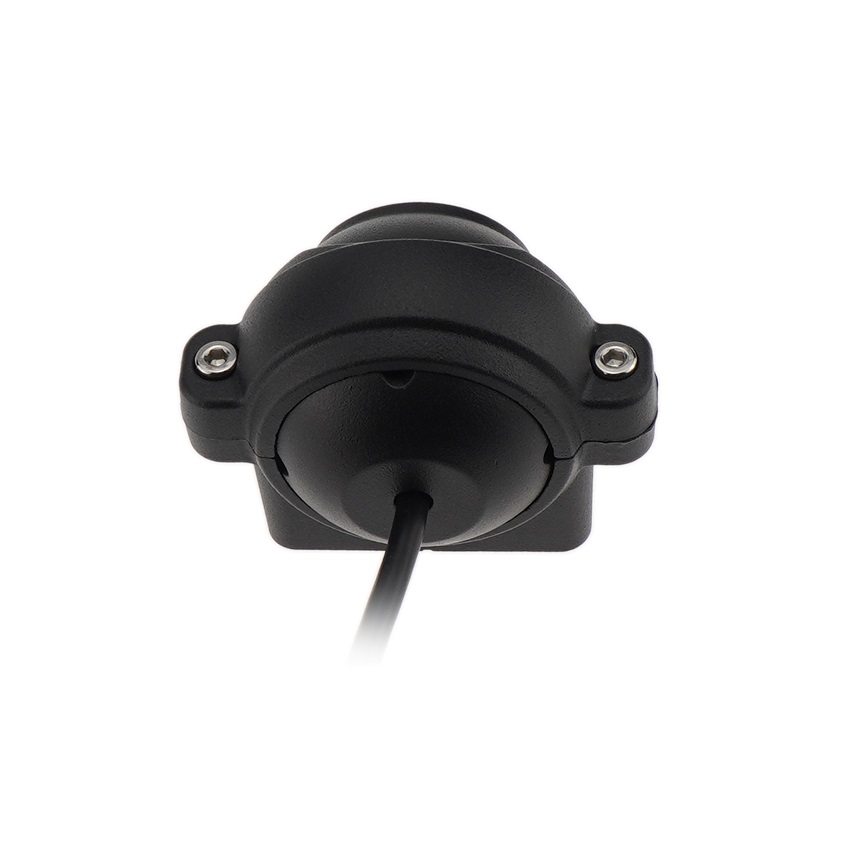

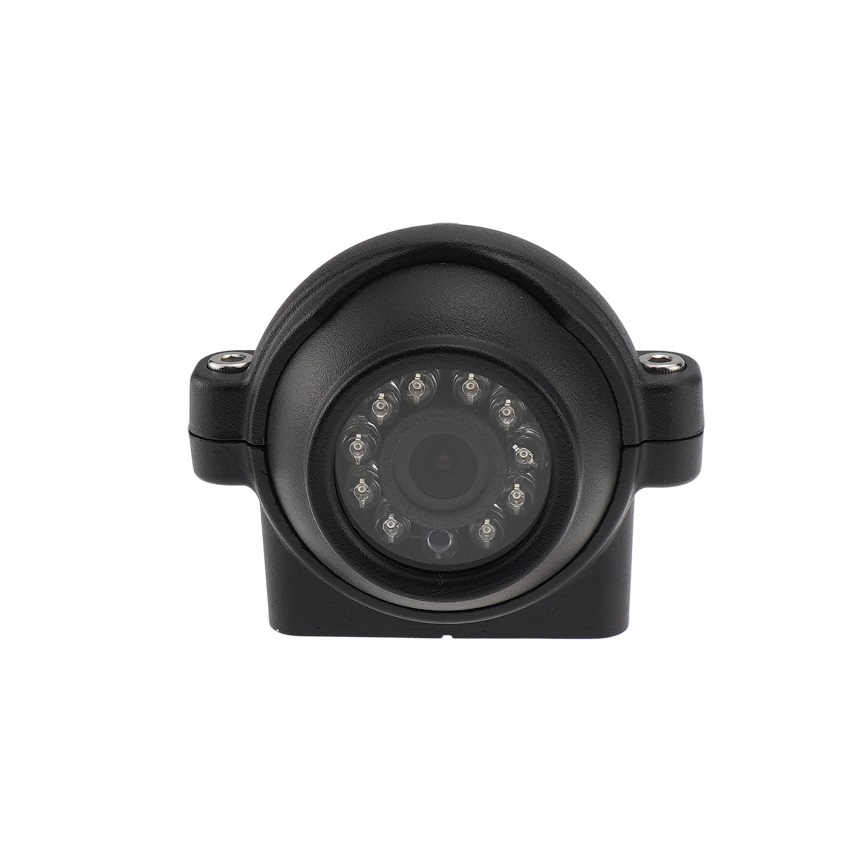

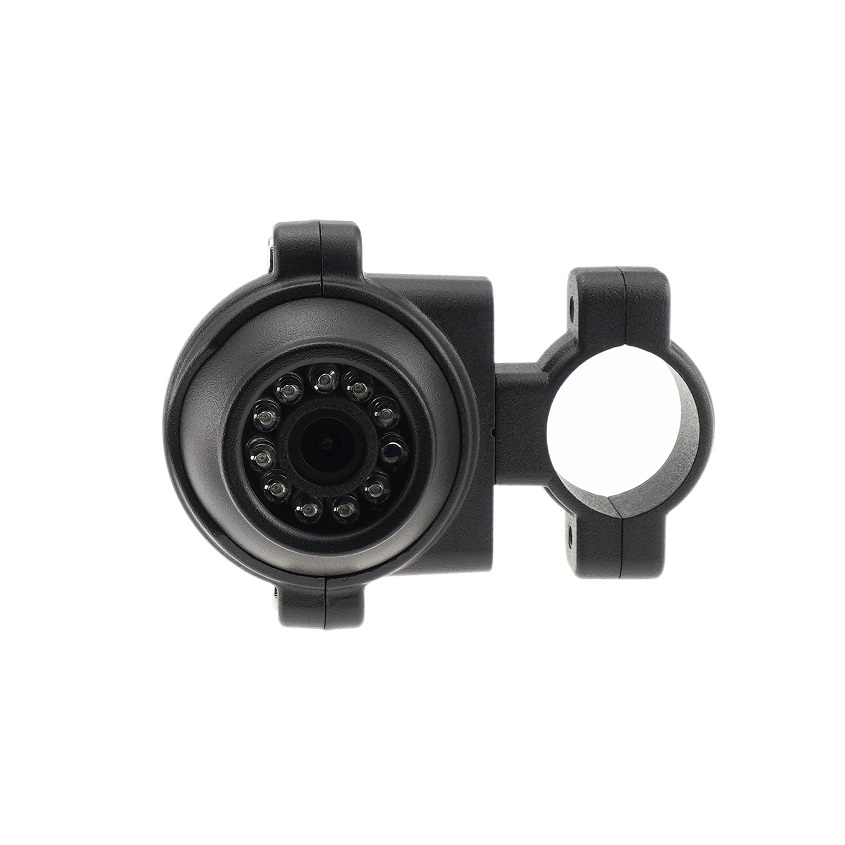

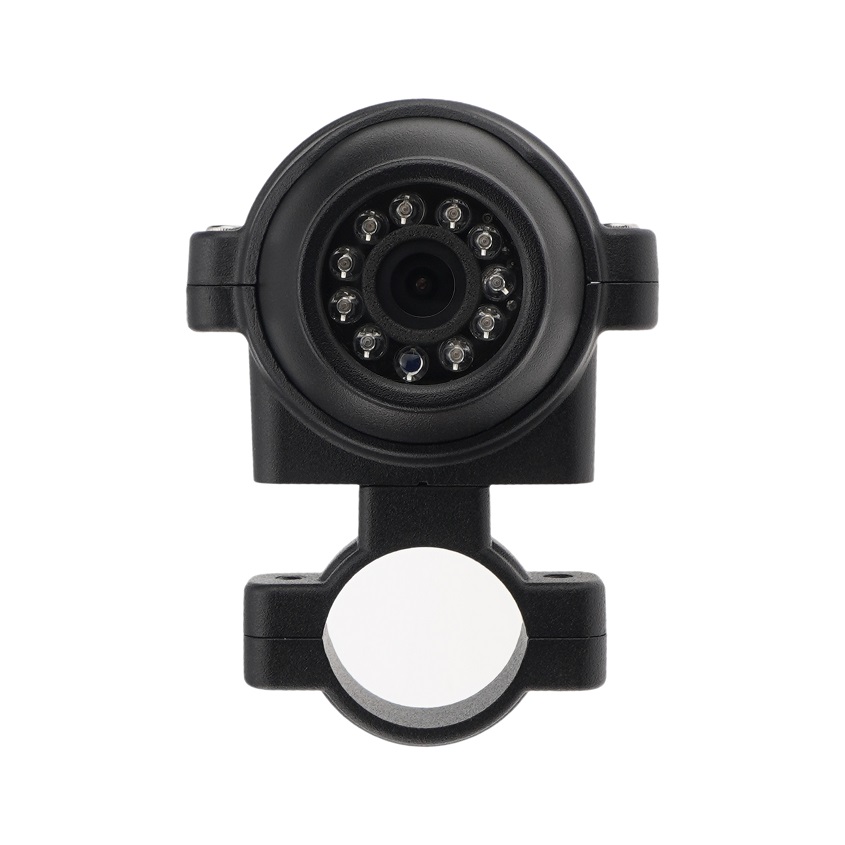

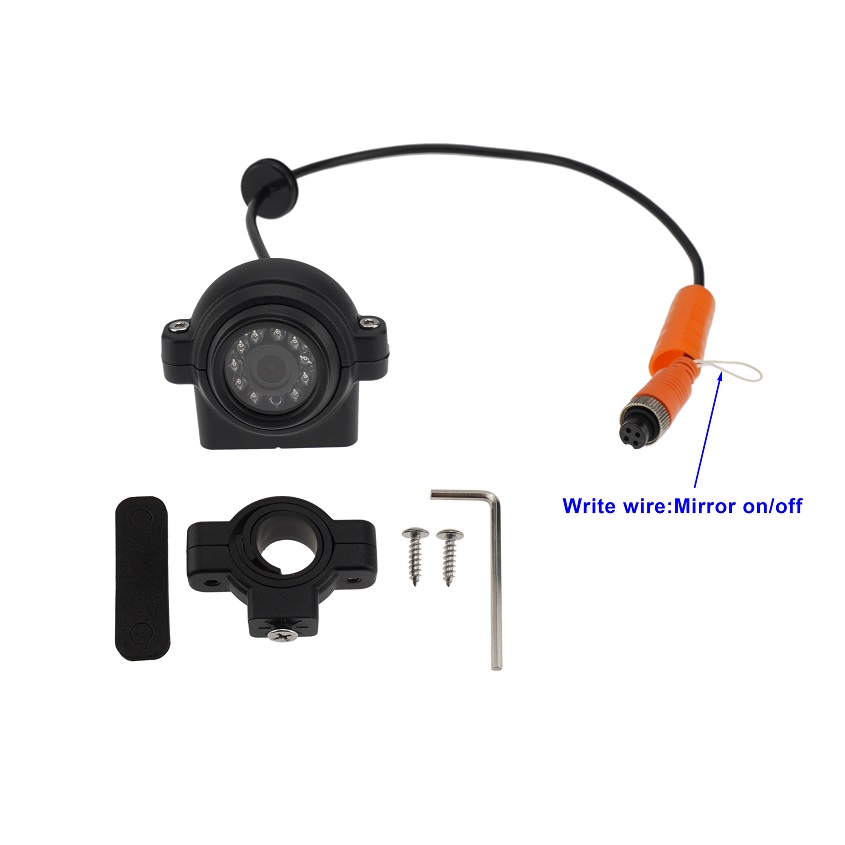

The 1080p Eyeball Rear and Side View Camera, it comes with the bracket for side mirror tube installation,also for top,rear, or front view installation,eliminate dangerous blind spots with crystal-clear 1080p resolution. Whether you need a side-view mirror replacement or a high-mounted front or rear camera, this universal ball camera rotates 360° to give you the perfect angle every time.
| Category | Parameter |
|---|---|
| Shell material | Aluminum alloy |
| Image Sensor | 1/2.9″ CMOS |
| Resolution | AHD 1080p |
| Effective Pixels | 1920(H)X1080(V） |
| TV System | PAL/NTSC |
| Viewing angle | 120 degree |
| IR leds | 10pcs |
| Waterproof Level | IP68 |
| Power supply | DC 12V |
| Image | Mirror or Normal optional |
| IR Cut | Yes |
| Power Consumption | ＜3W |
| Maximum current | ＜250mA |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Video Output | 1.0 Vp-p/75 Ohm |
| Connector | 4pin aviation |
| Operating Temperature | -30℃～70℃, RH 95% MAX |
Suitable for Trucks, Trailers, RVs, Agricultural machinery, Construction vehicles, etc.
