Double Lens Rear View & Reverse Camera for RV

PRODUCT INTRODUCTION

Item number: ST-C30D

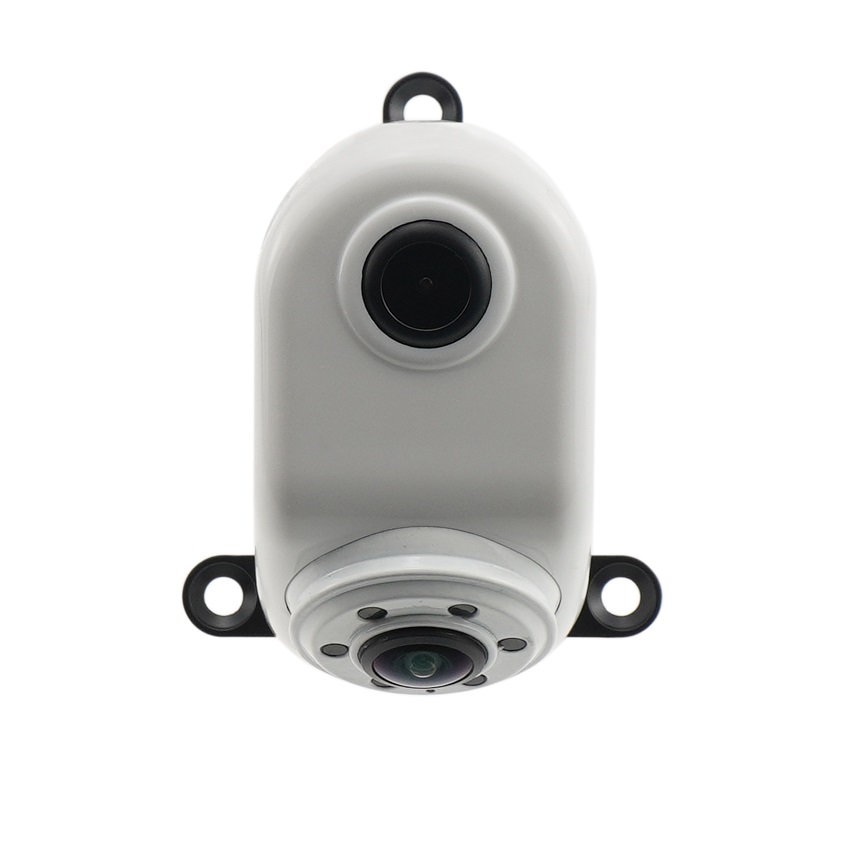

Double Lens Rear view & Reverse Camera For RV

Products Description:

The Standtop ST-C30D Double Lens Rear view & Reverse Camera was developed for semi- and fully-integrated motorhomes. it is a HD 1080p cameras in a single metal housing, the top camera which with 90° Horizontal Angle view is for"Always-on" rear view, top camera was starlight night vision,so you can have a clear view of the road behind,the bottom camera which with a 150° Horizontal Angle view designed to be a standard reverse camera, the bottom camera was IR night vision.Whether you’re reversing into a campsite or driving on the highway, our double lens camera ensures you never miss a thing.

CVBS/AHD signal optional,4pin aviation connector or RCA phono optional,this product is compatible with monitors and 1-DIN / 2-DIN/Car radio device models of the aftermarket.

Key Features:

Compact and elegant dual-sensor rear view camera
Full HD 1080p resolution.IP68 waterproof level

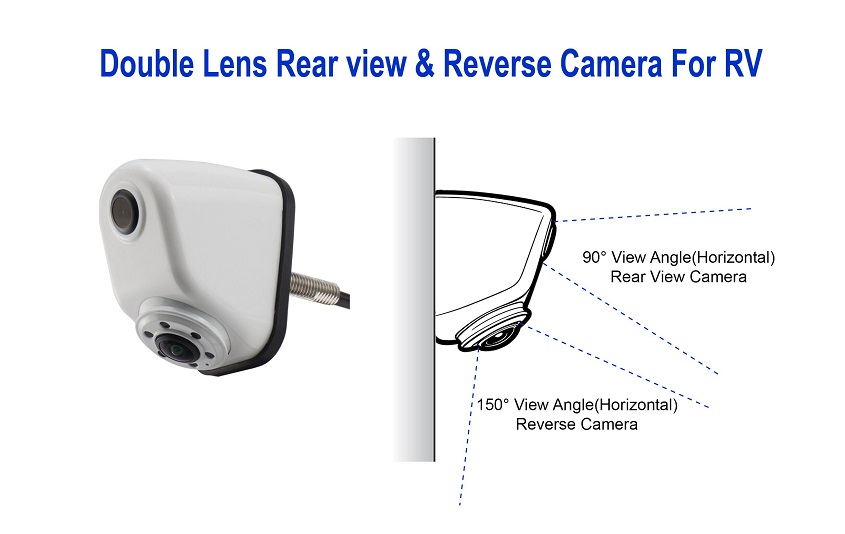

Top camera with 90° and bottom camera with 150° horizontal view angle
Rear View camera with starlight vision, Reverse camera with 5pcs IR Leds
It can be make AHD/CVBS,Guide line on/off switch wires
Plastic injection main Casing, Drill or Bracket mount is optional

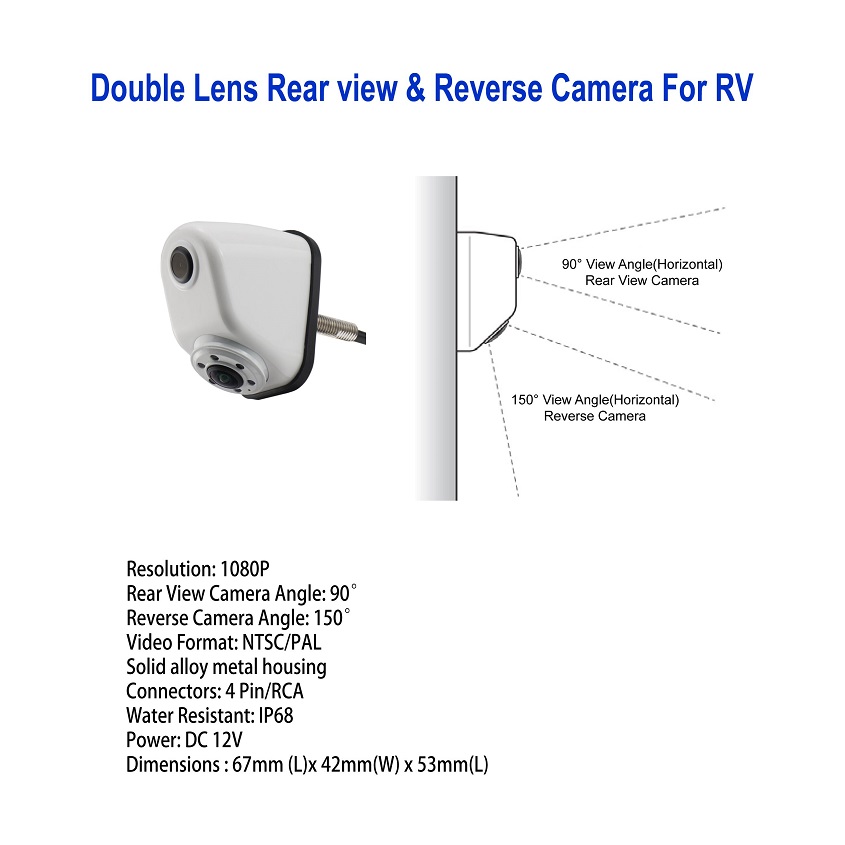

Product Specs:

Camera housing: Solid alloy metal housing

Casing color: White

Sensor: 1/2.9" CMOS

1920*1080 AHD resolution,2MP

Rear View Camera Angle: 90°(H)

Reverse Camera Angle: 150°(H)

Video Format: PAL/NTSC

Waterproof level: IP68

Power supply: DC12V

Connector: 4pin aviation or RCA Phono

Cables: 1 x 1000mm

Working temperature: -30℃ to 70℃

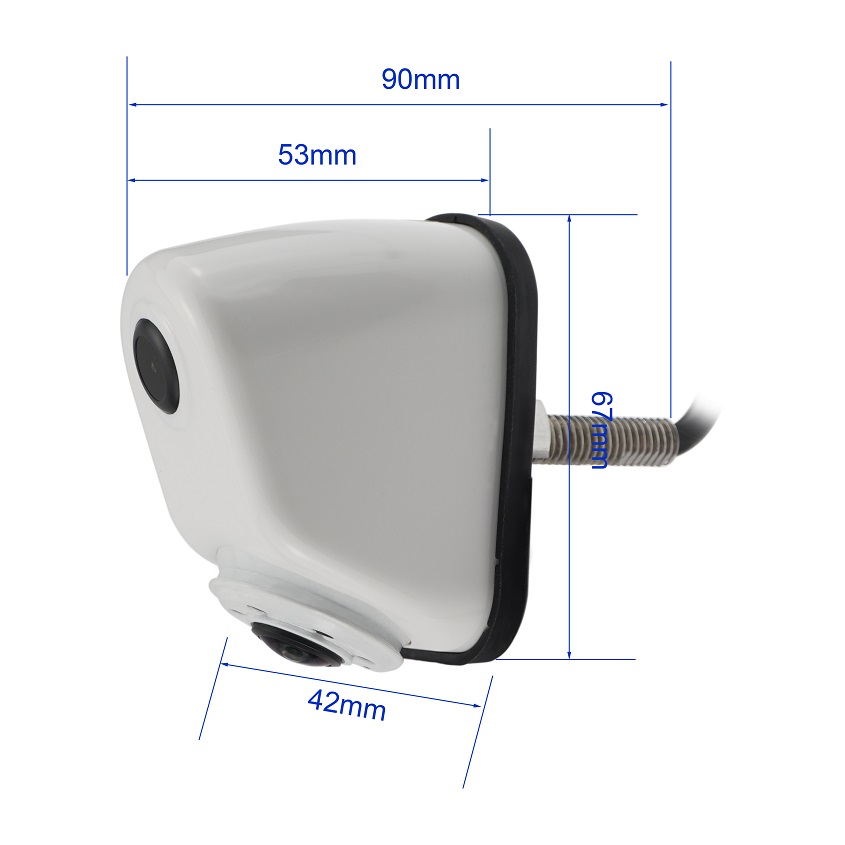

Dimensions (LWH): 67mm x 42mm x 53mm

More Details:

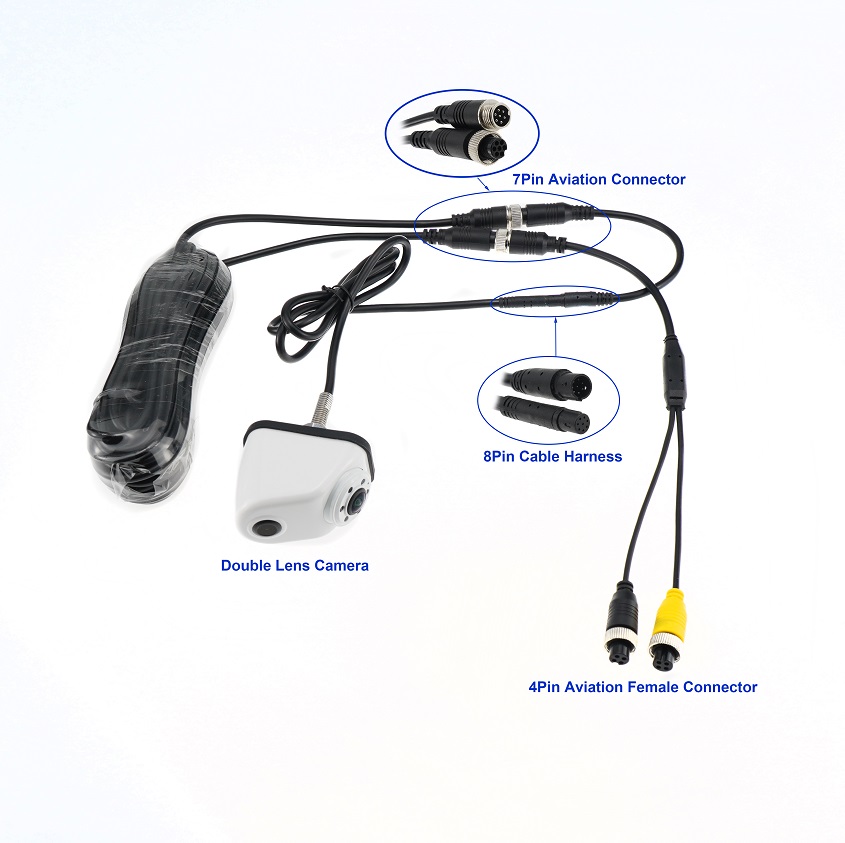

If your monitor was 4pin aviation connector,you can use our camera with 4pin aviation connector:

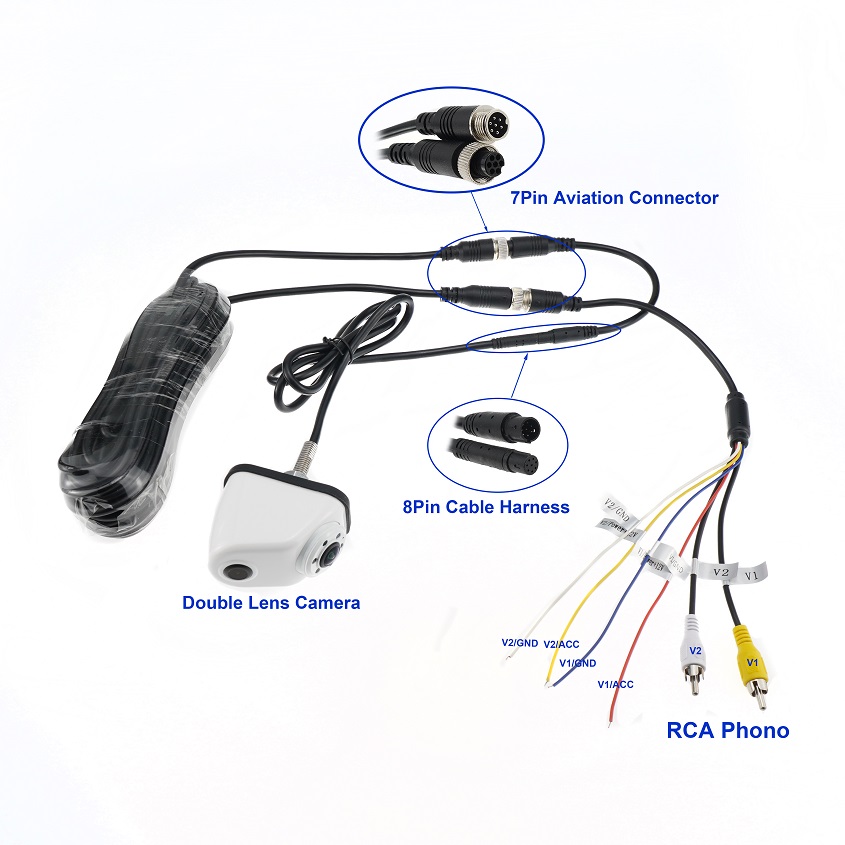

If your monitor was RCA phono connector,you can use our camera with RCA phono connector:

If you prefer bracket mounting, you can choose our bracket version：

Product Applications:

Suitable for RV,Class A Motorhomes,Class C Motorhomes,Travel Trailers,Fifth-Wheel Trailers, Fleet Vans.

1. Class A Motorhomes
Reason for installation: Type A motorhomes are large (similar to buses), with a huge blind spot at the rear.

Dual-lens advantages: The two lenses of this type of camera are usually pointed at different angles. The upper lens faces into the distance, acting as an "electronic rearview mirror" while driving to observe traffic behind; the lower lens points vertically to the rear of the vehicle, helping the driver avoid obstacles when reversing or parking.

2. Heavy-duty travel trailers (Fifth Wheels)
Reason for installation: Fifth-wheeled caravans are extremely long and usually have a high roof.

Dual-lens advantage: One lens is used to monitor traffic behind, while the other lens can be specifically aimed at the **trailer hook** or bumper area below, making it easier for drivers to park accurately or check the connection status.

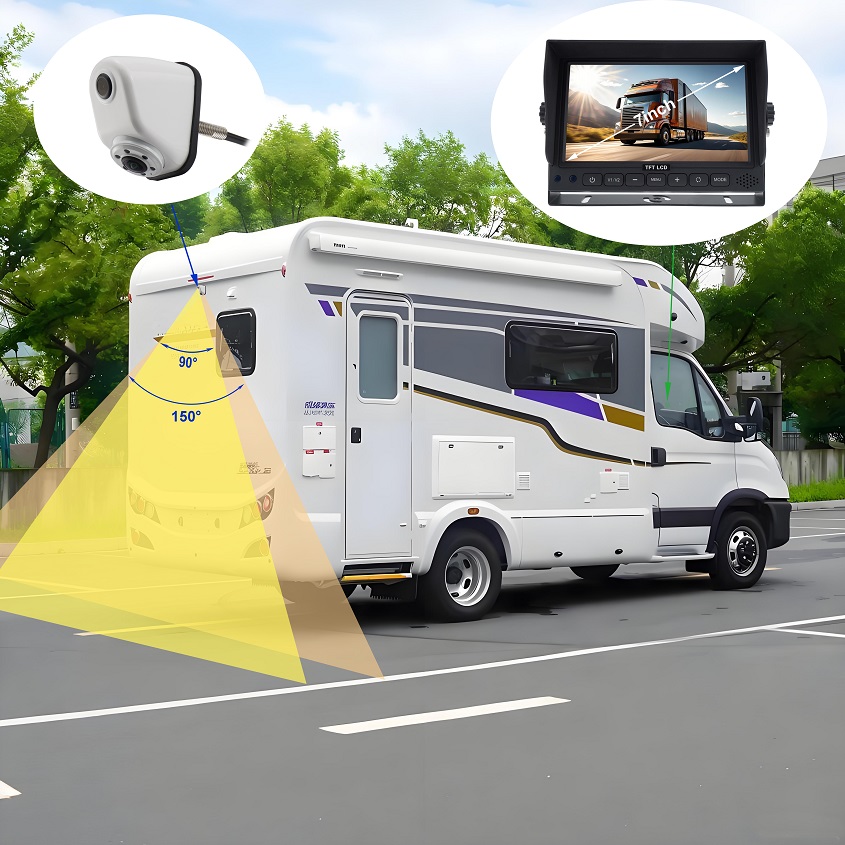

3. Class C Motorhomes
Reason for installation: Although smaller than the Type A, its rear body is usually wider than the cab and it has no rear window, which severely obstructs the view.

Installation location: Usually installed in the center of the top of the rear of the vehicle, using dual lenses to balance the needs of "long-distance monitoring" and "close-range reversing".

FAQ Section

Q: Why do I need two lenses on an RV camera?

Yes, One lens provides a constant "rear-view mirror" image for traffic, while the other provides a downward-facing view of your bumper for safe parking.

Q: Does this RV camera work while driving?

Yes, the rear‑view lens provides continuous monitoring on the road.

Q: Is the camera waterproof?

The IP68 housing protects it from rain, dust, and harsh weather.

Q: Can I install it myself?

Most users can install it with basic tools,professional installation is optional.
