Item number: ST-MDVR-4H

  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
  • 4 Channel 1080P HDD/SSD  DVR
Inquiry Now

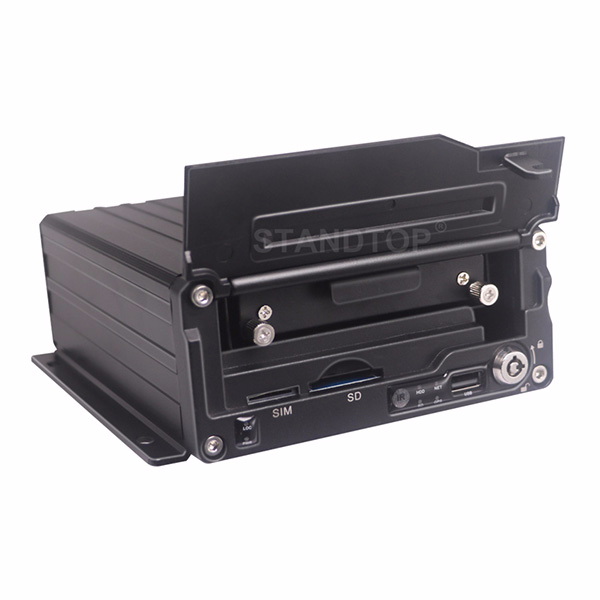

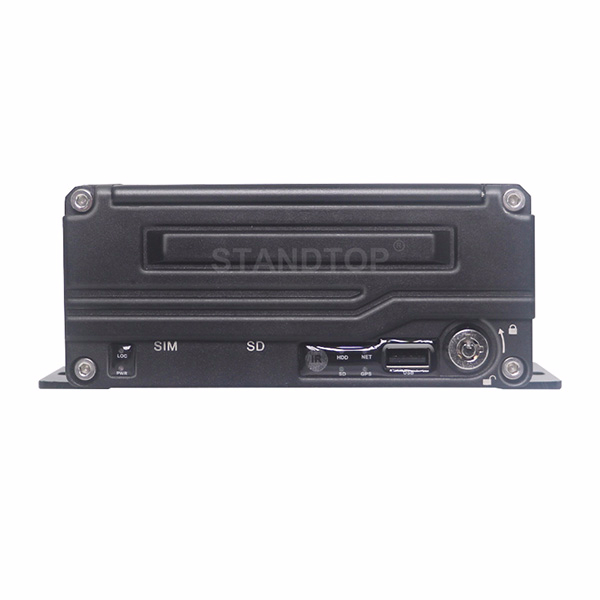

4 Channel 1080P HDD/SSD DVR
  • Built-in high performance chipsets
  • H.264 main profile coding system
  • 4 channels 1080P/720P AHD video recording
  • 4 channels audio recording
  • Built in GPS, Wifi
  • Max support 1x4TB HDD/SDD 1x256GB SD Carder
  • 3G/4G,Optional
  • If 3G/4G or Wifi, will match CMS fleet management platform
  • Or you can building in your owner platform
  • Certificate: CE FCC
Model 4 Channel  HDD/SSD  DVR    ST-MDVR-4H
Main Processor HI3520DV300/MC6630/98323
Operating System Embedded Linux
System language Chinese/English, others (Customized)
Video compression format H.264 Main profile
Password Security 2Levels:Administrator or User
Operating Interface GUI, Support mouse and remote control

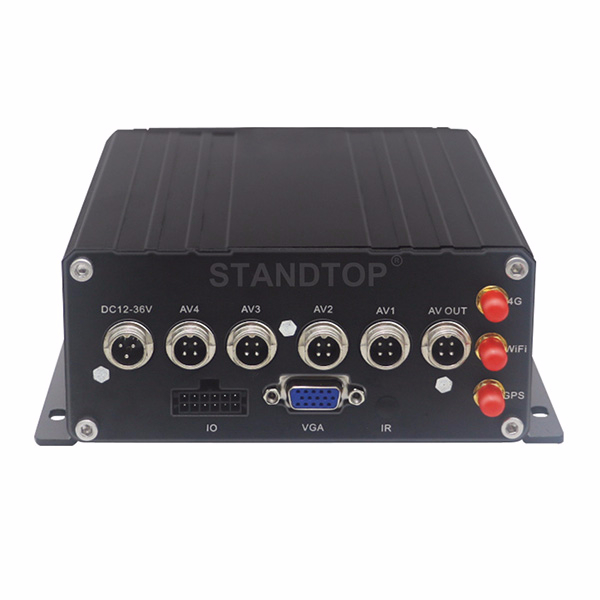

Video  Video input 4 channels, 1080P/720P AHD video input, aviation interface, 1.0Vp-p, 75Ω
Video output 1 composite video output +VGA output, 1.0Vp-p, 75Ω, support 1 full screen and 4/9 split
Signal system PAL@100 frame/s 1080P  NTSC@120 frame/s 1080P
Image display Single/QUAD display optional
Video Resolution Support 1080P, 720P, D1, HD1, CIF optional
Maximum support 4 channels 1080P or 720P
Video quality Class 0-7 optional
Recording Method Default automatic recording, support ignition recording, manual recording, alarm recording, etc.
Audio Audio input 4 channels, aviation head interface, external call handle input
Audio output 1 way, front headphone jack output and rear extension interface cable output
Compression format G.726 compression format, rate 8KB/s
Storage Size 1GB per hour (1080P)
0.5GB per hour (720P)
Alarm input 4 digital inputs
Alarm Output 2 -way switch output, linked audible and visual alarm, oil and power off, etc.
Communication interface (choose one) 1 RS232, expandable credit card machine, fuel sensor,LED advertising screen, etc.
1 way 485 interface, expandable PTZ
Wireless transmission Support built-in 3G wireless transmission function, WCDMA, CDMA2000,
TD-SCDMA compatible GPRS, EDGE
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
Positioning Support built-in GPS/BD module, can report to the department standard platform
Disk SD card Max 1x256G
Upgrade method USB disk/Wireless network/SD card
FTP remote automatic upgrade
Storage method Exclusive proprietary bare disk storage method
Video playback Video search Search video data by recording time, recording method, etc.
Replay Maximum support 4-channel synchronous playback, pause,
fast forward, fast rewind
Support 2, 4, 8, 16 times fast forward or backward
Power Supply Power management Adaptive wide-range power input, with protection functions,such as overload, undervoltage, short circuit, reverse connection, etc.
Support timer switch, delay shutdown function
Power Input  DC:+10V ~ +36V
Power output  +12V@2A+5V@1A
Power consumption Normal working state <5W (without peripherals)
Others Size  Include security cover   177*160*60MM
Net weight 900g

CMSV6 Software and Mobile APP Fleet Management Platform

GPS Tracking and Monitoring Image

Playback HD 1080P Image Quality

Kindly Reminder:If it is used on urban roads, HDD is no problem. If it is a construction site or mountain road, it is recommended to use a SSD. Mechanical hard disks run at high speed during work, and strong vibrations can easily damage the hard disk
