Item number: ST-501WRS
1.5inch HD monitor,800*480*RGB,Brightness:1000 cd/m2
2.160 degree wide angle view,2.0MP IP69K waterproof
3.6pcs high-bright LEDs driving assist at night or dark environment
4.720P H.264 HD DVR,support dual channel display, quad screen display, recording and online playback

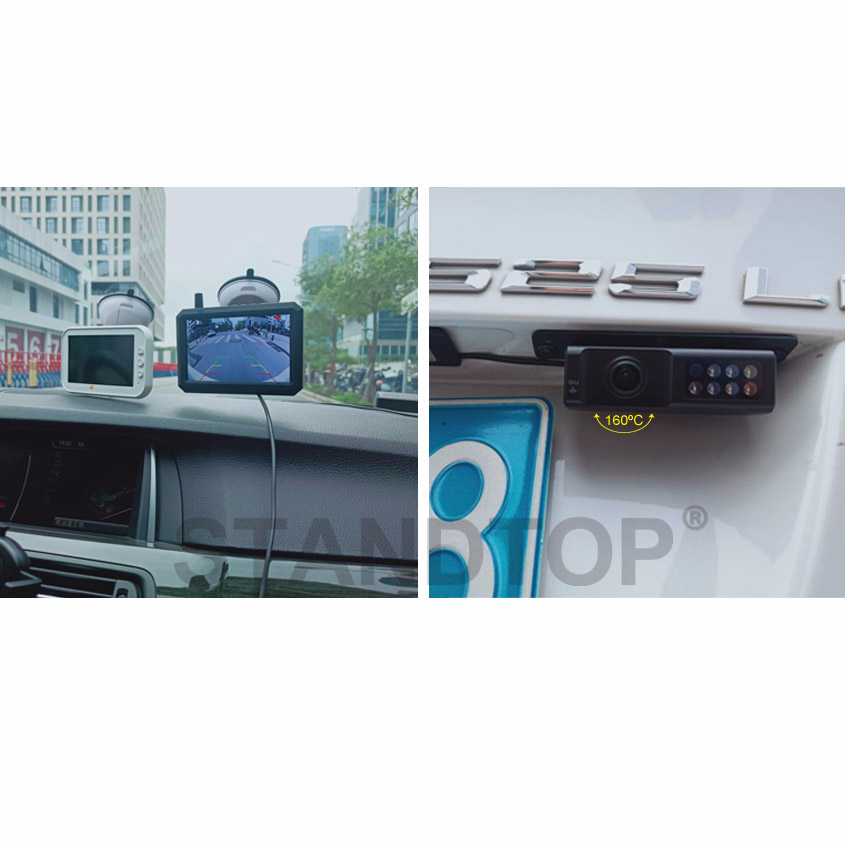

5.With flat cable design, powered from the license plate light, applied for both back up & driving observation assist
6. Guide line can be choose
| 5" HD 2.4G digital wireless Monitor Specification | |
| LCD Size | 5Inch |
| Resolution | 800*480*RGB |
| TV System | PAL/NTSC |
| Power supply | DC 12-24V |
| Brightness | 1000 cd/m2 |
| Transmitter Power | 24±1dBm@Max |
| Operating Frequency | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Receiver Distance | 300m(984ft line of sight) |
| TF Card | Min.8G Max.128G |
| Operating temperature | -20℃~+70℃ |
| Storage temperature | -30℃~+80℃ |
| HD 720P 2.4G Digital Wireless Camera | |
| Image sensor | 1/2.7" CMOS HD 200W |
| Effective Resolution | 2.0MP |
| Viewing angle | 160 Degree |
| Power Supply | DC 10-18V |
| Waterproof rating | IP69K |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Night vision distance | 8-10M |
| RF Bit Rate | 12Mbps |
| Operation Frequency | 2.4Ghz-2.4835Ghz |
| Latency | 160mS |
| Minimum Illuination | 0Lux |
| AGC | AUTO |
| BLC | AUTO |
| White Balance | AUTO |
| Spread Spectrum | FHSS |
| Working temperature | -20℃ to 70℃ |
| Storage temperature | -30℃ to 80℃ |
