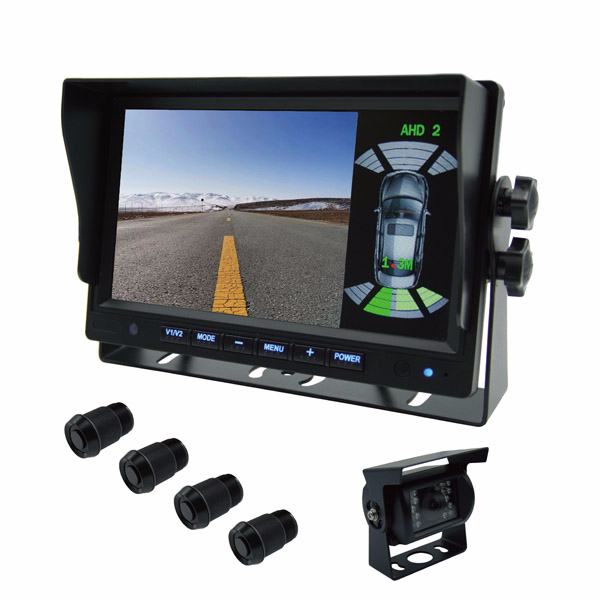

7Inch HD 1080P Digital Visual Reversing Radar System

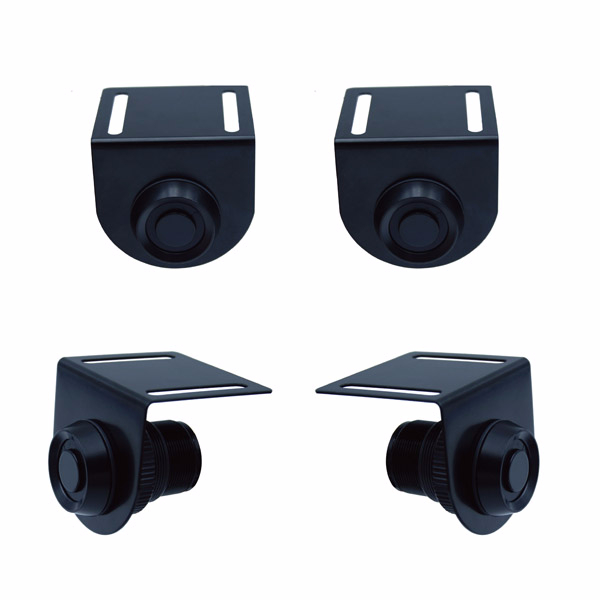

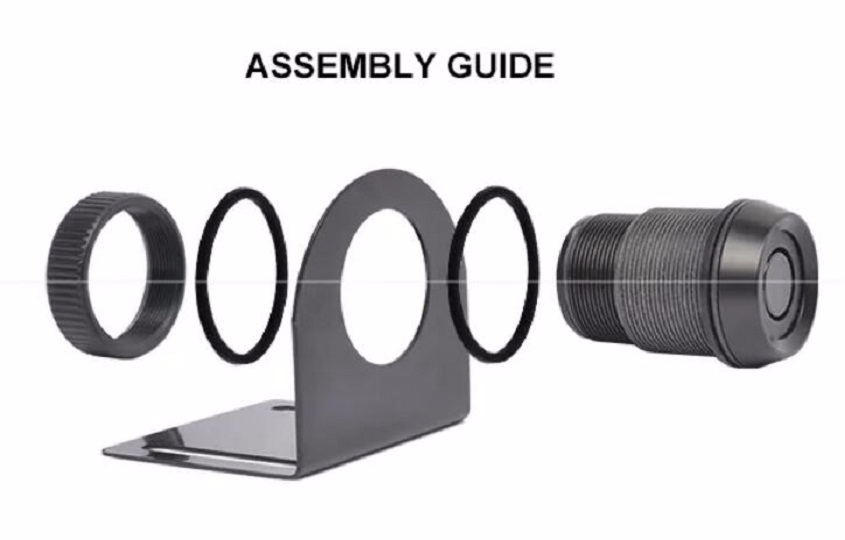

  This digital visual reversing radar system with Reverse Camera can get real vision the detection spot distance of driving and parking,help to avoid blind spots and secure driving and parking safety!Equipped with ultrasonic digital radar, without the need of radar host, it can directly display on the monitor the distance between the vehicle and the obstacle detected by the radar,strong anti-interference, special radar probe and equipped with a unique radar mounting bracket, high sensitivity, special connector , stable and good.professionally used for Commercial Vehicle Engineering Machinery Agricultural Vehicle Construction Vehicle etc.

Features:

  1. 7" HD 1080P IPS panel, 12-32V wide voltage
  2. HD 1080P Backup camera
  3. 4pcs 28mm diamater digital rader sensor,also 8-16pcs sensor optioanl
  4. Alarm distance 0.4-3m  parking distance 0.4-3m can be set
  5. 12 auto models choose types
  6. 3ways video input, 2ways trigger
  7. Human voice and BiBi buzzer alarm
  8. 2 Display mode:Full and Down
7Inch HD 1080P Digital Visual Reversing Radar System Specs
 LCD Size 7Inch  IPS
 Resolution  1024*600*RGB
 Video Format  AHD/CVBS Hybrid
 TV System  PAL/NTSC
 Power supply  DC 12-32V
 Brightness  500 cd/m2
 Contrast  400:1
 Power consumption  7W
 Screen ratio  16:9
 Auto models choose types  12types
 Viewing angle  L/R 75/75 U/D 75/45
 Signal input 3 ways
  Trigger 2ways
 Digital Radar sensor  Standard 4pcs,28MM diamater, 8-16pcs sensor optional
 Parking sensor Detection Range  0.4-3M
 Reverse Camera  Optional
 Camera  AHD 1080P, 4Pin aviation
 Operating temperature  -20~+70℃
Storage temperature  -30℃~+80℃
