Item number: ST-799HD3-AI
Functional features:

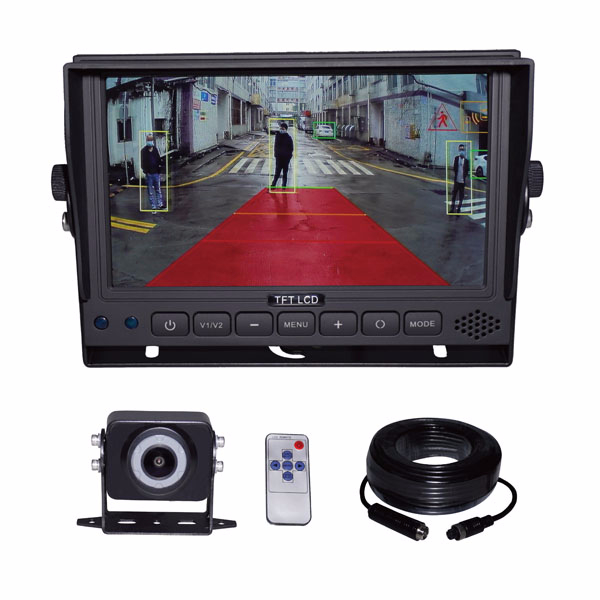

7Inch HD AI Pedestrian & Vehicle Detection System and early warning monitoring & reversing camera
Detection distance: 0.2M-6M
Alarm:DiDiDi sound,
Alarm sound from Rearview monitor which built in Speaker
AI algorithm for camera, which has built-in audio, and the audio is output from the camera.
1080P AHD Resolution Monitor, 720P AHD Resolution Camera
High temperature overload protection
AI recognition accuracy 0-15Km/h
| 7" AHD 1080P Rearview Monitor Specification | |
| Products Name | 7inch AHD 1080P Rearview Monitor |
| Video Format | AHD/CVBS Hybrid |
| Resolution | 1024*600*RGB |
| TV System | PAL/NTSC |
| Power supply | DC 9-36V |
| Power Consumption | 7W |
| Screen ratio | 16:9 |
| Backlight luminance | LED, Luminance 400 cd/m2 |
| Signal input | 2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid |
| Trigger | AV2 for reversing |
| OSD menu,Remote control | Yes |
| Connector | 4Pin or RCA optional |
| Accessories | User manual/Remote controller/Power cable/Sunshade/Bracket |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |
| 720P AHD AI Camera | |
| Image sensor | 1/2.9' GC2053 CMOS |
| Effective Resolution | 1280*720P |
| AI recognition algorithm | Delay 120MS within the range of 0-15KM per hour |
| Viewing angle | 2.8mm lens 120 degrees |
| Signal to noise ratio | 》52DB(AGC OFF) |
| System | PAL/NTSC |
| Image | Mirror |
| Video Output | 720P |
| Waterproof level | IP68 |
| 3D Noise reduction | Support |
| Connectors | 4PIN aviation connector |
| Power supply | 12V |
| Power consumption | About 0.8W |
| Maximum current | 80MA |
| Working temperature | -20℃ to 70℃ |
| Storage temperature | -30℃ to 80℃ |

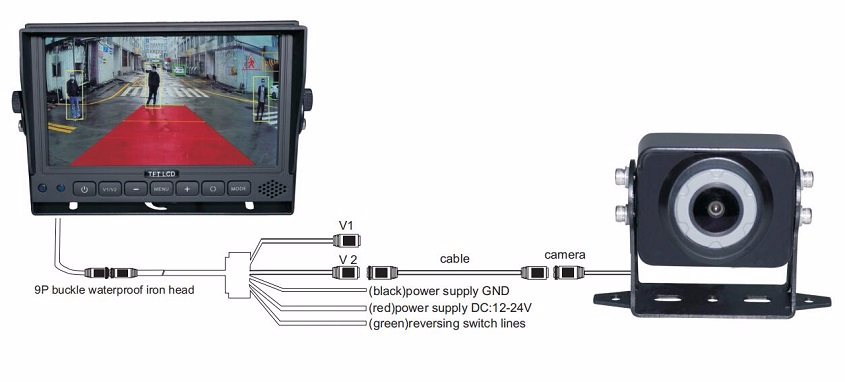

Wire Diagram:

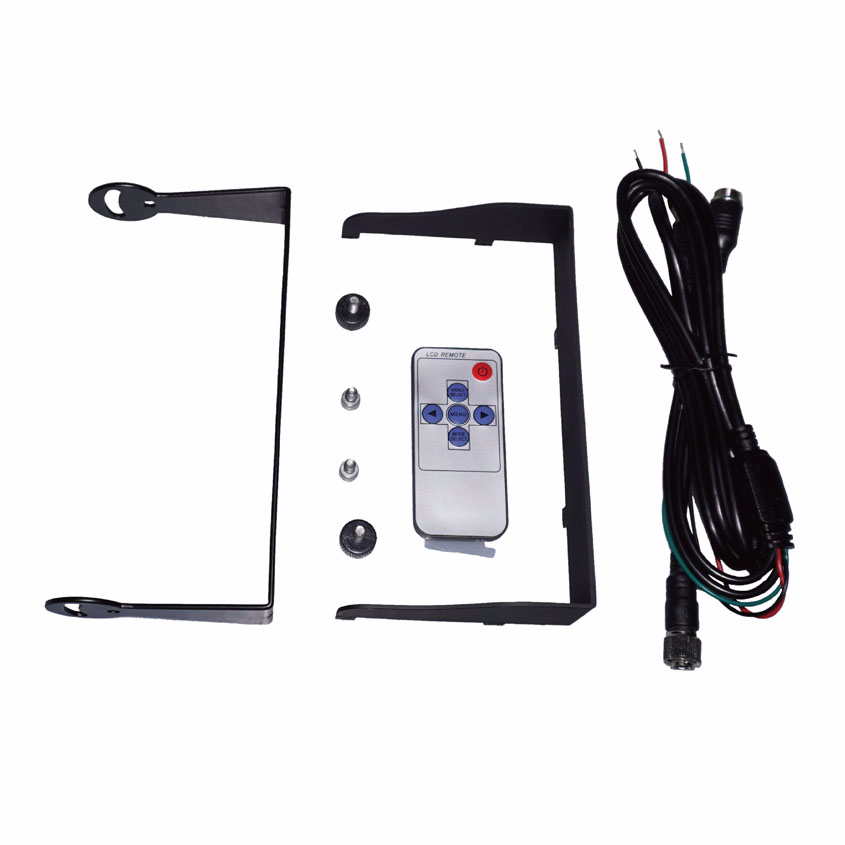

Accessories:

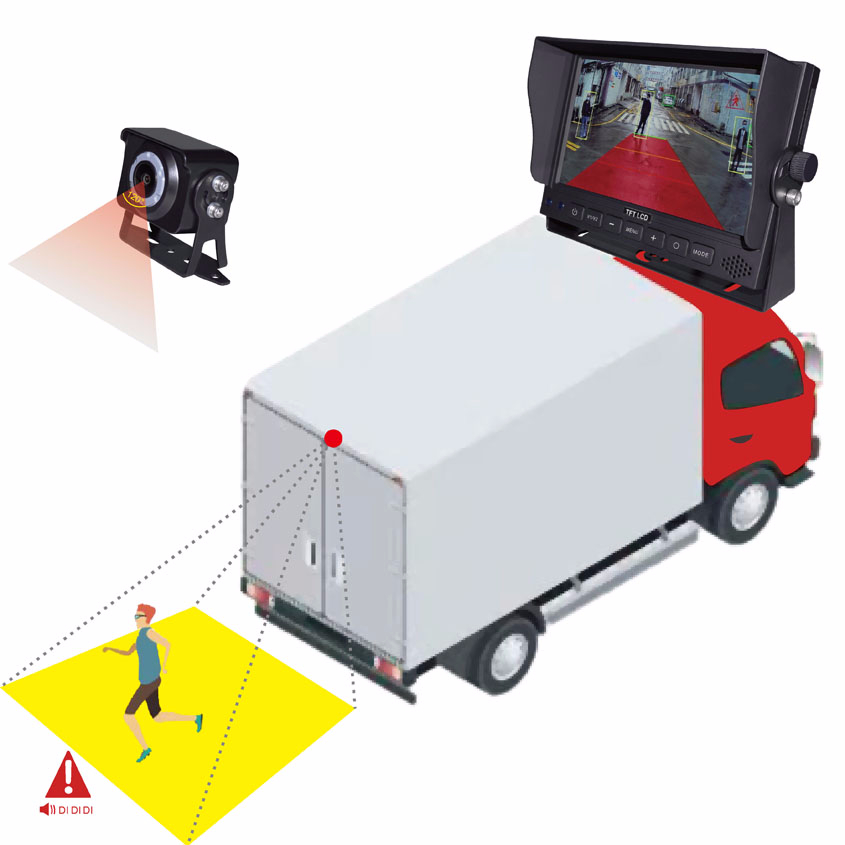

Application:
