7-inch 1080P Rearview Monitor 6 Channel DVR – HD Display, Multi-Camera Support, and Advanced Recording

PRODUCT INTRODUCTION

Item number: ST-799RVM-6C, 7-inch 1080P HD Rearview Monitor with 6-Channel DVR | Multi-Camera Split Screen System for Trucks, RVs, and Buses | Loop Video Recording

Inquiry Now

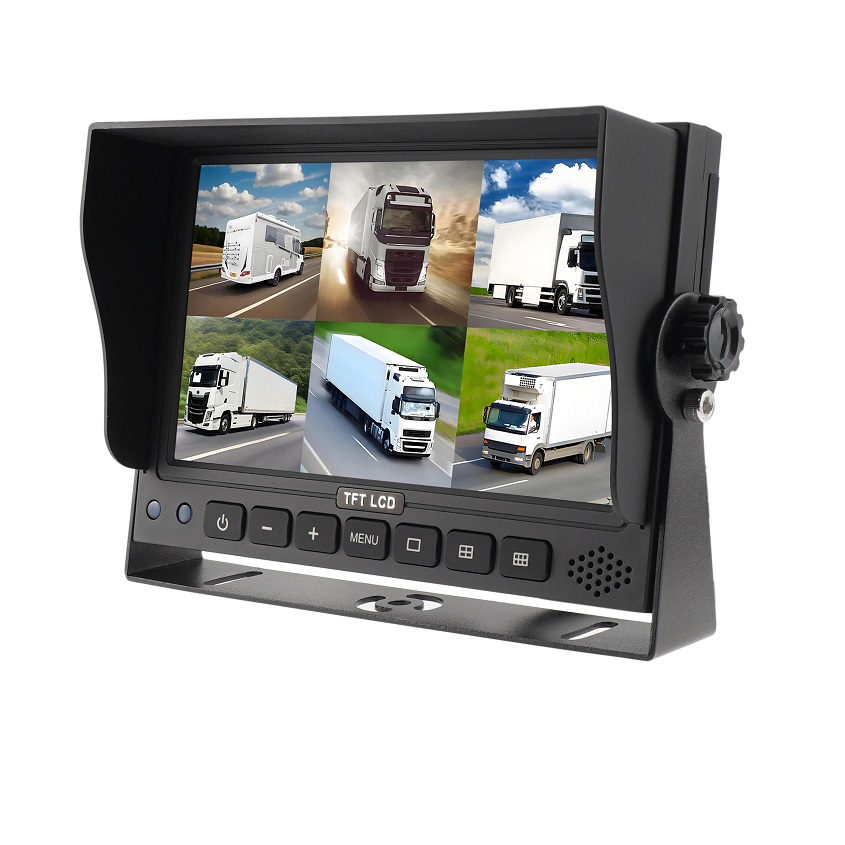

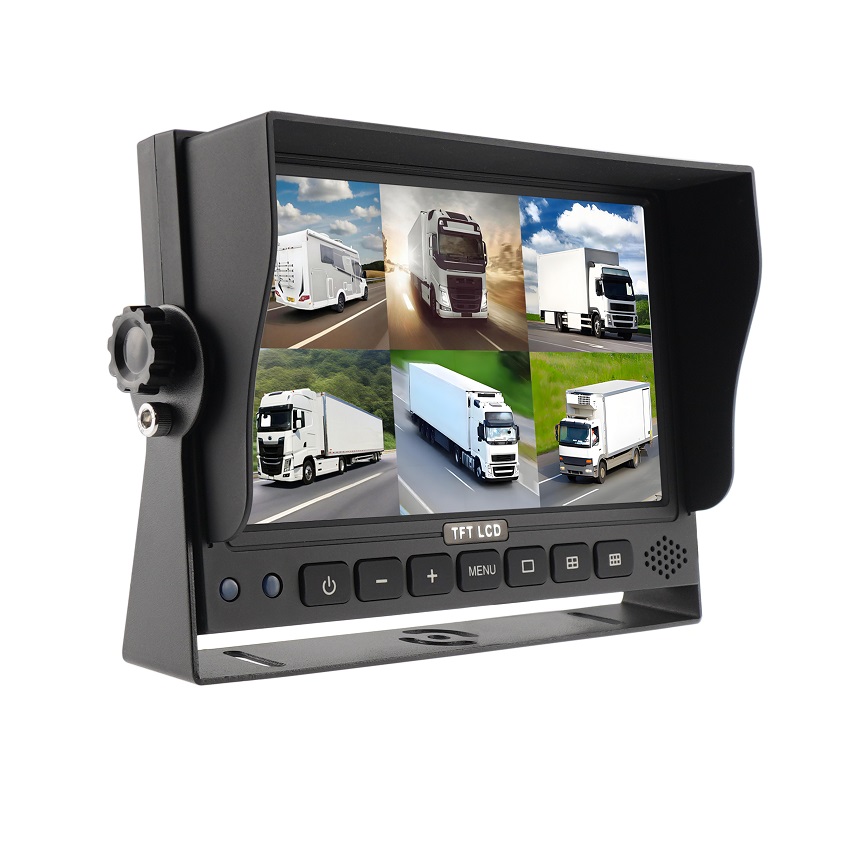

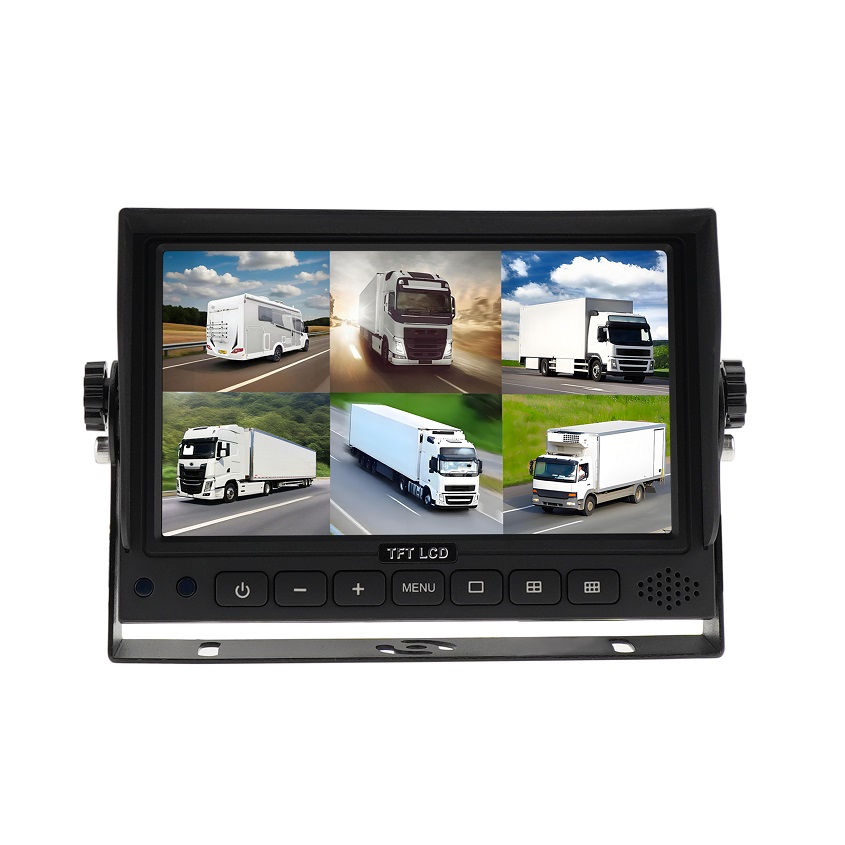

7-inch 1080P Rearview Monitor 6 Channel DVR

Products Description:

Take full control of your vehicle's surroundings with our 7-inch 1080P 6-Channel DVR Monitor. Designed for large-scale vehicles, this system allows you to connect up to six cameras simultaneously, providing a seamless 360° view. With built-in DVR recording, you aren't just watching your blind spots-you’re capturing every mile for insurance and safety

Key Benefits:

6-Channel Input: Monitor front, rear, left, right, and two additional angles (cargo or interior) all on one screen.
Full HD 1080P Clarity: Crystal clear AHD resolution ensures you see every detail, even at night.

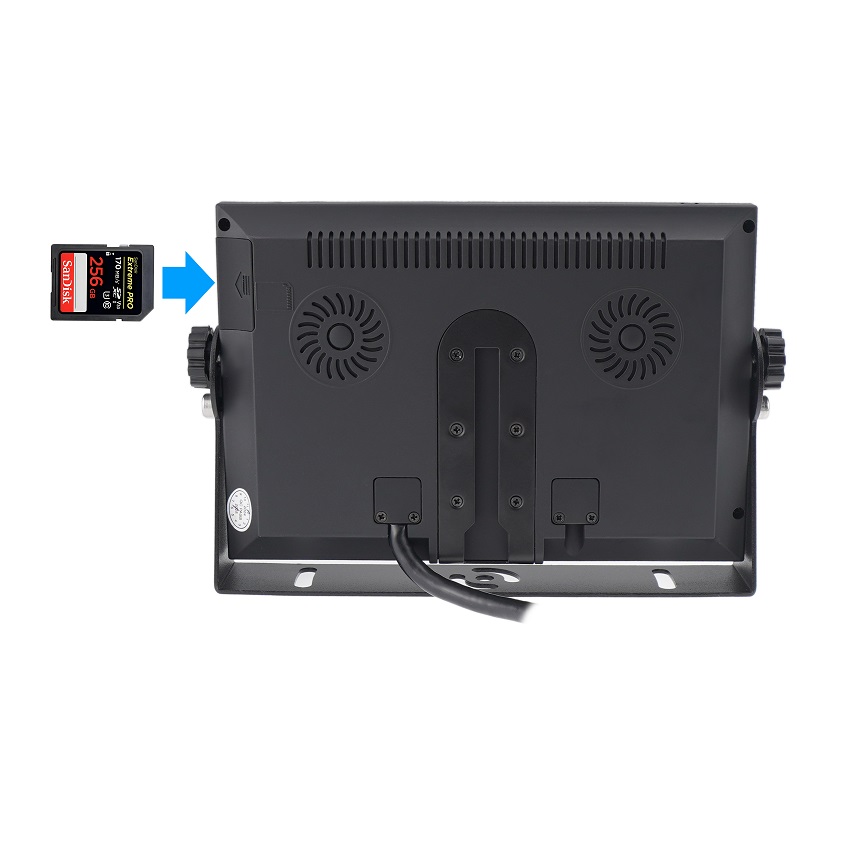

Integrated DVR Recording: Supports up to 256GB]SD cards with loop recording to ensure you never run out of space.
Customizable Split Screen: Choose from single, dual, quad, or 6-way split-view modes to suit your driving needs.
Heavy-Duty Build: Designed with a wide voltage range (12V-36V), making it perfect for semi-trucks, trailers, and construction equipment.

Product Specs:

Category	Parameter
Screen Size	7inch IPS AHD 1080p
Resolution	1024600RGB
Mounting method	Dash or Roof mount
Video Format	AHD/CVBS Hybrid
TV System	PAL/NTSC
Power supply	DC 9-36V
Power Consumption	12W
Screen ratio	16:9
Backlight luminance	LED, Luminance 500 cd/m2, 1000 cd/m2 optional
Viewing angle	L/R 85/85 U/D 85/85
Signal input	6ch AHD 1080P /720P input, 6ch CVBS input, AHD/CVBS Hybrid
Trigger	5 trigger wires, if without video recorder function, have 6 trigger wires
Video recording function	Optional, Up to 256GB SD carder
Video Mode	Full /2/3/4/5/6 image
OSD menu,Remote control	Yes
Connector	4pin aviation
Operating Temperature	-30℃～70℃, RH 95% MAX

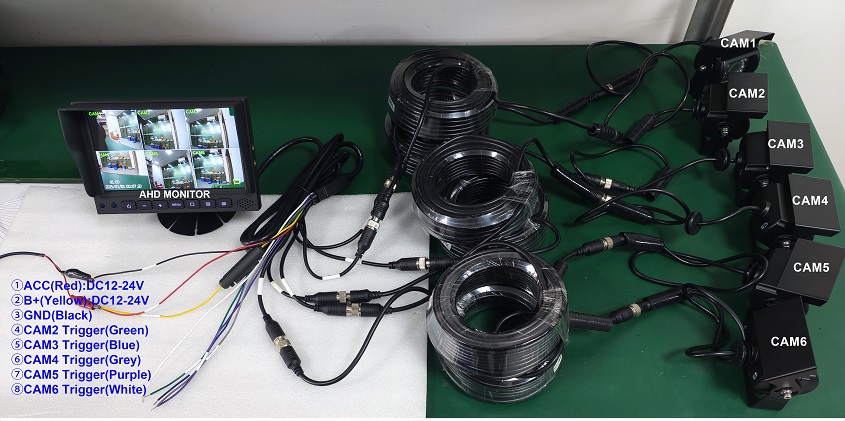

Wire Diagram:

Product Applications:

Suitable for fleets, RVs, trucks, buses, and heavy-duty vehicles

In the box:

1 x 7" 1080P 6 Channel Rearview Monitor with Power Harness
1 x Remote Control
1 x Manual

Due to different customers have different product requirements, add the product may be installed on different vehicles, there may be some special requirements,based on our practical experience,the below are some points that our clients have actually mentioned and we already have solved it，Please read the following carefully.

✅Is it possible to change the menu language to the customer's country's language?

Yes, if our default menu language does not include the client's country's language, we can use a translated OSD Menu provided by the client and then incorporate it into our software.

✅Can we add our company's Logo for sart up picture?

Yes, you can provide us the 1024*600 resolution of your Logo.

✅We need a brighter screen, is that possible?

Yes, our standard screen brightness is 500 cd/m2, but a 1000cd/m2 screen is also possible, though that would increase the cost.

✅ Can be choose more different types of the install bracket?

Yes, we have others bracket, such dash mount, roof mount

✅ Are there any compatible AHD cameras and extension cables available for it?

Yes, the extension cable we have 5M,10M,15M or 20M length.

AHD cameras we have front, rear, side and internal dome camera, you can open the link: https://standtop.com/ahd-rear-view-cameras.html

If you feel this product suits your needs,or if you have any other questions about this product,please feel free to contact our sales department.

E-mail: sales@standtop.com WhatsApp/Wechat/Cell: +86 13826556522
