7inch AHD 1080P
2 split With video recording function
Resolution:1024*RGB*600
Power:DC9-36V
System: NTSC/PAL
Power consumption:7W
Brightness:450cd/m2
support for max memory:128G SD carder( Class 10)
Processor core: 32 Bit RISC CPU@700MHz
Embedded 1G bit DDR3 SDRAM
Video RX chip N5 supports AHD, CVBS, CVI, TVI signals
Video recording: AHD/720P 30 frames/second  AHD/1080P 25 frames/second
Encoding format: AVI
Automatic recycle recording when the memory car is full.
video mode:full image,2 split image

AHD camera
1/2.9 CMOS AHD sensor
1080*720 AHD resolution,1 million pixels
100 degree angle view
Waterproof level:IP68
Power supply:DC12-32V
Storage temperature:-30 to 80℃
Working temperature:-20℃ to 70℃

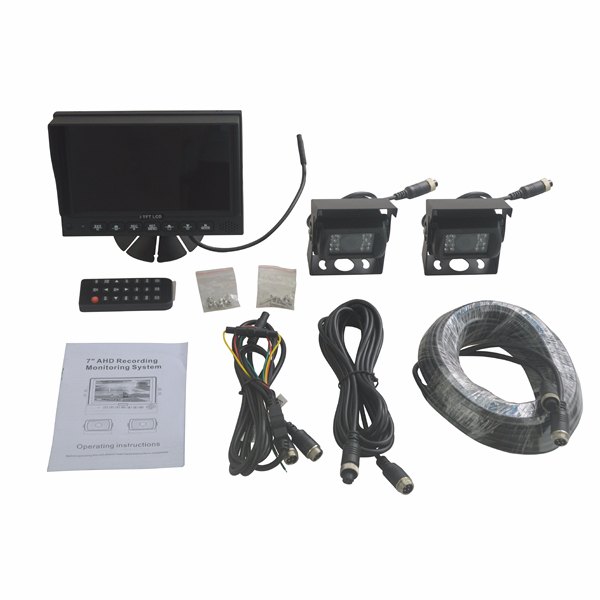

1*pcs 7" AHD monitor
2*pcs AHD 720P camera
1*pcs 5M longer extension cable
1*pcs 15M longer extension cable

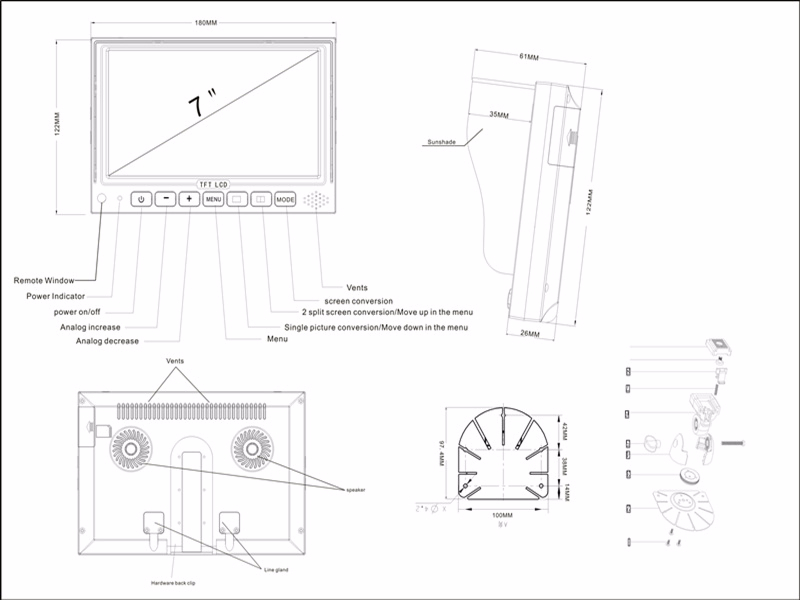

Technical drawing:
