Welcome to Standtop Technology Group Co., Ltd.

PRODUCT INTRODUCTION

Item number: ST-799WRS

  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
  • 7Inch AHD Wireless Video System
Inquiry Now

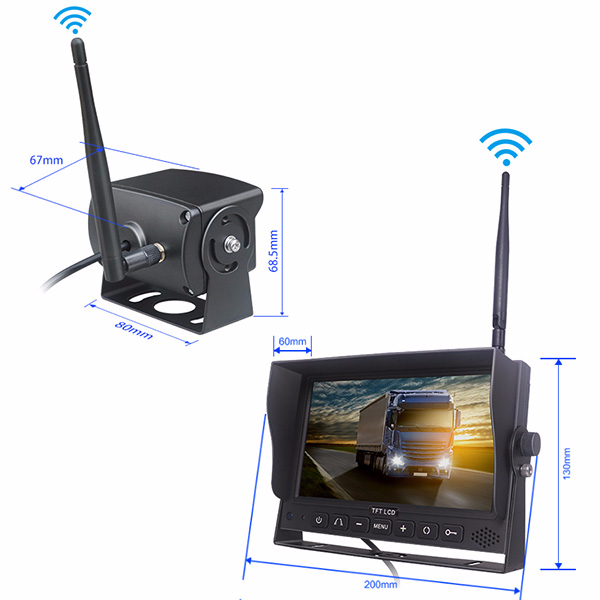

7Inch AHD Wireless Video System
Wireless Monitor Specs
 Products Name  7inch AHD  Rearview Monitor
 Resolution  800*480*RGB
 Video Input  1way Channel Video
 TV System  PAL/NTSC
 Power supply  DC 12-32V
 Power Consumption  5.5W
 Screen ratio  16:9
 Brightness (cd/m2)  400 cd/m2
 Contrast Image Ratio  350:1
 Operating Frequency  Digital wireless
 Video Decode  H.264
  Size:  200*130*60mm
 OSD menu  Yes
 Connector   Power lead with lock
 Shockproof level   4G
 Accessories  User manual/Remote controller/Power cable/Sunshade/Bracket
 Operating Temperature   -20℃~70℃, RH 95% MAX
 Storage Temperature  -30℃~80℃, RH 95% MAX
Wireless Safety Camera Specs
 Image Sensor  1/3 AHD H65 sensor
 Resolution  AHD 1080P
 Effective Pixels   1920(H) x 1080(V)
 TV System  PAL/NTSC
 Viewing angle  2.8MM Lens, 120 Degree
 Power supply  DC 12-32V
 Waterproof Level  IP68
 IR lights  18Pcs
 Image  Mirror
 Transmission Distance  300M
 Operating Frequency  Digital wireless
 Video Decode  H.264
 Size:  79.8*67.9*68.45mm
 Shockproof level   4G
 Power Consumption <3W
 Maximum current: <250mA
 Minimum Illumination  0.1 Lux (day), 0 Lux (with IR)
 Video Output  1.0 Vp-p/75 Ohm
 IR cut  Yes
 Connector  Power lead with lock
 Body Housing  Zinc alloy housing
 Operating Temperature   -20℃~70℃, RH 95% MAX
 Storage Temperature  -30℃~80℃, RH 95% MAX

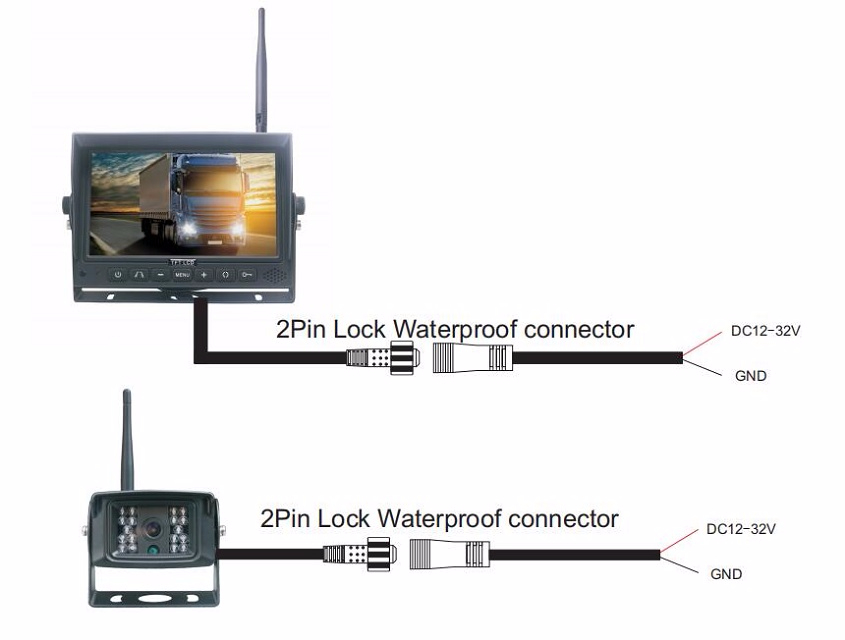

Wire Diagarm:

Spare Parts:
