Item number: ST-799WRS-1
1.Support Max 4 wireless camera with split image
2. DVR function optional
|

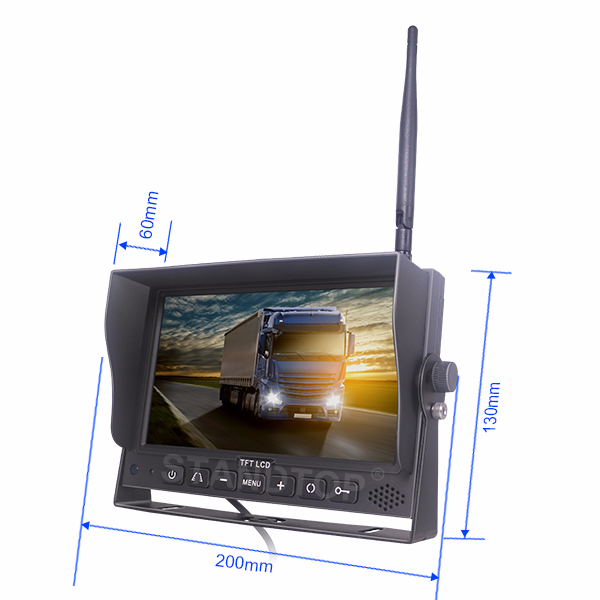

2.4G Digital Wireless Monitor Specification |
|
| Products Name | 7inch AHD 1080P Rearview Monitor |
| Video Format | AHD 1080P |
| Resolution | 1024*600*RGB |
| TV System | PAL/NTSC |
| Power supply | DC 9-36V |
| Power Consumption | 7.5W |
| Screen ratio | 16:9 |
| Backlight luminance | LED, Luminance 400 cd/m2 |
| Signal input | 1ch AHD 1080P input |
| Trigger | The signal is turned on, then monitor display the camera image |
| Operating Frequency | Digital wireless |
| Video Decode | H.264 |
| Size: | 200*130*60mm |
| OSD menu | Yes |
| Connector | Power lead with lock |
| Shockproof level | 4G |
| Accessories | User manual/Screws/Antenna/Power cable/Sunshade/Bracket |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |

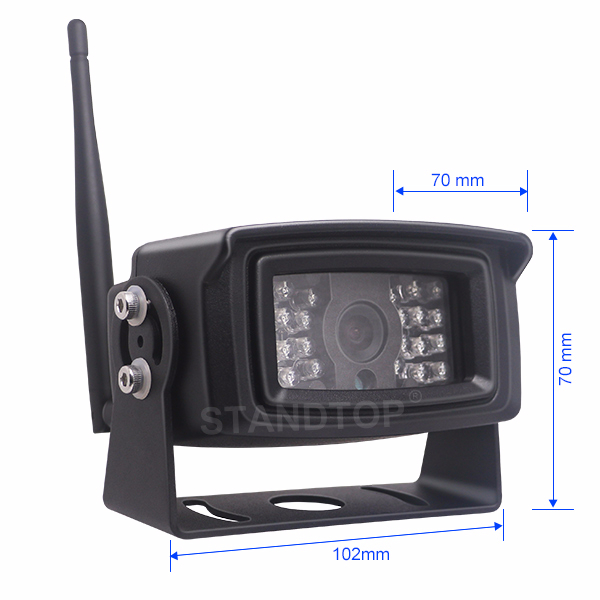

| 2.4G Digital Wireless Camera Specification | |
| Image Sensor | 1/3 AHD H65 sensor |
| Resolution | AHD 1080P |
| Effective Pixels | 1920(H) x 1080(V) |
| TV System | PAL/NTSC |
| Viewing angle | 120 Degree |
| Power supply | DC 12-24V |
| Waterproof Level | IP68 |
| IR lights | 24Pcs |
| Image | Mirror |
| Transmission Distance | 300M |
| Operating Frequency | Digital wireless |
| Video Decode | H.264 |
| Size: | 102*70*70mm |
| Shockproof level | 4G |
| Power Consumption | ＜3W |
| Maximum current: | ＜250mA |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Video Output | 1.0 Vp-p/75 Ohm |
| IR cut | Yes |
| Connector | Power lead with lock |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |
Wire Diagarm:

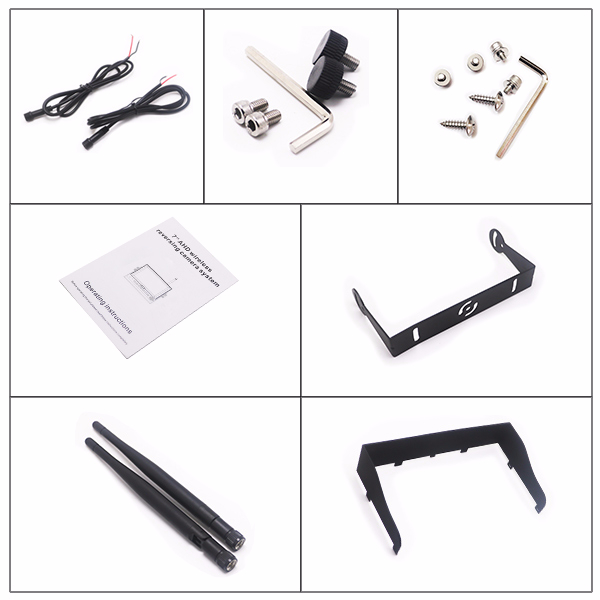

Spare parts:
Install Position:
