Item Number: ST-WF-1C
| WiFI Camera Specification | |
| Image Sensor | CMOS 1/4” sensor |
| Resolution | 640*480 |
| TV System | PAL/NTSC |
| Viewing angle | 140 Degree |
| Power supply | DC 12V-24V |
| Waterproof Level | IP69K |
| IR lights | 4Pcs |
| Image | Mirror |
| Transmission Distance | Normal wifi distance, 25M in open distance |
| Battery Capacity | 6400mA |
| Working Time | Daytime/32H Night Vision/18H |
| Battery Charging Time | DC5.5 12-24V/6H |
| Magnetic base | Yes |
| Camera Adjustable | Angle 0-100 degree |
| Frequency | 2400-2483.5MHZ |
| Modulation | FHSS |

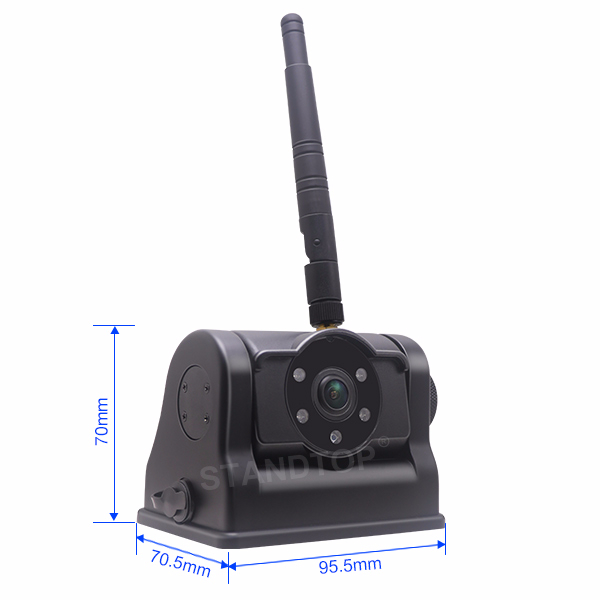

| Size: | 95.5*70.5*70MM |
| Shockproof level | 4G |
| Power Consumption | ＜3W |
| Maximum current: | ＜250mA |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Video Output | 1.0 Vp-p/75 Ohm |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |
