CVBS/AHD Car reverse camera

Main Featrures:

360°Rotable lens

140°Horizontal angle view

CVBS/AHD Switchable

PAL/NTSC Switchable

Gride line on/off



Specification:

Image sensor: 1/3”sensor

Resolution: CVBS 600TVL/ AHD:1920(H) x 1080(V)

TV System: PAL/NTSC

Viewing angle: 140°Horizontal

Power voltage: DC 12V

Waterproof Rating: IP68

Night vision distance:8-15m

Minimum Illumination:0.01 LuxV

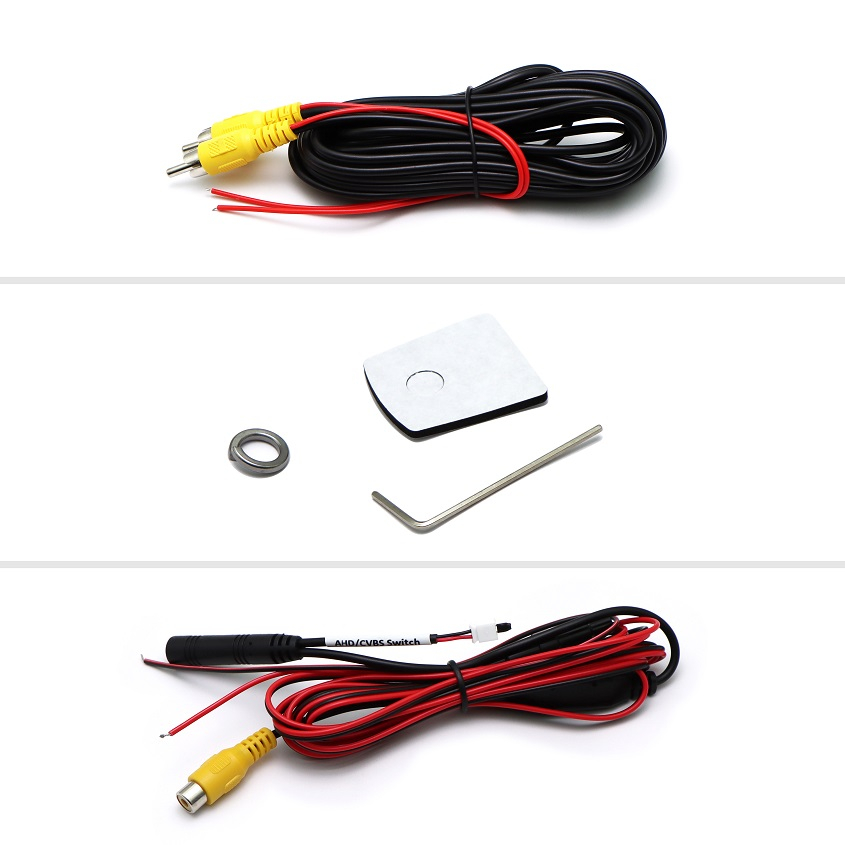

Connector: RCA or 4Pin aviation

Operating Temperature:-20℃~70℃, RH 95% MAX

Storage Temperature:-30℃~80℃, RH 95% MAX

Certificate: ECE R10

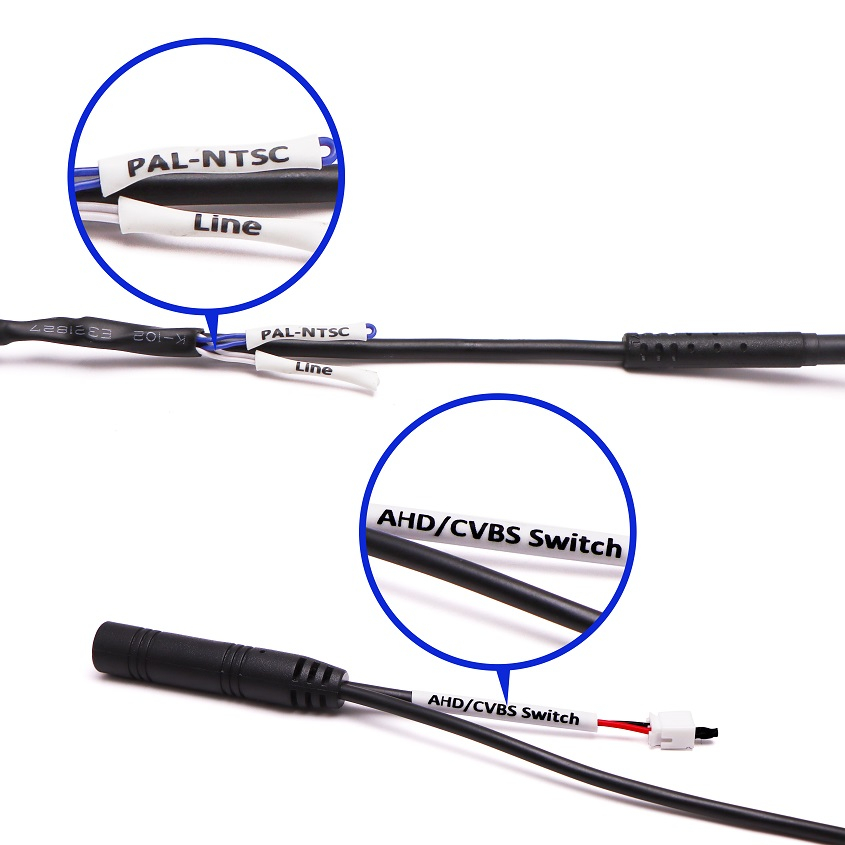

Switched wires function:

TV System: Standard PAL (NTSC can be switched by blue wire)

Parking line: Standard ON (OFF can be switched by white wire)

Signal: Standard CVBS (AHD can be switched by the small white plug)
