7inch HD 1080P AI BSD System

PRODUCT INTRODUCTION

Item number: ST-722HD1-AI

7inch HD 1080P AI BSD System

When peopel or vehicle enters the set area around the vehicle while the vehicle is working, the AI camera can identify and present it on the monitor in real time, superimpose the personnel tracking and alarm identification frame, and send a real-time audio and video alarm to the driver to remind the driver to pay attention in time to avoid collision accidents.

1.Pedestrian or vehicle alert sounds directly from the display

2. the adjustment detection zone is done via monitor,also some other function of AI camera, which can be adjusted via this monitor

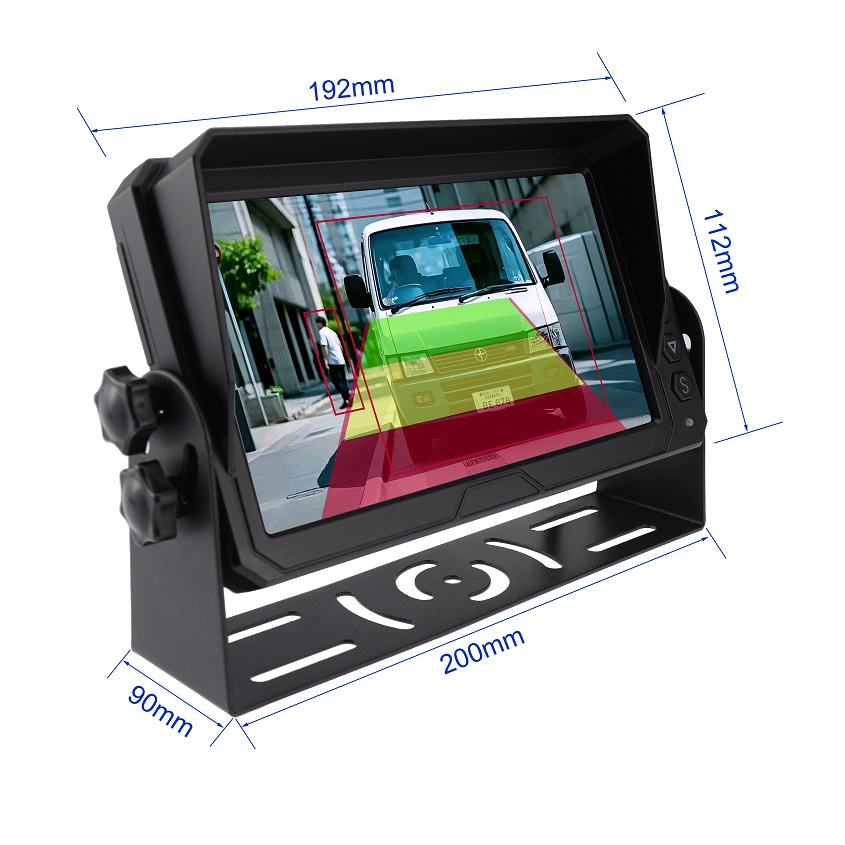

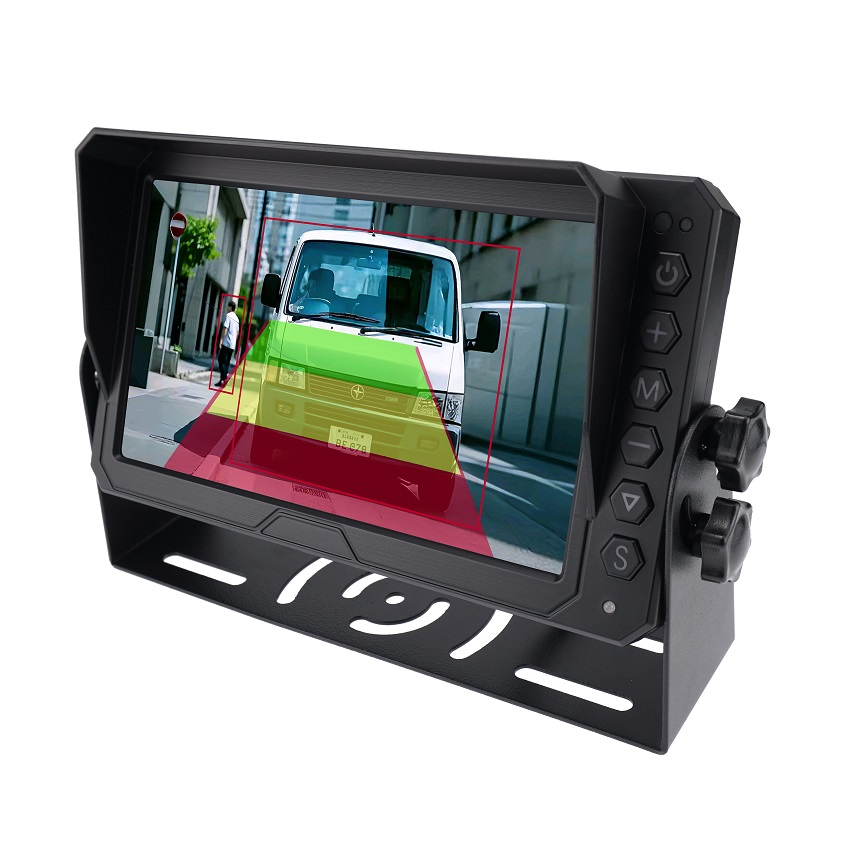

7" HD 1080P Rearview Monitor Specs
Products Name	7inch IPS HD 1080P Rearview Monitor
Video Format	AHD/CVBS Hybrid
Resolution	1024600RGB
TV System	PAL/NTSC
Power supply	DC 12-32V
Power Consumption	7W
Screen ratio	16:9
Backlight luminance	LED, Luminance 500 cd/m2
Signal input	2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid
AV input	3 AV Input
Trigger wires	2 trigger wires
Connector	4Pin aviation
Operating Temperature	-30℃～70℃, RH 95% MAX

1080P AHD AI Camera
Image sensor	1/2.9" CMOS
Effective Resolution	1920*1080P
Viewing angle	2.8mm lens 120 degrees
Detection distance	0.2-10M
System	PAL/NTSC
Image	Mirror
Waterproof level	IP69K
3D Noise reduction	Support
Connectors	4PIN aviation
Power supply	12V
Working temperature	-30℃ to 70℃
