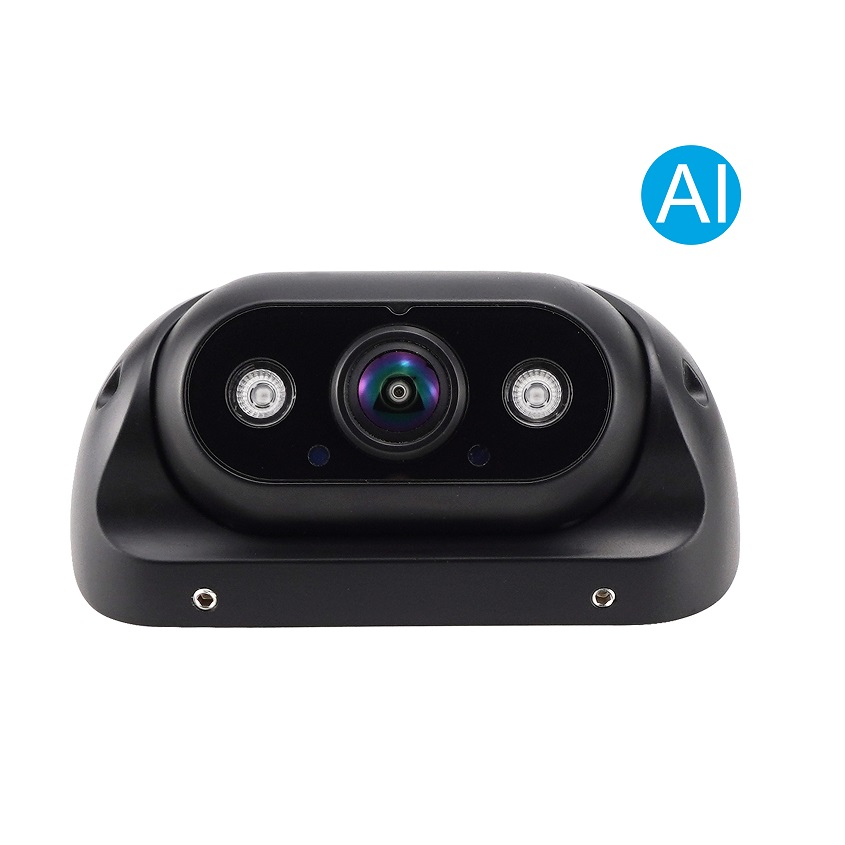

Item number: ST-666AI HD 1080P Pedestrian and Vehicle detection AI camera

  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
  • Pedestrian and Vehicle detection AI camera
Inquiry Now

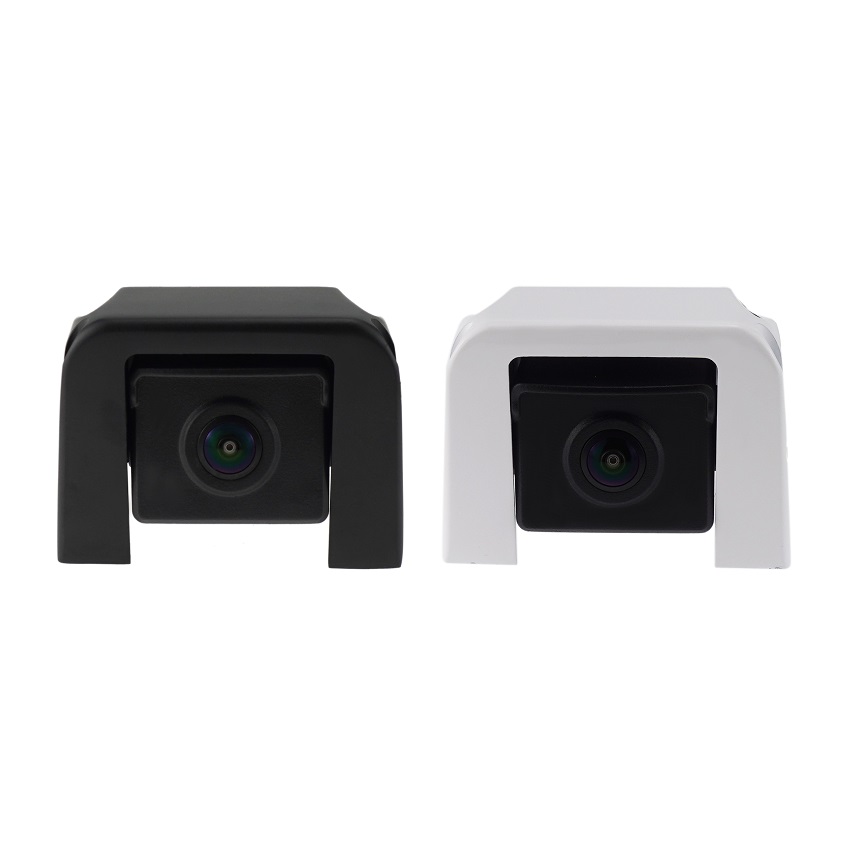

Pedestrian and Vehicle detection AI camera

     AI vehicle and pedestrian detection surveillance camera, AHD 1080P, wide angle horizontal angle 150 degrees, AI camera cable USB interface connected to the flash disk with Wifi module, connect this Wifi through the smart phone and enter the APP, operate and set various parameters of the AI ​​camera in the smart phone APP, so that when the AI ​​camera is installed on the vehicle, it can better adjust various functions, detection scale shape, detection range height, early warning settings, etc. the AI ​​function will be more accurate after adjustment according to different application scenarios. It is used in a variety of commercial vehicle models, such as trucks/HGV, etc. this AI camera can be used for the actual application of road regulations in many countries, such as regulations in many European countries UN ECE R151, R159 etc, and would become the standard in the commercial vehicles (BSIS and MOIS)

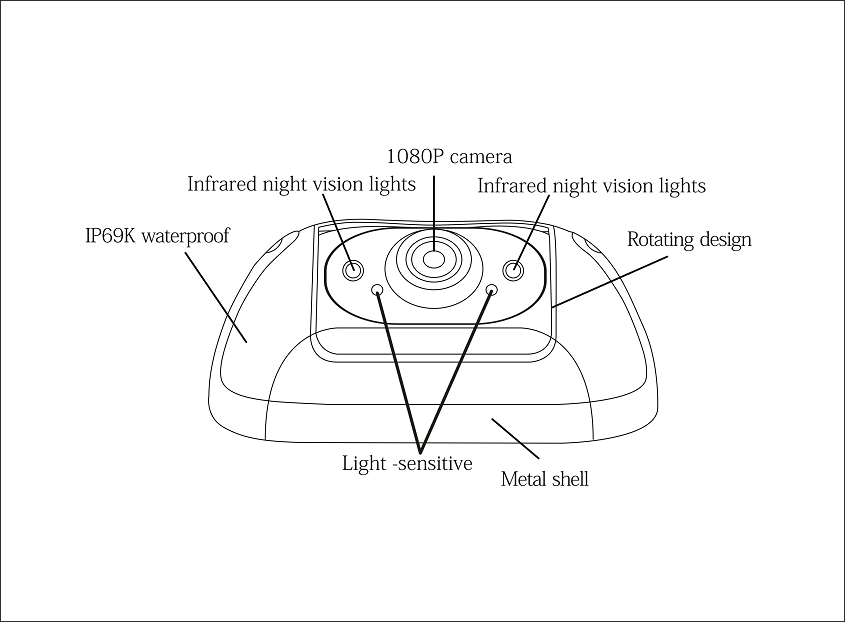

Product Features:

  • AHD 1080P, 150 Degree horizontal angel view
  • Adjust various parameters through smart phone APP,adjustable alarm Zone etc
  • Protection Rating IP69K,making it suitable for various weather conditions
  • Can be used with your existing AHD monitor and MDVR, or ours

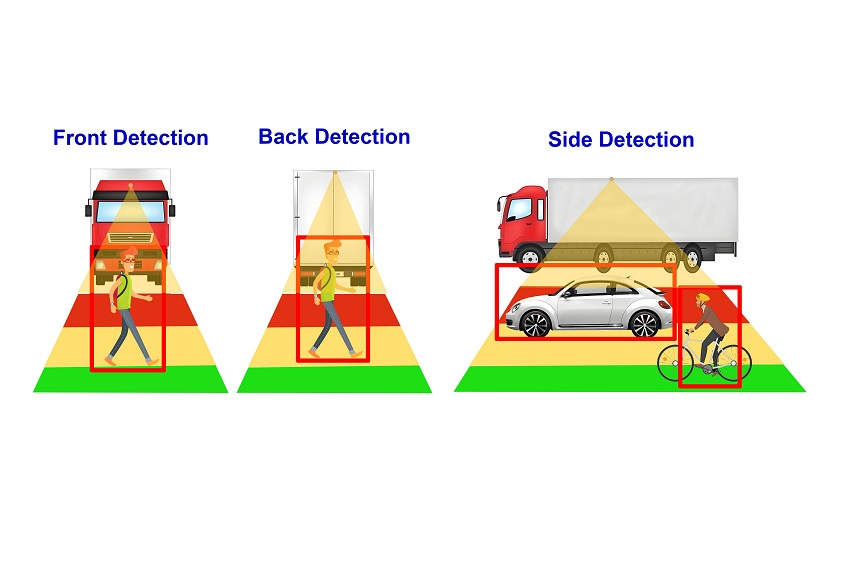

  • Suitable for installation in all directions of the vehicle
  • Applicable for HGV/Trucks/Vans etc

Product Parameters:

Category Parameter
Image Sensor 1/3" CMOS
Resolution AHD 1080P, 2MP
Effective Pixels  1920(H) x 1080(V), 25 fps/30fps
Viewing angle 150 Degree(H)
Lens 2.0MM
Power supply DC 9-15V
Detection distance 35M
Waterproof Level IP69K
Video Output 1.0 Vp-p/75 Ohm
White balance Auto
Digital noise reduction 2D, 3D
Minimum Illumination 0.1Lux@(F2.0, AGC on)
Connector 4pin aviation
Body Housing Zinc alloy housing,Piano paint
Casing color  Black or silver grey
Operating Temperature  -30℃~70℃

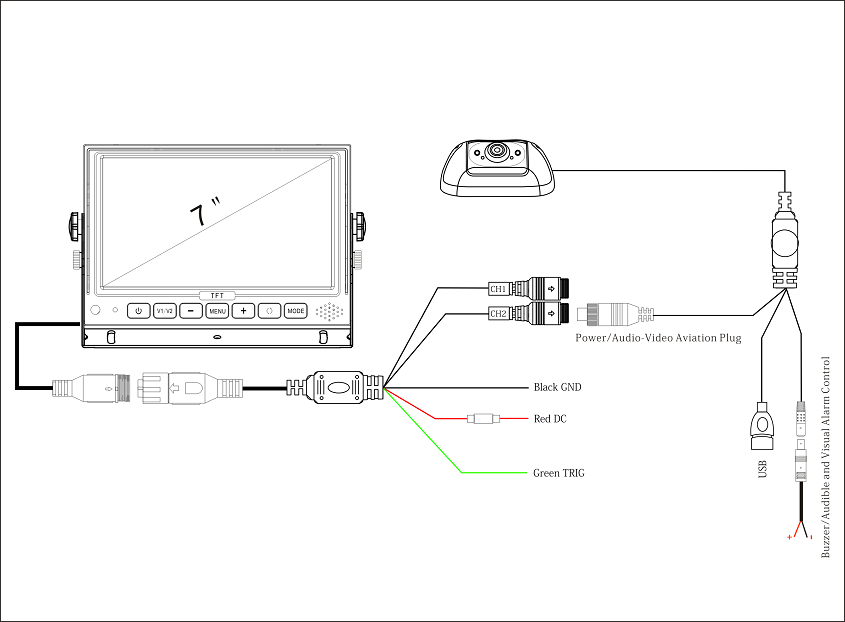

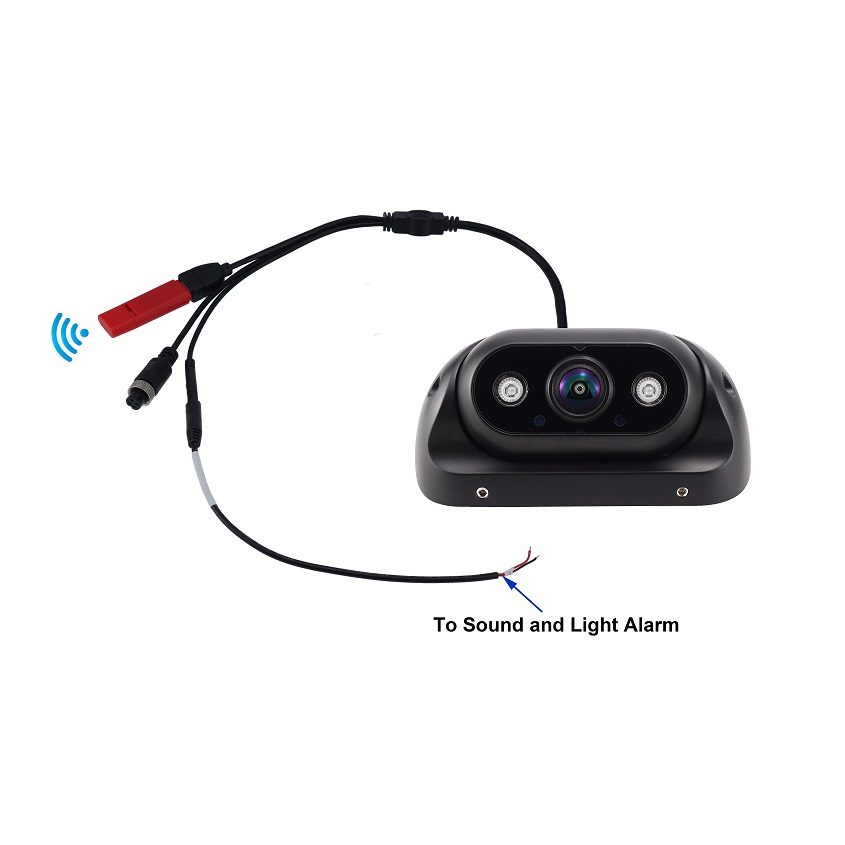

Wire Diagram:

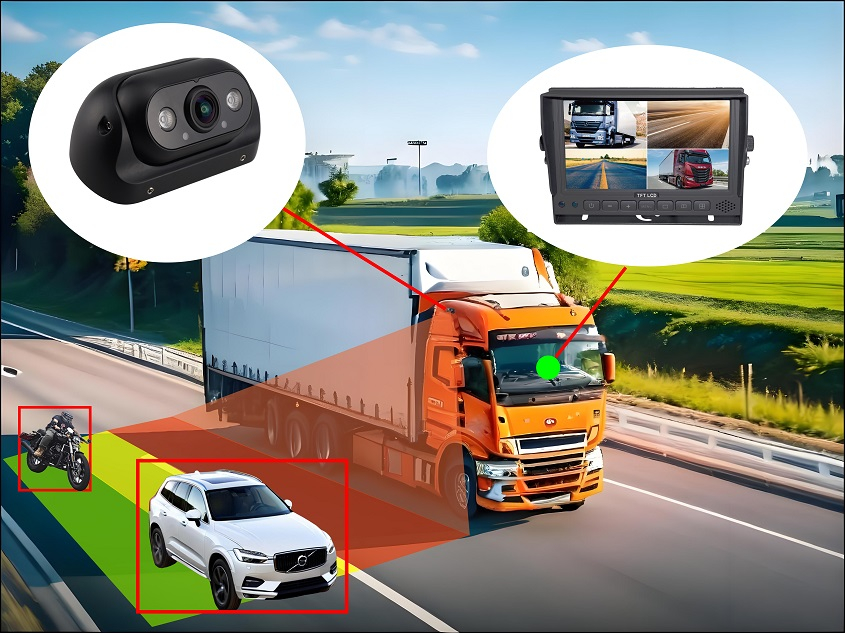

Product Applications:
