PRODUCT INTRODUCTION

Item number: ST-CCD-TF

  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
  • Sony CCD Front Rear Side Rear View Camera
Inquiry Now

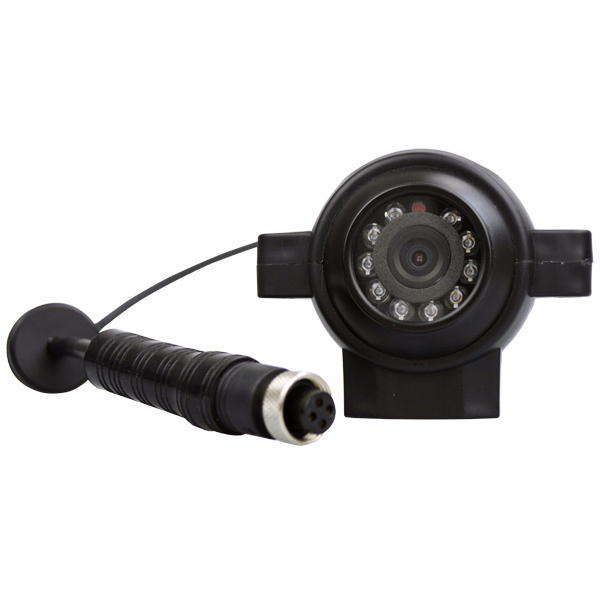

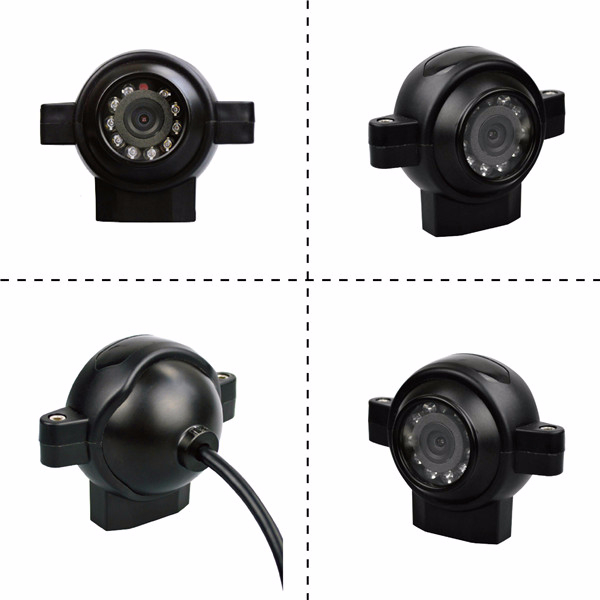

Sony CCD Front Rear Side Rear View Camera

Specification:

 Image Sensor  1/3 Sony CCD  sensor
 Resolution  600TVL
 TV System  PAL/NTSC
 Viewing angle  120 Degree
 Power supply  DC 12V
 Waterproof Level  IP68
 IR lights  10Pcs
 Image  Mirror or Normal optional
 Shockproof level   4G
 Power Consumption <3W
 Maximum current: <250mA
 Minimum Illumination  0.1 Lux (day), 0 Lux (with IR)
 Video Output  1.0 Vp-p/75 Ohm
 Connector  4pin or  RCA  optional
 Operating Temperature   -20℃~70℃, RH 95% MAX
 Storage Temperature  -30℃~80℃, RH 95% MAX

For Front/rear/side view

Suitable for Commercial trucks/trailer and special vehicles etc

CE-mark: EN 55022:2010+AC:2011 ; EN 55024:2010 ; EN61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-3-3:2013

E-Mark:E24*10R06/01*3814*00
