Item number: ST-CCD-800C

  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
  • Sony CCD Heavy-duty Rear View Camera
Inquiry Now

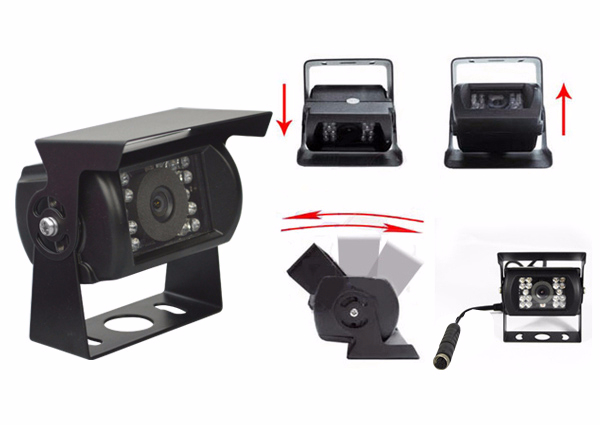

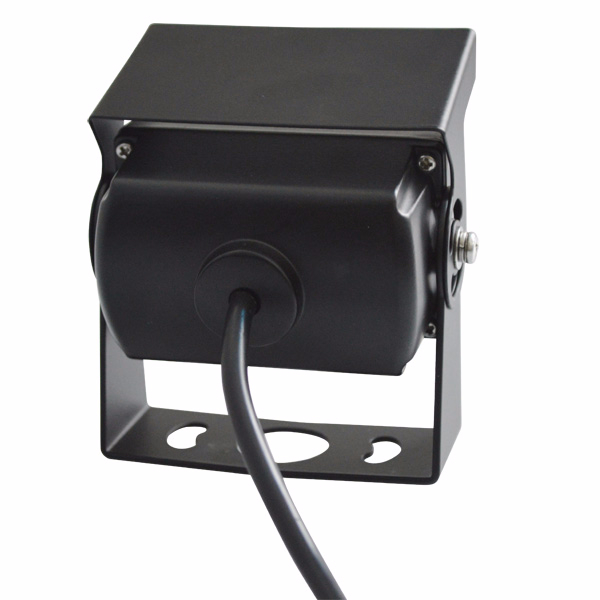

Sony CCD Heavy-duty Rear View Camera

Key Features:

  • High Resolution: 600TVL,Capture sharp, real-time video for precise reversing
  • Heavy-Duty Metal Housing: Shockproof and weather-resistant, ideal for rugged use
  • IP68 Waterproof Rating: Reliable in rain, mud, and high-pressure washdown
  • Wide Viewing Angle: Covers blind spots for improved safety and visibility
  • Infrared Night Vision: 18pcs IR LEDs for clear visibility in total darkness
  • Shockproof Design: Vibration-resistant for rough terrain and heavy machinery
  • Universal Compatibility: Works with CVBS signal monitors
  • Durability/Vehicle Type: Heavy Duty, Commercial Vehicle, Truck, Lorry, Semi-Truck, RV, Motorhome, Trailer, Tractor, Fleet Vehicle
  • Wire connector: M12 4pin aviation or RCA phono
  • Approvals & Certification: E-Mark, CE

Product Parameters:

Category Parameter
Image Sensor 1/3" Sony CCD  sensor
Resolution 600TVL
TV System PAL/NTSC
Lens 2.8mm
Viewing angle 120 Degree
Power supply DC 12V
Waterproof Level IP68
IR leds 18pcs
Image  Mirror or Normal optional
Power Consumption <3W
 Maximum current <250mA
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)
Video Output 1.0 Vp-p/75 Ohm
Connector 4pin aviation
Operating Temperature  -20℃~70℃, RH 95% MAX
Storage Temperature -30℃~80℃, RH 95% MAX



E-Mark Certificate:



Product Applications:

Perfect for trucks, trailers, RVs, agricultural machinery, and forklifts, helping drivers avoid collisions and improve visibility in all conditions
