7" Wireless Magnetic Backup Camera System 1080P

PRODUCT INTRODUCTION

Model number: ST-700WCS

7" Wireless Magnetic Backup Camera System for Agricultural Vehicles & Trailers

Standtop 7-Inch Dual-Split 2.4GHz Wireless Monitor & Rechargeable Magnetic Backup Camera System | 1080P AHD, 9000mAh Battery, IP69K Waterproof, 300M Long-Range for Trucks, Forklifts, RVs & Tractors

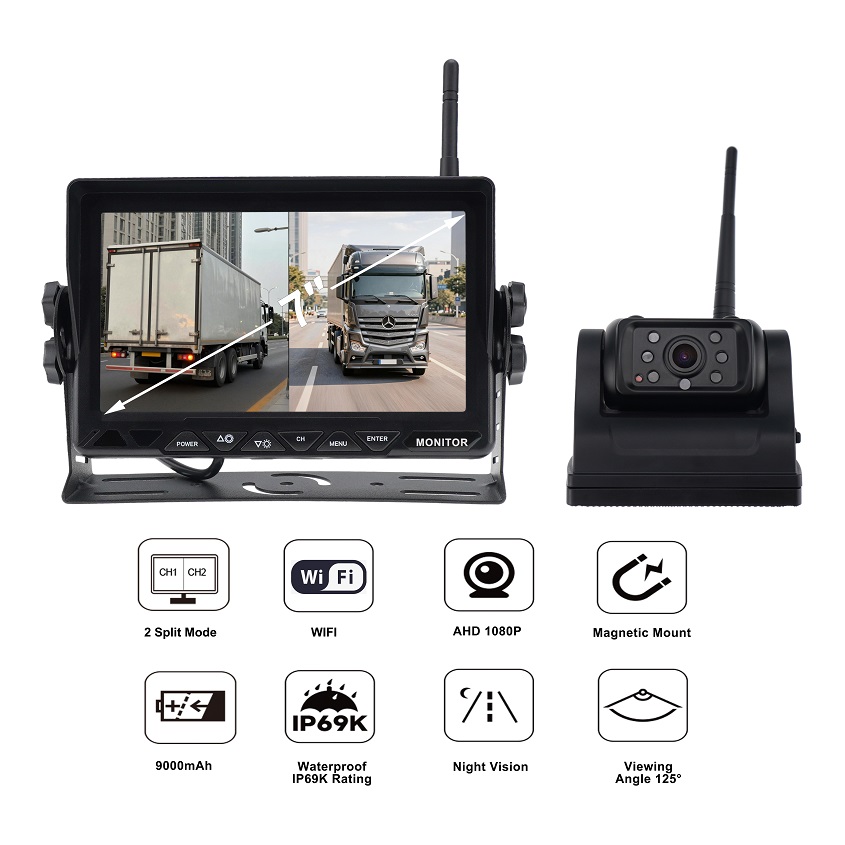

Key Features:

【1080P AHD Ultra-Clear Imaging】 Equipped with a premium 1/2.9" CMOS sensor, the system delivers high-fidelity, rich-detailed 1080P HD quality. Paired with reliable IR-Cut night vision (8–10m range), it guarantees crystal-clear 24/7 visibility.

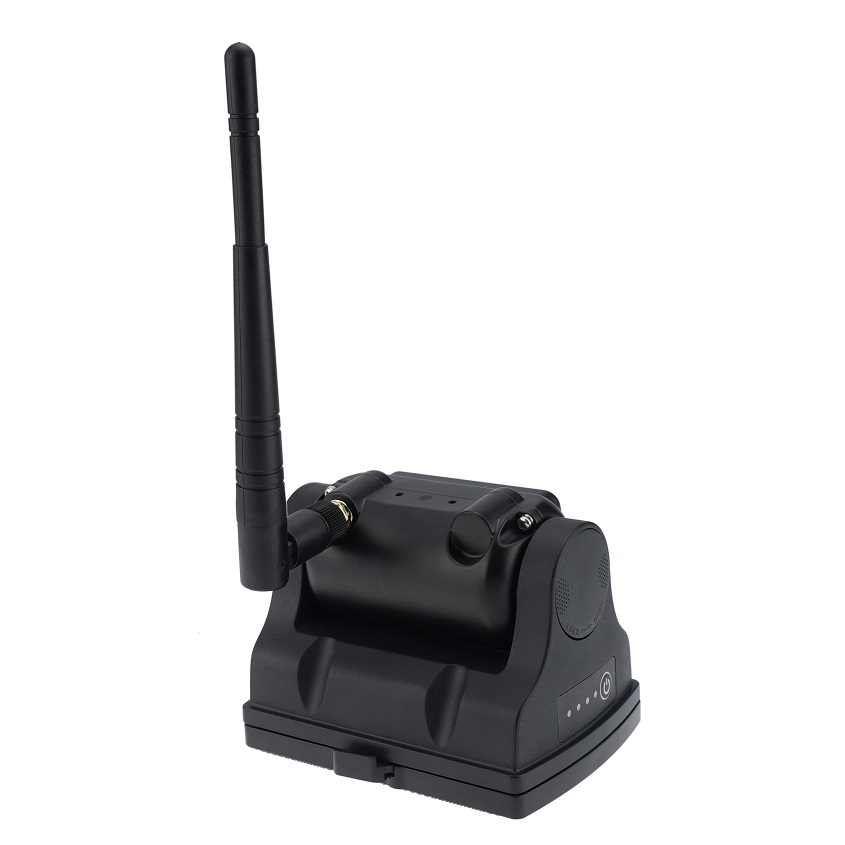

【True Plug-and-Play Magnetic Mount】 The camera features an ultra-strong Magnetic Base. Zero drilling, zero hardwiring—install or reposition it in seconds.
【9000mAh Rechargeable Heavy-Duty Battery】 Powered by a built-in 3.7V 9000mAh lithium battery, the camera provides up to 20 hours of continuous use (IR off) or 16 hours (IR on) on a single Type-C fast charge.

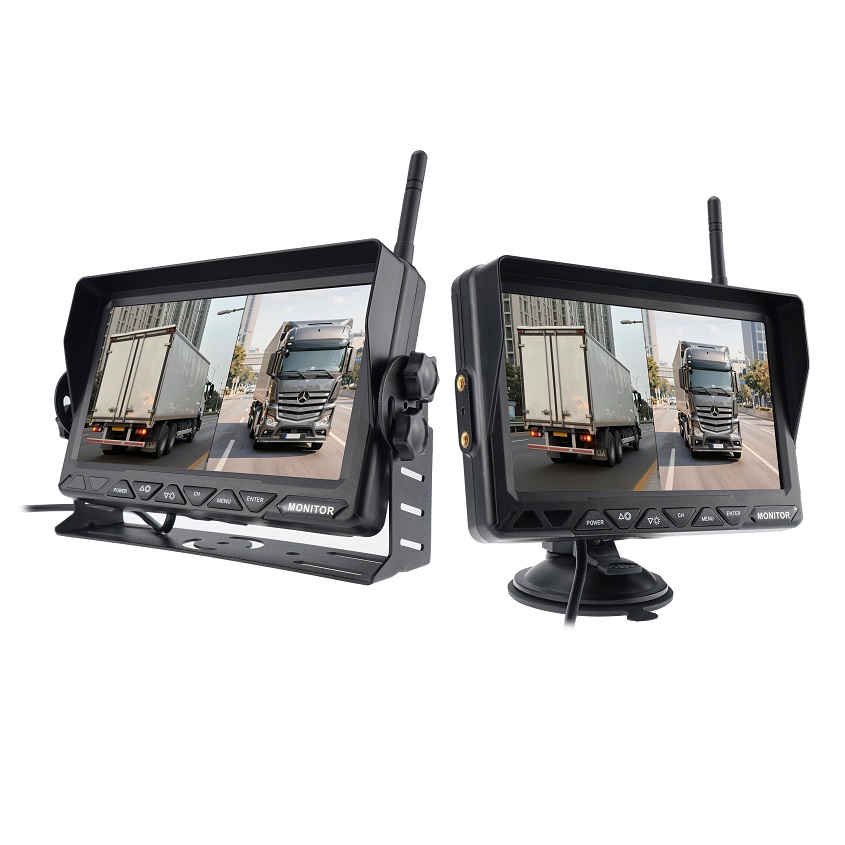

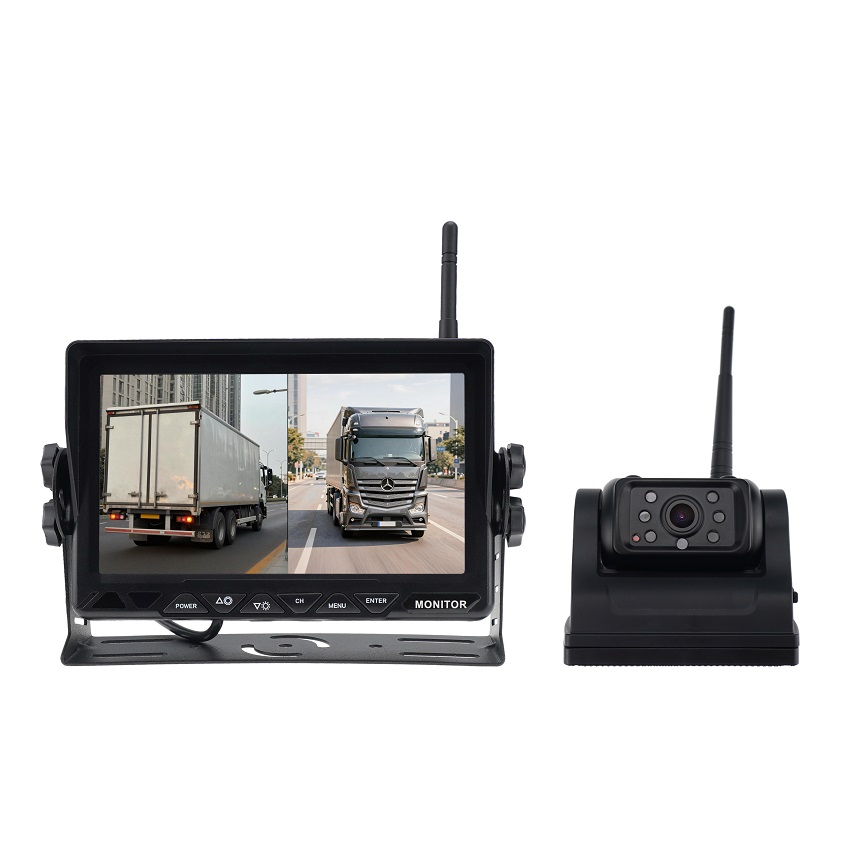

【Dual-Channel Split Screen Mode】 The 7-inch premium IPS monitor (700cd/m² high brightness) supports a 2-Split Mode (CH1/CH2), allowing you to monitor multiple blind spots simultaneously for safer reversing and driving.
【300M (984ft) Stable Wireless Range】 Harnessing advanced 2.4GHz adaptive frequency hopping (FHSS), the system ensures lag-free, anti-interference video transmission across a barrier-free distance of up to 300 meters.
【IP69K Rugged Waterproofing】 Built to withstand the harshest environments, the camera boasts top-tier weatherproof capabilities, keeping it fully operational during heavy rain, snow, or mud washes.

Engineering Facts & Problem Solving:

Industry Bottleneck	How Standtop Solves It	Technical Specification
High Installation Cost & Downtime	True plug-and-play magnetic mount. No vehicle modification or professional wiring required.	Strong Magnetic Base & Type-C independent charging.
Poor Visibility in Harsh Sunlight	Commercial-grade high-brightness IPS panel ensuring clear visibility under direct sunlight.	700 cd/m² Brightness (Standard monitors are only 250-300 cd/m²).
Signal Lag in Heavy Industrial Zones	Adaptive Frequency Hopping dynamically switches channels to bypass local RF noise.	FHSS Modulation with -92dBm receiving sensitivity.
Frequent Recharging Disrupting Shifts	Massive battery capacity paired with an auto-sleep power-saving sync function.	9000mAh Battery Capacity (~20 hours runtime with IR off).
Blind Spots on Wide Implements	Dual-channel capability allows adding a second camera to monitor two blind spots at once.	2-Split Screen Mode with wide-angle optics (D: 160° / H: 120°).

Versatile Applications:

Agricultural & Engineering Vehicles: Tractors, Combines, Excavators.
Industrial Logistics: Forklifts, Cargo Vans, Fleet Trucks.
Recreational & Long-Haul: RVs, Motorhomes, Fifth-Wheels, Trailers.

Technical Specifications:

Wireless Monitor Specs
Screen Size & Panel	7-inch, Premium IPS Panel
Resolution	1024600RGB
Video Mode	Full/Dual split
Screen Brightness	700 cd/m² (Visible under sunlight)
Wireless Modulation	GFSK / FHSS (Adaptive Frequency Hopping)
Working Voltage	+5V ~ +24V
Operating Temp	-30°C ~ +70°C
Wireless Camera Specs
Image Sensor	1/2.9" CMOS (1080P Resolution)
Viewing Angle	Diagonal: 160°±5° / Horizontal: 120°±5°
Battery Capacity	3.7V, 9000mAh Rechargeable
Battery Endurance	~20 hours (IR Off) / ~16 hours (IR On)
Charging Interface	Type-C (5V / 2.5A Max, ~7 Hours to full)
Night Vision Range	8 – 10 meters with IR-Cut auto-switch
Waterproof Level	IP69K
Transmission Range	Max. 300 Meters (Open area)
Operating Temperature	-20°C ~ +70°C
