PRODUCT INTRODUCTION

Model number: ST-C116A

  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
  • Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction
Inquiry Now
Nitrogen-Filled IP69K Camera for Cold Storage, Ag & Construction

Product Description

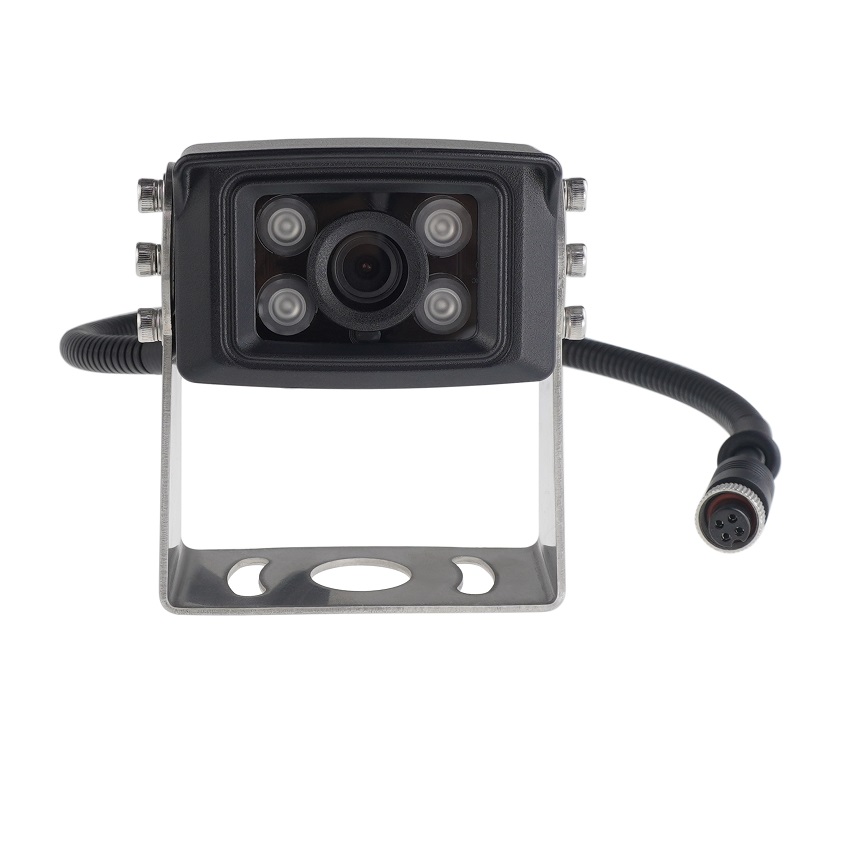

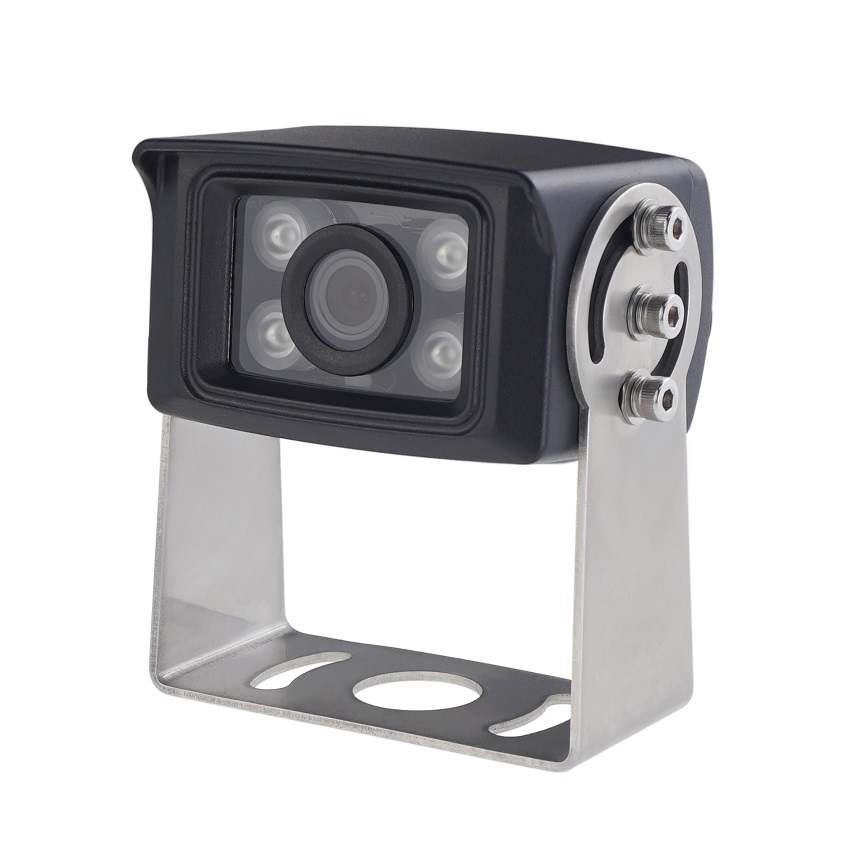

Nitrogen-Filled Anti-Fog Camera (AHD 1080P | IP69K)

The ST-C116A is an AHD 1080P heavy-duty camera built with a hermetically sealed, dry-nitrogen-purged aluminum housing. Purging internal moisture prevents lens fogging during rapid temperature changes without requiring an internal heater or extra power draw. Unlike standard cameras that ship with painted steel brackets, the ST-C116A comes standard with a 304 stainless steel U-bracket to prevent rust in fertilizer, road-salt, and high-pressure washdown environments.

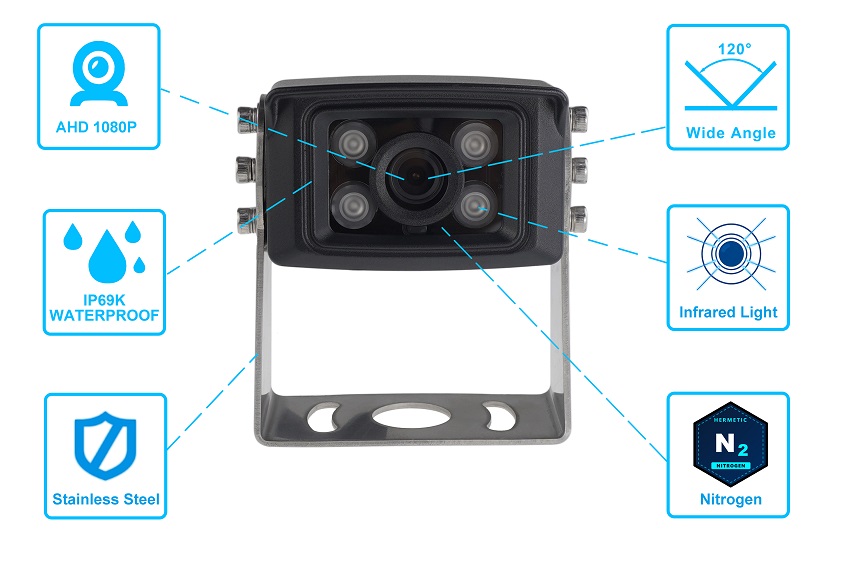

Key Features

  • Dry-Nitrogen Purged Housing: Replaces internal air with dry nitrogen to stop inside lens condensation down to -40°C when vehicles move between freezers and warm, humid loading docks. Zero heater current draw.

  • IP69K Washdown Protection: Sealed against close-range, high-pressure, high-temperature water jets used on agricultural, food-processing, and construction equipment.

  • Standard 304 Stainless Steel U-Bracket: Resistant to corrosion from fertilizers, manure, chemical sprays, and winter de-icing salt out of the box—no aftermarket bracket upgrade required.

  • 1080P Low-Light Vision + 4x Matrix IR: 1/2.9" CMOS sensor paired with 4 high-output matrix IR LEDs. Provides clean, noise-free night vision up to 15 meters in pitch-black cold storage.

Technology Comparison: Nitrogen-Purged vs. Conventional PTC Heating

Evaluation Metrics Conventional PTC Heated Camera Nitrogen-Filled Camera ST-C116A
Anti-Fog Principle Active electric heating element Factory vacuum purge & dry inert N2 charge
Target Fog Area External ice, snow, and frost Complete prevention of inside lens condensation
Response Time 2 to 5 min pre-heating delay Instant (0 seconds, zero blind spots during shifts)
Power Consumption 3W – 8W continuous power draw 0W (Zero battery drain on electric vehicles)
Thermal Image Noise Housing heat increases CMOS noise Ambient operation, preserves pure 1080P clarity
Washdown Durability Thermal cycles stress glue seals Positive pressure stops negative-pressure suction

Lab-Verified IP69K & Dust Protection (CNAS / ILAC-MRA Accredited)

Tested by the Shenzhen Academy of Metrology & Quality Inspection (SMQ / NETC, CNAS-accredited laboratory) under GB/T 4208-2017 (IP6X) and GB/T 30038-2013 (IPX9K, equivalent to ISO 20653):

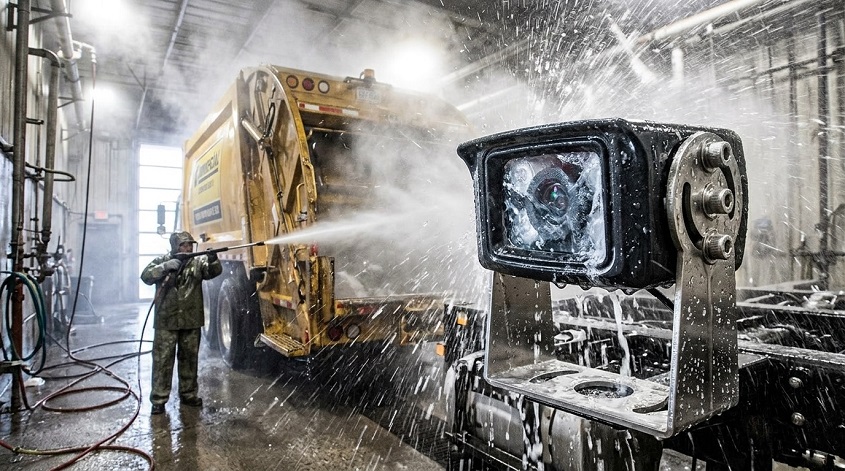

  • High-Pressure & High-Temperature Water Jet Test: Subjected to 80–100 bar (8,000–10,000 kPa) water jets at 80°C ± 5°C from 0°, 30°, 60°, and 90° angles at a 100–150 mm nozzle distance (30 seconds per angle).

  • Verified Result: Zero water ingress, zero housing damage, and no internal lens fogging observed after hot-water washdown testing. (Lab test report summary available upon request.)

Technical Specifications

Model ST-C116A
Anti-Fog Technology Nitrogen-filled hermetic chamber (Anti-fog & anti-oxidation)
Resolution AHD 1080P (1920 × 1080 @ 25/30fps)
Image Sensor 1/2.9" CMOS
Lens / FOV 2.8mm / 120°
Night Vision 4 pcs IR LEDs, Built-in IR-Cut filter
Min. Illumination 0.001 Lux (0 Lux with IR ON)
WDR / DNR 81 dB Dynamic Range, 3DNR
Ingress Protection IP69K Waterproof

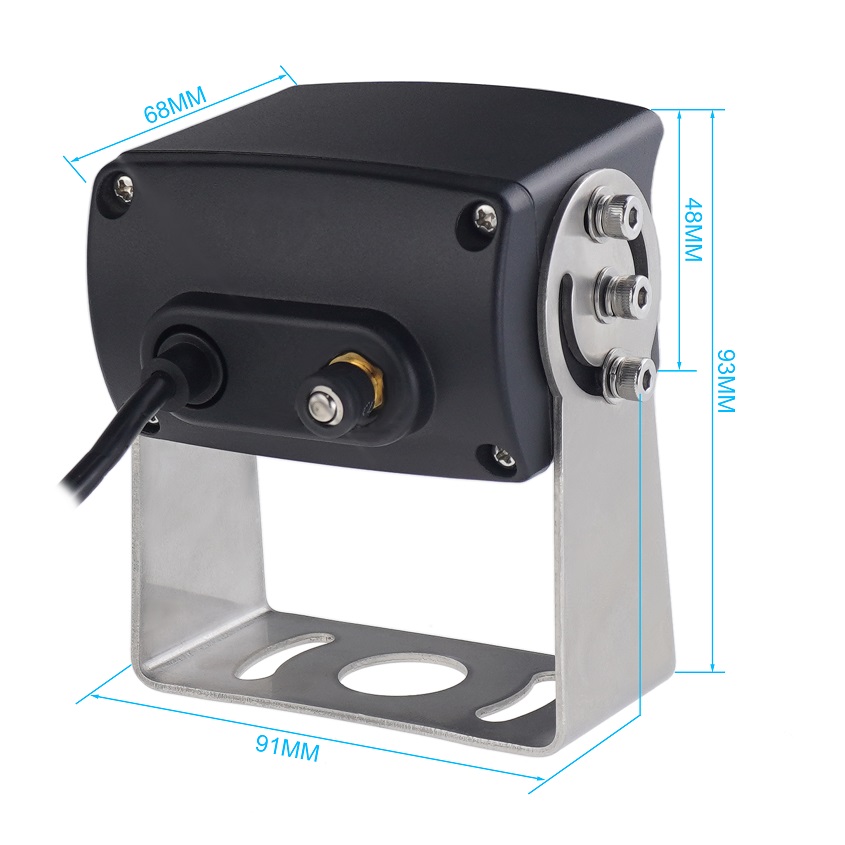

Housing Material Aluminum alloy body + 304 stainless steel bracket
Image Orientation Mirror / Normal image optional
Power Supply DC 12V (DC 24V optional)
Power Consumption Max. 85mA

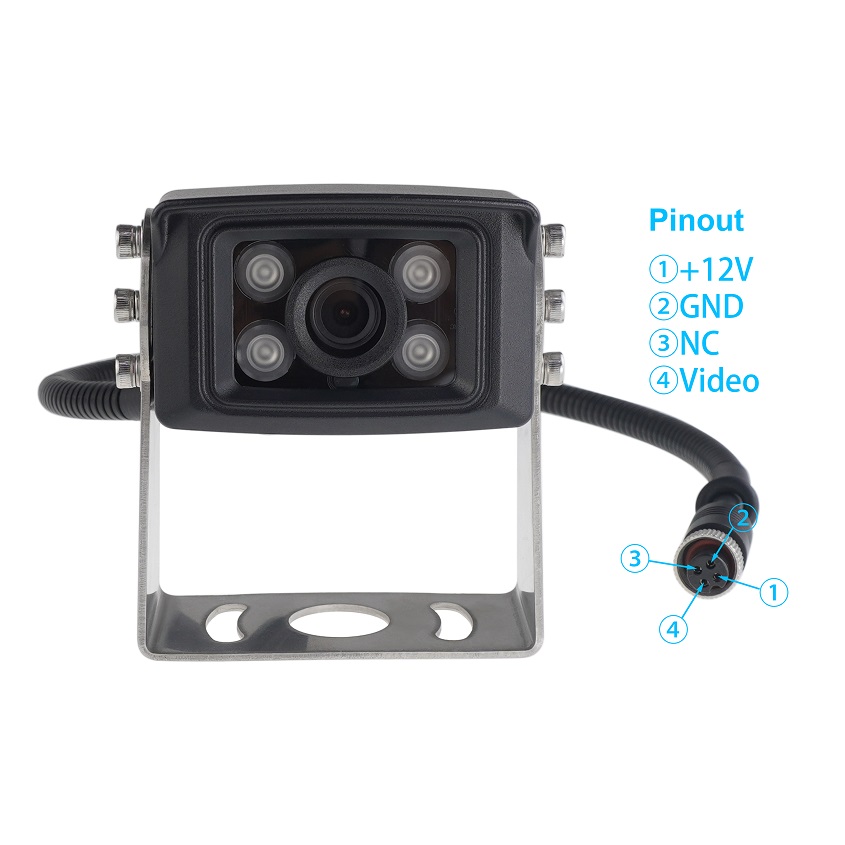

Connector 4-Pin M12 Aviation connector
Adjustable Angle Tilt 0° – 85°
Operating Temp. -40°C to +80°C (-40°F to +176°F), RH 95% Max
Certificates CE, UKCA, FCC

Target Applications

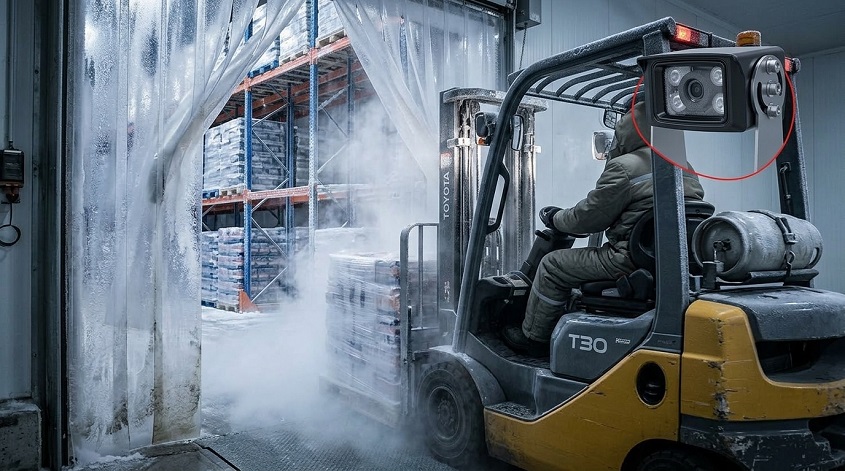

  • Cold Storage & Freezers: Forklifts and reach trucks operating continuously across sub-zero cold rooms and ambient loading docks.

  • Agriculture & Fertilizing: Tractors, combines, and chemical sprayers exposed to corrosive fertilizers and daily pressure washing.

  • Construction & Mining: Excavators, wheel loaders, and haul trucks running in mud, dust, and heavy vibration.

  • Municipal & Winter Fleets: Salt spreaders, snowplows, and refuse trucks exposed to road salt and sleet.

Technical FAQ

Q1: How does it stop fogging without a heating element?

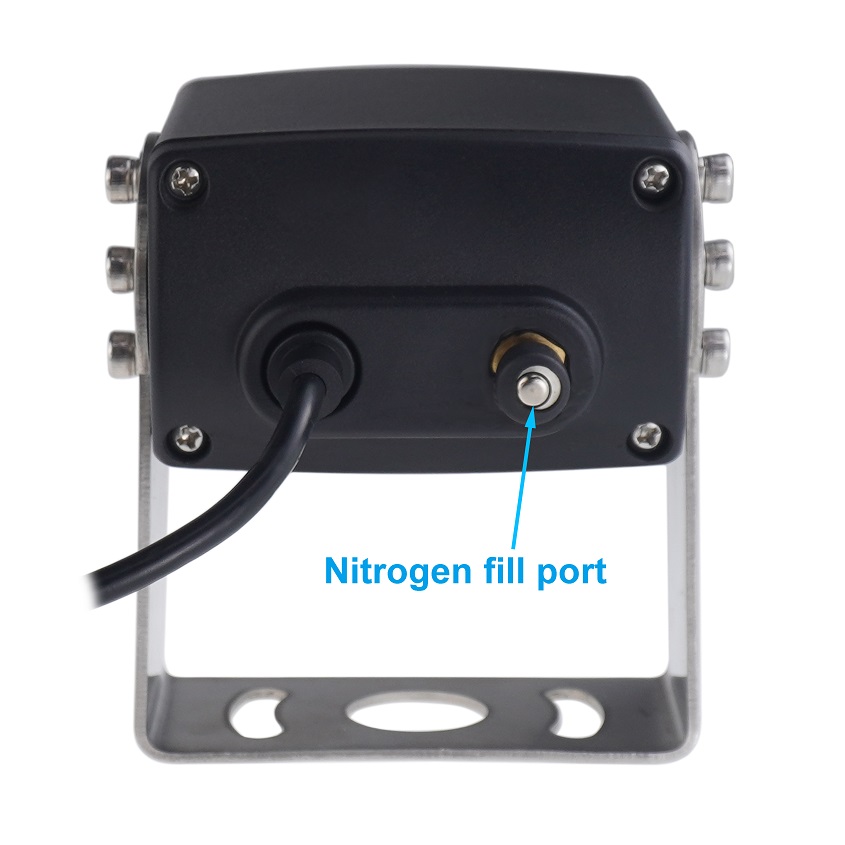

A: Inside fog needs two things: trapped air moisture and a sudden temperature drop. We pull a deep vacuum during assembly and backfill the housing with dry nitrogen, pushing the internal dew point below -40°C. With virtually zero moisture inside, condensation cannot physically form on the glass.

Q2: How long does the nitrogen seal last? Do I need to refill it?

A: It is designed to be completely maintenance-free throughout the equipment's operational lifespan—no refilling required. We use automotive-grade fluorosilicone (FVMQ) gaskets rated for continuous -40°C elasticity, and every unit undergoes helium leak testing (< 1.0 × 10⁻⁶ mbar·L/s) to ensure long-term hermetic integrity under heavy vibration, thermal cycles, and rigorous commercial use.

Q3: Can this camera be serviced or opened in the field?

A: You can service the bracket, sun visor, and external cables on-site. However, do not open the main camera housing. Breaking the seal vents the nitrogen charge and lets in ambient air, requiring factory vacuum refilling.

--------------------------------------------------------------------------------------------------
