Product Description

Heavy-Duty Heated Stainless Steel Camera: Engineered for Sub-Zero Extremes & Cold-Chain Fleet Operations

Operating commercial fleets, heavy excavators, and refrigerated transport in freezing environments presents severe optical challenges. Beyond heavy snow accumulation on the outer casing, sudden temperature fluctuations create persistent frost, dense moisture condensation, and internal lens fogging that impair driver visibility.

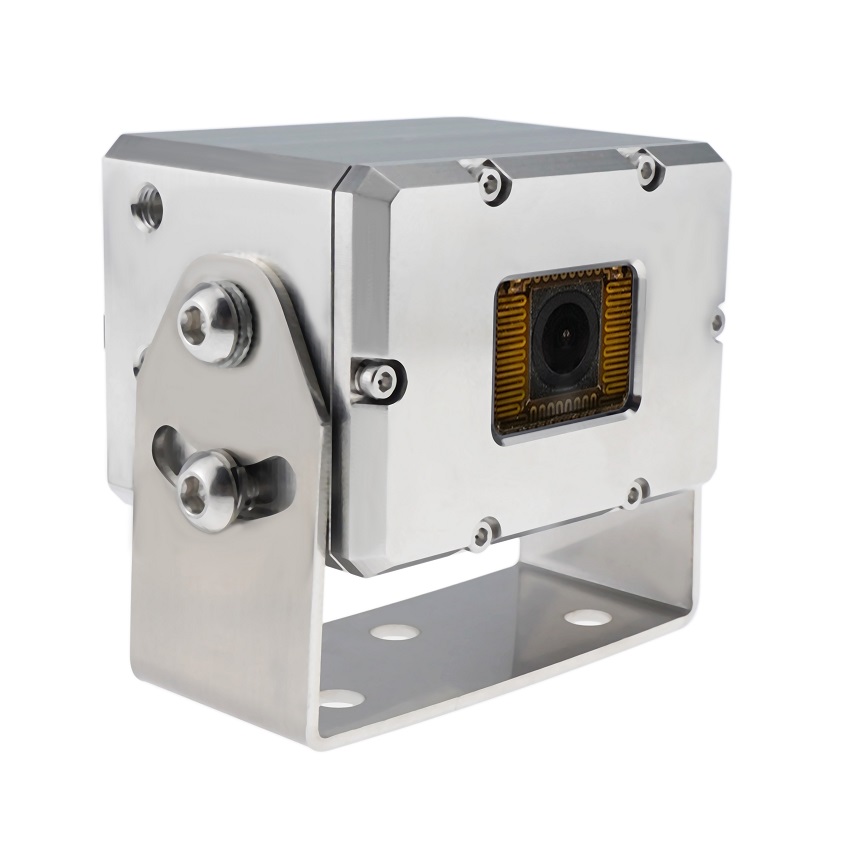

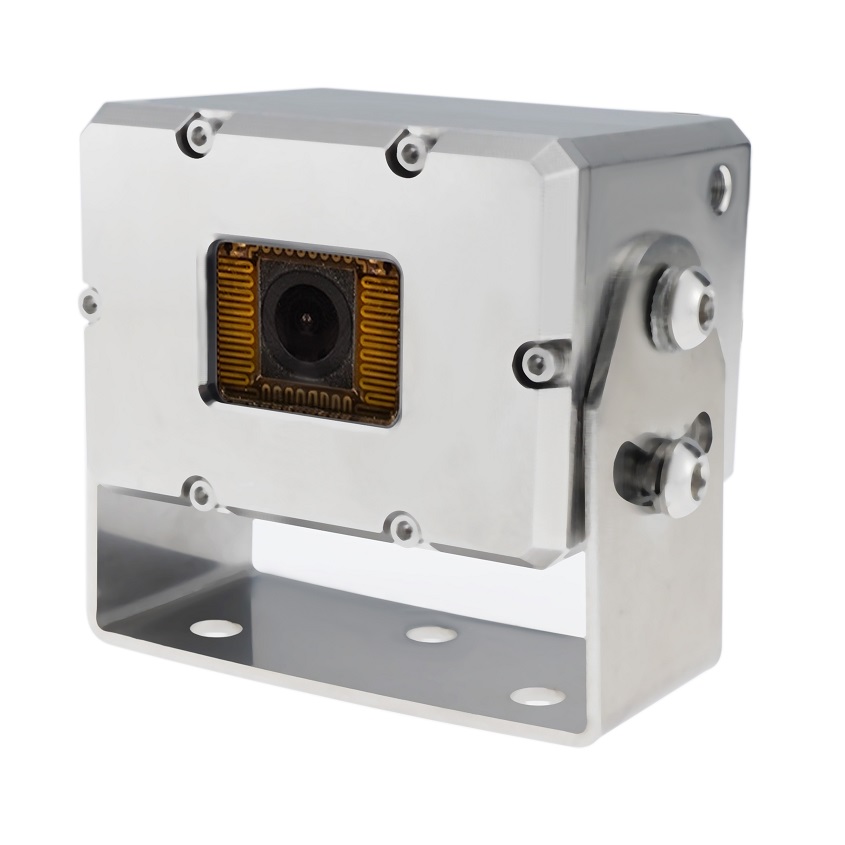

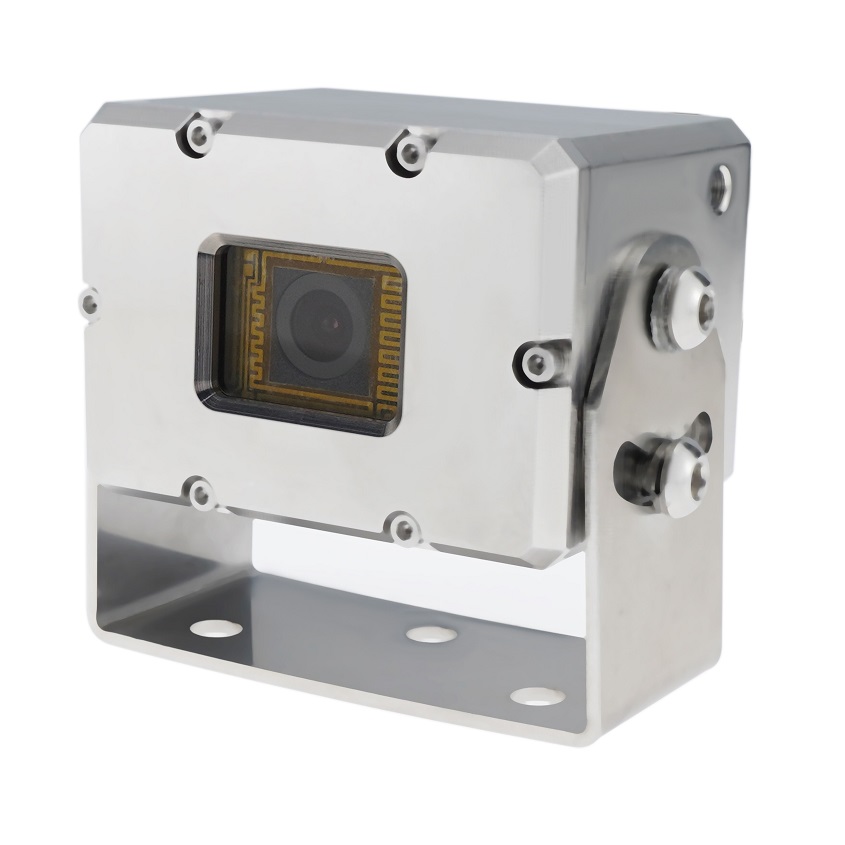

The Standtop Heated Stainless Steel Heavy-Duty Camera (Non-IR Series) is purpose-built to resolve these issues. By embedding a micro-heating wire grid directly onto the front optical glass, heat targets ice, frost, and condensation at the exact point of contact. Controlled by an integrated thermal sensor, the heating element activates automatically below +10°C (50°F) and safely disengages once reaching +60°C (140°F)—maintaining continuous optical clarity while optimizing vehicle electrical efficiency.

Product Features

• Smart Front Glass Heating & De-icing (No Frost/Fog):

  Direct embedded micro-heating matrix on front glass automatically initiates below +10°C (50°F) and shuts off at ≥ +60°C (140°F), rapidly melting snow, ice, and clearing dense fog without needing to heat the entire chassis.

• Pure Optical Clarity (Non-IR, Glare-Free Design):

  Engineered specifically without IR LEDs to eliminate internal lens light reflection, halo artifacts, and foggy nighttime glare against the heated grid. Delivers true-color, high-contrast visibility when paired with vehicle working lights.

• Industral-Grade 304 Stainless Steel Housing:

  Offers supreme resistance to salt spray, chemical corrosion, road de-icing brine, and mechanical impact in mining, logistics, and severe agricultural environments.

• IP69K High-Pressure & Steam Proof:

  Hermetically sealed to withstand high-pressure, high-temperature power washings and deep sub-zero conditions down to -40°C.

• Industrial 4-Pin Aviation Interface: Standard threaded screw-lock connector ensures continuous signal integrity against road shocks and water ingress.

Technical Specifications
