Product Description

IP69K Waterproof Quad Monitor & 304 Stainless Steel Heavy-Duty Camera System

Engineered for Extreme Industrial Environments, High-Pressure Washdown, and Corrosive Applications

The Standtop heavy-duty vehicle surveillance system combines a fully sealed IP69K waterproof quad-split monitor with ultra-durable 304 stainless steel AHD cameras. Designed specifically for harsh industries where standard aluminum and plastic systems fail, this complete kit provides 360° situational awareness, continuous corrosion resistance, and high-pressure steam washdown durability.

Product Features

• 304 Solid Stainless Steel Housing: Unmatched resistance to salt spray, acid/alkali chemicals, and aggressive industrial fertilizers. Heavy-duty construction protects internal optics from gravel impacts and structural shock.
• Full IP69K Ingress Protection: Both monitor and cameras withstand 100-bar (1450 PSI) high-pressure, 80°C hot-water steam power washing.
• Full-Color Starlight Night Vision (Non-IR Option): High-sensitivity starlight imaging sensors deliver vivid, full-color nighttime visibility without glare, dust flare, or "snowstorm" reflections common with traditional IR illuminators.
• Multi-Channel Quad-Split Display: 10.1-inch high-brightness IPS display supports single, dual, tri-view, and quad-split modes with optional multi-channel loop DVR recording.
• Heavy-Duty 4-Pin Aviation Connectors: Threaded metal connectors with waterproof rubber seals prevent signal loss, water ingress, and vibration-induced disconnections.
• Wide Voltage Range (DC 12V–36V): Integrated reverse polarity and surge protection, engineered for 12V/24V heavy machinery, open-cab operators, and marine battery systems.

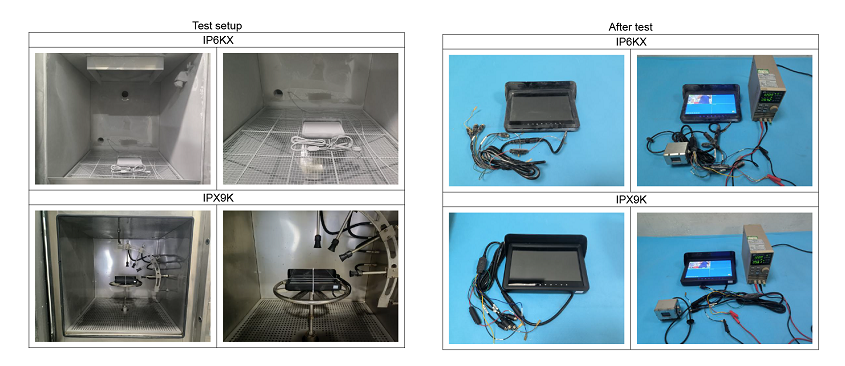

Monitor IP69K Waterproof & Dustproof Laboratory Verification (ISO 20653 Standard) – Test Result: PASS

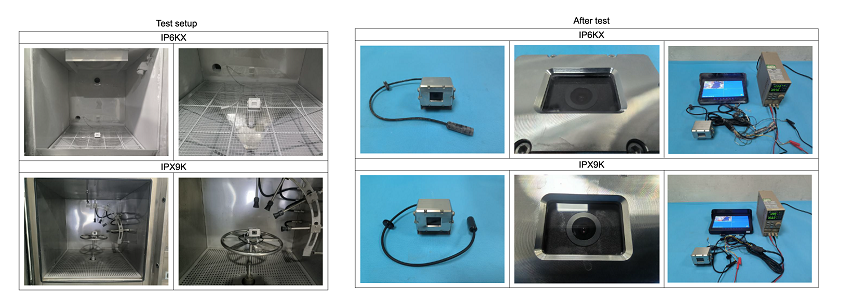

Camera IP69K Waterproof & Dustproof Laboratory Verification (ISO 20653 Standard) – Test Result: PASS

Technical Specifications

Primary Industrial Applications

• Maritime & Coastal Operations: Fishing vessels, harbor cranes, cargo tugboats, and salt-spreading winter service trucks facing extreme salt-spray corrosion.

• Food Processing & Sanitary Transport: Food tank trucks, livestock feed haulers, and sanitation vehicles requiring daily 80°C chemical washdown and steam sterilization.

• Mining & Heavy Quarrying: Dump trucks, excavators, rock drills, and loaders operating under thick dust, flying gravel, and continuous vibration.

• Chemical & Fertilizer Logistics: Agricultural sprayers, chemical bulk spreaders, and handling equipment exposed to corrosive fertilizers and acidic compounds.

• Open-Cab Machinery: Outdoor operating consoles, reach stackers, and forestry equipment exposed to continuous rain, mud, and direct sunlight.

Available Kit Configurations

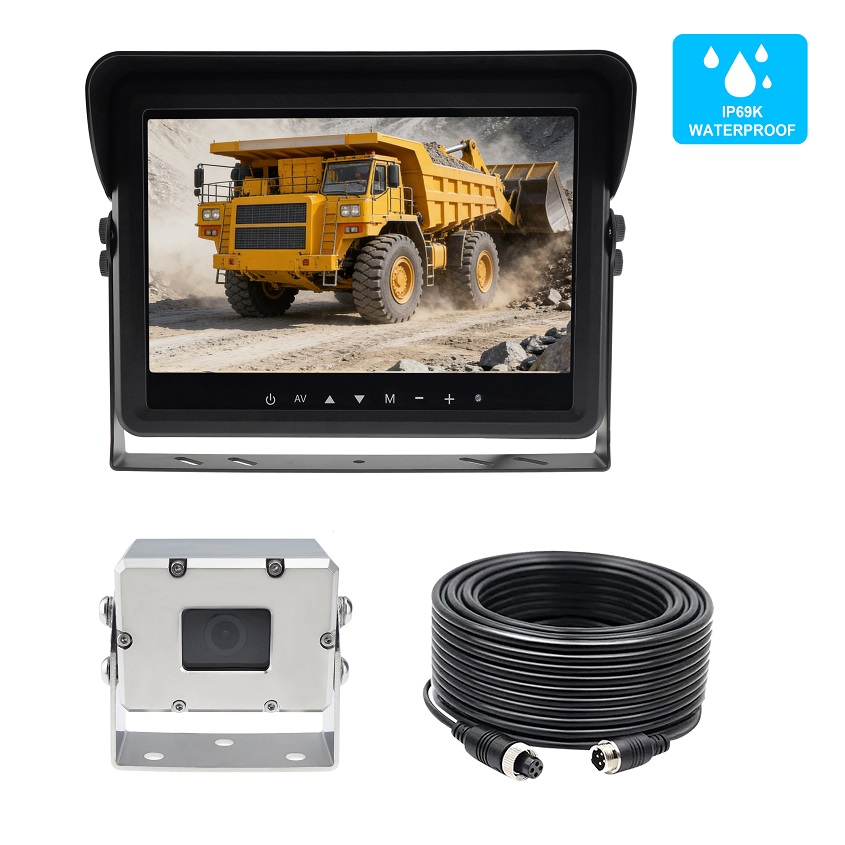

• Single-Camera Reversing Kit: 1x 10.1" IP69K 2 Channel Monitor + 1x 304 Stainless Steel Rear-View Camera + 15M Waterproof Cable.

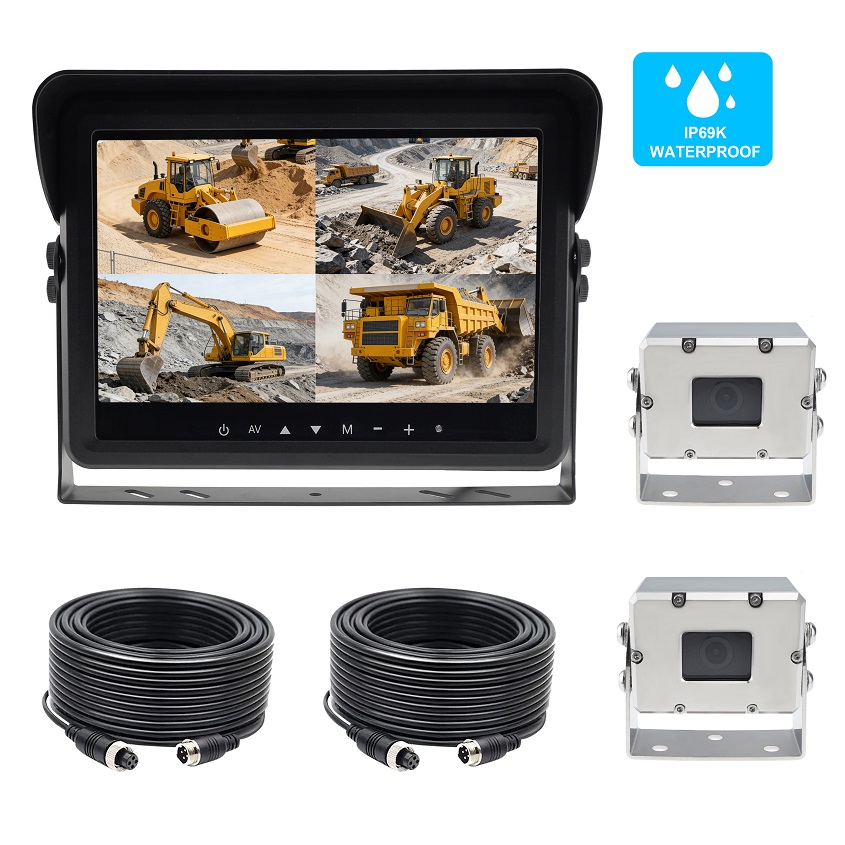

• Dual-Camera Blind Spot Kit: 1x 10.1" IP69K Quad Monitor + 2x 304 Stainless Steel Cameras (Side/Rear) + 2x Waterproof Cables.

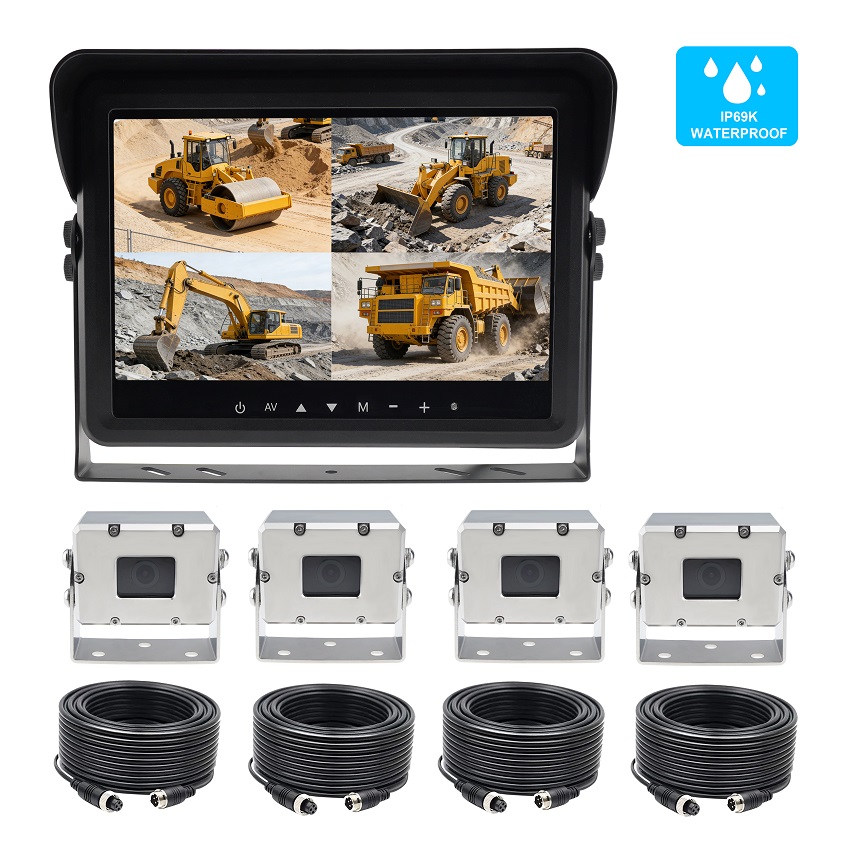

• 360° Quad Surround-View Kit: 1x 10.1" IP69K Quad Monitor + 4x 304 Stainless Steel Cameras + 4x Waterproof Aviation Extension Cables (5M/10M/15M/20M options).

Frequently Asked Questions (FAQ)

Q1: Why choose a 304 stainless steel camera over a standard aluminum camera?

A: Standard die-cast aluminum oxidizes, pits, and corrodes quickly when exposed to marine salt water, chemical fertilizers, road de-icing salts, or acidic cleaning agents. Solid 304 stainless steel delivers lifelong corrosion resistance, high structural tensile strength, and impact durability in heavy-duty environments.

Q2: Is the camera explosion proof?

A: The camera features a rugged stainless steel housing designed for harsh industrial environments. It is not an ATEX or IECEx certified explosion-proof camera.

Q3: How does the starlight non-IR version perform in dusty or rainy night conditions?

A: Traditional infrared (IR) LEDs illuminate falling dust, rain, and snow, creating severe white-out glare and visual obstruction. Our starlight sensor relies on ambient working lights to produce full-color, high-contrast imagery with zero backscatter glare.

Q4: Can the monitor be mounted on an open operator station exposed to direct rainfall?

A: Yes. The monitor carries a full IP69K waterproof rating with sealed buttons and backplates, allowing direct outdoor mounting without secondary protective enclosures.

Q5: Do you offer customized cable lengths and OEM bracket branding?

A: Yes. We provide tailored extension cable lengths (up to 30 meters), custom heavy-duty mounting brackets, private-label silk-screen branding, and custom monitor boot-up logos for fleet upfitters and system integrators.
