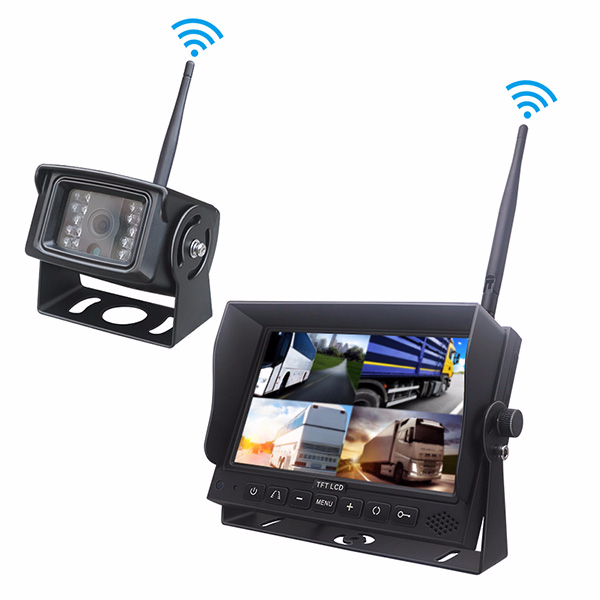

Products Overview:

This system combines a 7-inch HD quad monitor with built in DVR,1080P wireless cameras,quad-screen surveillance for vehicles such as RVs, trucks, trailers, and agricultural machinery. It’s ideal for enhancing safety, visibility, and recording during driving or reversing.

Key Features:

• 7-Inch HD Screen: Bright, high-resolution 1080P display for clear and detailed live views, even under strong sunlight
• 4-Channel Wireless Connectivity: Supports up to four 1080P wireless cameras for easy installation without complicated wiring
• Night Vision & Waterproofing: Infrared night vision and IP69K-rated waterproof cameras ensure performance in low light and harsh weather
• Quad-Split View Display: View all four camera channels on one screen or switch to single, dual, or triple view as needed
• Built-in DVR Recording: Supports loop recording and playback, with storage options up to 256GB via SD card, 14hrs recorder time
• Strong Wireless Transmission: 2.4G Digital wireless signal with stable transmission range up to 200m in open areas — ideal for trucks, trailers,agricultural vehicles etc.
• Night Vision & Waterproof Cameras: Equipped with 18pcs IR LEDs for clear night visibility and IP69K waterproof rating for all-weather performance
• Easy Setup: Simply connect the power supply — cameras pair with the monitor by pair button and quick installation
• Loop Recording & Playback: Automatically overwrites old footage and supports video playback directly on the monitor
• Wide Power Supply Range: Compatible with DC 12–32V vehicles

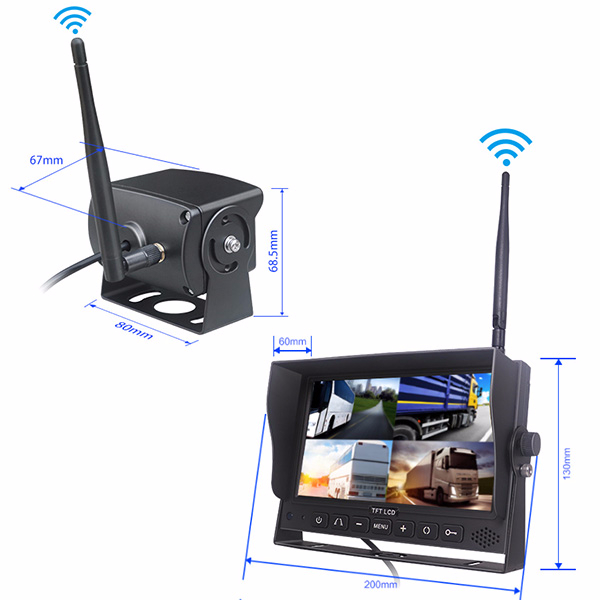

7" Wireless Monitor Parameters:

Wireless Safety Camera Parameters:

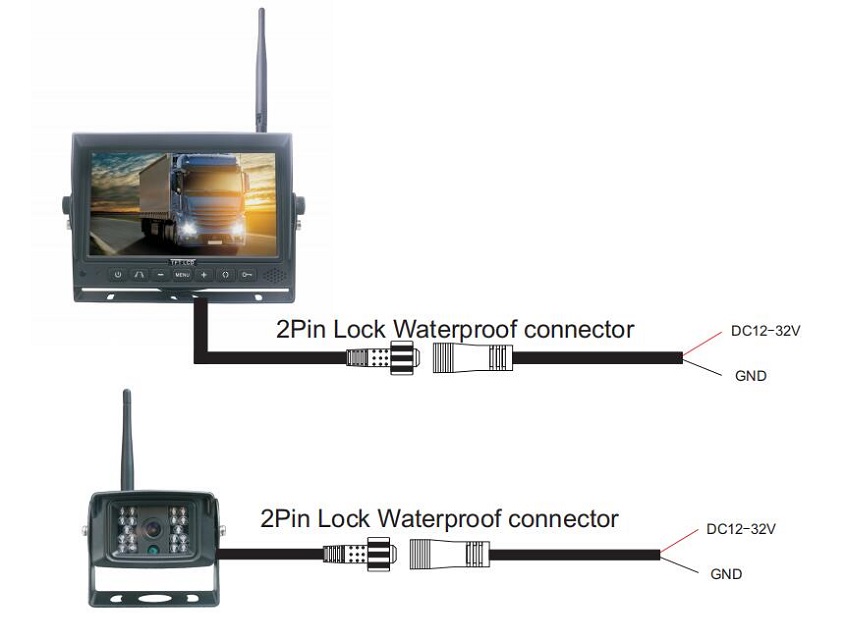

Wire Diagram:

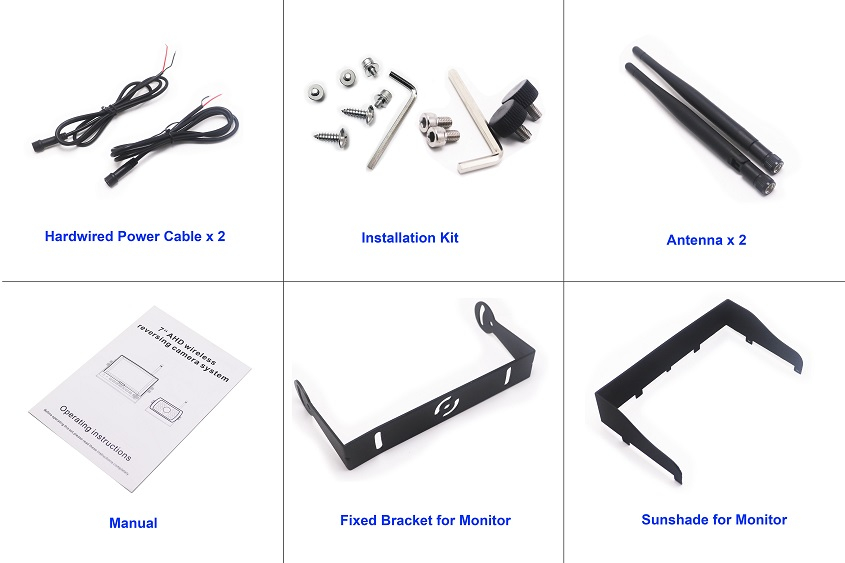

Spare Parts:

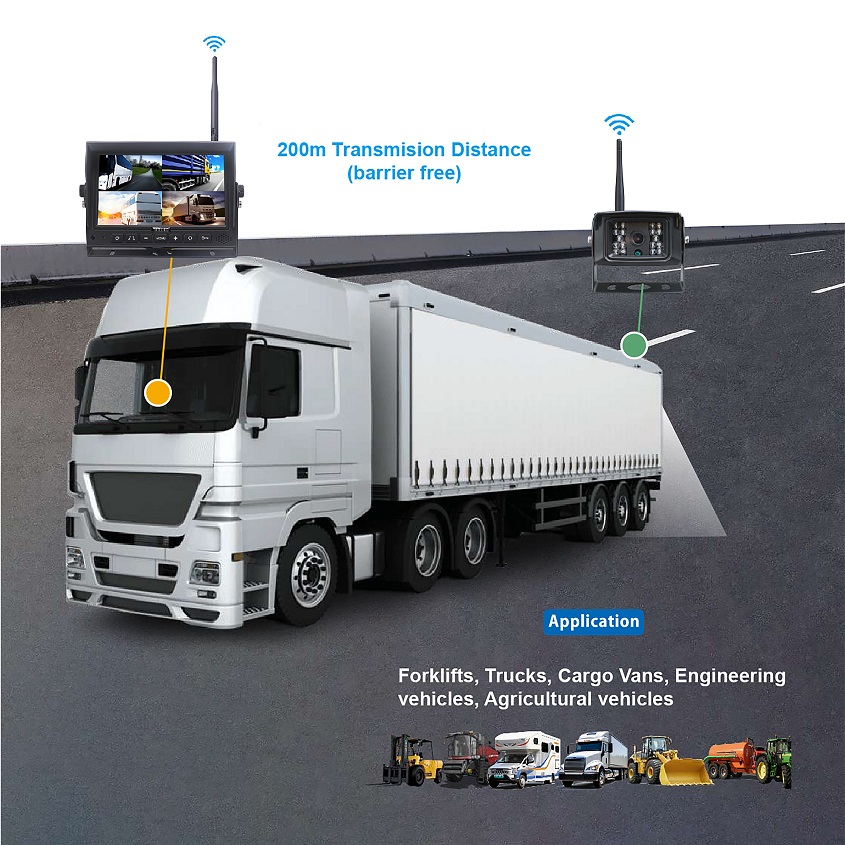

Product Applications:

Perfect for trucks,RVs,Agricultural machinery,and Forklifts,helping drivers avoid collisions and improve visibility in all conditions
