Products Description:

Wireless AI Camera System for Commercial Trucks

Large commercial vehicles have extensive blind spots that can make lane changes, turning, reversing and low-speed maneuvering more difficult for drivers.

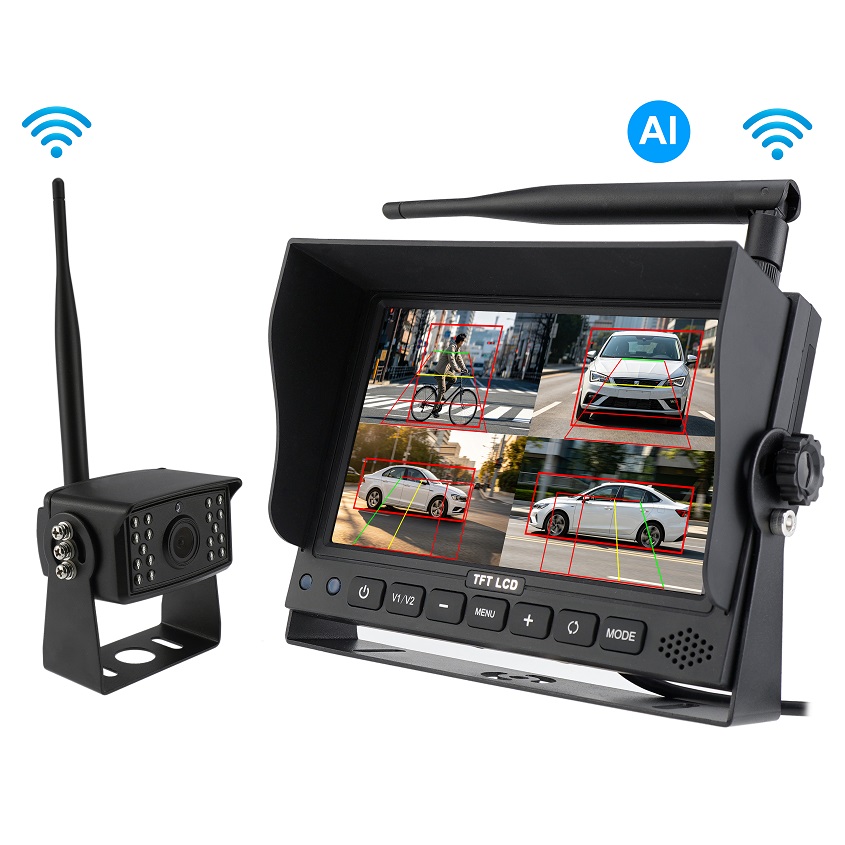

The Standtop 7" Wireless AI Blind Spot Camera System provides additional visibility around the vehicle by combining multiple 1080P cameras with a quad-view monitor and AI-assisted detection functions.

The system can be configured with cameras positioned at the rear and sides of the vehicle to provide drivers with a clearer view of areas that may be difficult to monitor through conventional mirrors alone.

The wireless camera architecture also helps simplify installation on long vehicles, including trucks and trailers where routing long video cables can be difficult.

Key Features:

AI-Assisted Blind Spot Detection

Monitor areas alongside and behind the vehicle with AI-assisted detection technology.

The system can detect selected vehicles and pedestrians within defined monitoring areas and provide visual warnings to help drivers recognize potential hazards.

Key functions include:

• Vehicle detection
• Pedestrian detection
• Blind spot monitoring
• Visual warning
• Side-area monitoring
• Rear-area monitoring

AI functions depend on the selected camera and system configuration.

1080P Quad-View Monitoring

The 7-inch monitor supports multiple camera views, allowing drivers to monitor different areas of the vehicle from one display.

The system can be configured for:

• Rear view
• Left-side view
• Right-side view
• Blind spot monitoring
• Up to four camera views
• Quad-view display
• Full-screen camera viewing
• Individual camera switching

This multi-camera design is particularly useful for large vehicles with multiple visibility zones.

Wireless Camera Transmission

Wireless transmission helps reduce the need for long video cable runs between cameras and the monitor.

This can be particularly useful for:

• Semi trucks
• Tractor-trailers
• Long-body trucks
• Trailers
• Fleet vehicles
• Heavy-duty vehicles

Compared with conventional wired installations, wireless camera transmission can provide greater flexibility when selecting camera mounting positions.

7-Inch Commercial Vehicle Monitor

The 7-inch monitor provides a dedicated display for monitoring multiple camera views.

Its compact size makes it suitable for truck dashboards and other commercial vehicle cabins without taking up excessive space.

The monitor supports multiple viewing modes according to the selected system configuration.

How this system works:

Complete Truck Blind Spot Monitoring Solution

The camera system can be configured to monitor different areas around a commercial vehicle.

Left Side Camera

Provides additional visibility of the driver's side blind spot.

Right Side Camera

Helps monitor the passenger-side blind spot, which can be particularly difficult to observe on large vehicles.

Rear Camera

Provides an additional rear view for reversing and general rear-area monitoring.

Optional Additional Camera

A fourth camera can be used for another blind spot, trailer area or application-specific monitoring position.

7-Inch Monitor

Displays multiple camera views in a single interface.

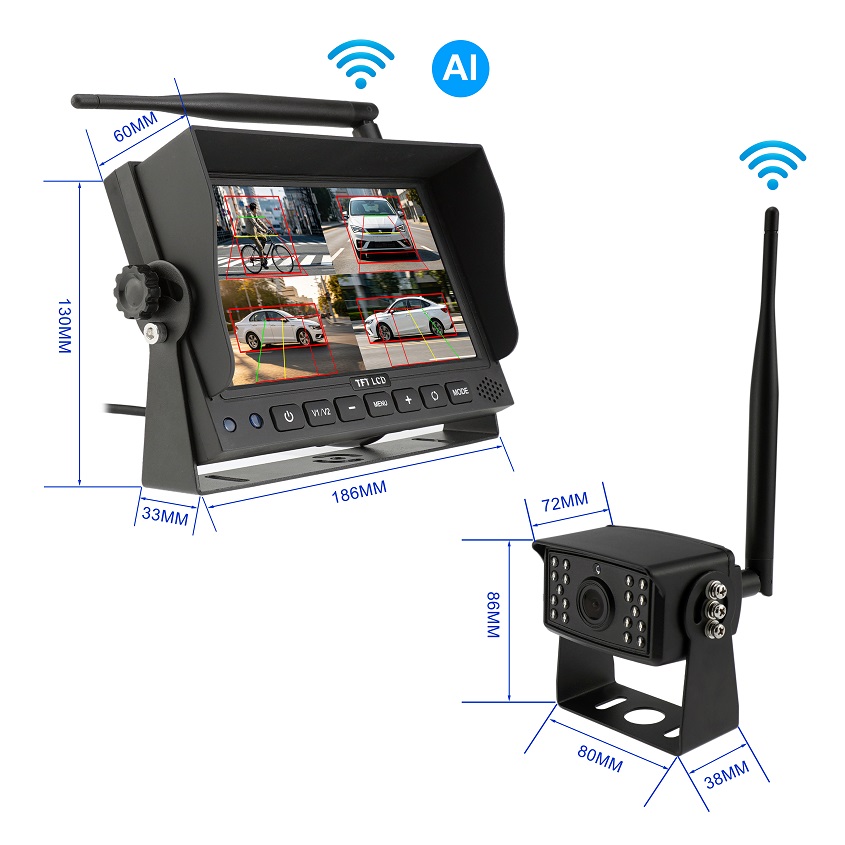

7" Wireless Monitor Specs:

Category	Parameter
Screen size	7inch IPS full view LED panel
Resolution	1024*600*RGB
Video Input	4 ways Channel Video
Display Mode	Single, dual, triple, quad split
TV System	PAL/NTSC
Power supply	DC 12-36V
Power Consumption	12W
Screen ratio	16:9
Brightness (cd/m2)	1000cd/m2
Viewing angle	L/R 85/85 U/D 85/85
Frequency range	2.4G Digital wireless signal frequency(2412-2484MHz)
Output power	21dBm with power control
Receiving sensitivity	-90dBm
OSD menu	Yes
Connector	Power lead and cigarette lighter
Mounting Options	Dashboard or surface mount
Operating Temperature	-30℃～70℃, RH 95% MAX

Wireless Safety Camera Specs:

Image Sensor	1/3" CMOS 1336
Resolution	AHD 1080P
Effective Pixels	1920(H) x 1080(V), 2MP
TV System	PAL/NTSC
Viewing angle	105-110 Degree Horizontal angle
Power supply	DC 12-36V
Waterproof Level	IP69K
IR lights	18Pcs
Image	Mirror
Transmission Distance	300M
Operating Frequency	Digital wireless
Power Consumption	4W
Connector	Power lead
Body Housing	Zinc alloy housing
Operating Temperature	-30℃～70℃, RH 95% MAX

Display Mode:

Road Test Video by 28/03/2026

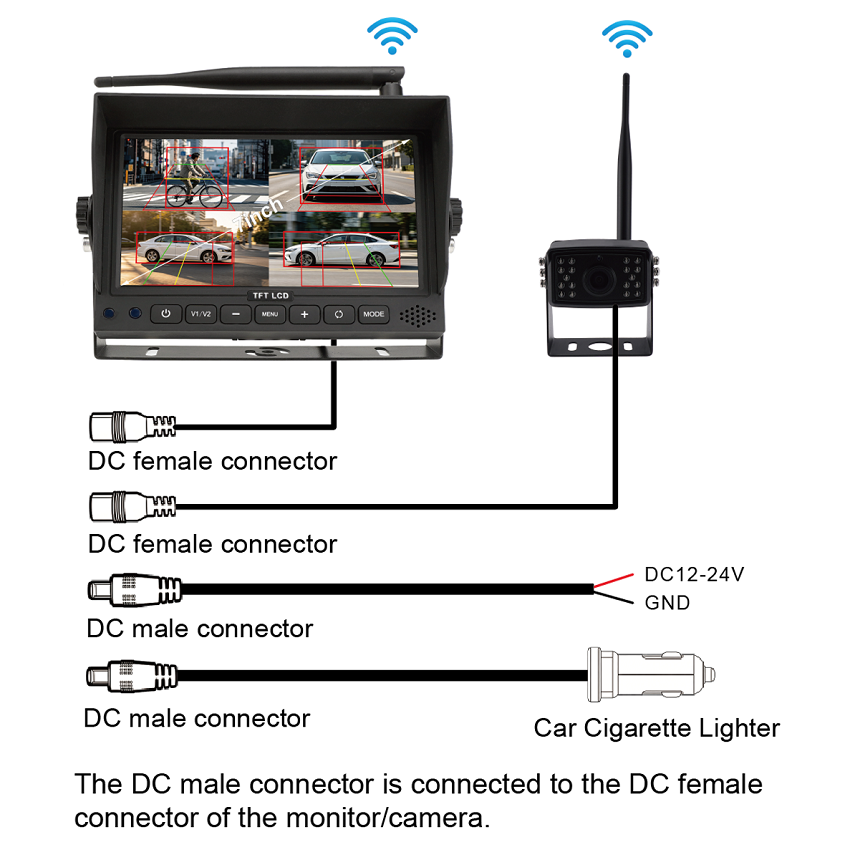

Wire Diagram:

Truck Camera System Applications:

Semi Trucks

Improve side and rear visibility around tractor units and long-haul trucks.

Tractor-Trailers

Monitor blind spots around both the tractor and trailer.

Box Trucks

Provide additional visibility during reversing, turning and delivery operations.

Delivery Trucks

Help drivers monitor side and rear areas in urban and low-speed environments.

Fleet Vehicles

Provide a configurable multi-camera monitoring solution for commercial vehicle fleets.

Trailers

Wireless cameras can simplify installation where long cable runs are inconvenient.

Heavy-Duty Vehicles

Suitable for selected construction, agricultural and industrial vehicle applications requiring additional camera coverage.

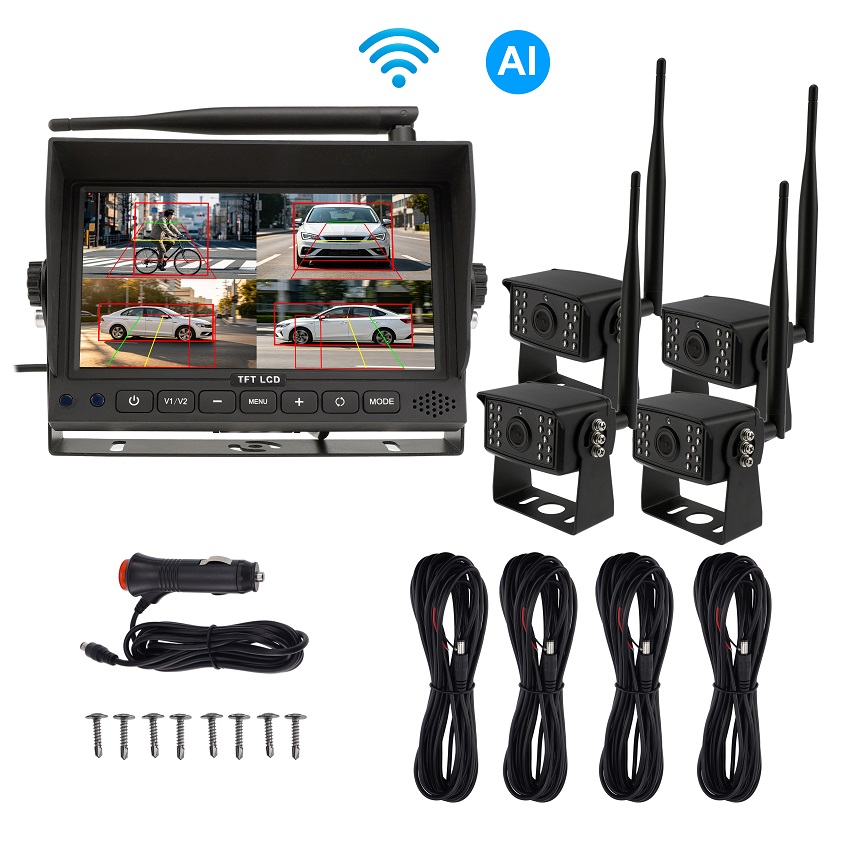

In the box:

1 x 7" 1080p Wirless Monitor
4 x 1080p Wireless Cameras
4 x Power Harness
1 x Car cigarette lighter
5 x 6DB Antenna gain
1 x Screw Kit for installation
1 x Manual

FAQ:

What is a truck blind spot camera system?

A truck blind spot camera system uses cameras mounted around a commercial vehicle to provide drivers with additional visibility of side and rear areas that may not be fully visible through conventional mirrors.

How many cameras can this system support?

The system can support up to four camera views, depending on the selected system configuration. Cameras can be positioned for rear view, left-side view, right-side view and other application-specific monitoring areas.

Is this system suitable for semi trucks?

Yes. The system is designed for commercial and heavy-duty vehicle applications and can be configured for semi trucks, tractor-trailers and other large vehicles.

Can the system be used with trailers?

Yes. The wireless camera configuration can be particularly useful for trailers and long vehicles where installing long video cables can be difficult.

Does the system support AI blind spot detection?

Yes. The AI version can support blind spot detection and vehicle/pedestrian detection according to the selected system configuration.

Does the system record video?

DVR recording is available as an optional function. Customers who do not require recording can select the system without DVR.

Can the cameras be used at night?

The cameras can support night monitoring according to the selected camera configuration. Available night vision and low-light performance depend on the specific camera model.

Can multiple cameras be displayed at the same time?

Yes. The 7-inch monitor supports multiple camera views and quad-view monitoring according to the system configuration.

Is the wireless camera system suitable for long trucks?

Yes. Wireless transmission can help simplify installation on long vehicles by reducing the need for long video cable runs. Actual wireless performance depends on the vehicle structure and installation environment.

Can Standtop customize the system?

Yes. Standtop provides OEM and ODM support for vehicle camera systems, including camera configuration, monitor design, branding, connectors, cables and selected system functions.
