Products Overview:

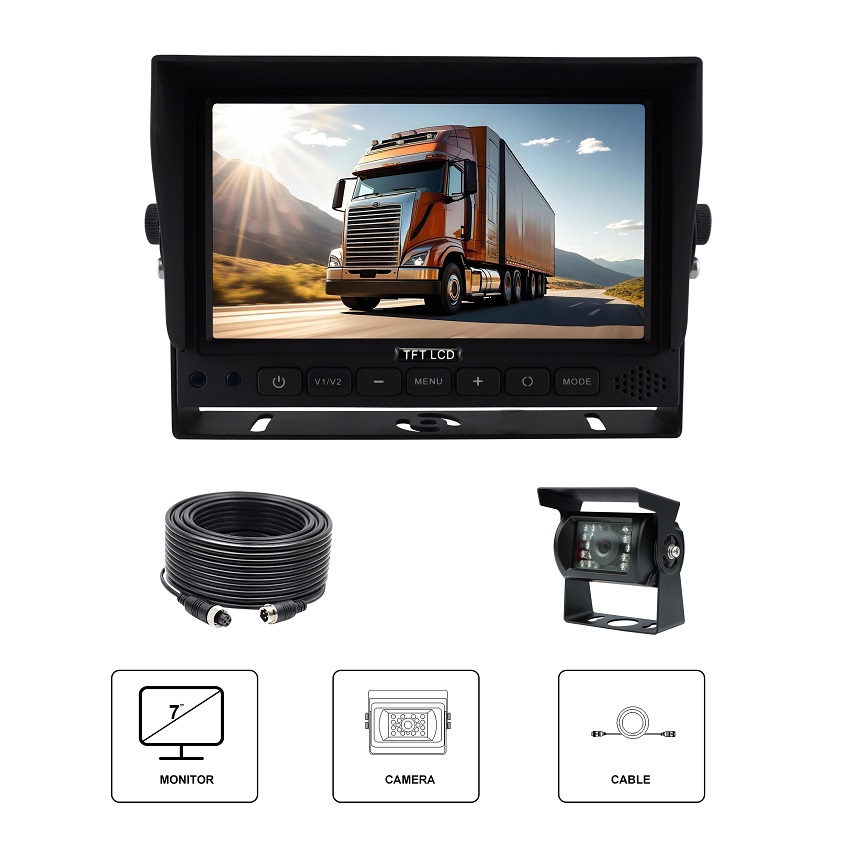

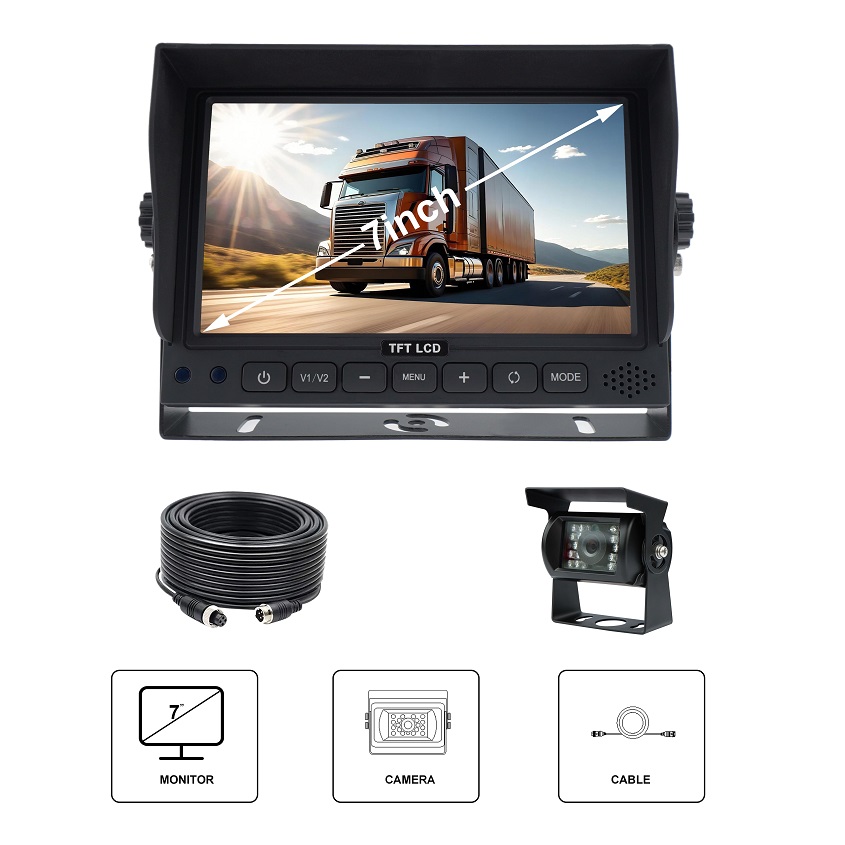

Standtop 7-Inch wired AHD Reversing Camera System is a high-definition vehicle safety solution designed to provide clear, wide-angle rear visibility for trucks, trailers, RVs, and commercial fleets. It combines a rugged AHD camera with a sharp 7-inch monitor for reliable performance in all conditions

Key Features:

• 7-Inch 2ch HD Monitor: Hight bright IPS full-view LED screen with 1024×600 resolution delivers crisp, vibrant images for better rear and side visibility even under strong sunlight
• Sunshade & Anti-Glare: Monitor includes a sunshade to reduce glare and improve visibility in bright conditions
• AHD 1080P Camera: Equipped with a 1/2.9" CMOS sensor, 120° ultra-wide-angle lens to eliminate blind spots and enhance safety
• Night Vision Function: Camera built-in 18pcs infrared Leds provide excellent low-light performance, ensuring clear visibility in darkness or low-light environments
• Waterproof & Shockproof Design: IP68-rated camera housing can built to withstand rain, dust, and harsh environments
• Automatic Reversing Trigger: The system automatically switches to the rear camera when the vehicle is in reverse gear, green wire was reversing trigger wire
• Length of Extension cable: can be choose from 5m to 20m,Double-shielded pure copper wire,green wire was reverse trigger wire
• Durable Build: Designed for rugged environments with vibration resistance and long-lasting components
• Wide Power Supply Range: Compatible with DC 12–36V vehicles
• Approvals and Certification: E-mark, CE

Product Parameters:

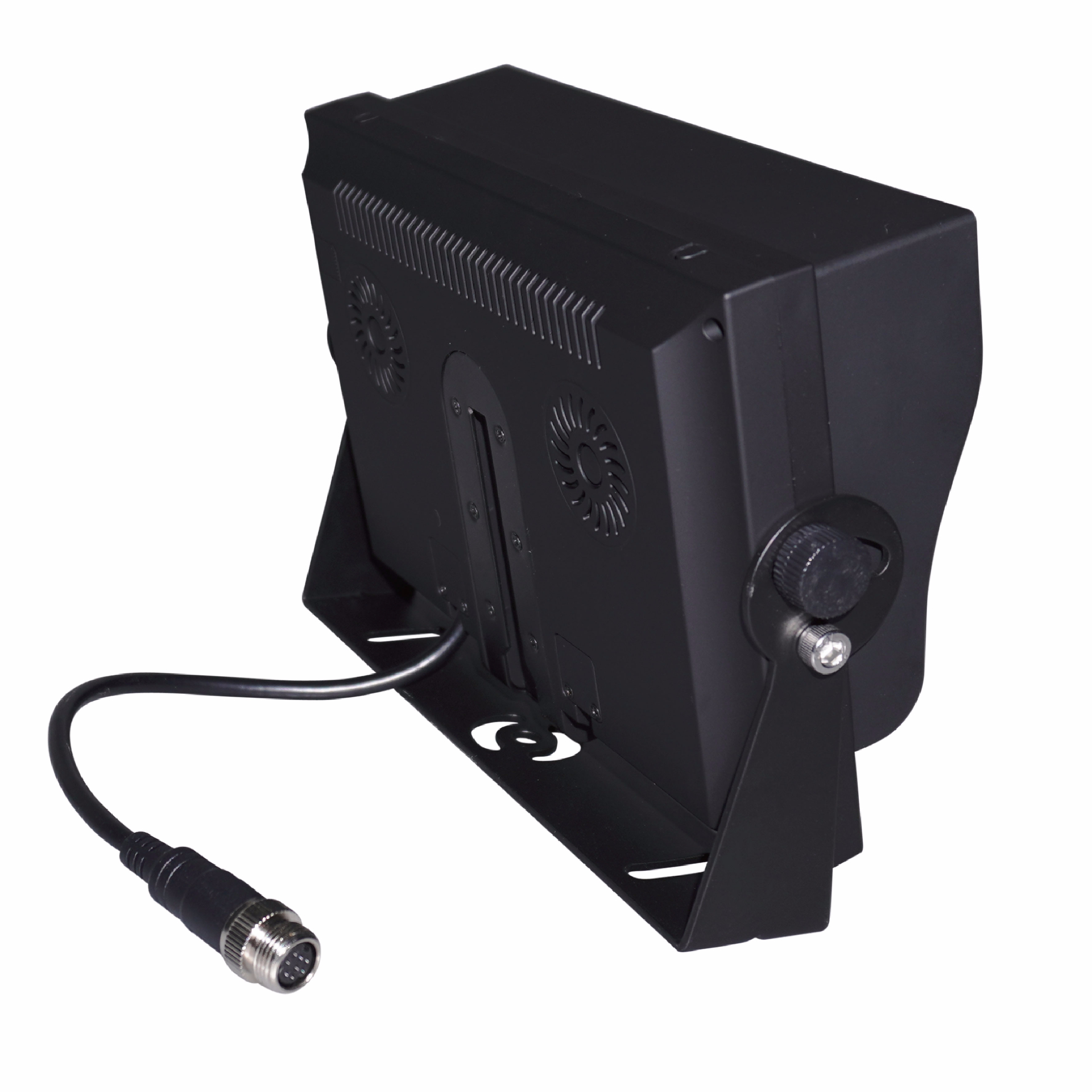

7" IPS AHD Rearview Monitor Specs:
AHD and CVBS signal are compatible
AHD 1080P
Aspect ratio:16:9 image
Resolution:1024*600*RGB
2 way video input
Power supply:DC 9-36V
Brightness:500cd2
Power Consumption:4.5W
System: PAL & NTSC
OSD menu,remote control
Viewing angle: L/R 85/85 U/D 85/85
Automatic switching with trigger
Suitable for rear view cameras
Connector:4pin aviation

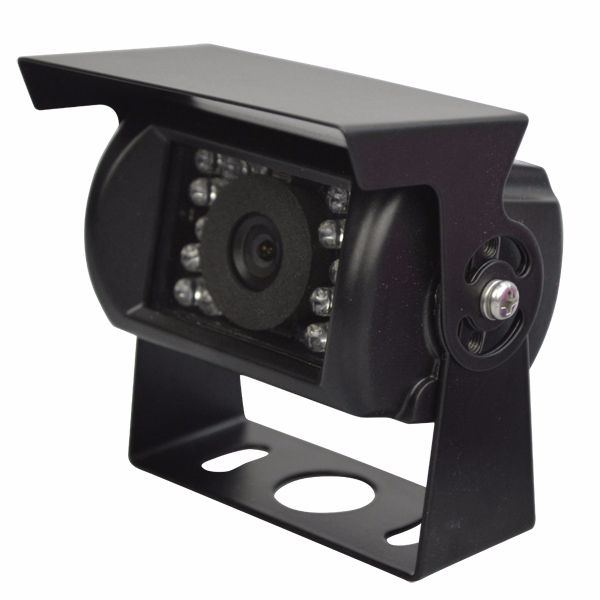

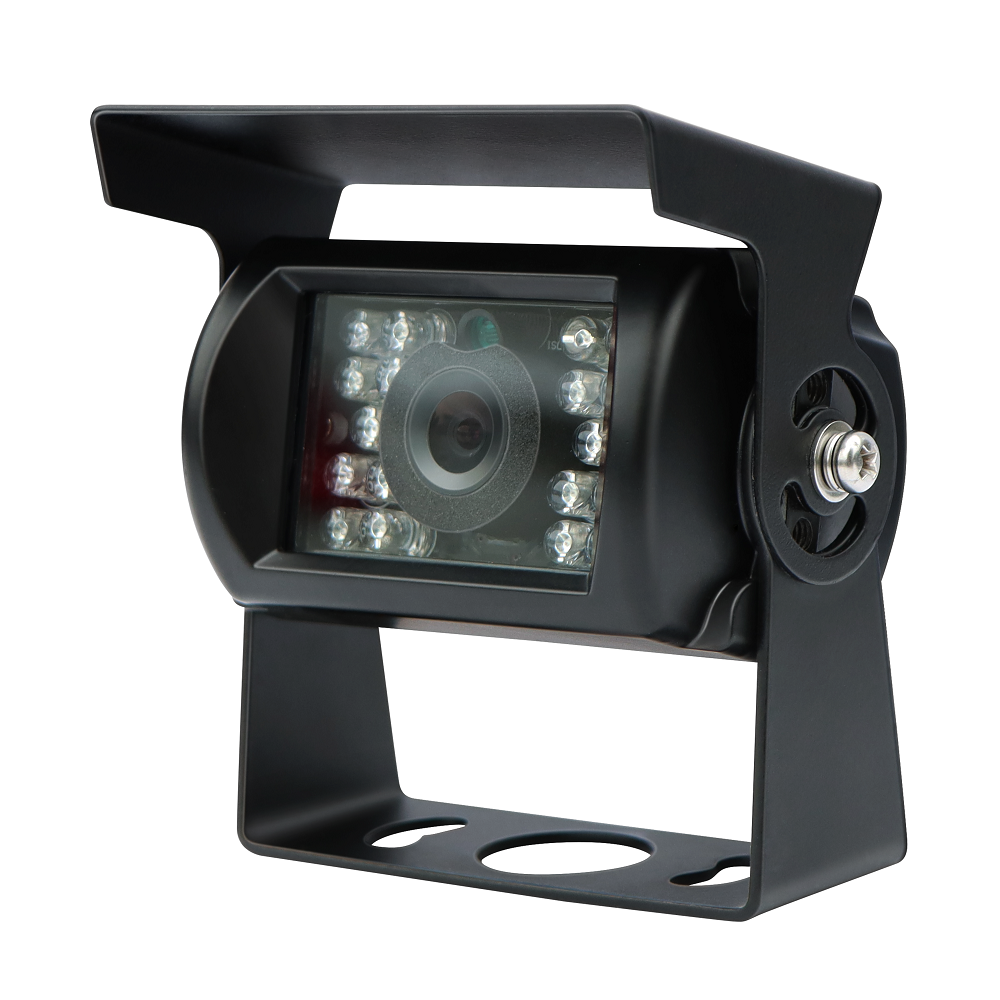

AHD Rear View Camera specs:
1/2.9" CMOS Sensor
1920*1080 AHD resolution,2MP
120 degree angle view
Waterproof level: IP68
Power supply: DC12V
Working temperature: -30℃ to 70℃

Wire Diagram:

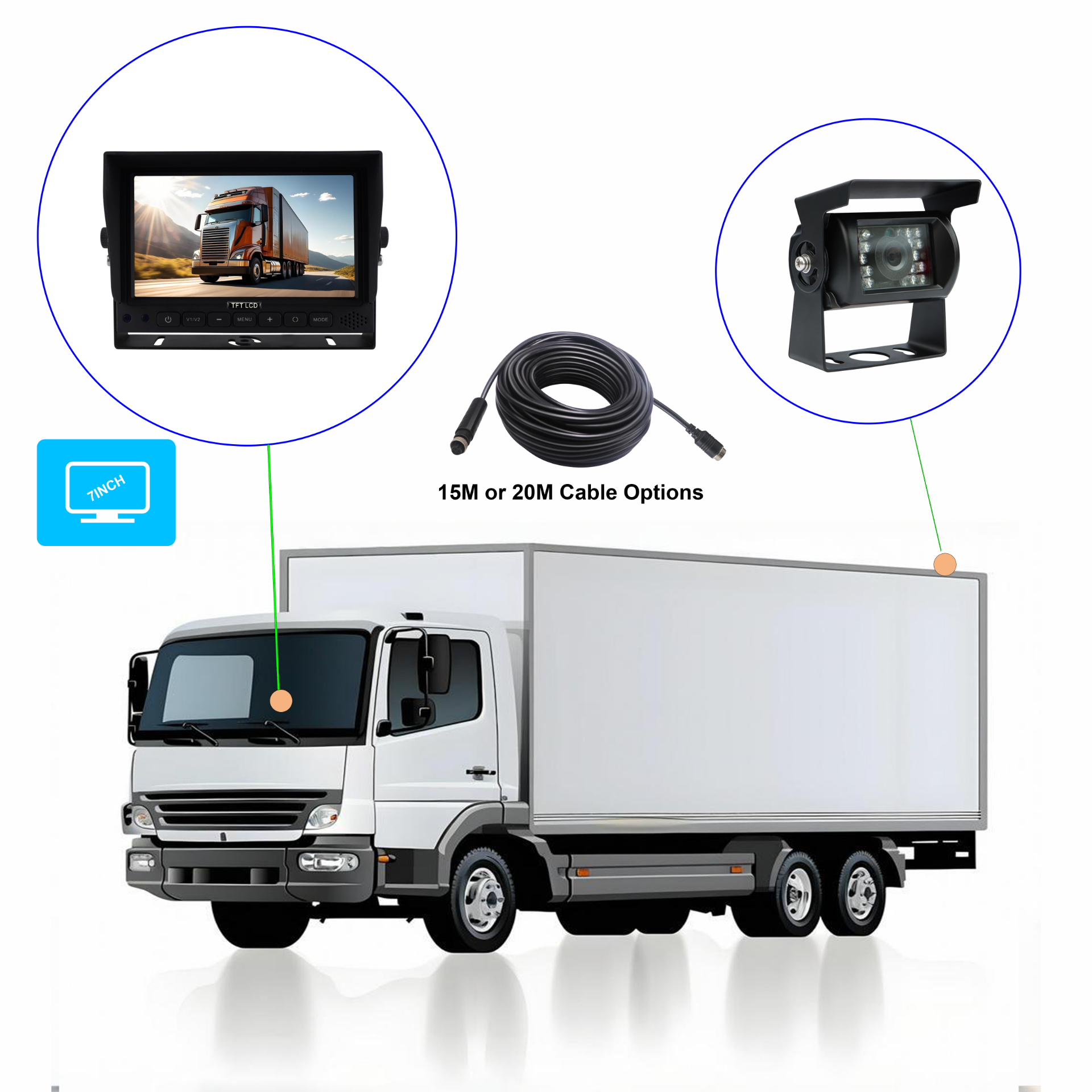

Product Applications:
