Technical Specs:

Material of  Casing: Plastic

Video format: AHD/CVBS

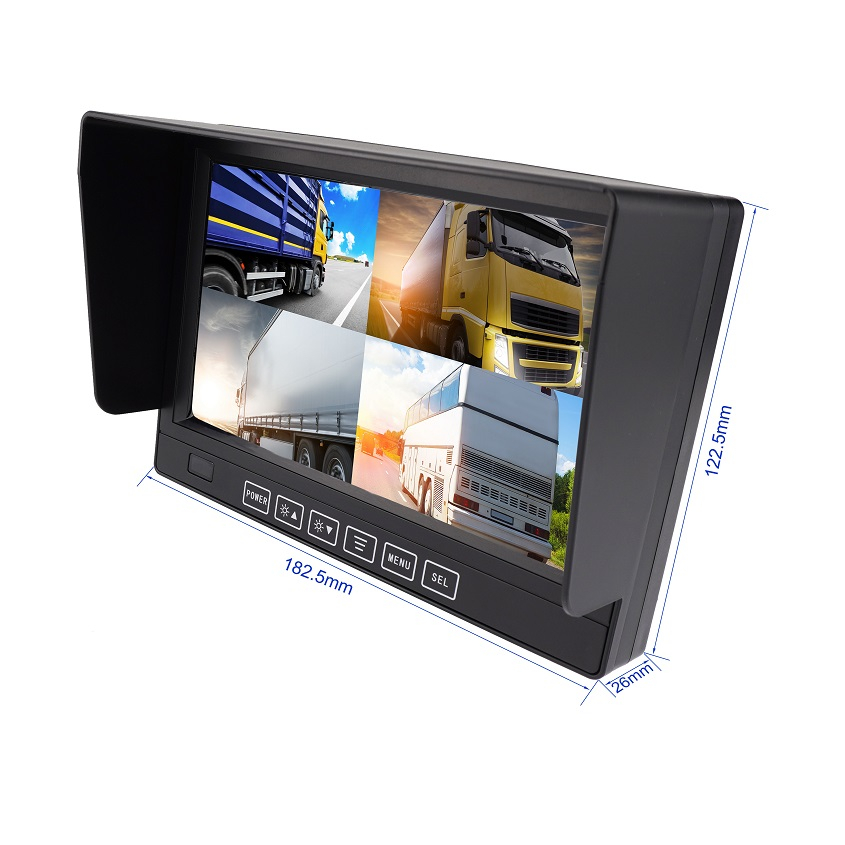

Screen size: 7"IPS HD 1080P Screen

Resolution: 1024(W)*RGB*600(H)

Display ratio: 16:9

System: PAL/NTSC

Voltage:DC 12-32V

Waterproof Level:IP68

Brightness: LED Luminance 600cd/m2

Contrast: 500:1

Power consumption: 12W

Color: black

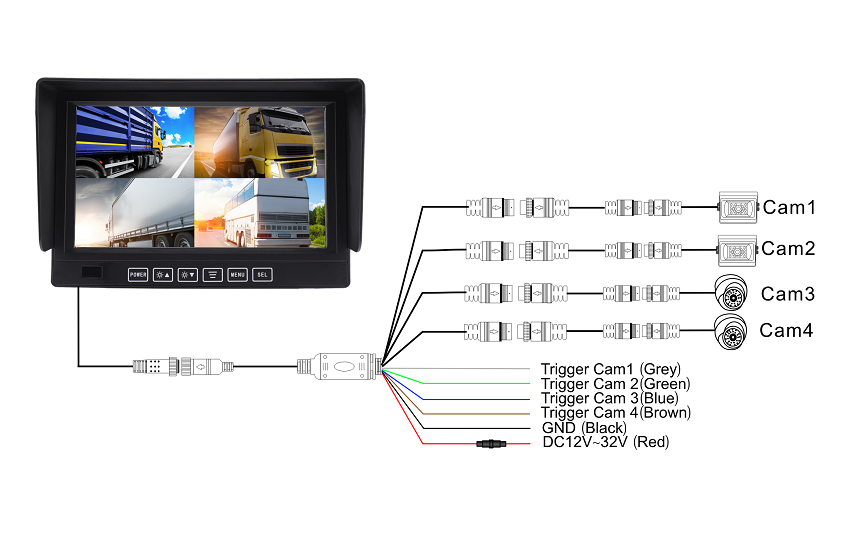

Four Video AV input,3 trigger wires

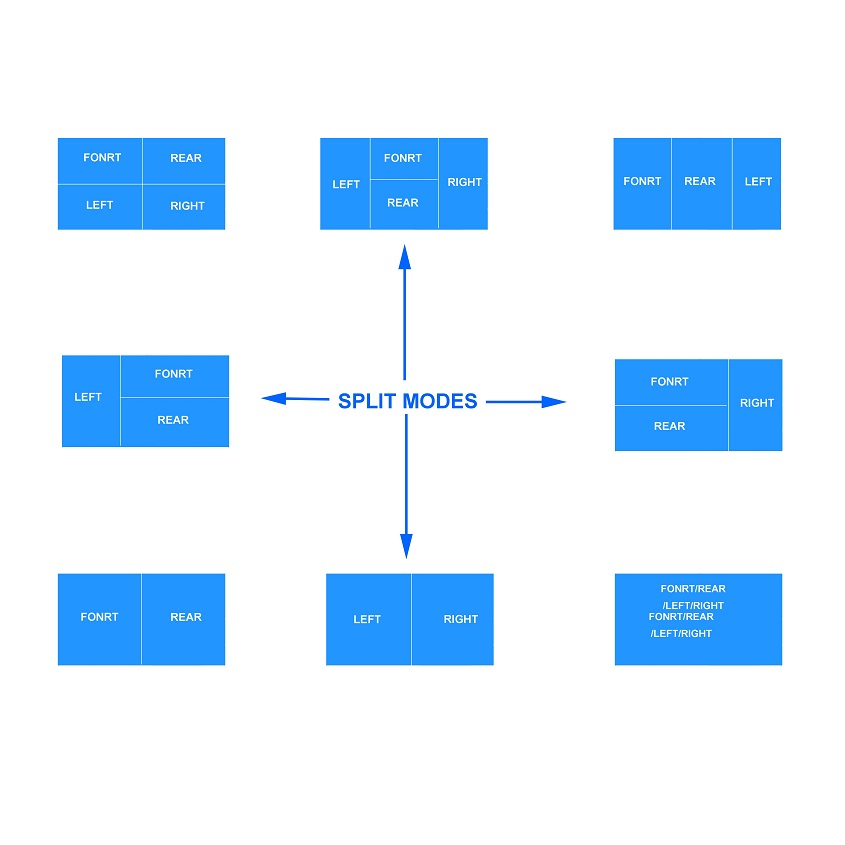

Split modes：13types

Adjustable image：Full /2/3/4 image

Viewing angle: L/R 85/85  U/D 85/85

Connector: 4Pin aviation

Operating Temperature: -30℃～70℃

 Remark:

• Press the menu button for about 10s, and a lock symbol will appear in the upper left corner of the screen, and the button function will be inactive,this function is to prevent accidental key presses after the button is splashed with water. Press the menu button for about 10s to unlock the button function.
•

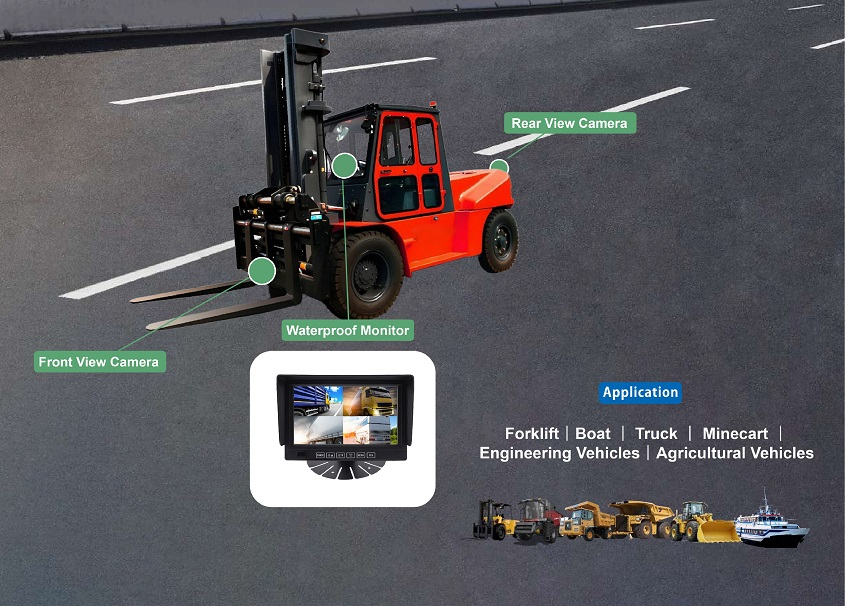

• For use in working environments with rainwater,applicate for agricultural machinery, engineering vehicles, tractors,  harvester trucks, excavators, cranes, forklift, boat etc
