9" Wireless Truck Camera System | 1080P HD Dual-Split Monitor

PRODUCT INTRODUCTION

Item number: ST-900WCS, 9" Wireless Backup Camera System with 1080P Dual-Split Monitor – Digital Signal Rear View Kit for Trucks, RVs, Trailers & Campers

Inquiry Now

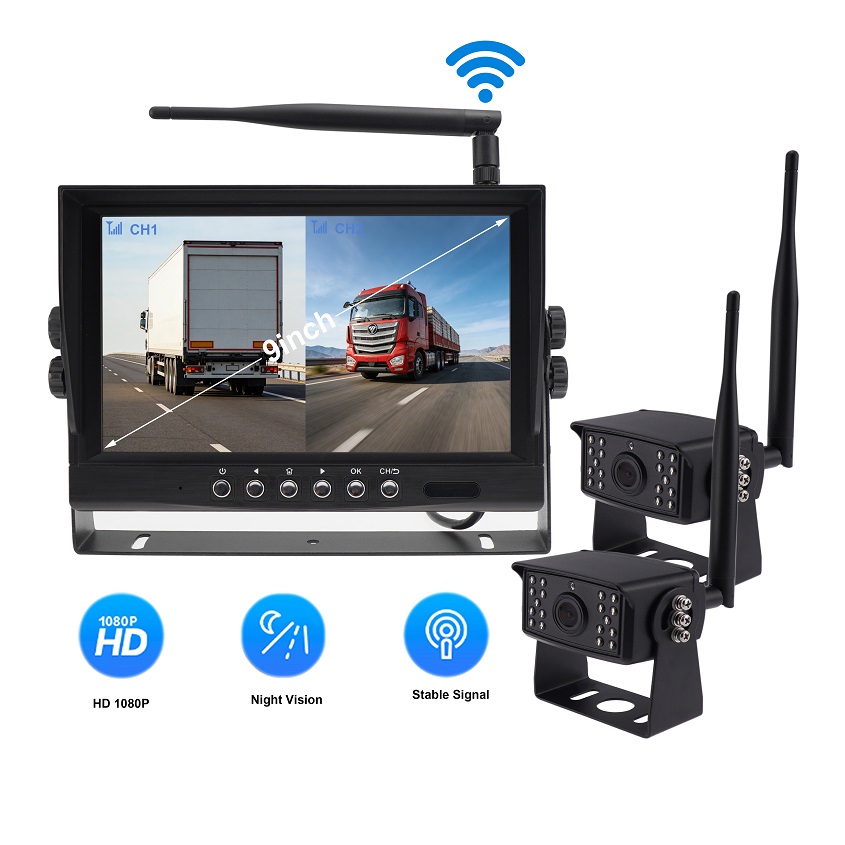

9-inch Dual-Split Wireless Monitoring System

Products Description:

The Standtop ST‑900WCS is a professional 9-inch 1080P wireless monitoring system designed for trucks, RVs, trailers, agricultural machinery, and heavy-duty vehicles. With a long-range digital signal, dual-split display, and IP69K waterproof cameras, it delivers reliable visibility in all weather and lighting conditions — making driving, reversing, and maneuvering safer than ever

Key Features:

Crystal Clear 1080P Resolution: High-definition video quality ensures every detail is captured, day or night.
9-Inch Large Dual-Split Screen: View two cameras simultaneously with a split-screen layout, or switch to full-screen for a dedicated view
Stable Digital Wireless Signal: Experience zero interference and no lag with a high-range digital signal, tested for long-distance stability.
Advanced IR Night Vision: Equipped with high-intensity infrared LEDs for superior visibility in complete darkness.
IP69K Waterproof Cameras: Rugged, weather-sealed construction designed to withstand rain, mud, and pressure washes.

9" Wireless Monitor Specs:

Category	Parameter
Screen size	9inch IPS full view LED panel
Resolution	1024600RGB
Video Input	2 ways Channel Video
Display Mode	Single View / 2 Split Screen
TV System	PAL/NTSC
Power supply	DC 12-36V
Power Consumption	6W
Screen ratio	16:9
Brightness (cd/m2)	500 cd/m2, 1000cd/m2 optional
Frequency range	2.4G Digital wireless signal frequency(2412-2484MHz)
Output power	21dBm with power control
Receiving sensitivity	-90dBm
OSD menu	Yes
Connector	Power lead and cigarette lighter
Operating Temperature	-30℃～70℃, RH 95% MAX

Wireless Safety Camera Specs:

Image Sensor	1/3" CMOS 1336
Resolution	AHD 1080P
Effective Pixels	1920(H) x 1080(V), 2MP
TV System	PAL/NTSC
Viewing angle	105-110 Degree Horizontal angle
Power supply	DC 12-36V
Waterproof Level	IP69K
IR lights	18Pcs
Image	Mirror
Transmission Distance	300M
Operating Frequency	Digital wireless
Power Consumption	4W
Connector	Power lead
Body Housing	Zinc alloy housing
Operating Temperature	-30℃～70℃, RH 95% MAX

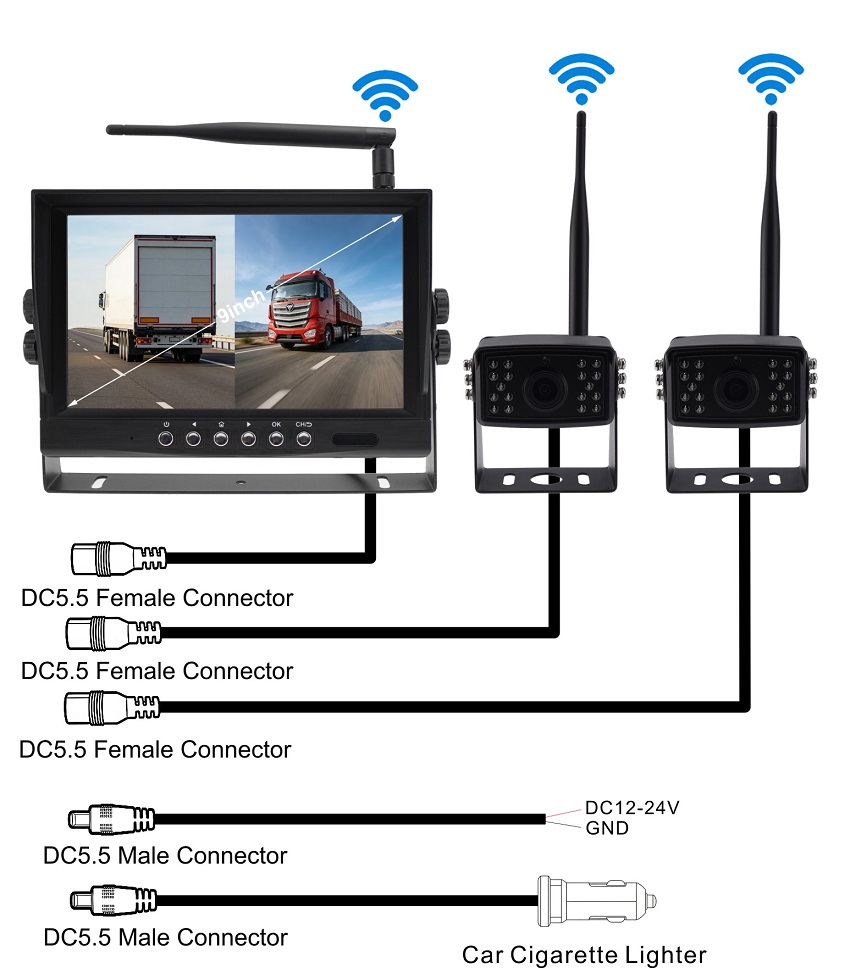

Wire Diagram:

Suitable Vehicle Types:

Given the wireless nature, large screen size, and weather-resistant cameras, this system is best suited for:

Semi-Trucks & Trailers: Perfect for monitoring blind spots and simplifying hitching without running 50ft+ of cable.
RVs & Motorhomes: Provides a clear rear view for safe reversing and lane changes in large recreational vehicles.
Agricultural Machinery: Ideal for tractors, harvesters, and grain carts where visibility is often blocked by large equipment.
Construction Vehicles: High utility for dump trucks, excavators, and cranes operating in rugged environments.
Horse Trailers: Allows drivers to monitor livestock in real-time while driving.

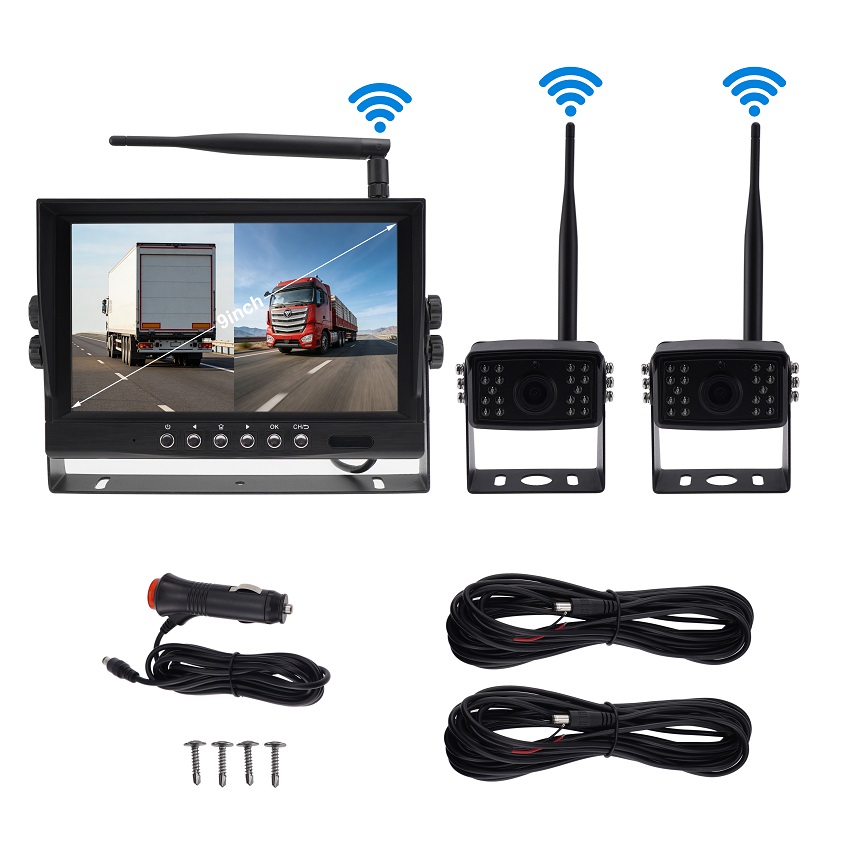

In the box:

1 x 9" 1080p Wireless Monitor
2 x 1080p Wireless Cameras
2 x Power Harness
1 x Car cigarette lighter
3 x 6DB Antenna gain
1 x Screw Kit for installation
1 x Manual

FAQ Section

Q1: Is this system suitable for long trailers or fifth wheels?

Yes. The wireless transmission is designed for long‑distance stability, making it ideal for long trailers and fifth wheels.

Q2: Can I view both cameras at the same time?

Yes. The 9-inch monitor supports dual‑split display (CH1 + CH2).

Q3: Does it work at night?

Absolutely. The infrared night‑vision cameras provide clear visibility even in low‑light or no‑light environments.

Why Choose Our 9-Inch Dual-Split Wireless Camera System?

Increased Safety: Minimize blind spots and avoid accidents by offering a real-time view of your vehicle’s rear and sides.
Clear, High-Definition Vision: The 1080P resolution delivers crisp, clear video feeds for enhanced visibility in all driving conditions, day or night.
Easy Installation: Wireless design eliminates the need for complicated wiring, allowing for a quick and easy setup.
Long-Lasting Reliability: Built with durability in mind, our system is designed to handle tough environments and provide consistent performance.
