Product Description

Rear cameras on winter fleets frequently lose vision when coated in packed snow, frozen spray, and road slush.

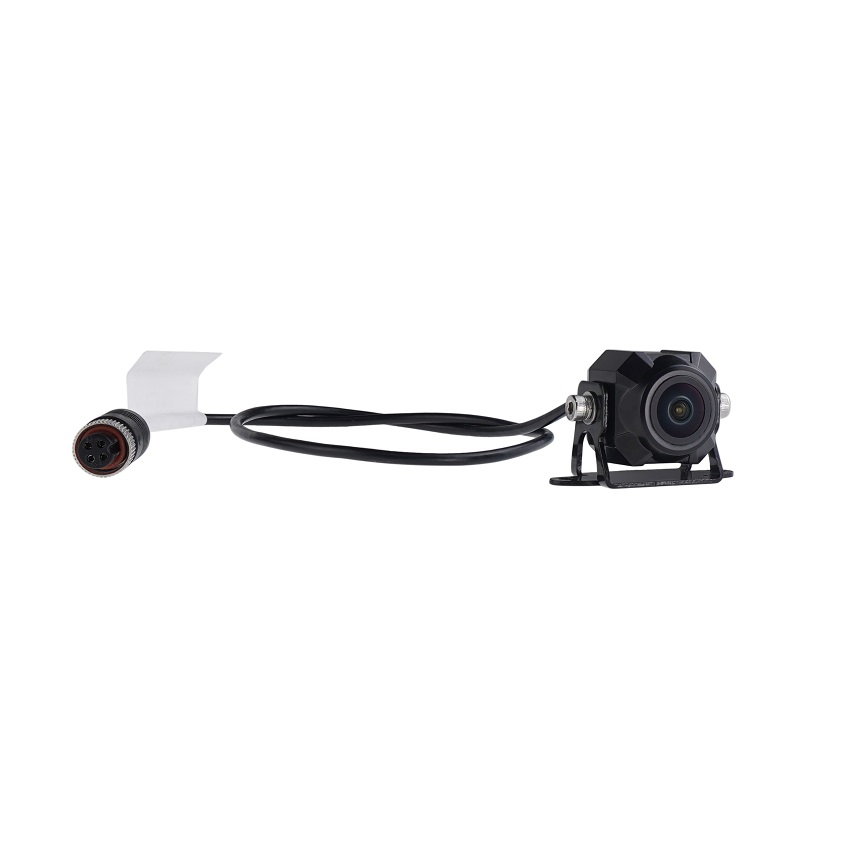

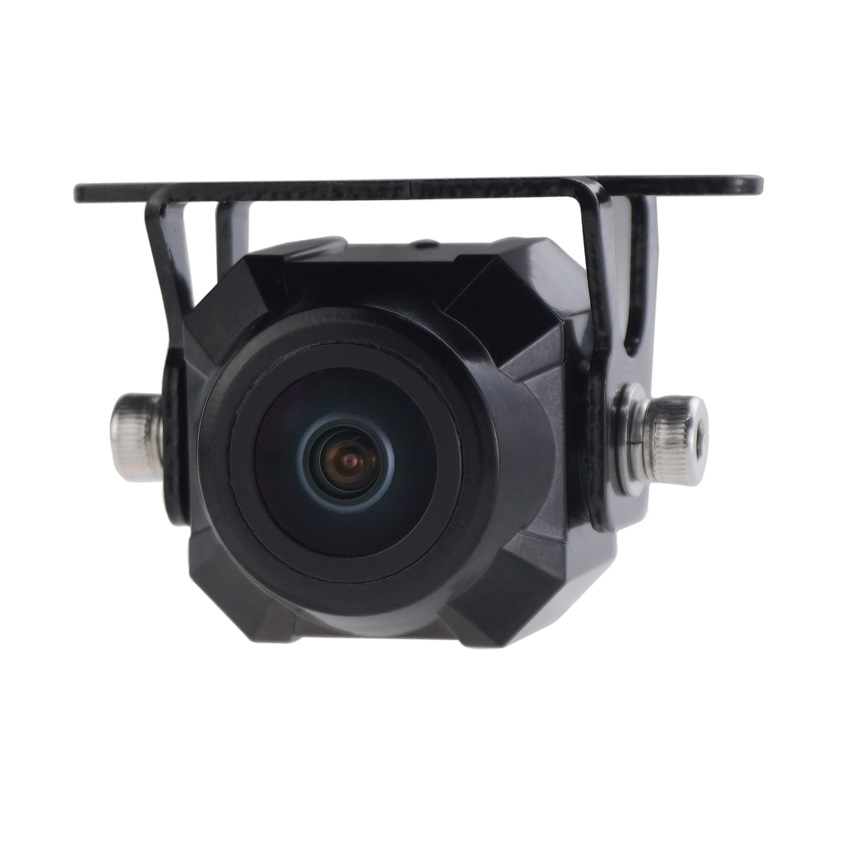

The ST-108A-H is designed specifically for commercial vehicles running in cold climates and sub-zero storage facilities. By integrating a controlled heating layer into the front tempered glass, the camera clears its own lens window during freezing routes without requiring drivers to stop and wipe off the camera. Built in a compact zinc-alloy housing, it mounts cleanly onto commercial trucks, municipal snow equipment, and utility trailers where reliable all-weather monitoring is required.

Key Features

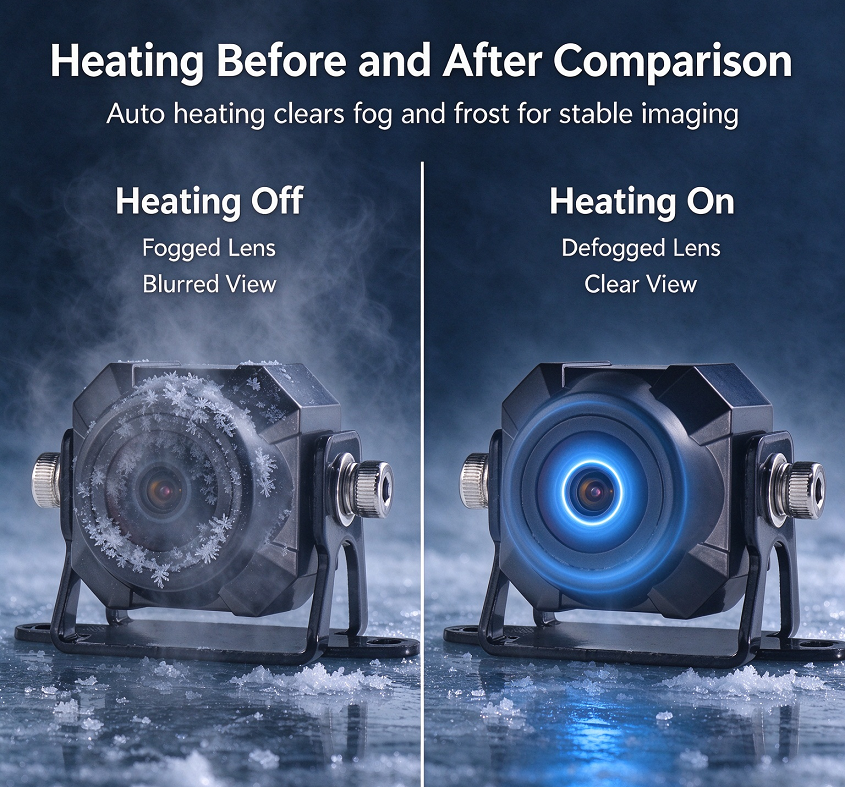

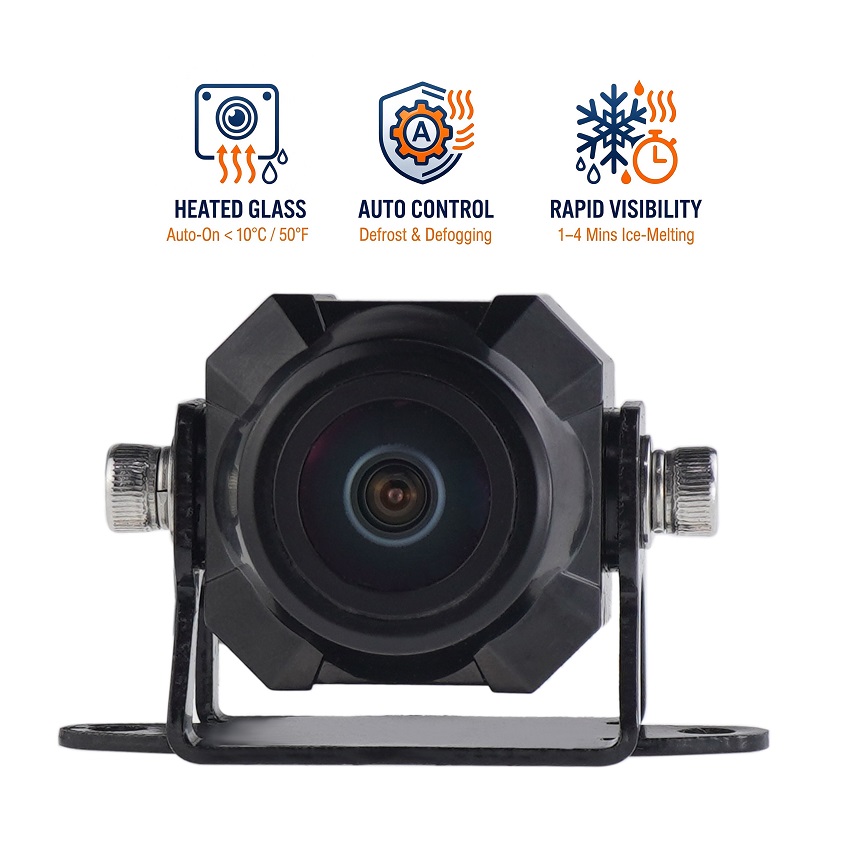

• Auto-Regulated Glass Heating: Thermal sensor initiates defrosting at ≤ +10°C to melt ice, snow, and condensation, and shuts down at ≥ +50°C to manage current draw.

• 165° Horizontal Angle: Optical 1.8mm all-glass lens provides broad bumper-to-bumper visibility and covers adjoining traffic lanes.

• Low-Light Sensor (No IR LEDs): 1/2.9" GC2053 1080P CMOS operates down to 0.01 Lux, preventing light backscatter and halo effects caused by melting water beads.

• IP69K Waterproof Construction: Withstands aggressive road grime, road salt, freezing rain, and high-pressure hot washdowns.

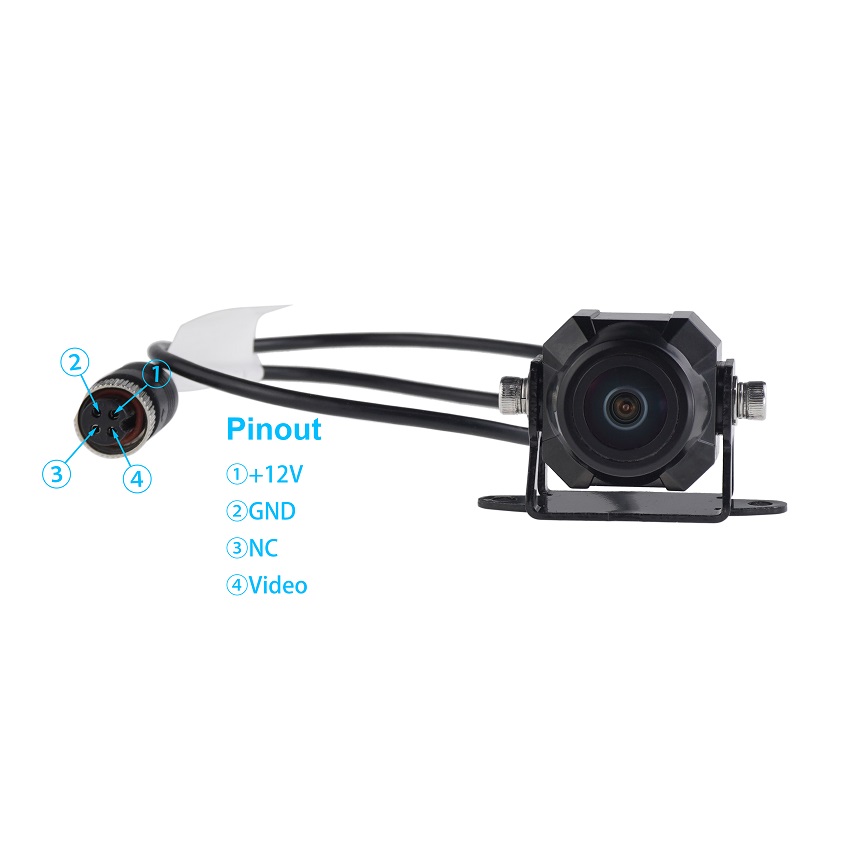

• M12 4-Pin Aviation Cable: Standard screw-locking connector provides stable video, DC 12V power, and ground through heavy chassis vibration.

Specifications

Typical Applications

• Winter Road Maintenance & Snowplows:

  Rapidly melts packed snow, frozen road spray, and road salt crust kicked up behind plows and salt spreaders, keeping the reversing view clear in sub-zero whiteout conditions.

• Commercial Semis & Heavy Trailers:

  The compact mini housing tucks neatly into recessed rear bumpers, license plate brackets, and trailer step areas without protruding or risking dock impact, covering full rear blind zones with a true 165° horizontal view.

• Refrigerated Transports & Cold Storage Fleets:

  Prevents immediate lens fogging and heavy condensation when reefers cycle between sub-zero freezer compartments and warm, humid outdoor loading docks.

Choose Your Display Setup

• For In-Cab Mounting (Standard Cabs):

  Pair with our 7" AHD Quad Screen Monitor or 7" High-Resolution Standalone Monitor (1024×600 IPS panel, DC 9–36V wide input, auto-trigger channel switching).

• For Open-Cab & Harsh Washdown Zones:

  Pair with our 7" IP69K Waterproof Industrial Monitor (1000+ Nits daylight-viewable screen, steam-cleaning resistant housing for heavy-duty outdoor machinery).

• System Feature:

  Direct single-cable connection — our 7" monitors deliver regulated power directly to the ST-108A-H heated camera via the 4-pin aviation harness, supporting full heater load without external power boxes.

----------------------------------------------------------------------------------------------------------
