10.1 Inch Wireless Quad Camera System for Agricultural Machinery & Heavy Duty Vehicles

PRODUCT INTRODUCTION

Model number: ST-101WCS

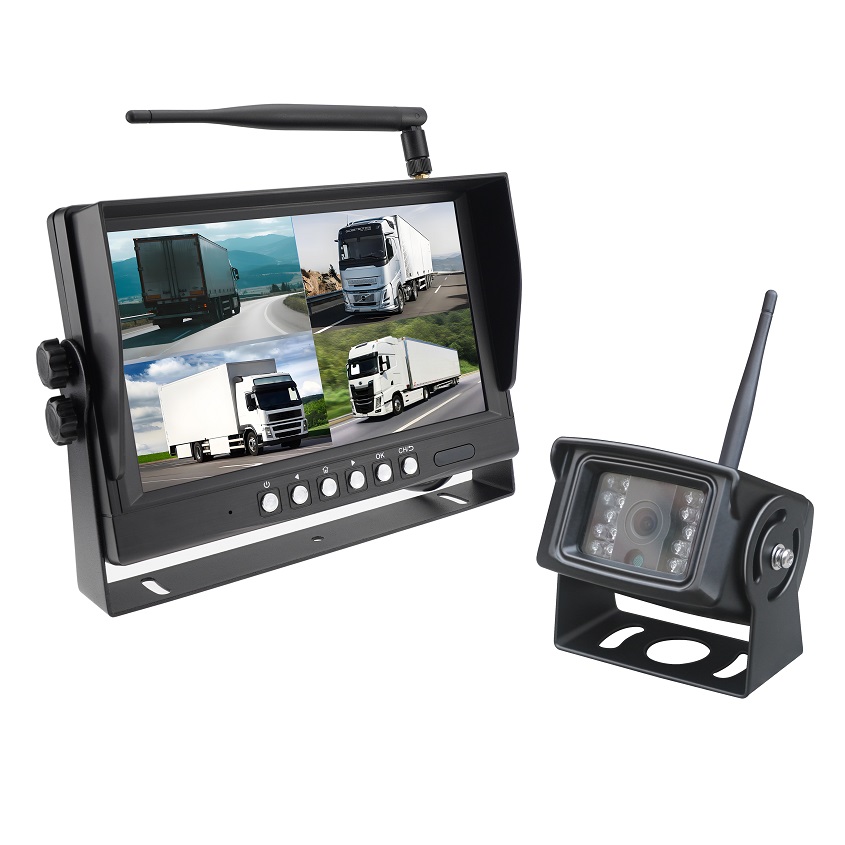

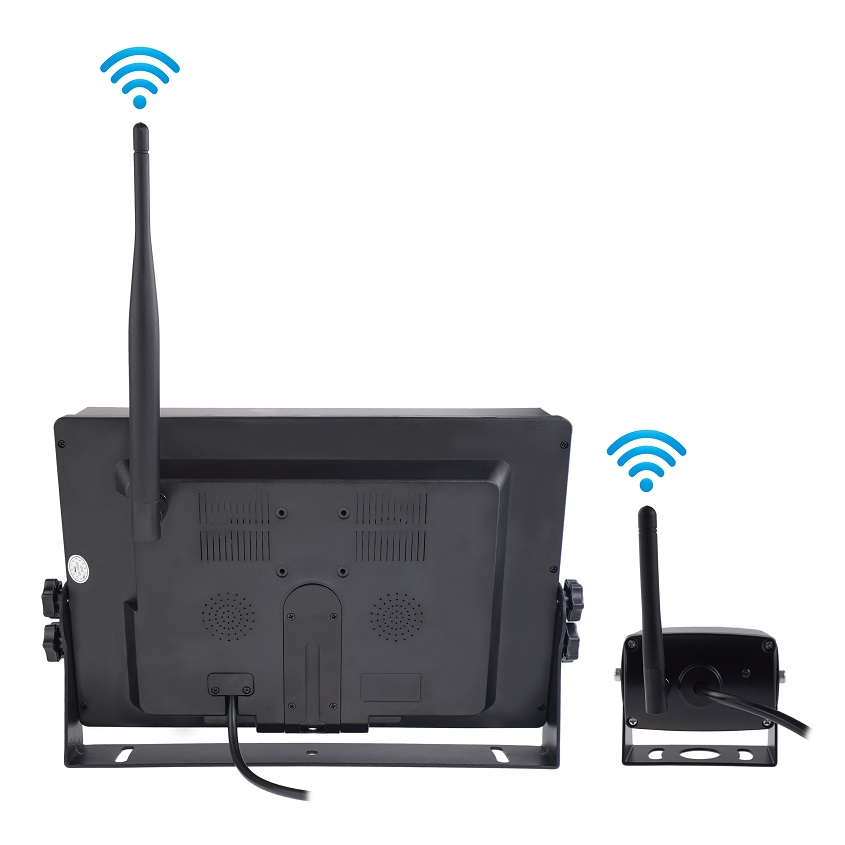

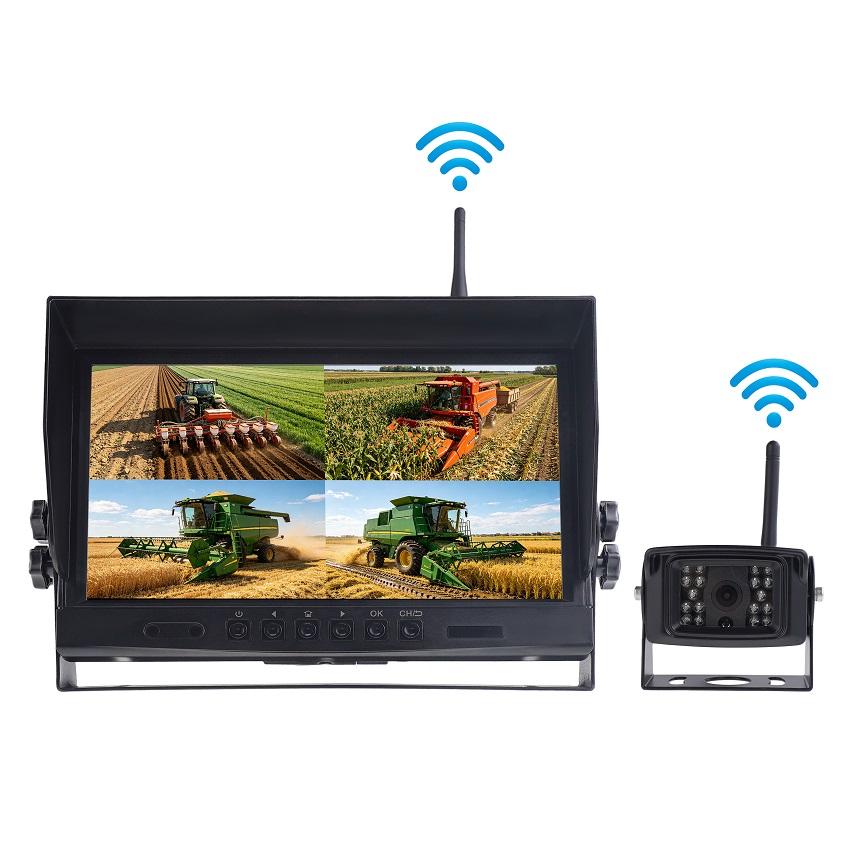

10.1 Inch Wireless Quad Camera System for Agricultural Machinery & Heavy Duty Vehicles

Products Description

Wireless Multi-Camera Monitoring Solution for Large Vehicles

Large agricultural machines and heavy-duty vehicles often have limited visibility due to their size and complex working environments.

Standtop's 10.1 inch wireless quad camera system provides a reliable solution by supporting up to four wireless cameras with simultaneous split-screen viewing.

The system helps operators monitor blind spots, improve operational safety and reduce the risk of accidents during driving, reversing and working operations.

With high-definition 1080P image quality, stable wireless transmission and a large 10.1-inch display, it is ideal for professional vehicle monitoring applications.

Product Features

10.1 Inch Large Quad Split Display
Wireless Camera Installation for Easy Retrofit
1080P HD Image Quality
Designed for Agricultural Machinery Applications
Heavy Duty Vehicle Blind Spot Monitoring

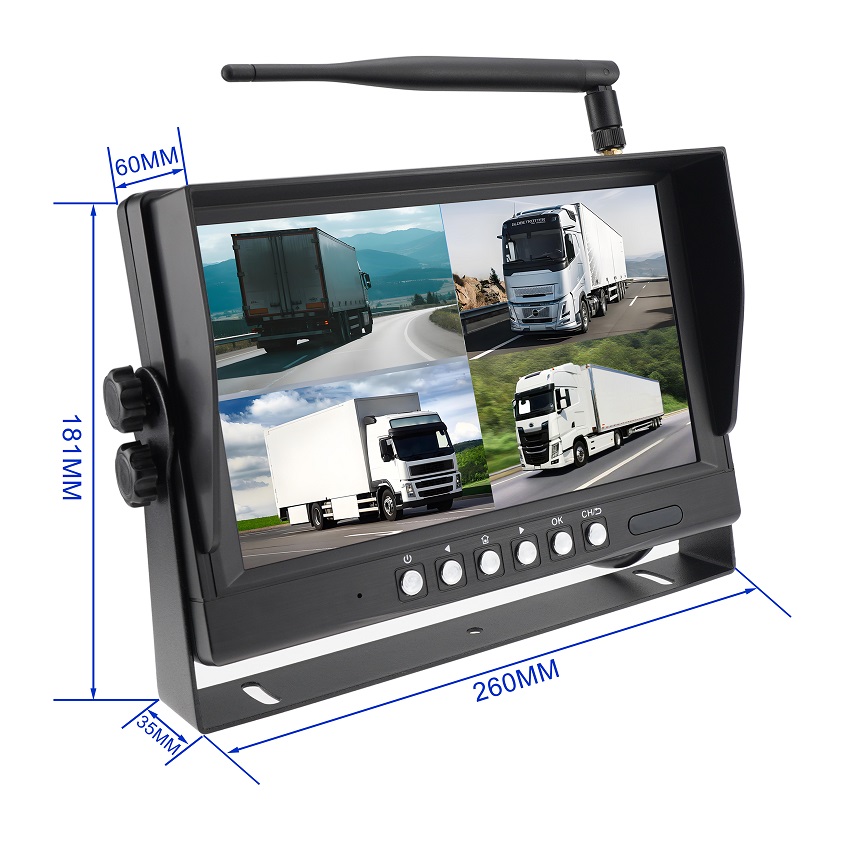

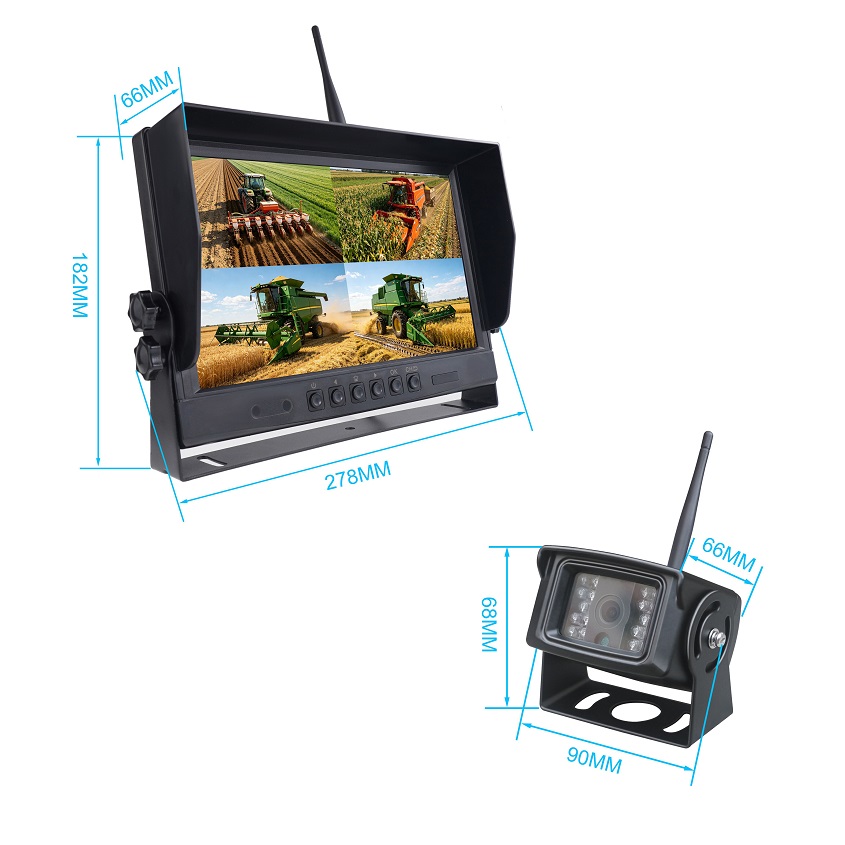

10.1" Wireless Monitor Specs

Category	Parameter
Screen size	10.1 inch IPS full view LED panel
Resolution	1024600RGB
Video Input	4 ways Channel Video
Display Modes	Single Full Screen / 2-Split / 3-Split / 4-Split Screen
Smart Function	AI BSD (Blind Spot Detection) — Menu Selectable (On/Off)
TV System	PAL/NTSC
Power supply	DC 12-36V
Power Consumption	7W
Screen ratio	16:9
Brightness (cd/m2)	1000cd/m2
Frequency range	2.4G Digital wireless signal frequency(2412-2484MHz)
Output power	21dBm with power control
Receiving sensitivity	-90dBm
OSD menu	Yes
Connector	Power lead and cigarette lighter
Operating Temperature	-30℃～70℃, RH 95% MAX

Wireless Camera Specs

Image Sensor	1/3" CMOS 1336
Resolution	AHD 1080P
Effective Pixels	1920(H) x 1080(V), 2MP
TV System	PAL/NTSC
Viewing angle	105-110 Degree Horizontal angle
Power supply	DC 12-36V
Waterproof Level	IP69K
IR lights	18Pcs
Image	Mirror
Transmission Distance	300M(Open area)
Operating Frequency	Digital wireless
Power Consumption	＜3W
Connector	Power lead
Body Housing	Zinc alloy housing
Operating Temperature	-30℃～70℃, RH 95% MAX

Application Areas

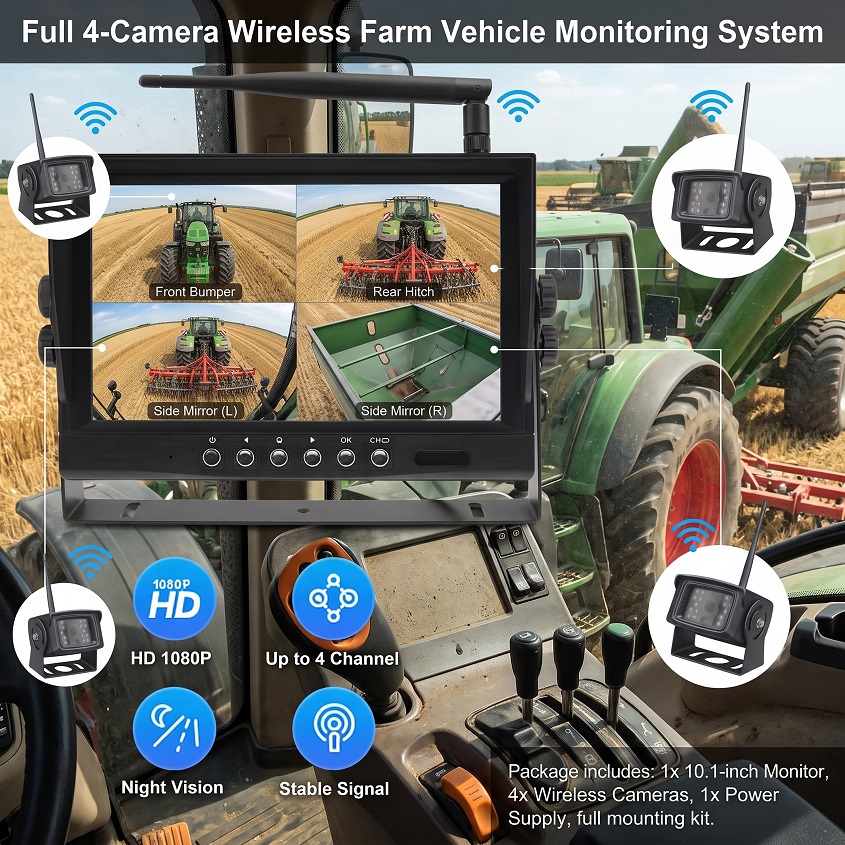

10.1 inch wireless quad camera system for agricultural machinery

Agricultural Machinery Camera System

Tractor Camera System

Large tractors often have limited rear visibility, especially when using trailers or agricultural attachments.

The wireless quad camera system allows operators to monitor:

Rear equipment position
Surrounding obstacles
Field operation areas

Combine Harvester Camera System

For harvesting machines, multiple camera views help operators monitor:

Rear discharge area
Side working area
Machine surroundings

Heavy Duty Vehicle Camera System

Designed for:

Truck & Trailer Monitoring

Provides additional visibility for:

Rear blind spots
Trailer areas
Loading zones

Construction Equipment Monitoring

Suitable for:

Excavators
Loaders
Mining vehicles

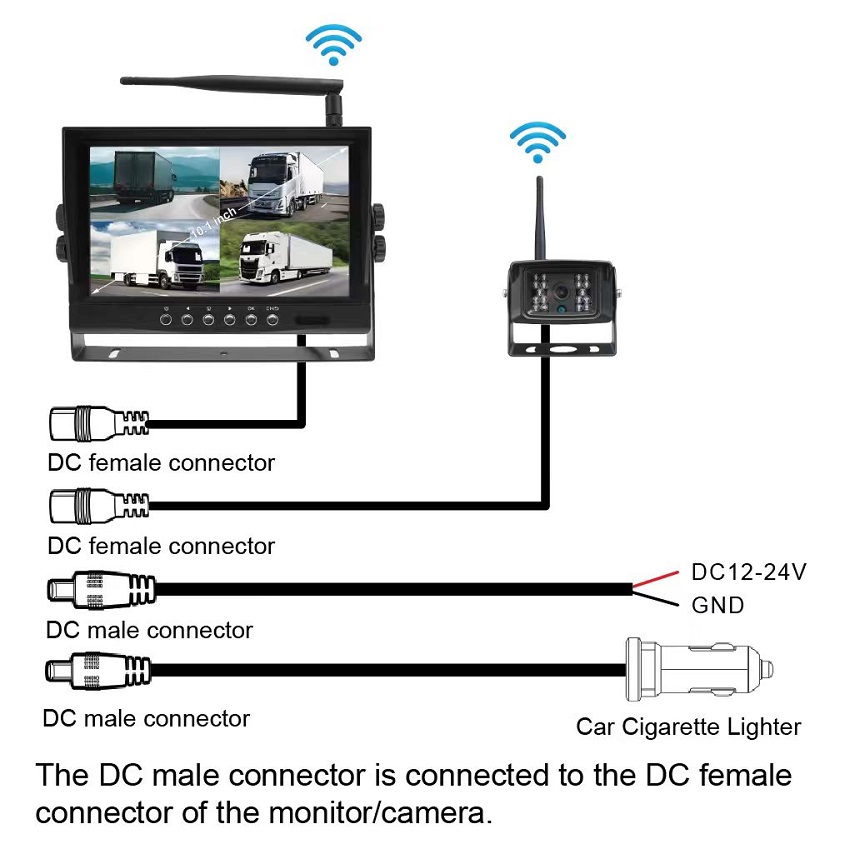

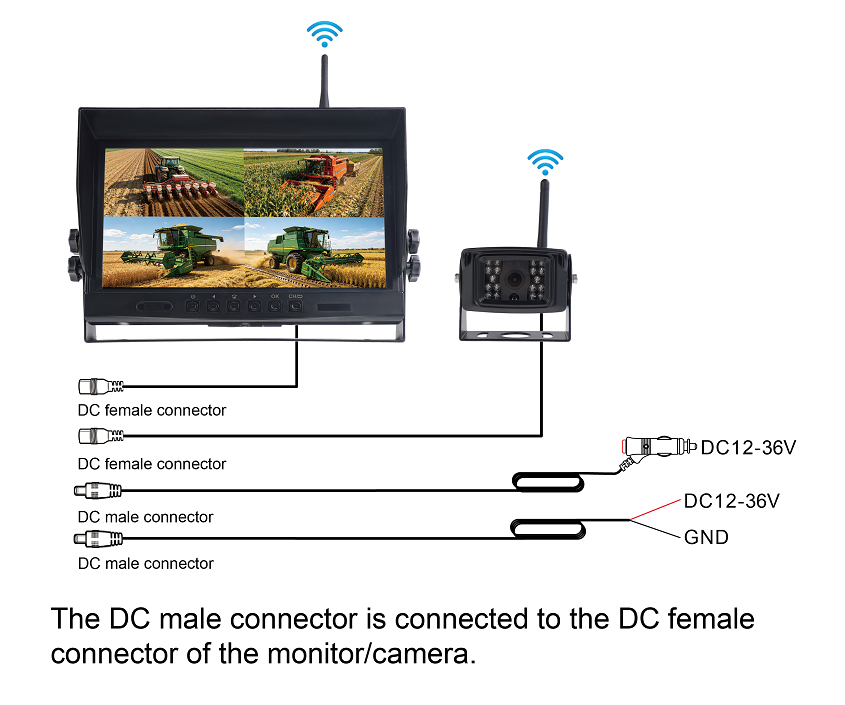

Wire Diagram

10.1 inch wireless quad camera system for agricultural machinery

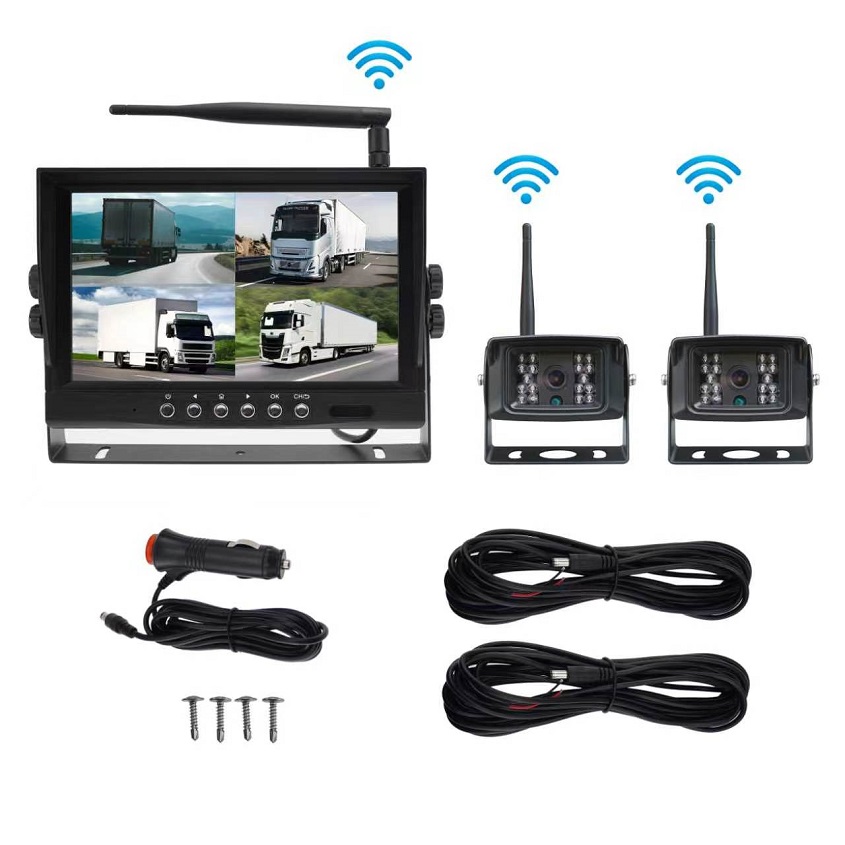

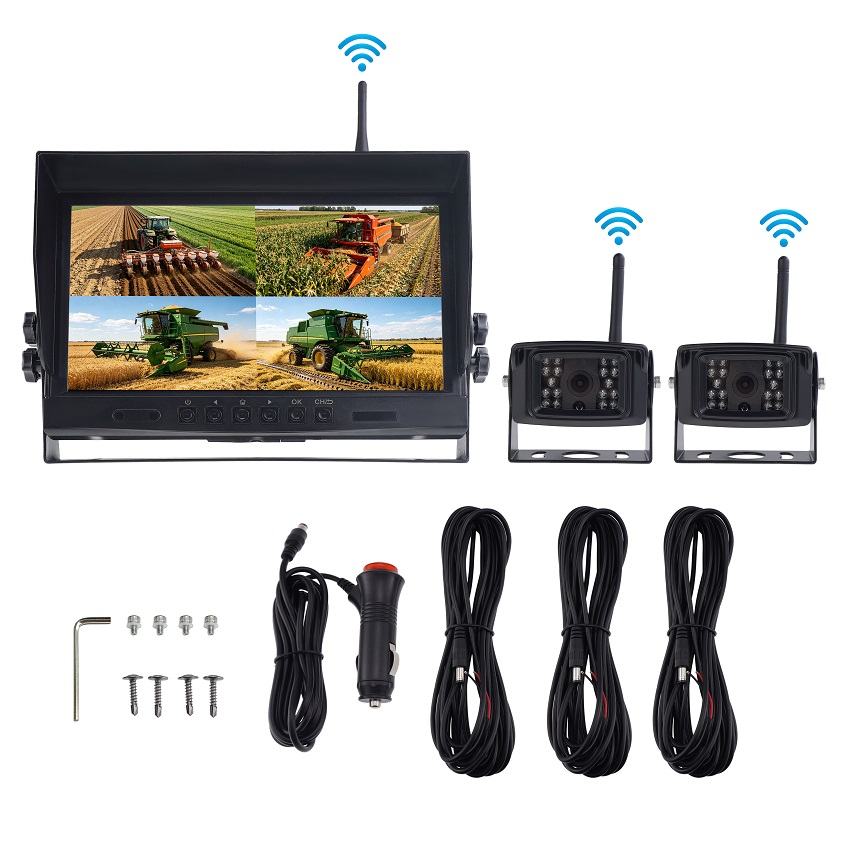

What's in the box

wireless tractor camera system with quad view monitor

1 x 10.1" 1080p Wireless Monitor
2 x 1080p Wireless Cameras
2 x Power Harness
1 x Car cigarette lighter
3 x 6DB Antenna gain
1 x Screw Kit for installation
1 x Manual

Frequently Asked Questions (FAQ)

Q1: What is the wireless transmission range of this 10.1" Quad Camera System?

A: The system utilizes a 2.4GHz digital wireless signal with an open-field transmission range of up to 300 meters (approx. 1000 ft). It provides stable, real-time 1080P video transmission without interference from other onboard electronic devices, making it suitable for tractors, combine harvesters, grain carts, and trailers.

Q2: Can the 10.1-inch monitor display and record all 4 cameras simultaneously?

A: The 10.1" IPS monitor supports multiple display modes, including single view, dual split, and quad-split screen to monitor front, rear, and side blind spots at once. Multi-channel DVR recording is available as an optional feature, supporting loop recording with 128G SD cards.

Q3: Are the cameras rugged enough to handle harsh agricultural working conditions?

A: The wireless cameras are built with heavy-duty metal housing and rated IP69K for waterproof and dustproof protection. They withstand high-pressure steam power washing, heavy mud, extreme vibrations, and wide operating temperatures from -30°C to +70°C

Q4: How clear is the video quality in low-light conditions or during night operations?

A: Each camera is equipped with a high-definition 1080P image sensor and infrared (IR) night vision LEDs or low-light sensors. This provides clear imaging with realistic distance perception during nighttime harvesting, planting, or working in dusty farm environments.

Q5: What is the operating voltage, and is it compatible with heavy agricultural equipment?

A: The system supports a wide input voltage range of DC 12V–36V with built-in surge and reverse polarity protection. It is compatible with tractors, combine harvesters, seeders, telehandlers, and various 12V/24V heavy-duty machinery.

Q6: Do you support OEM/ODM customization and sample testing for distributors?

A: Yes. We provide OEM/ODM services for fleet operators, agricultural equipment dealers, and distributors. Customization options include branded startup logos, optional DVR functionality, custom mounting brackets, and tailored cable lengths. Sample units are available for field performance testing.
