Double Lens Reverse & Rear View Camera

PRODUCT INTRODUCTION

Item number: ST-TW-C09A

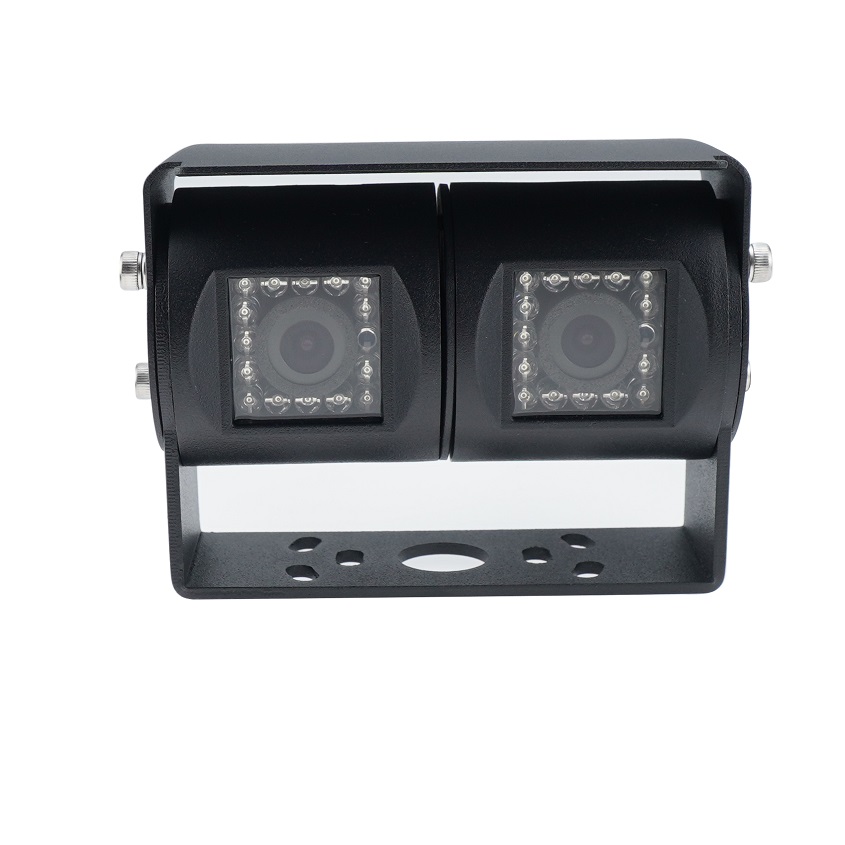

Double Lens Rear View & Reverse Camera

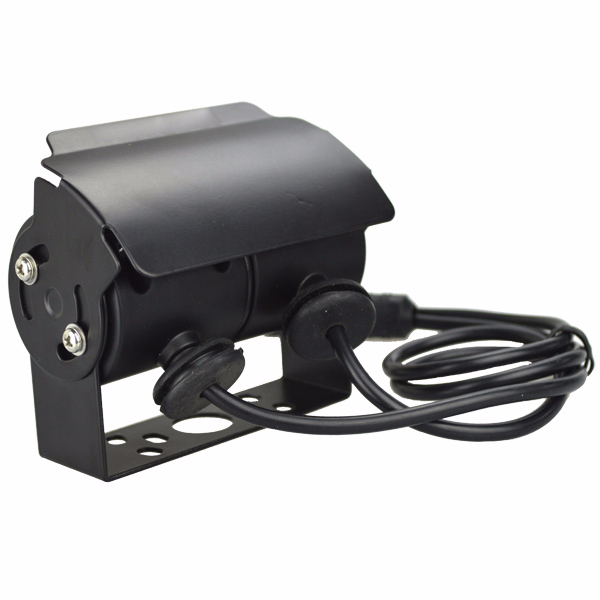

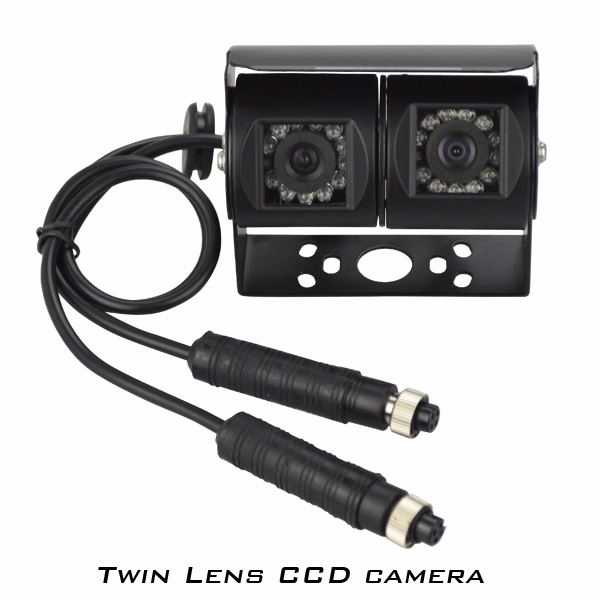

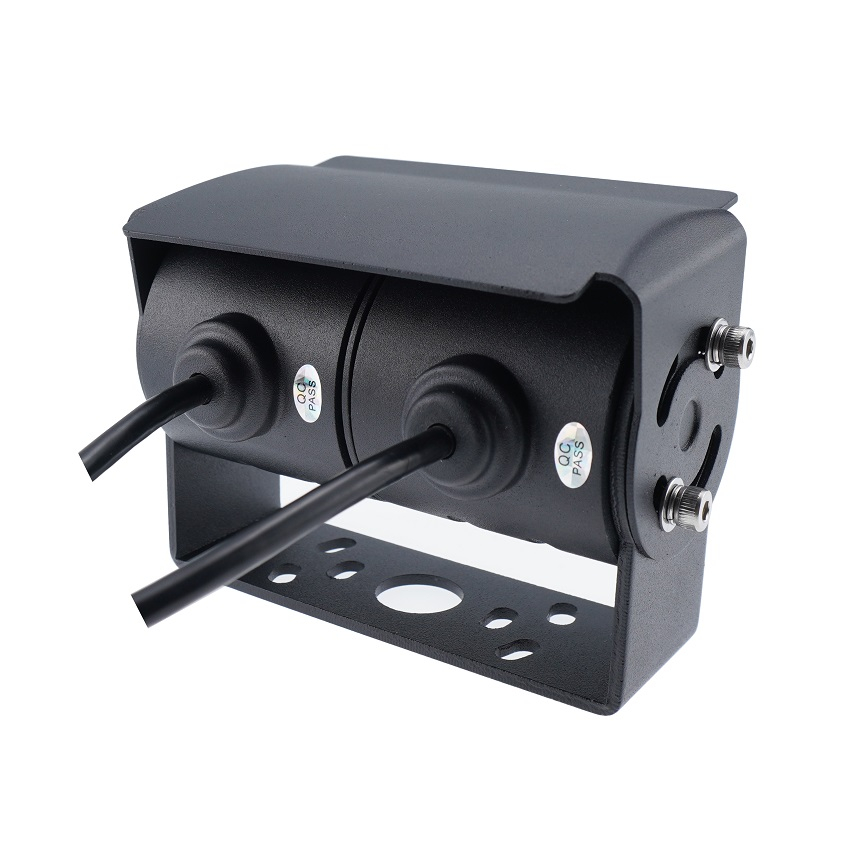

The double lens camera is a HD 1080p cameras in a metal housing, the left camera which with 90-95° Horizontal Angle view is for“Always-on" rear view,so you can have a clear view of the road behind,the right camera which with a 90-95° Horizontal Angle view designed to be a standard reverse camera

Product Features:

1080p resolution, 15pcs IR leds for night vison
1 for rear view, 1 for reverse, narrow angle is optional
Simply installation with no need for additional mounting hardware

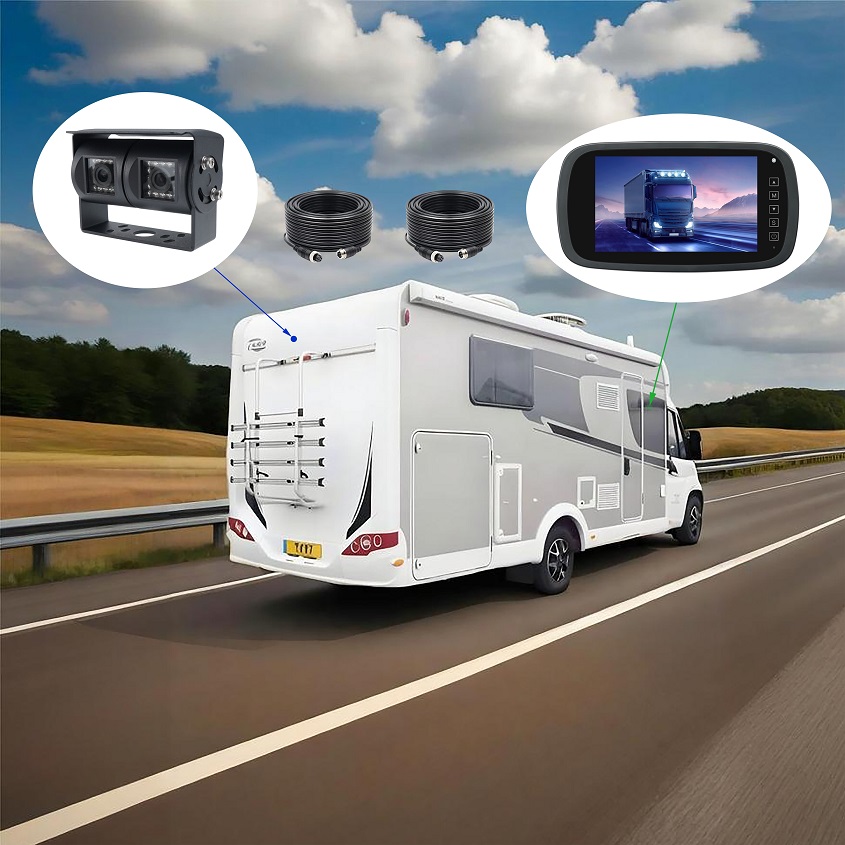

Rear-view and Back-view monitoring for RVs, Motorhomes, Caravans,Campervans etc

Product Parameters:

Category	Parameter
Image Sensor	1/2.9" CMOS
Resolution	720P or 1080P optional
Effective Pixels	1280(H) x 720(V)/1920(H) x1080(V)
TV System	PAL/NTSC

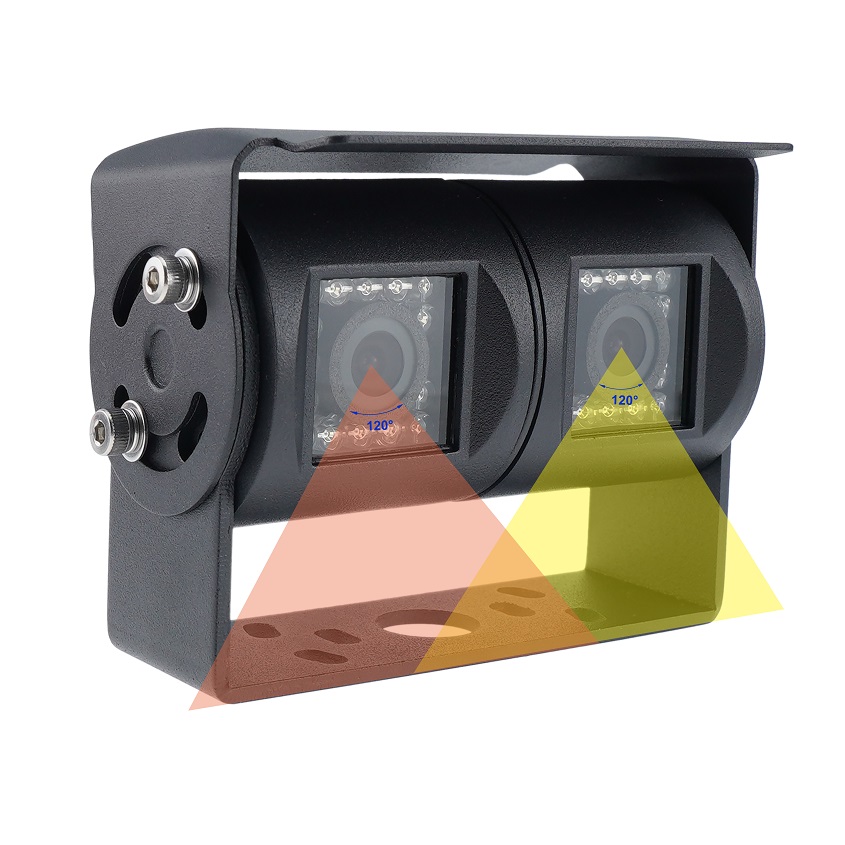

Viewing angle	120 /120 Degree, narrow angle for rear view can be customized
Power supply	DC 12V
Waterproof Level	IP68
IR Leds	15pcs
Image	Mirror
Power Consumption	＜3W
Maximum current	＜250mA
Minimum Illumination	0.1 Lux (day), 0 Lux (with IR)
Video Output	1.0 Vp-p/75 Ohm
IR cut	Yes

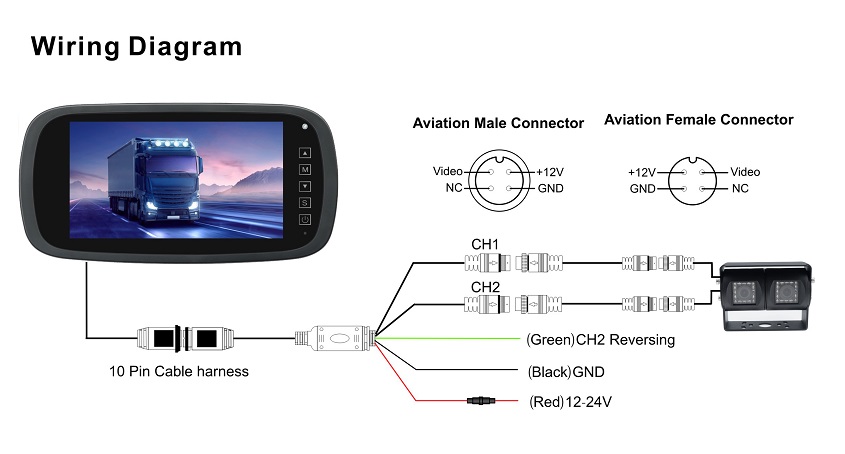

Connector	4pin aviation/ RCA/ 6pin mini din are optional
Operating Temperature	-30℃～70℃, RH 95% MAX
