AHD 1080P Nitrogen-Filled IP69K Camera for Cold-Storage & Commercial Fleets

Product Description

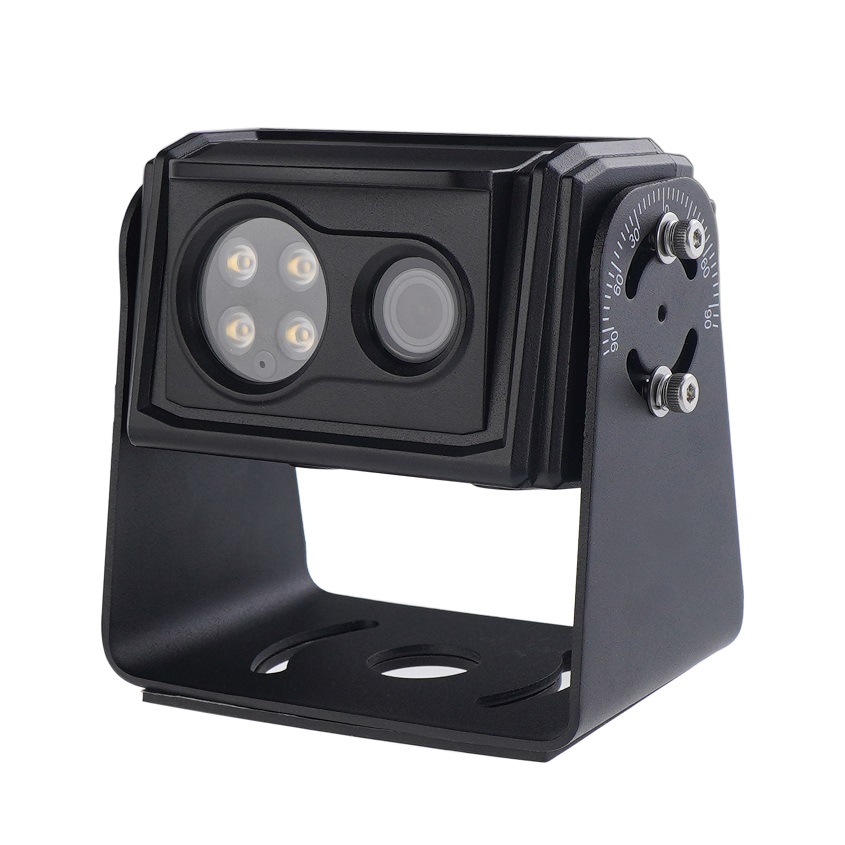

Nitrogen-Filled Anti-Glare Camera (AHD 1080P | IP69K)

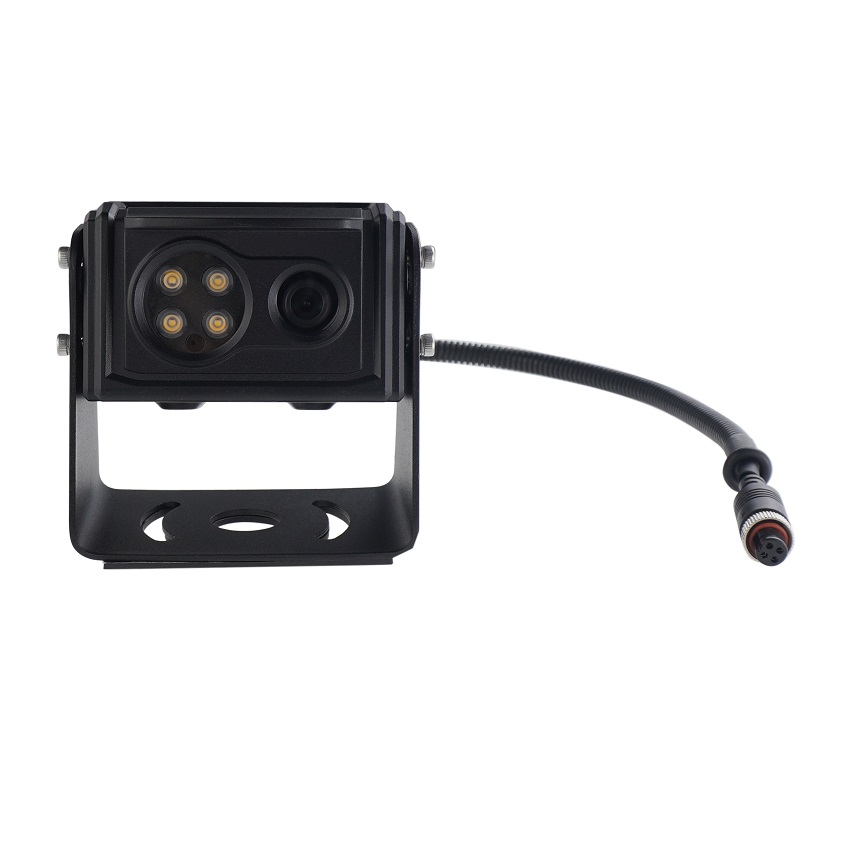

The ST-C118A is an AHD 1080P heavy-duty camera built with a dry-nitrogen-purged aluminum housing and an isolated dual-window front lens. Purging internal air prevents lens fogging during rapid temperature transitions without requiring a built-in heater or extra power draw, while the split-optic window separates the camera lens from the infrared LEDs to eliminate night-vision glare. Equipped with a calibrated degree-marking bracket, it allows fleet technicians to set identical viewing angles across multiple vehicles.

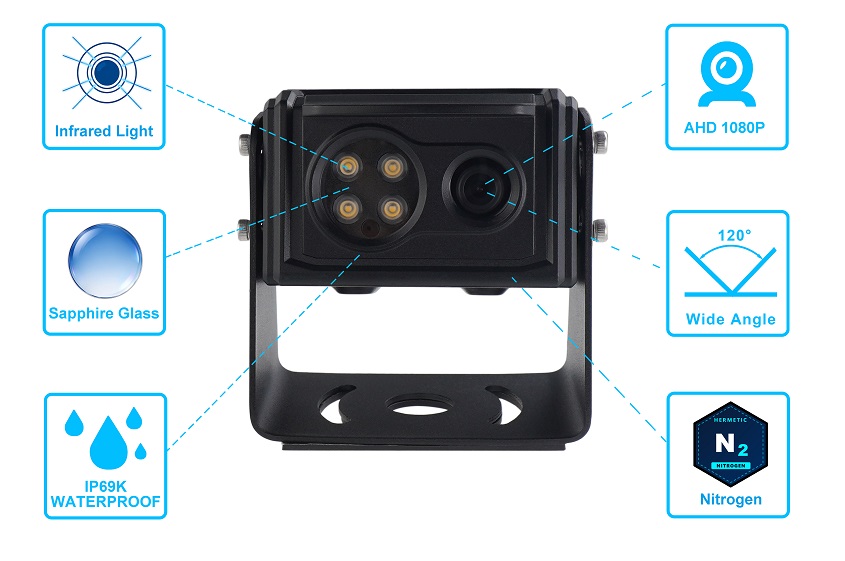

Key Features

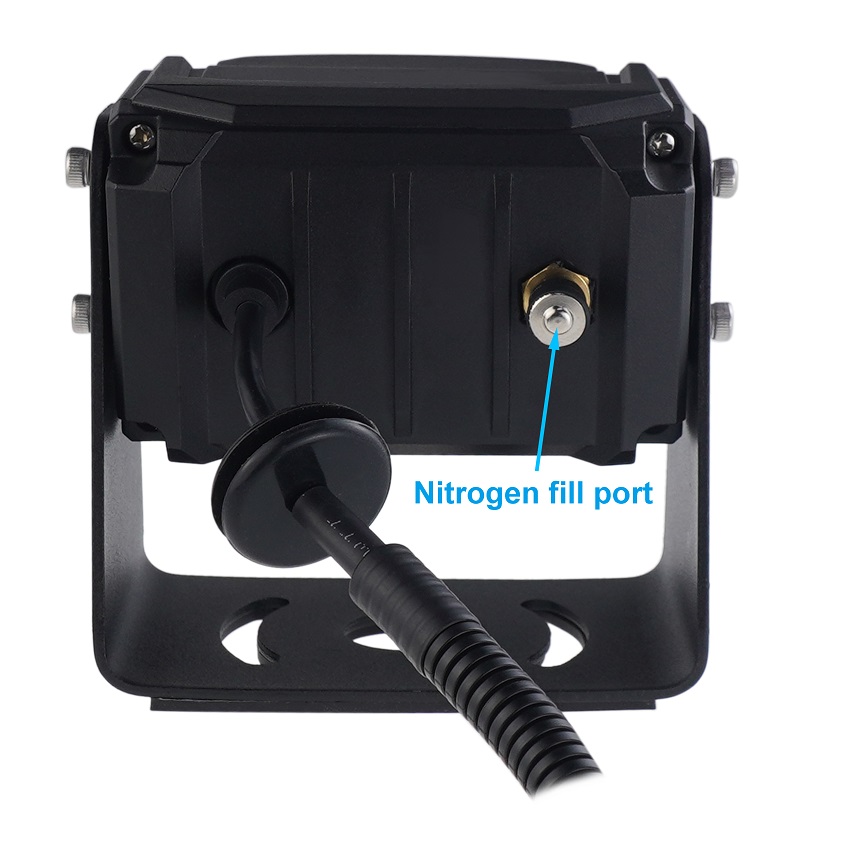

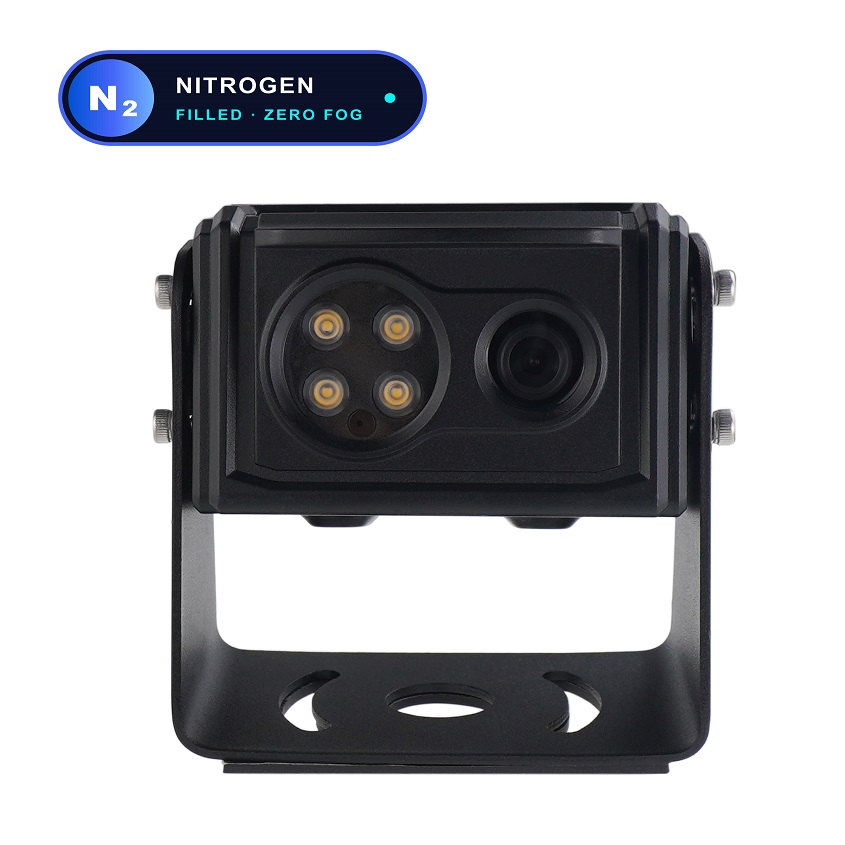

  • Hermetic Nitrogen-Purged Sealing (Zero Condensation):The camera housing is vacuum-evacuated and injected with ultra-dry industrial nitrogen. Maintaining an internal dew point below -40°C, it completely eliminates internal moisture, preventing fogging and lens condensation during abrupt temperature shifts—such as cold storage forklift cycles or steam washdown.

  • Split-Optic Isolated Dual Windows (Anti-Glare & Halo Suppression):Unlike conventional single-glass cameras, this model separates the optical lens from the 4-LED illumination array into two sealed circular chambers. This physical barrier prevents internal light bleed, lens flare, and glare reflection during night operation and rain/spray conditions.

  • Heavy-Duty Bracket with Calibrated Angle Scale: Engineered with laser-etched degree markings (0° to 90°) and dual stainless-steel hex locking screws on each side. Allows fleet installers to preset and record precise camera tilt angles for uniform field-of-view across identical machinery.

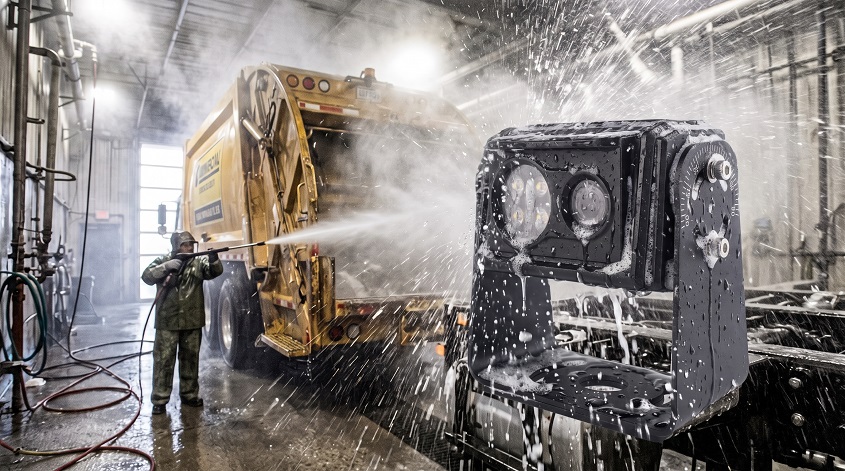

  • IP69K High-Pressure Washdown Protection: Precision die-cast alloy body designed to withstand high-pressure steam jets (100 bar, 80°C) and corrosive wash detergents on sanitation trucks, concrete mixers, and heavy machinery.

1080P Low-Light Vision + 4x Matrix IR: 1/2.9" CMOS sensor paired with 4 high-output matrix IR LEDs. Provides clean, noise-free night vision up to 15 meters in pitch-black cold storage.

Technology Comparison: Nitrogen-Purged vs. Conventional PTC Heating

Evaluation Metrics Conventional PTC Heated Camera Nitrogen-Filled Camera ST-C118A
Anti-Fog Principle Active electric heating element Factory vacuum purge & dry inert N2 charge
Target Fog Area External ice, snow, and frost Complete prevention of inside lens condensation
Response Time 2 to 5 min pre-heating delay Instant (0 seconds, zero blind spots during shifts)
Power Consumption 3W – 8W continuous power draw 0W (Zero battery drain on electric vehicles)
Thermal Image Noise Housing heat increases CMOS noise Ambient operation, preserves pure 1080P clarity
Washdown Durability Thermal cycles stress glue seals Positive pressure stops negative-pressure suction

Technical Specifications

Model ST-C118A
Anti-Fog Technology Factory-purged dry nitrogen hermetic seal (Dew point < -40°C)
Optical Design Dual-cavity split windows (independent LED & lens optics)
Resolution AHD 1080P (1920 × 1080 @ 25/30fps)
Image Sensor 1/2.9" CMOS
Lens / FOV 2.8mm / 120°
Night Vision 4 pcs IR LEDs, Built-in IR-Cut filter
Min. Illumination 0.001 Lux (0 Lux with IR ON)
WDR / DNR 81 dB Dynamic Range, 3DNR
Ingress Protection IP69K Waterproof
Housing Material Aluminum alloy body
Image Orientation Mirror / Normal image optional
Power Supply DC 12V (DC 24V optional)
Power Consumption Max. 85mA

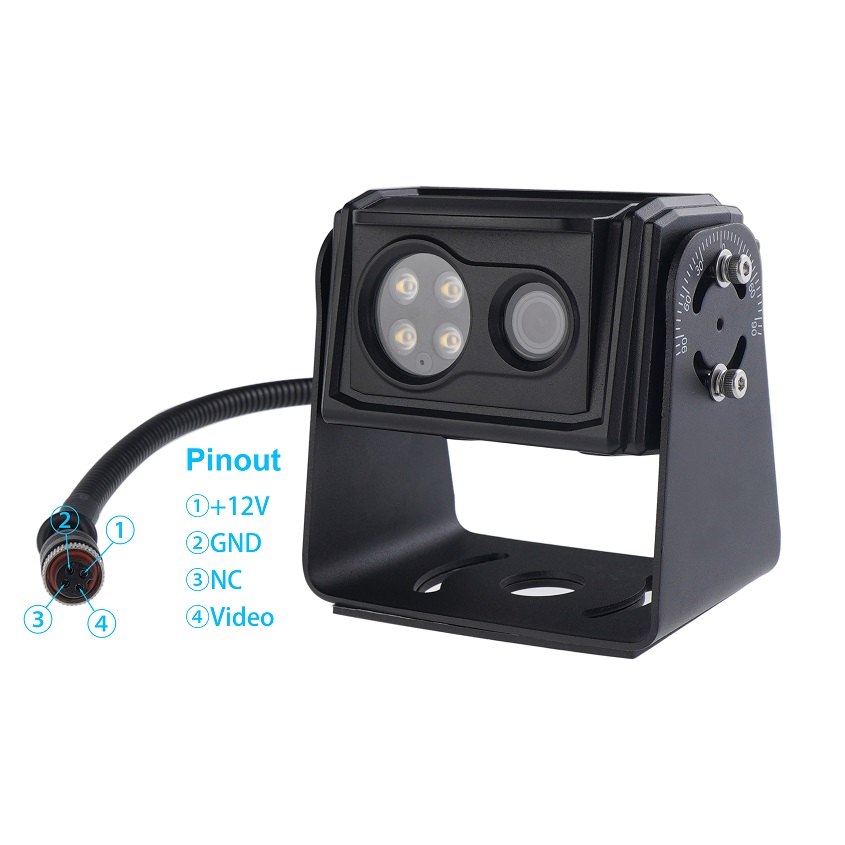

Connector 4-Pin M12 Aviation connector
Adjustable Angle Tilt 0° – 85°
Operating Temp. -40°C to +80°C (-40°F to +176°F), RH 95% Max
Certificates CE, UKCA, FCC

Target Applications

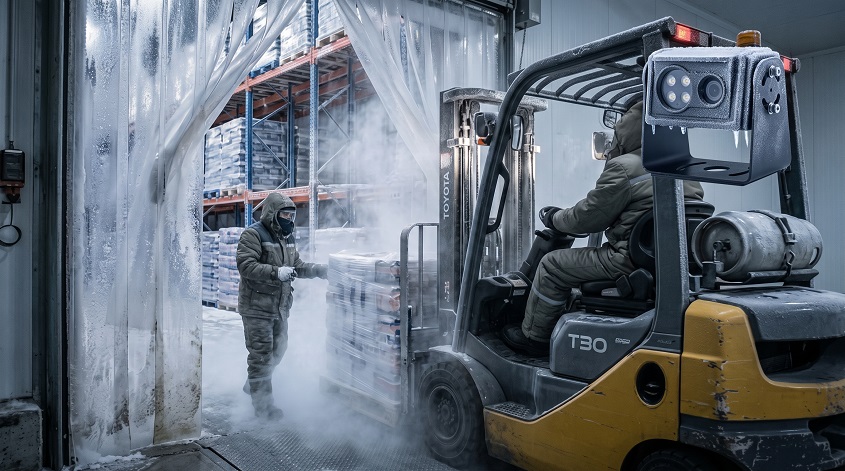

  • Cold Storage & Refrigerated Logistics: Forklifts, reach trucks, and reefers operating continuously between sub-zero cold rooms and ambient loading bays.

  • Commercial & Municipal Fleets: Delivery box trucks, refuse trucks, and utility vehicles requiring standardized, multi-unit camera angle calibration.

  • Food & Beverage Processing: Washdown-area material handling vehicles subjected to daily high-pressure steam and hot-water sanitation.

  • Construction & Agriculture: Loaders, tractors, and harvesters working in dusty, muddy, and nighttime environments where IR glare reduction is critical.

Technical FAQ

Q1: Why choose a split-optic camera over a single-glass enclosure?

In single-window enclosures, high-power LEDs can cause internal back-reflection through the glass faceplate, creating a milky haze or white-out glare at night. Split optics physically isolate the lighting chamber from the image sensor, ensuring crisp contrast and zero internal reflection

Q2: Does this nitrogen-filled camera require internal heating elements?

Because dry nitrogen removes all moisture molecules during assembly, the internal air cannot form dew or frost. This eliminates the need for high-draw PTC heaters, saving vehicle battery power while preventing lens fogging completely.

Q3: How does the angle-scale bracket benefit fleet installation?

The laser-engraved degree markings allow installation teams to specify exact mounting angles (e.g., 45° for rear hitch monitoring) across multiple vehicles without trial-and-error alignment.

-------------------------------------------------------------------------------------------------------------------
