PRODUCT INTRODUCTION

Item number: ST-C28A

RVs Rear view & Reverse camera

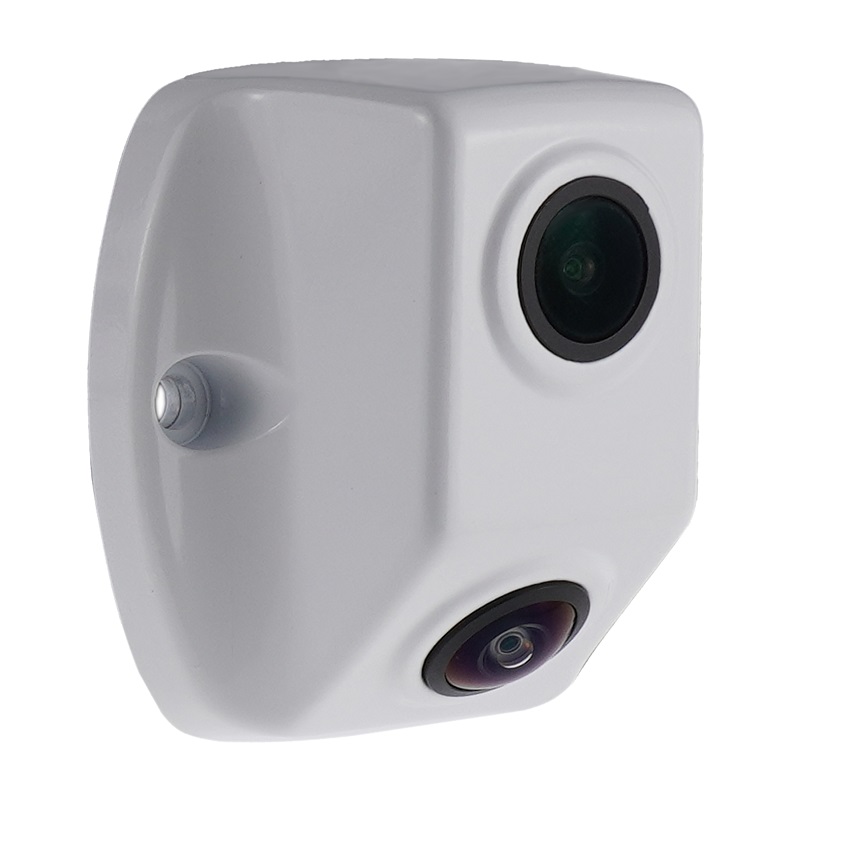

The twin lens camera is a HD 1080p cameras in a single metal housing, the top camera which with 120° Horizontal Angle view is for“Always-on" rear view,so you can have a clear view of the road behind,the bottom camera which with a 150° Horizontal Angle view designed to be a standard reverse camera.

Product Features:

Starlight AHD 1080P twin lens camera, 1 for rear view , 1 for reverse
Cable harness can be customized,such as 4pin min din for Vans screen

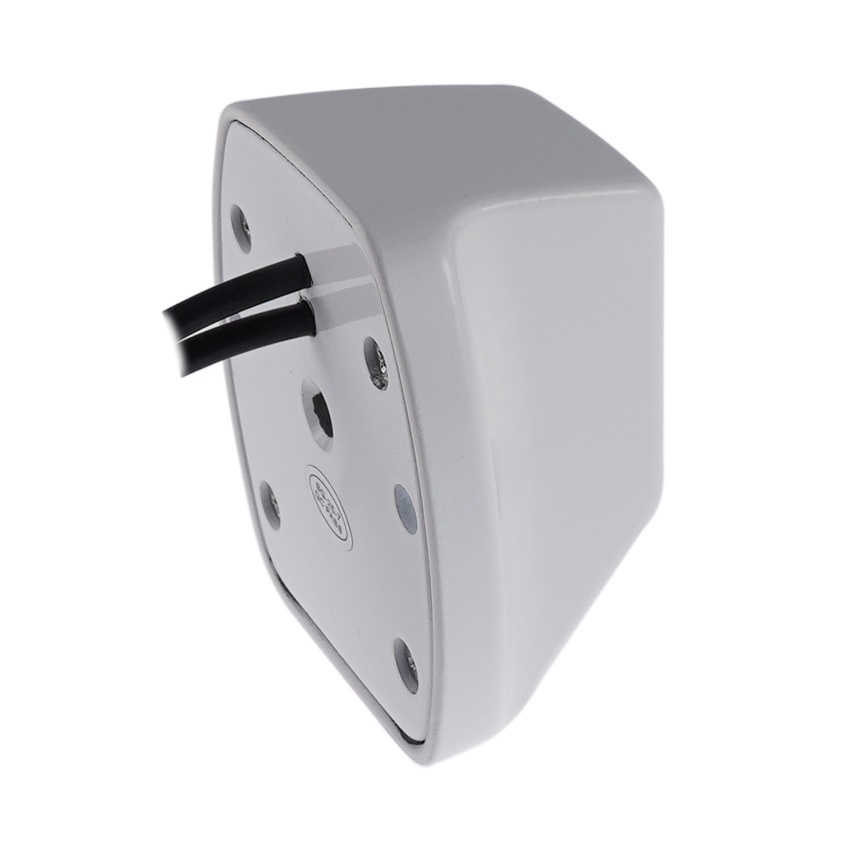

Simply installation with no need for additional mounting hardware
Rear-view and Back-view monitoring for RVs, vans, trailers, and commercial fleets

Product Parameters:

Camera housing: Solid alloy metal housing

Sensor: 1/2.7" Sony IMX307

1920*1080 AHD resolution,2MP

Rear View Camera Angle: 120°(H)

Reverse Camera Angle: 150°(H)

Video Format: PAL/NTSC

Waterproof level: IP69K

Power supply: DC12V

Connector: 4pin aviation

Cables: 2 x 600mm

Working temperature: -30℃ to 70℃

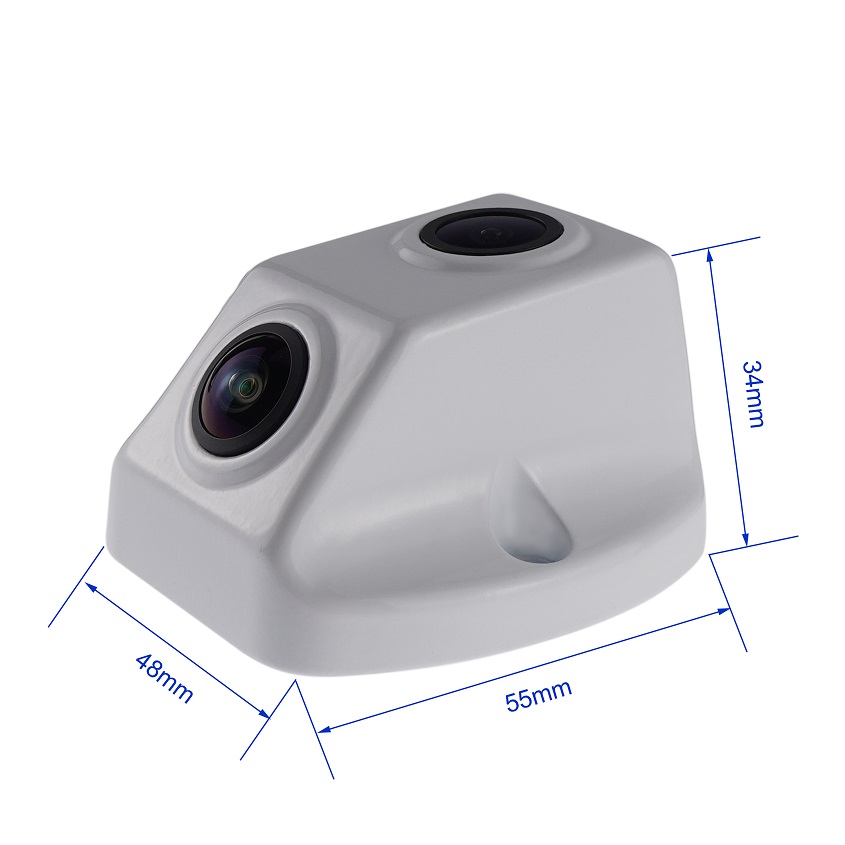

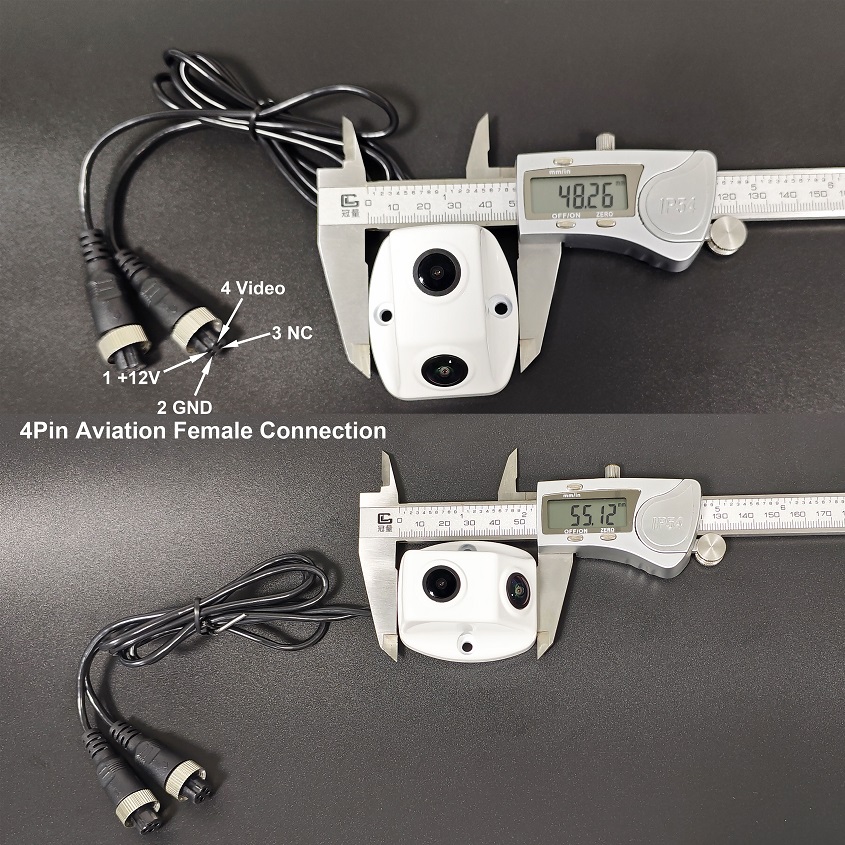

Dimensions (WHD): 48mm x 55mm x 34mm

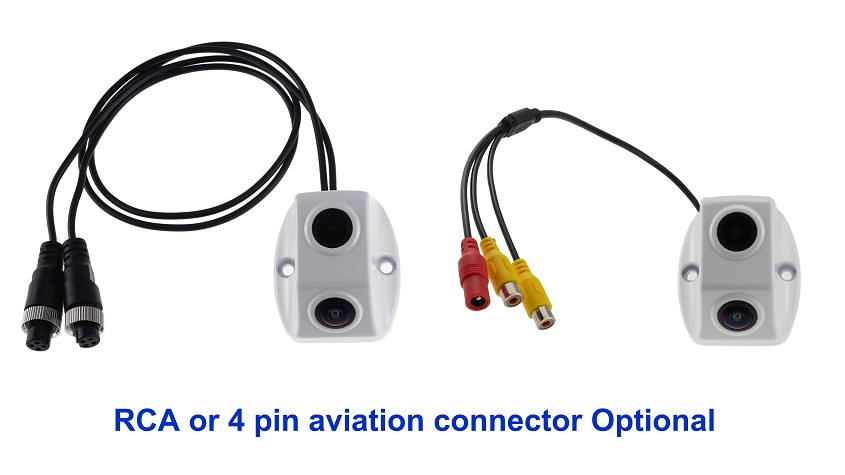

Wire Connector:

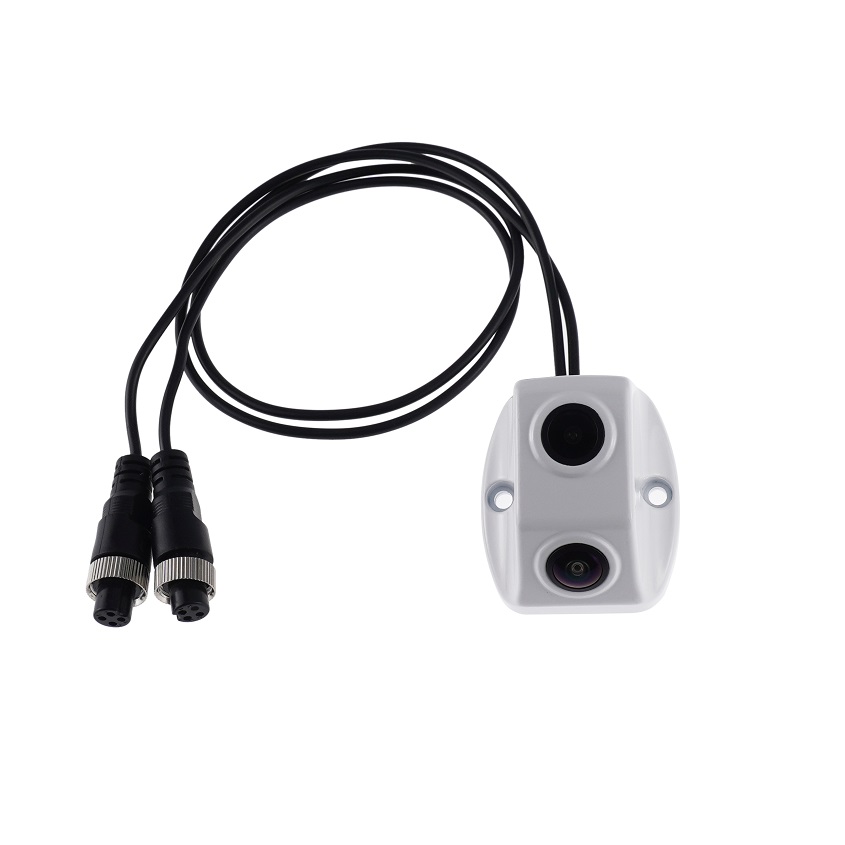

A. 2x 4pin aviation waterproof connector B. 2x RCA phono+1xDC socket connector

A. Small camera housing size B. Black or White color camera housing optional C. Painted camera surface treatment

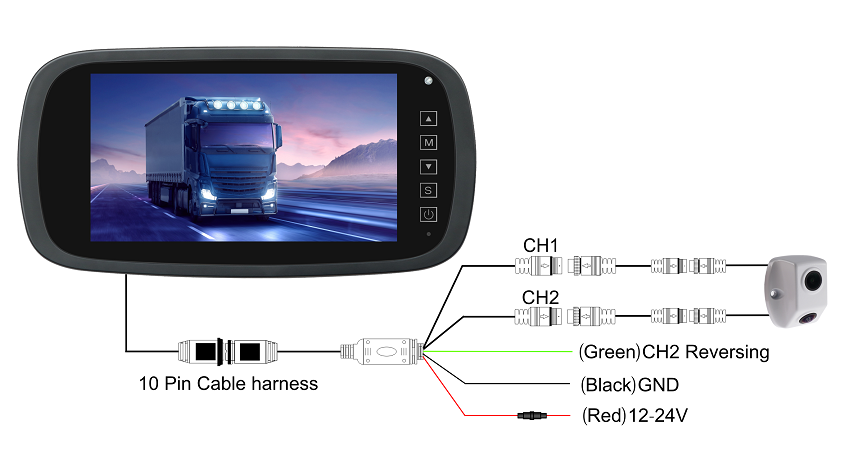

Wire Diagram:

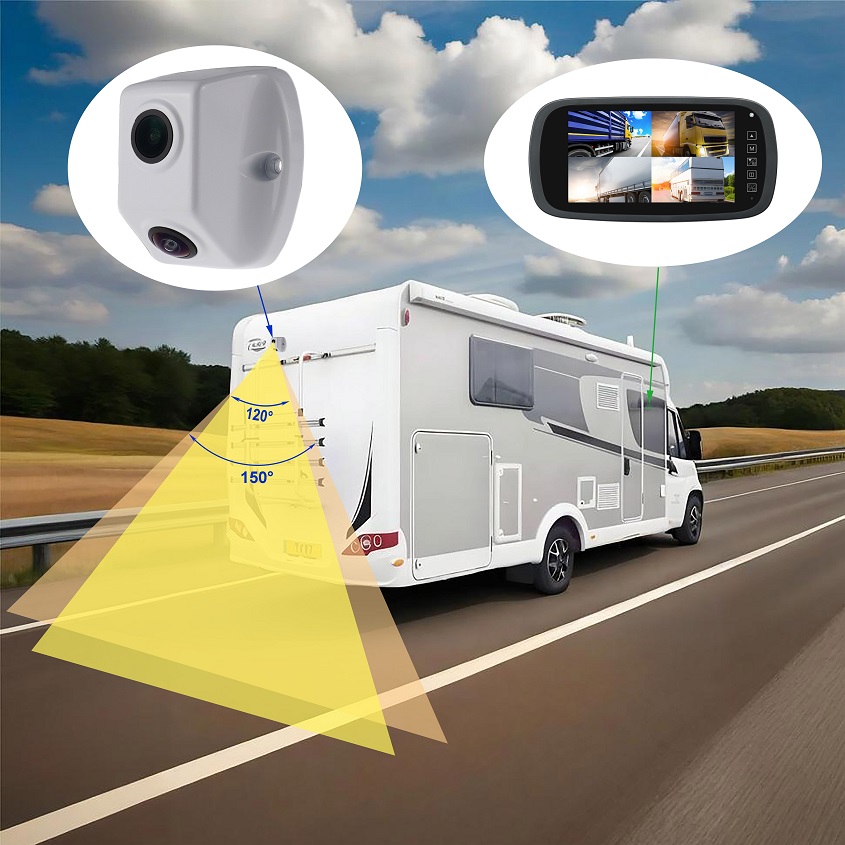

Product Applications:

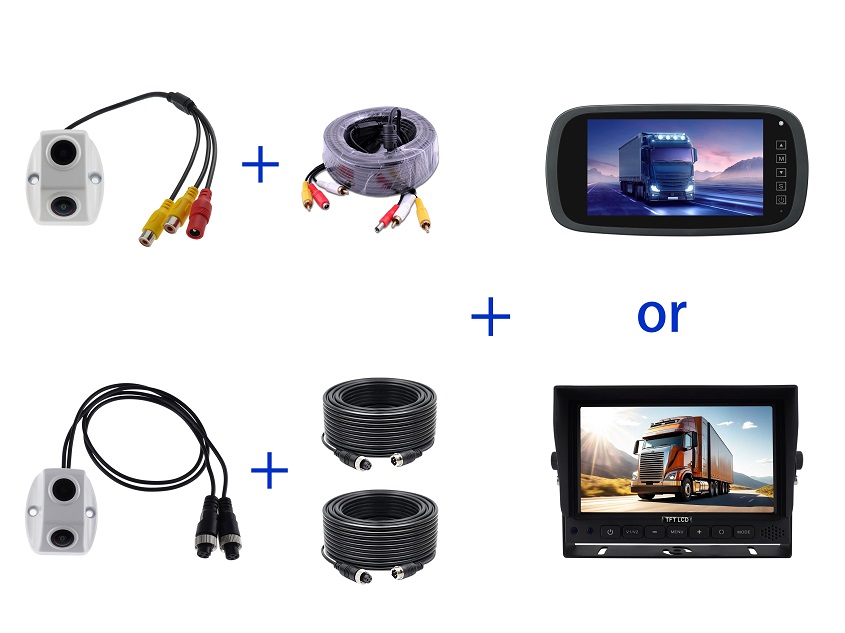

How to choose this camera kit for your RVs, Vans, Trucks?

Customers may have different preferences when choosing matching monitors and extension cables,pls read our below suggestions:

Kit A: To save on cabling space and installation time, you can choose camera with RCA phono connector + 1x RCA extension cable + 1x rearview monitor, the monitor can be a dash mount monitor or a clip on rearview mirror monitor

Kit B: If you feel that connecting two extension cables is more suitable, you can choose camera with 4pin aviation connector+2x extension cable +1x rearview monitor, the monitor can be a dash mount monitor or a clip on rearview mirror monitor

RCA phono or 4pin aviation extension cable length have 10M, 15M, 20M, normal 15M was better for RVs, Vans etc

Our Suggestion Monitors:

7" AHD 1080p Mirror monitor model ST-799M, https://standtop.com/7inch-HD-1080P-mirror-monitor.html

7" AHD 1080p Dash mount monitor model ST-799M-AHD,https://standtop.com/7inch-ahd-rearview-monitor.html
