Product Features:

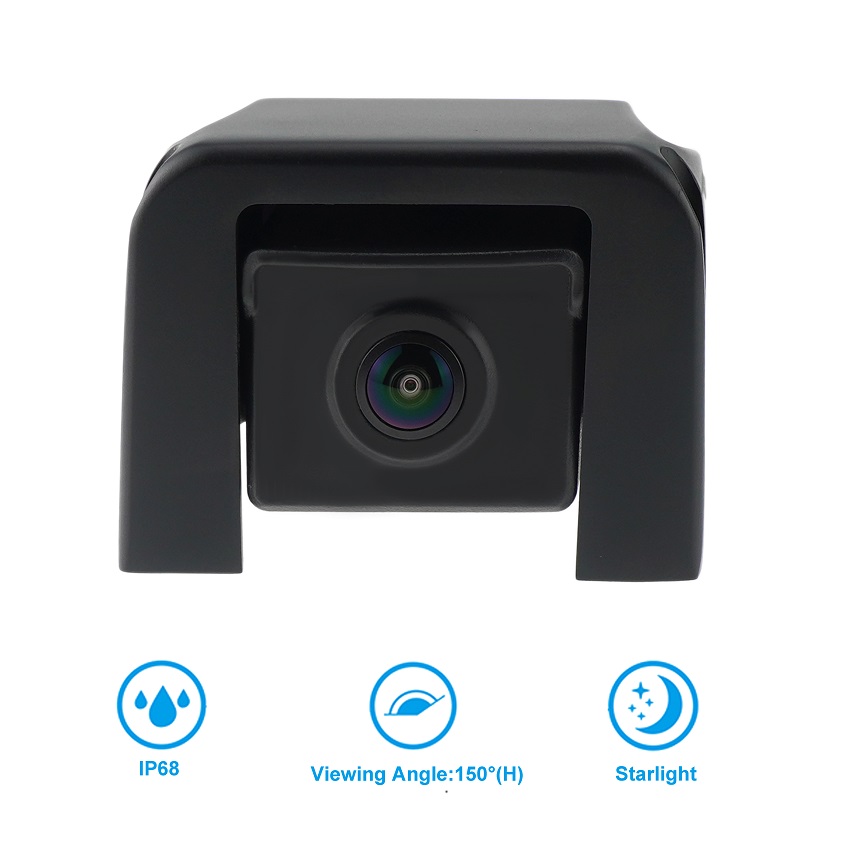

• Universal heavy duty rear camera, with camera protection cover

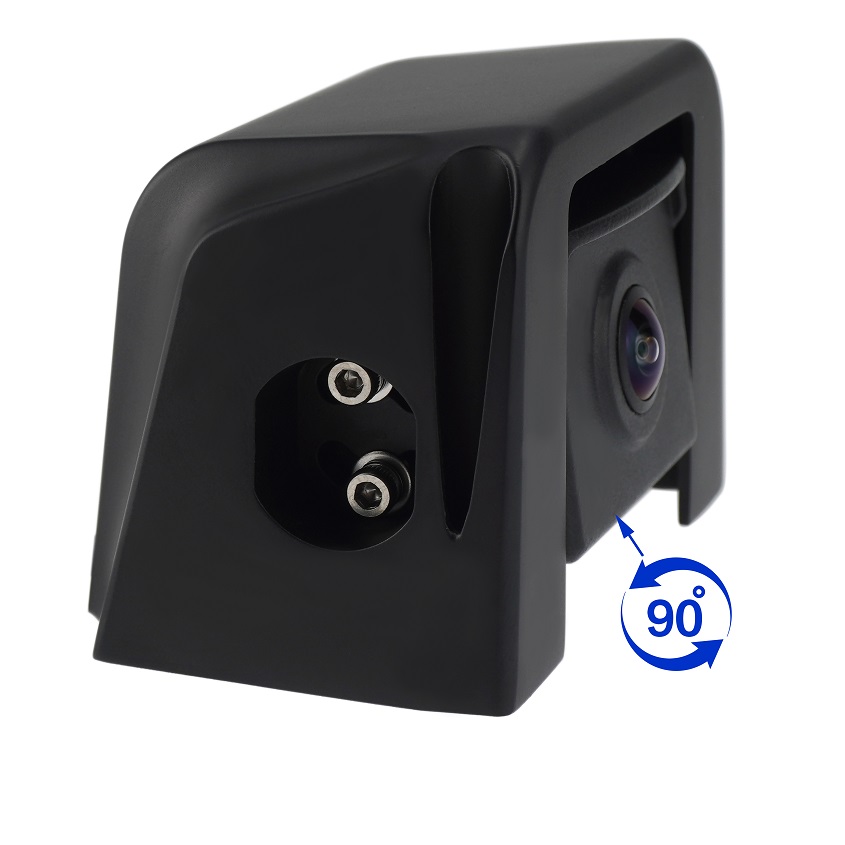

• The camera installation angle can be adjusted about 90 degree
• Starlight Full HD 1080P,2MP resolution, Horizontal angle 150 degree
• Simply installation with no need for additional mounting hardware
• Applictate for Bus, Trucks, Trailer, Cargo Vans, Engineering vehicles etc

Product Parameters:

HD 1080P Rear view camera
Camera Casing Material: Aluminum alloy
Camera Protection Cover: Aluminum alloy
Sensor: 1/2.7" Sony 307 or 1/2.9" GC2053
1920*1080 AHD resolution,2MP
Angle viewing: 150°(H)
Video Format: PAL/NTSC
Waterproof level: IP68
Power supply: DC12V
Connector: 4pin aviation/RCA/4pin mini din optional
Cable: 1 x 600mm
Working temperature: -30℃ to 70℃

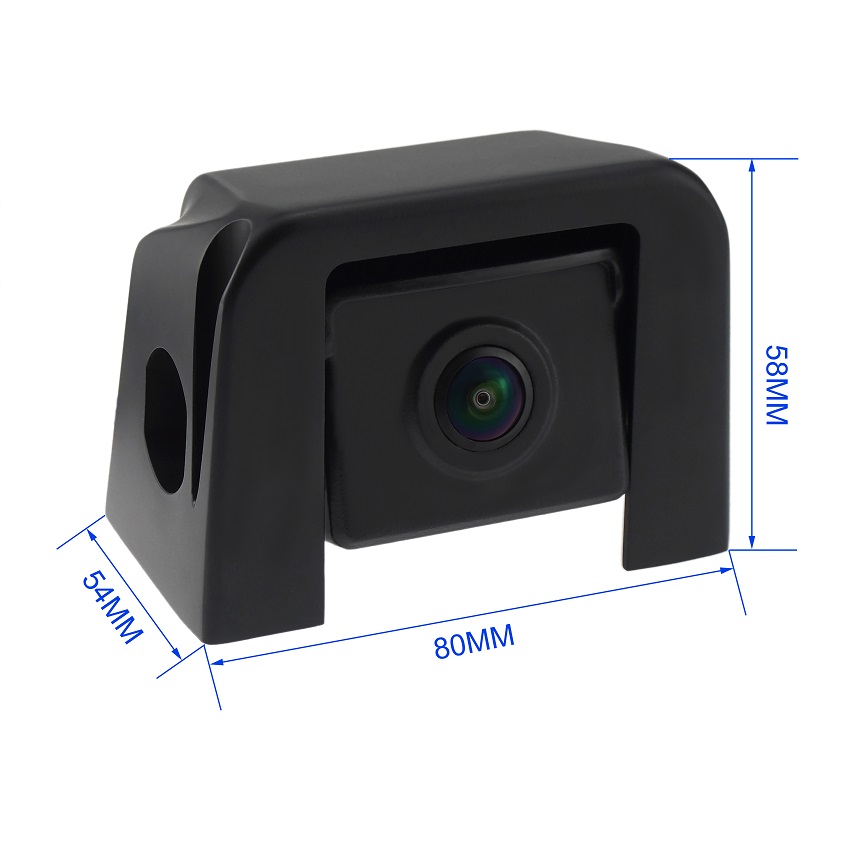

Dimensions (LWH): 80mm x 54mm x 58mm

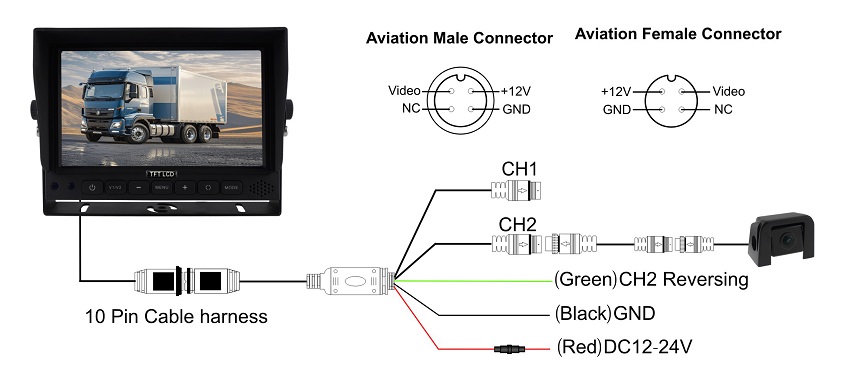

Wire Diagram:

Product Applications:
