7Inch AI 1080P Wireless Quad View Monitoring System

PRODUCT INTRODUCTION

Item number: ST-777WCS

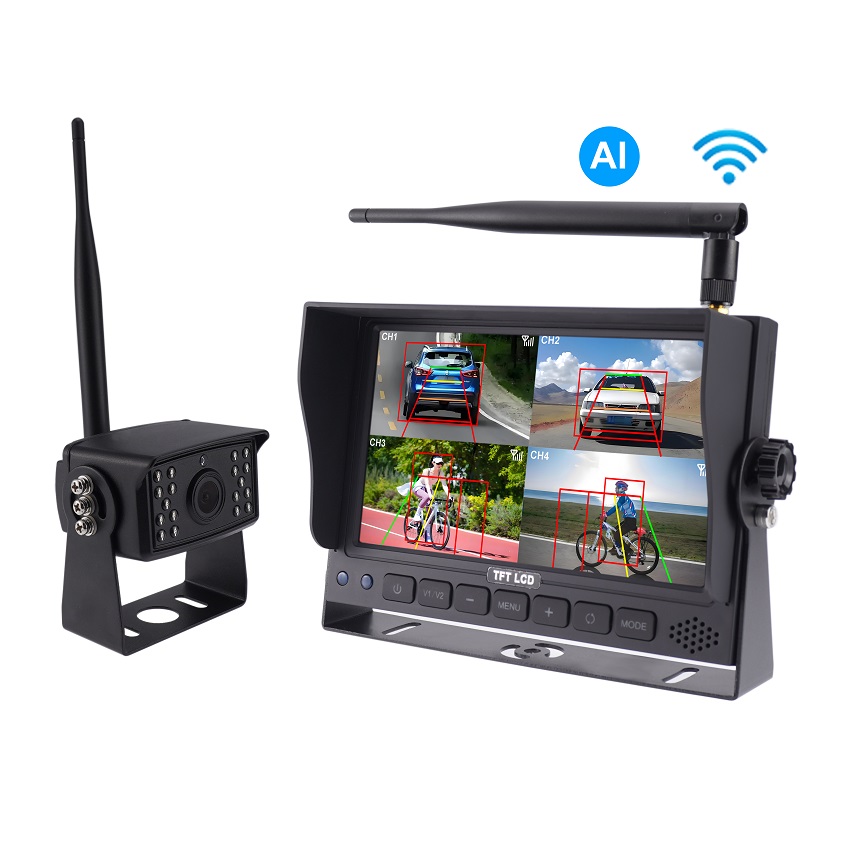

7Inch AI 1080P Wireless Quad View Monitoring System

Product Features:

AI BSD function choose, detection person and car
Day and night vision are full colors image
7" IPS AHD 1080p Full View screen, AHD 1080p camera
2.4G digital wireless, transmission distance 300M
Up to 4 wireless camera base on required
Shockproof, camera IP69K waterproof rating
Camera connect with the vehicle power supply, Monitor connect with the vehicle power or cigarette lighter
Applicable to various vehicles, such as forklifts, trucks, Cargo Vans, engineering vehicles, agricultural vehicles, etc

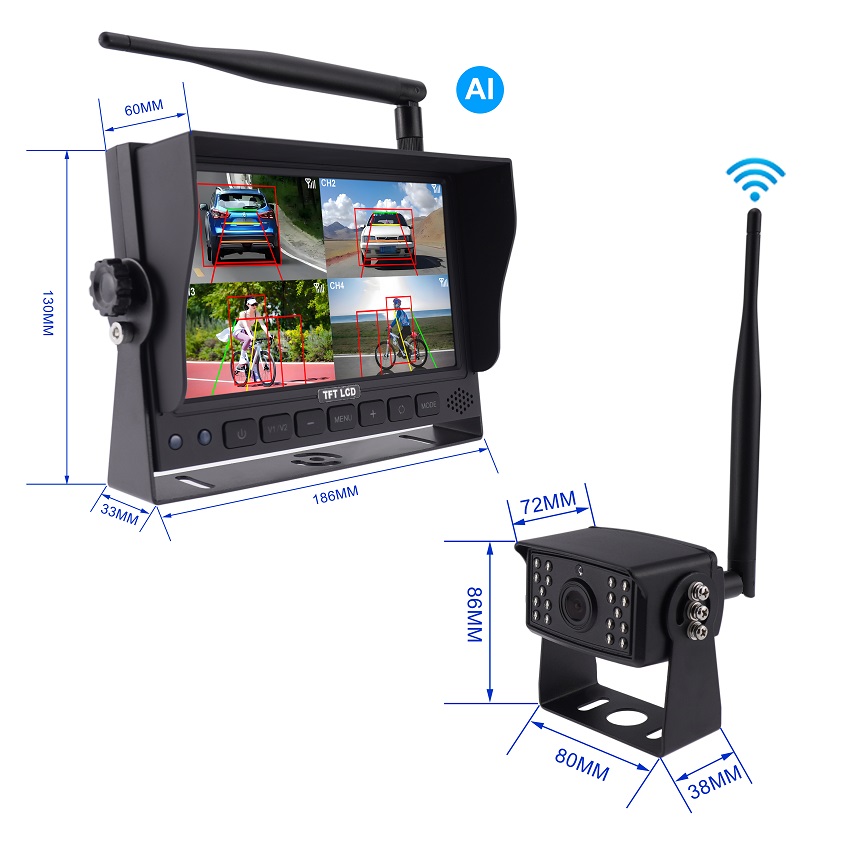

7" Wireless Monitor Parameters:

Category	Parameter
Screen size	7inch IPS full view LED panel
Resolution	1024600RGB
Video Input	4 ways Channel Video
Display Mode	Full 2/3/4 screens
TV System	PAL/NTSC
Power supply	DC 12-36V
Power Consumption	12W
Screen ratio	16:9
Brightness (cd/m2)	500 cd/m2, 1000cd/m2 optional
Viewing angle	L/R 85/85 U/D 85/85
Frequency range	2.4G Digital wireless signal frequency(2412-2484MHz)
Output power	21dBm with power control
Receiving sensitivity	-90dBm
OSD menu	Yes
Connector	Power lead and cigarette lighter
Operating Temperature	-30℃～70℃, RH 95% MAX

Wireless Safety Camera Parameters:

Image Sensor	1/3" CMOS 1336
Resolution	AHD 1080P
Effective Pixels	1920(H) x 1080(V), 2MP
TV System	PAL/NTSC
Viewing angle	105-110 Degree Horizontal angle
Power supply	DC 12-36V
Waterproof Level	IP69K
IR lights	18Pcs
Image	Mirror
Transmission Distance	300M
Operating Frequency	Digital wireless
Power Consumption	4W
Connector	Power lead
Body Housing	Zinc alloy housing
Operating Temperature	-30℃～70℃, RH 95% MAX

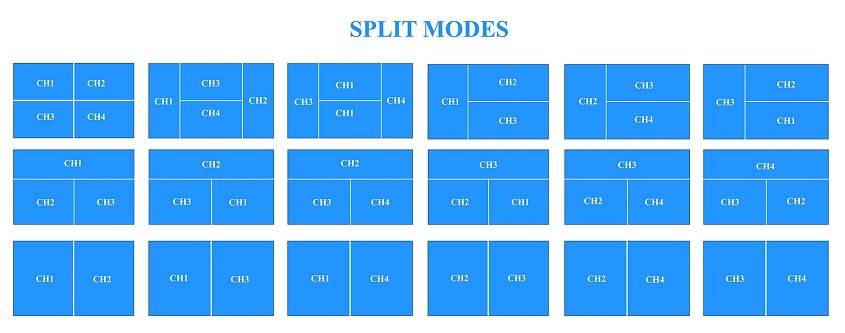

Display Mode:

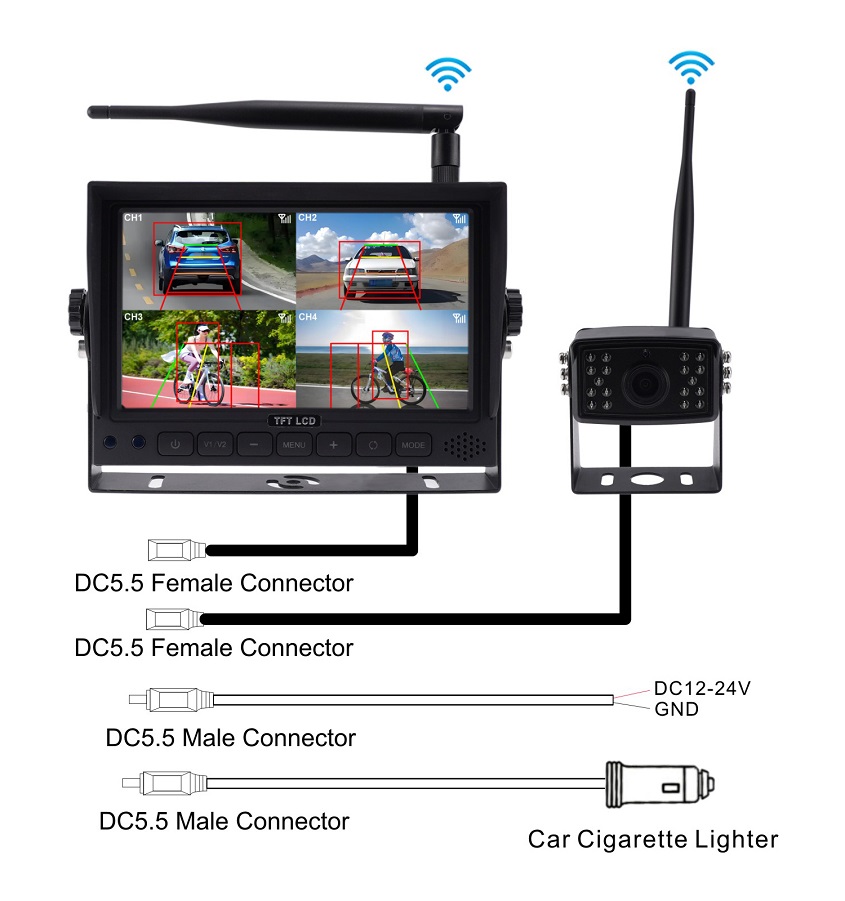

Wire Diagram:

Product Applications:

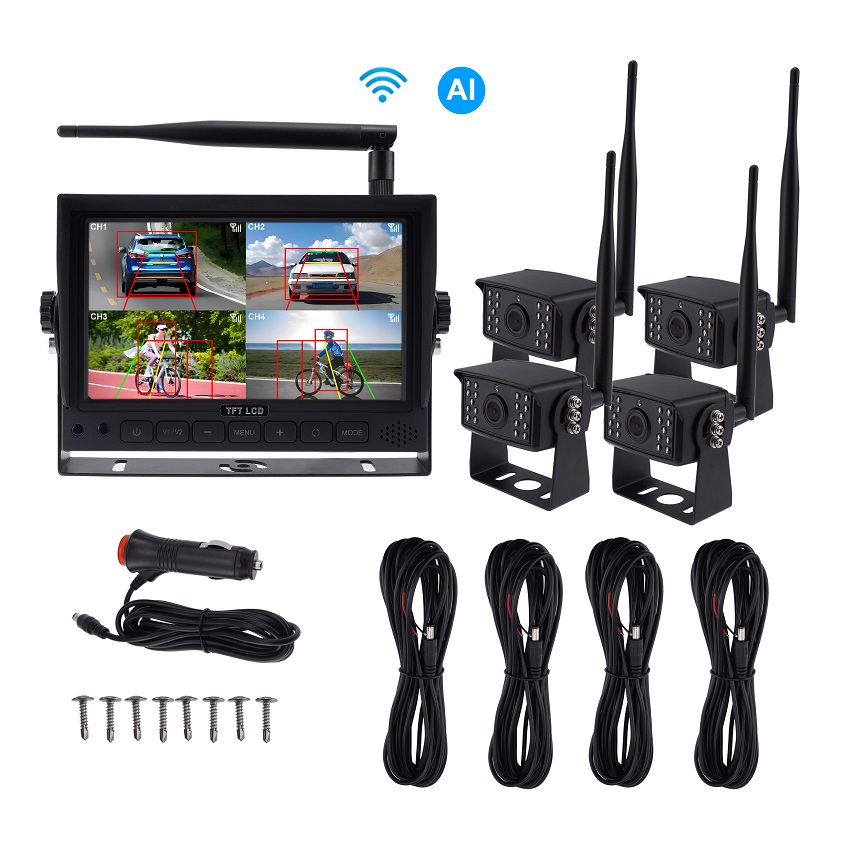

In the box:

1 x 7" 1080p Wirless Monitor
4 x 1080p Wireless Cameras
4 x Power Harness
1 x Car cigarette lighter
5 x 6DB Antenna gain
1 x Screw Kit for installation
1 x Manual
