Brake Light LVDS Camera for Fiat Ducato 2022-2025

PRODUCT INTRODUCTION

Item number: ST-FD-LVDS

Brake light LVDS camera for Fiat Ducato 2022+

Product Description:

OEM-Fit Brake Light LVDS Rearview Camera for Fiat Ducato (2022-2025) | Direct Integration with 7-inch & 10-inch Uconnect Systems

Are you executing a fleet upgrade, distributing commercial vehicle electronics, or supplying OEM van accessories?

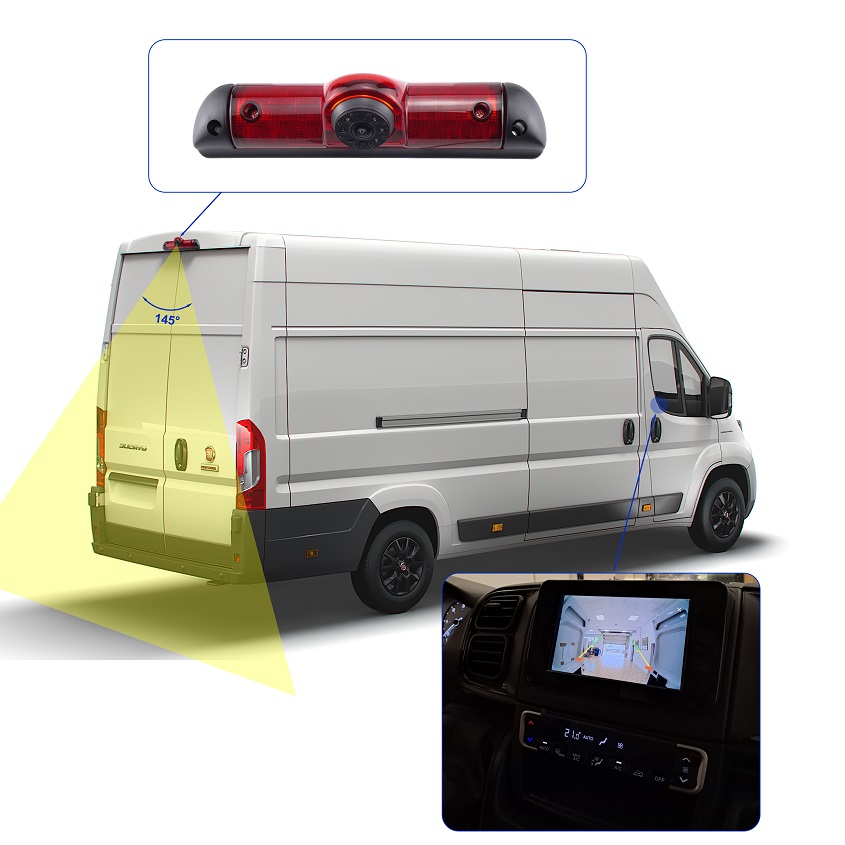

The Standtop ST-FD-LVDS is a professional, high-position brake light camera engineered specifically for the newer Fiat Ducato (Model Years 2022 to 2025). Utilizing a dedicated Fakra coaxial digital interface, it streams raw video directly into the factory 7-inch or 10-inch Uconnect screen without requiring aftermarket video decoders.

No System Coding | No Wire Cutting | 100% CAN-bus Error-Free

[REQUEST A BULK QUOTE & SAMPLE TODAY]

Key Features:

Connector Type: LVDS (Low-Voltage Differential Signaling)
Vehicle Compatibility: Fiat Ducato 2022-2025
Screen Compatibility: 7-inch and 10-inch OEM Uconnect/Touchscreen Displays
Resolution: AHD 960p
Feature: Starlight/HD Night Vision, 145° Horizontal angle
Installation: Direct Plug & Play (no coding required)

Detailed Specifications:

Feature				Technical Specification
Image sensor				1/3" H68 CMOS
Effective Resolution				1280(H) X 960(V)
Serializer				DS90uB933
Power supply				DC 12V
Viewing angle				Horizontal angle: 145 degree Vertical angle: 95degree Diagonal angle: 170 degree
Signal to noise ratio				37.2dB
Minimum Illumination				0.01Lux@(F1.2. AGC ON),0LUX With IR
Video Output				LVDS digital coaxial HD
Frame Rate				960P/800P/720P 25fps/30fps
Waterproof level				IP68
Noise reduction				3DNR/2DNR
Connector				Coaxial( Fakra)
Working temperature				-40℃ to 85℃
Storage temperature				-40℃ to 95℃

As a dedicated vehicle safety systems manufacturer, Standtop Technology Group protects your business margins and reputation:

3-Year Worry-Free Factory Warranty: We back our industrial-grade builds with a 3-year warranty, minimizing your after-sales RMA overhead.
100% Vacuum Sealed Testing: Every single brake light assembly undergoes rigorous vacuum pressure waterproof testing and electronic aging before packaging.
Custom Harness Lengths: To accommodate varying wheelbases and high-roof variants of the 2022-2025 Ducato fleet, we offer custom factory-tailored Fakra cable lengths.
