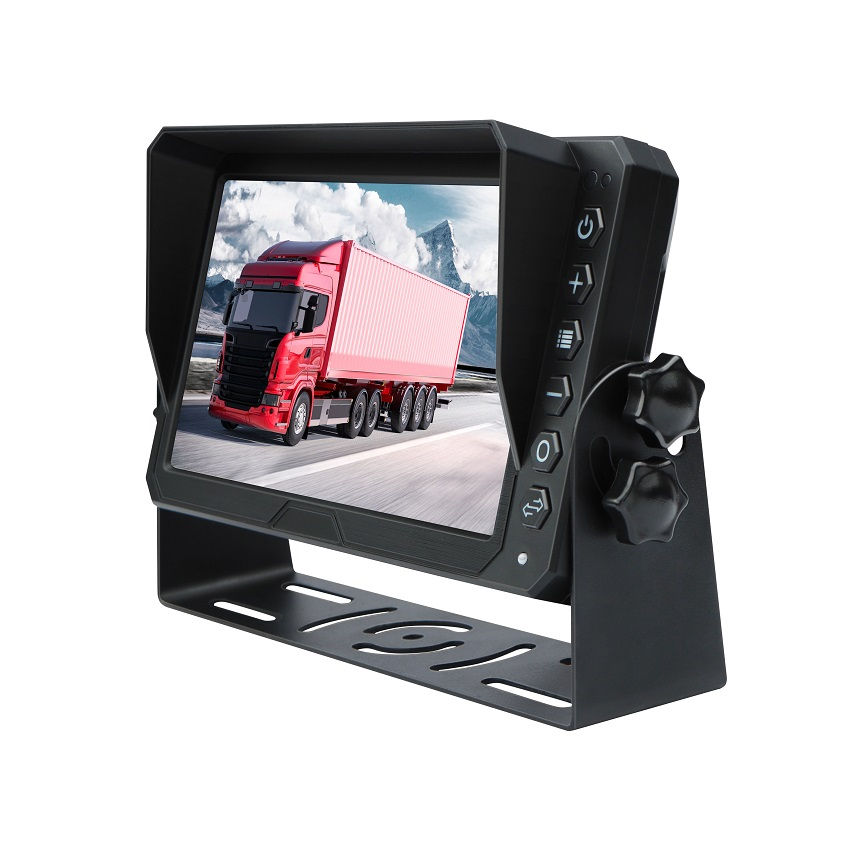

Product Features:

• Specially designed for anti-vibration of engineering vehicles
• 3ch video input, 12-32V wide voltage
• Anti-power reverse connection design, TVS tube protection circuit to prevent transient pulse damage
• Double-layer PCB board, according to the anti-vibration standard of the car factory, fixed with screws, effectively improving the anti-vibration strength (6.8G)

Product Parameters:

Video format: AHD/CVBS

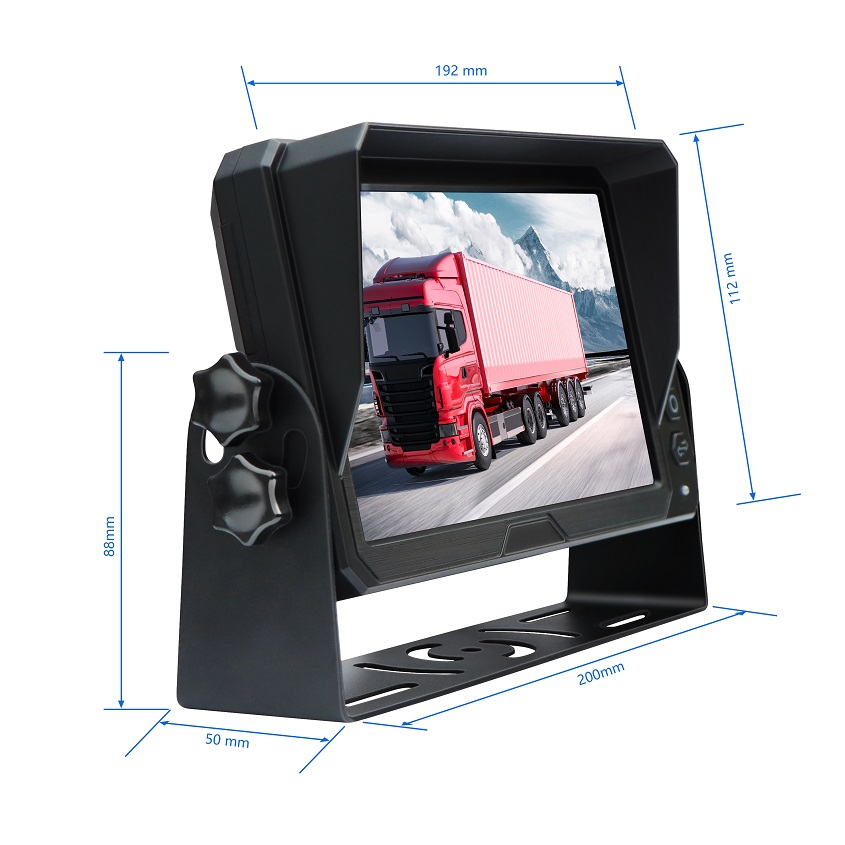

Screen size: 7" IPS Color TFT LCD
Resolution: 1024(W)*RGB*600(H)
Display ratio: 16:9
System: PAL/NTSC
Voltage:DC 12-32V
Brightness: 600cd/m2
Contrast: 500:1
Power consumption: 5.5W
3 Video AV input, AV2 for reversing
Viewing angle: L/R 85/85 U/D 85/85

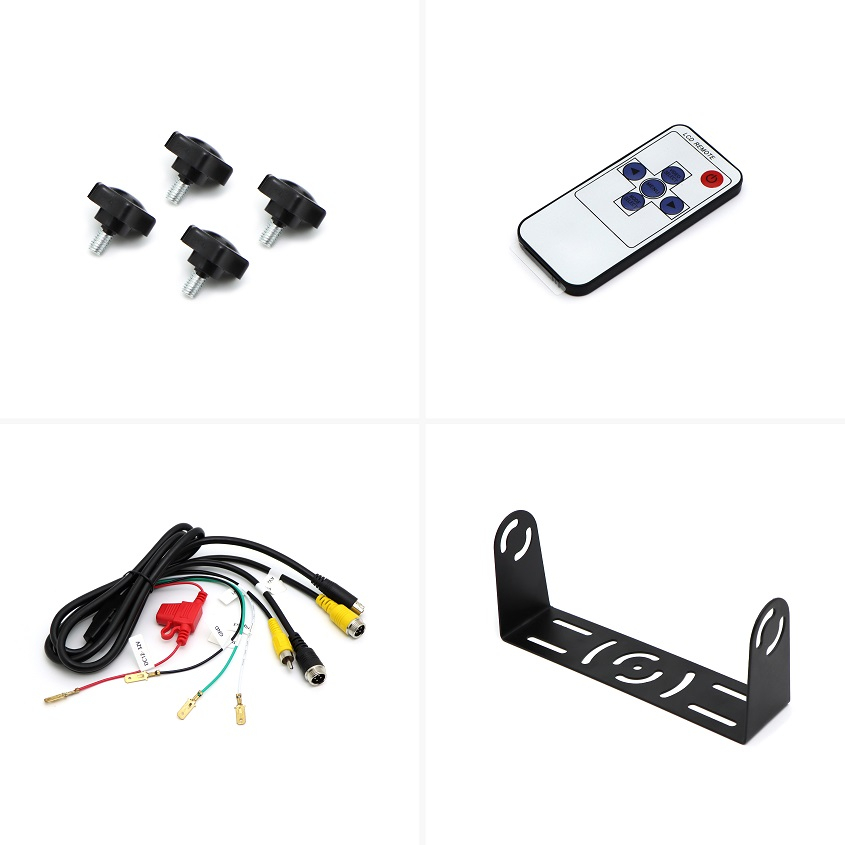

OSD menu,Remote control

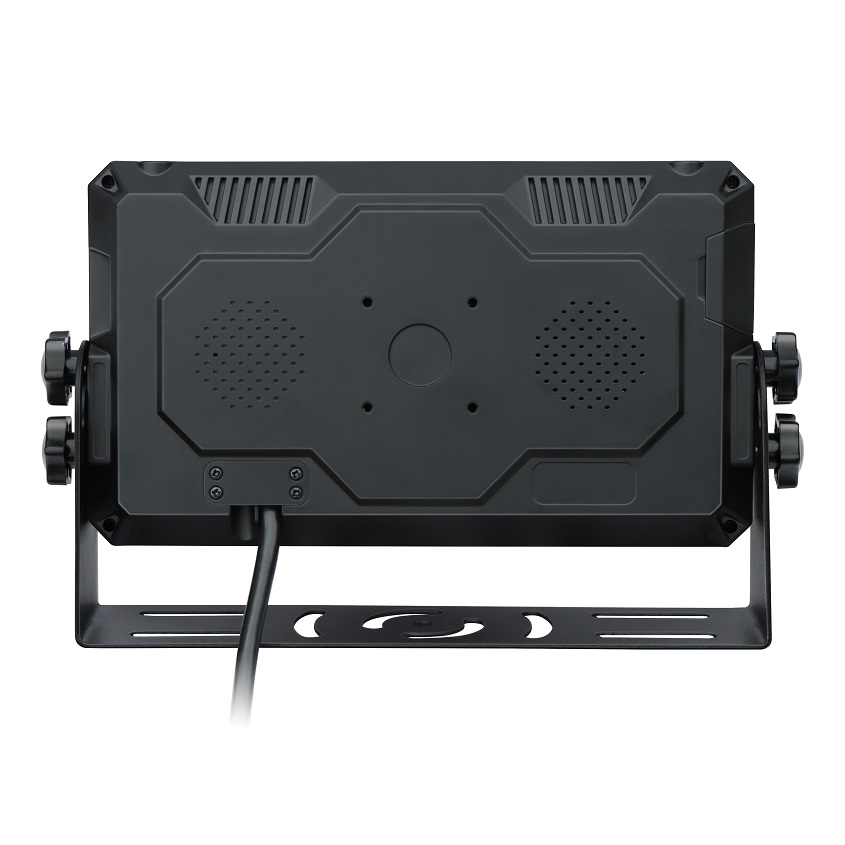

Connector: 4Pin aviation
Operating Temperature: -20℃~70℃
Vehicles: Bus, Trucks, Engineering Vehicle,Agricultural Vehicle etc.

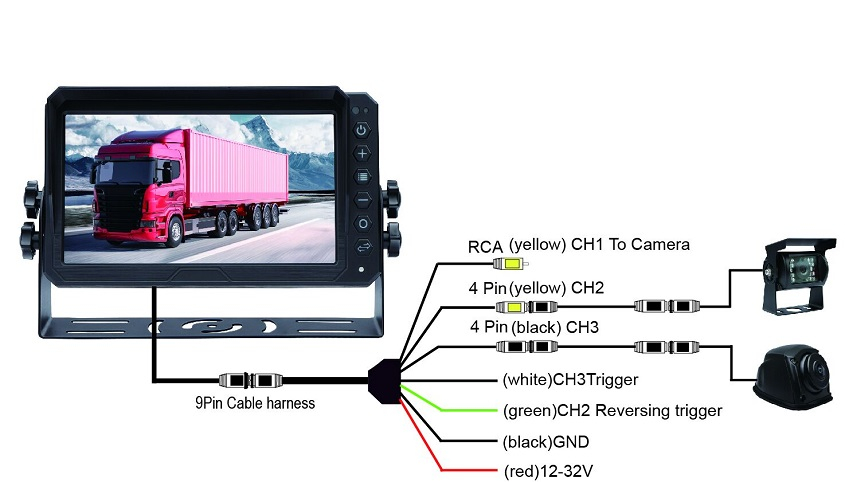

Wire diagram
