7" HD 1080P Mirror Monitor | Professional Rear-View Solution for RVs, Lorries & Motorhomes

PRODUCT INTRODUCTION

Model number: ST-799M

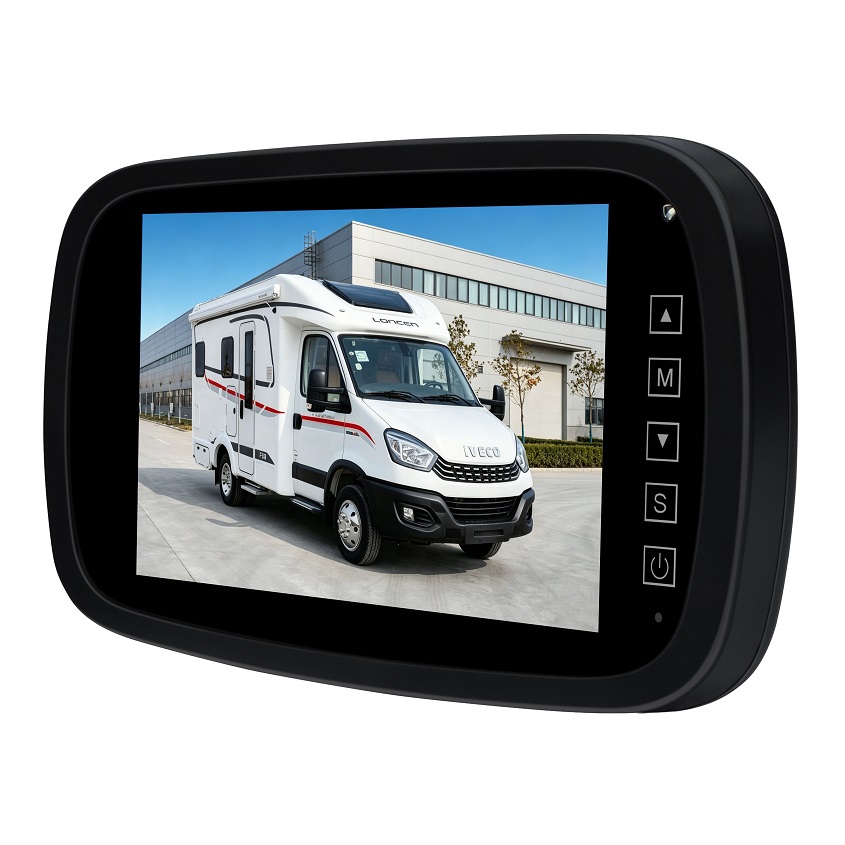

7-inch AHD 2 Channel Clip on Mirror Monitor

Product Description:

Standtop's private tooling 7-inch clip-on AHD mirror monitor 2 Channel,novel exterior design,the casing material is made of high-quality ABS material,1080p high resolution,the easy-install clip-on design transforms your rear-view mirror into a clear,high-definition monitor,supporting two AHD cameras, this solution is perfect for simultaneously managing a rear backup camera and a hitch camera or forward view,suitable for RVs,Motorhomes,Trucks,Vans,and Commercial fleet vehicles.

Key Features:

Non-Invasive Clip-On Mounting: Securely attaches to your existing rearview mirror in seconds. Features an intuitive capacitive touch interface for a sleek, button-free look.
7" Ultra-Clear IPS Display: Equipped with a full-view LED-backlit IPS panel, ensuring high-definition clarity and consistent color accuracy from any viewing angle.
Dual-Channel AHD/CVBS Compatibility: Supports 2-channel video inputs. Effortlessly switches between high-definition AHD and traditional CVBS signals for versatile camera setups.
Tool-Free Installation: Engineered for simplicity; no additional hardware, drilling, or modifications to your vehicle's interior are required.
Certified Reliability: Fully compliant with E-mark (E24) and CE standards, meeting the stringent safety and quality requirements of the European and international markets.

Product Specs:

Category	Parameter
Screen Size	7inch IPS AHD 1080p
Resolution	1024600RGB
Mounting Method	Clip on
Video input	2 Channel
Video Format	AHD/CVBS Hybrid
TV System	PAL/NTSC
Power supply	DC 9-36V
Power Consumption	7W
Screen ratio	16:9
Backlight luminance	LED, Luminance 700 cd/m2, 1000 cd/m2 optional
Viewing angle	L/R 85/85 U/D 85/85
Signal input	2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid
Trigger	1 trigger, Auto switch to reverse camera in reverse gear
OSD menu,Remote control	Yes
Connector	4pin aviation or RCA phono
Operating Temperature	-30℃～70℃, RH 95% MAX

Wire Diagram:

10pin mini din cable harness- Simultaneous connection to two 1080p cameras results in no image interference

Power cable- M12 waterproof 4pin aviation connector,double-shielded pure copper wire

Suitable Vehicle Types:

Suitable for RVs,Motorhomes,Trucks,Vans,and Commercial fleet vehicles etc.

What's In the box:

1 x 7" 1080P Mirror Monitor
1 x Universal Stalk Mount bracket optional
1 x Power Harness
1 x Remote Control
1 x Screw Kit for installation
1 x Manual

FAQ:

✅Is it possible to change the menu language to the customer's country's language?

Yes, if our default menu language does not include the client's country's language, we can use a translated OSD Menu provided by the client and then incorporate it into our software.

✅Can we add our company's Logo for sart up picture?

Yes, you can provide us the 1024*600 resolution of your Logo.

✅ Can we make the power cable more longer length such 3M?

Yes, can do. our normal length was 2M.

✅We need a brighter screen, is that possible?

Yes, our standard screen brightness is 700 cd/m2, but a 1000cd/m2 screen is also possible, though that would increase the cost.

✅When I press the buttons on the monitor, it makes a sound,Is it possible to cancel the button buzzer?

Yes, it can cancle the button buzzer.

✅Can the power lead be combined into a DC female socket?

Yes, can do.if you also need our car cigarette lighter, that's fine too.

✅I want to be able to use the button menu function while reversing.

Yes, can do .
