PRODUCT INTRODUCTION

Item number: ST-CMOS-776, ECE R10, CE Certificates

  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
  • OE Style Flush Mount Car Reverse Camera
Inquiry Now

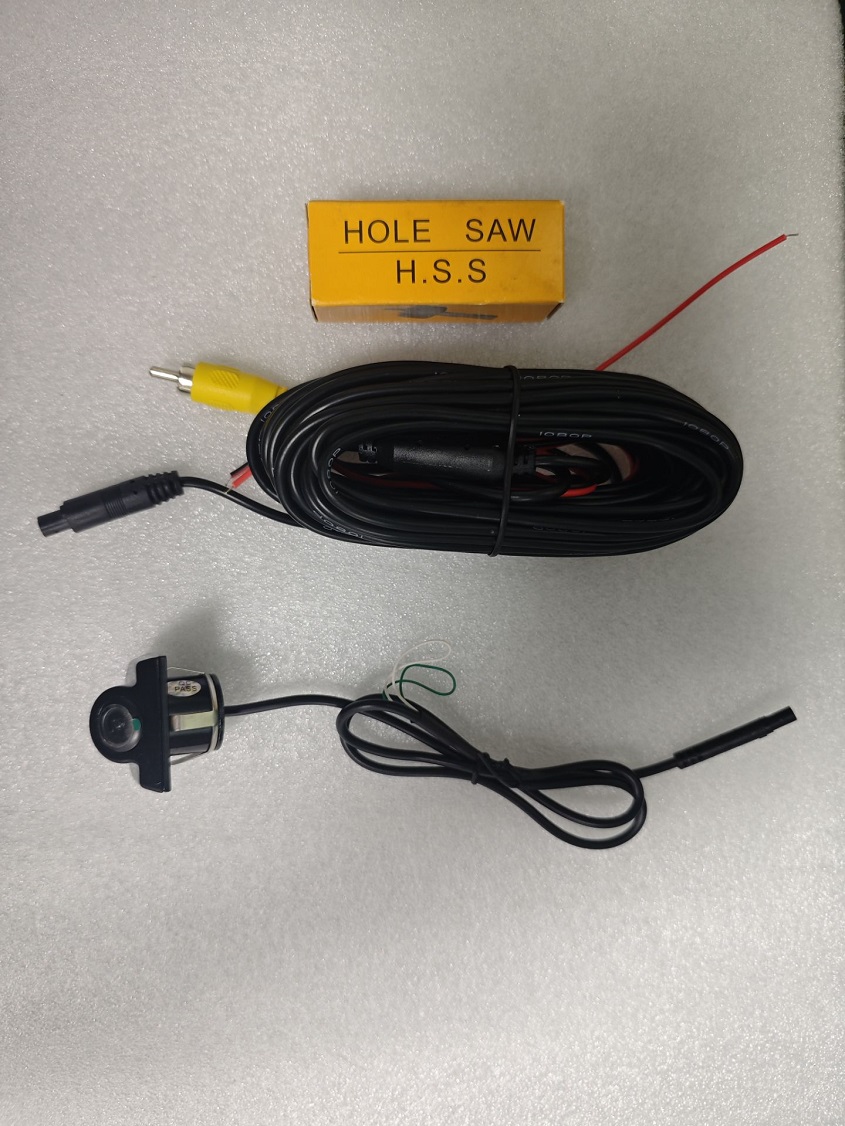

OE Style Flush Mount Car Reverse Camera

Key Features:

  • IP68 Waterproof rate, 700TVL high resolution
  • Mirror on/off optional, Guide line on/off optional
  • Flip down or Normal mount method optional
  • Applicate for Car, SUVs,Pick-up, RVs, Vans etc
  • Approvals & Certification: E-Mark & CE

  * This camera also can install on Right side and Left side(L/R).

Product Specs:

Category Parameter
 Casing Material  Zinc alloy
 Image Sensor  1/3" PC7070 CMOS Sensor
 Resolution  700TVL
 TV System  PAL/NTSC
 Viewing angle  170 Degree
 Power supply  DC 12V
 Waterproof Level  IP68
 Guide Line  On/off  Optional
 Image   Mirror on/off optional
 S/N ratio   Better than 60dB
 Minimum Illumination  0.1 Lux
 Video Output  1.0 Vp-p/75 Ohm
 Connector  RCA phono or BMW connector
 Drill Size  22.5MM
 Length of  video cable  Faulty was 6M.10M or 15M optional
 Operating Temperature   -20℃~70℃, RH 95% MAX
 Storage Temperature  -30℃~80℃, RH 95% MAX



Product Applications:

  • Car Bumper & Tailgate Upgrades: Perfect for car detailing shops and aftermarket installers adding a discreet reverse camera into front/rear plastic bumpers or tailgate panels without cutting big holes.

  • Delivery & Sprinter Vans: Ideal for inner-city transit fleets, sprinter vans, and box trucks to reduce minor low-speed reversing dents and insurance claims during daily drop-offs.

  • Pickups & SUVs: Blends cleanly into pickup tailgates or near the trunk release handle, keeping the original vehicle styling intact while adding full blind-spot visibility.

  • Commercial Vehicle Retrofitting: A universal, tamper-proof option for fleet managers looking for an invisible, low-profile safety camera that drivers or cargo won't easily knock off.
