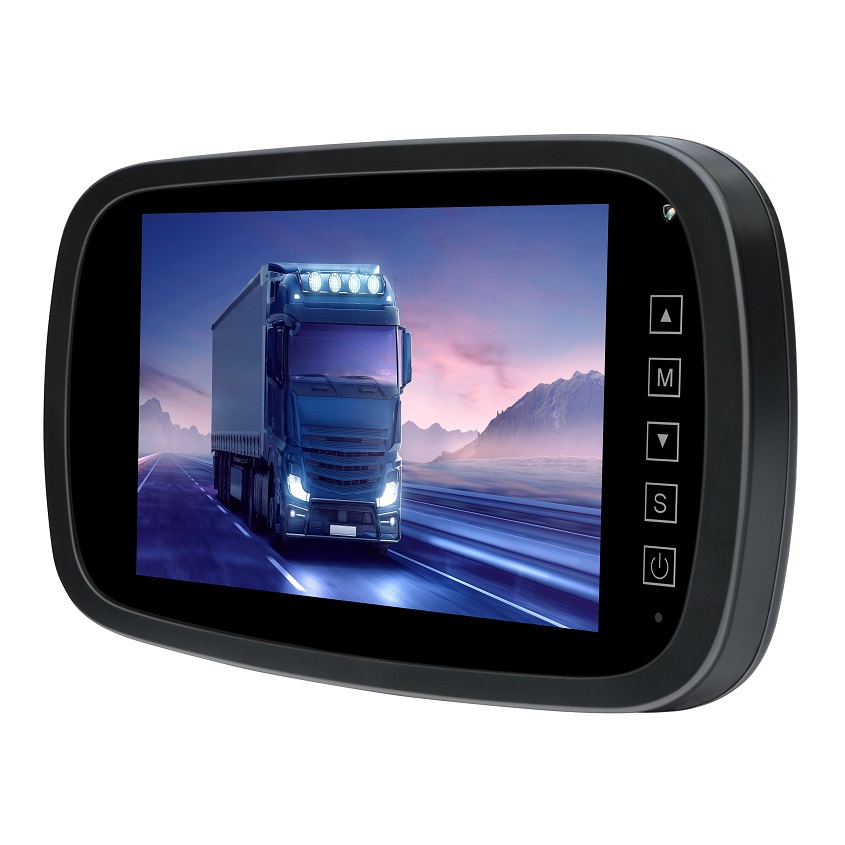

7inch Clip on AHD Mirror Monitor

    This is a novel 7" rearview mirror monitor,the casing is very close to the original car's curved rearview mirror, the casing material is made of high-quality ABS material, the IPS full-view LED screen ,it supports AHD 1080P and CVBS signal , and the wide voltage 9-36V,It is very suitable for Car, small load Truck, Van, Motorhome etc.



 Main features:

. 7" Clip on AHD 1080p mirror monitor, touchscreen button.
. IPS Led panel, very clear picture quality
. 2 Channel,compatible with AHD and CVBS cameras inputs
. Very easily attaches to the existing rearview mirror
. Compatible with AHD and CVBS cameras inputs
. Simply installation with no need for additional mounting hardware
. Approvals and Certification: E-mark(ECE R10), CE



Products Specs:

Products Name 7inch IPS AHD 1080P  Mirror  Monitor
Mounting Method Clip on
Video Format AHD/CVBS Hybrid
Resolution 1024*600*RGB
TV System PAL/NTSC
Power supply DC 9-36V
Power Consumption 7W
Screen ratio 16:09
Backlight luminance LED, Luminance  500 cd/m2
Video input 2 Channel
Trigger 1,Auto switch to reverse camera in reverse gear
Viewing angle L/R: 75/75   U/D: 75/75
Screen Sensitivity Auto Adjust light Day / Night
Connectors 4pin aviator or  RCA  optional
Operating Temperature   -30℃~70℃, RH 95% MAX

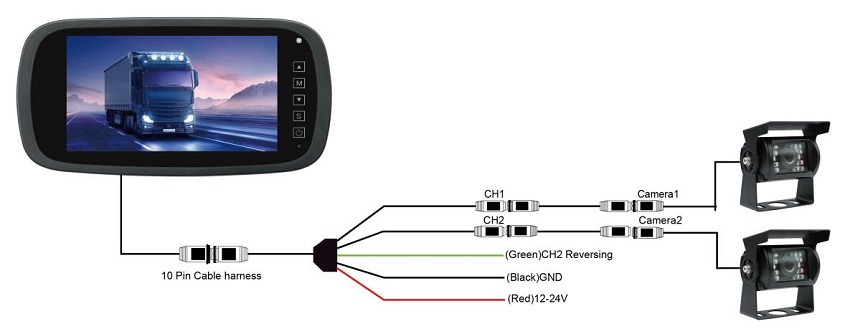

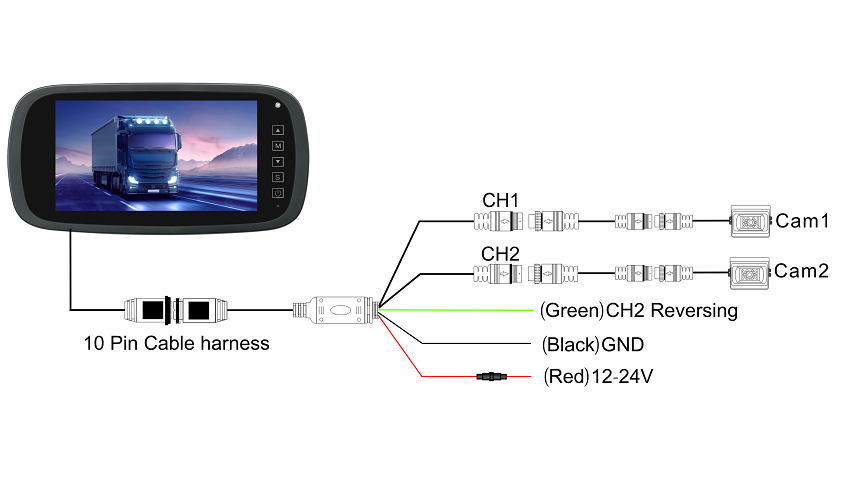

Wire Diagram:

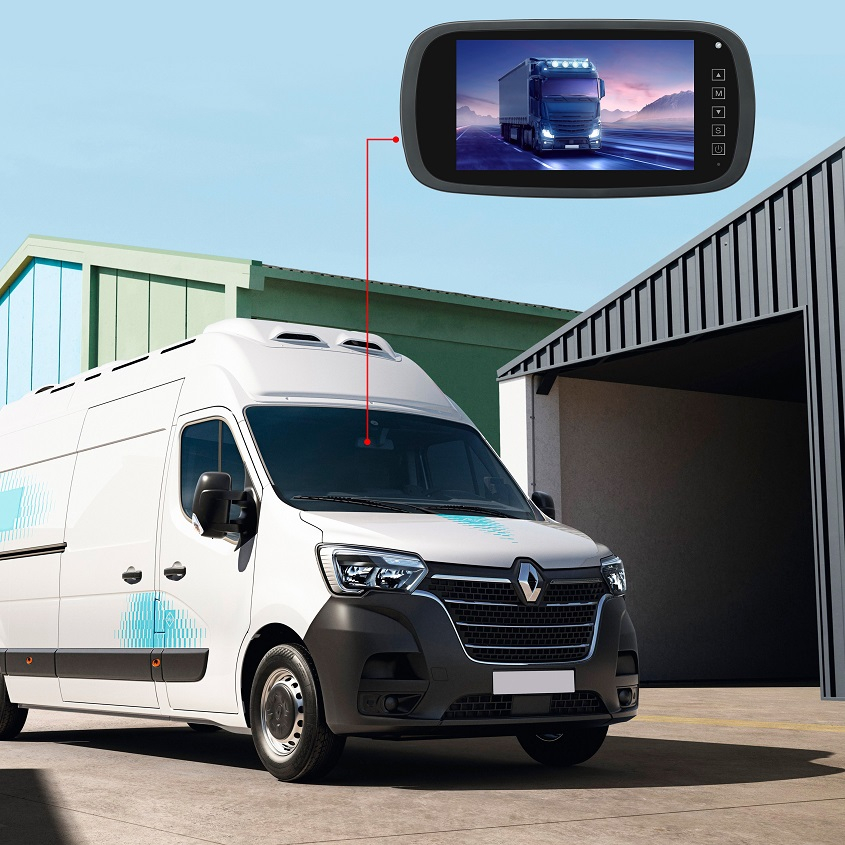

Install position:
