Item number: ST-588TM-AHD

  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
  • 7inch Clip on AHD Mirror Monitor
Inquiry Now
7inch Clip on AHD Mirror Monitor

Main features:

. 7" Clip on AHD 1080p mirror monitor, touchscreen button.
. IPS Led panel, very clear picture quality
. 2 Channel,compatible with AHD and CVBS cameras inputs
. Very easily attaches to the existing rearview mirror
. Compatible with AHD and CVBS cameras inputs
. Simply installation with no need for additional mounting hardware
. Approvals and Certification: E-mark(ECE R10), CE



Products Specs:

 Products Name  7inch IPS AHD 1080P Clip Over Rearview Mirror  Monitor
 Video Format  AHD/CVBS Hybrid
 Resolution  1024*600*RGB
 TV System  PAL/NTSC
 Power supply  DC 9-36V
 Power Consumption  7W
 Screen ratio  16:9
 Backlight luminance  LED, Luminance  500 cd/m2

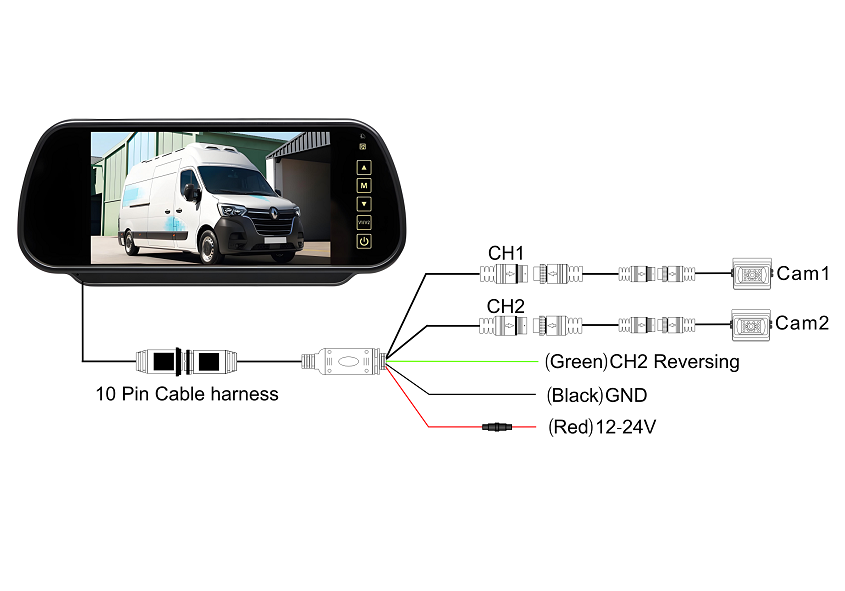

 Signal input  2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid
 Trigger   AV2 for reversing
 Install type  Clip Over
 Universal bracket  Optional
 Viewing angle  L/R: 75/75   U/D: 75/75
 OSD menu,Remote control  Yes
 Connector   4Pin or RCA optional
Shockproof level   4G
Accessories  User manual/Remote controller/Power cable
Operating Temperature   -20℃~70℃, RH 95% MAX
Storage Temperature  -30℃~80℃, RH 95% MAX
Vehicle

Car, van, motorhome etc

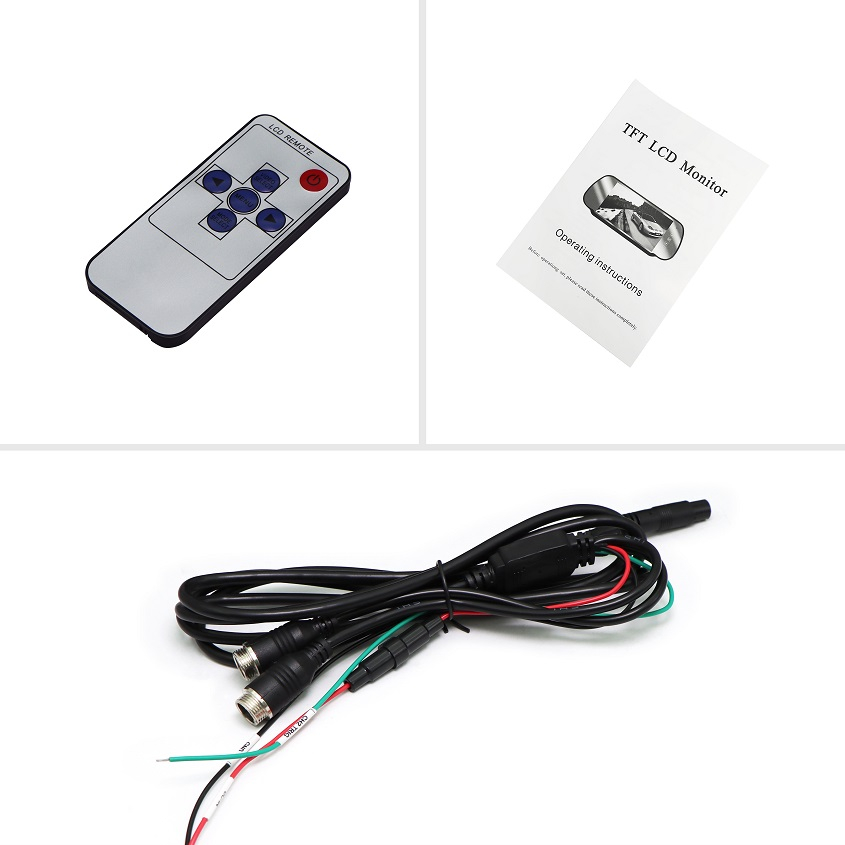

Accessories:

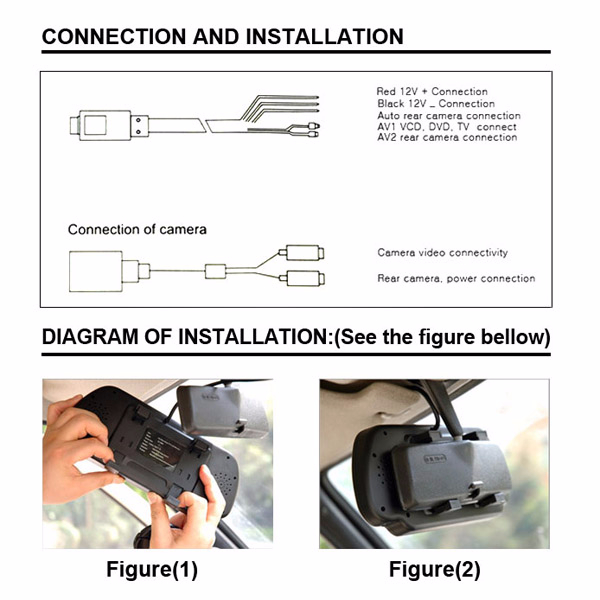

Install Position:
