Item number: ST-799M-AHD
Key Features:
. 7" IPS AHD 1080p Full View screen, DC 9-36V
. Audio/Speaker optional
. Adjustable distance grid lines for backing up reference
. Switch between mirror/normal image for any camera attached
. Includes U-shaped and fan brackets for secure and flexible mounting options
. Provides clear and detailed video output for high-quality viewing

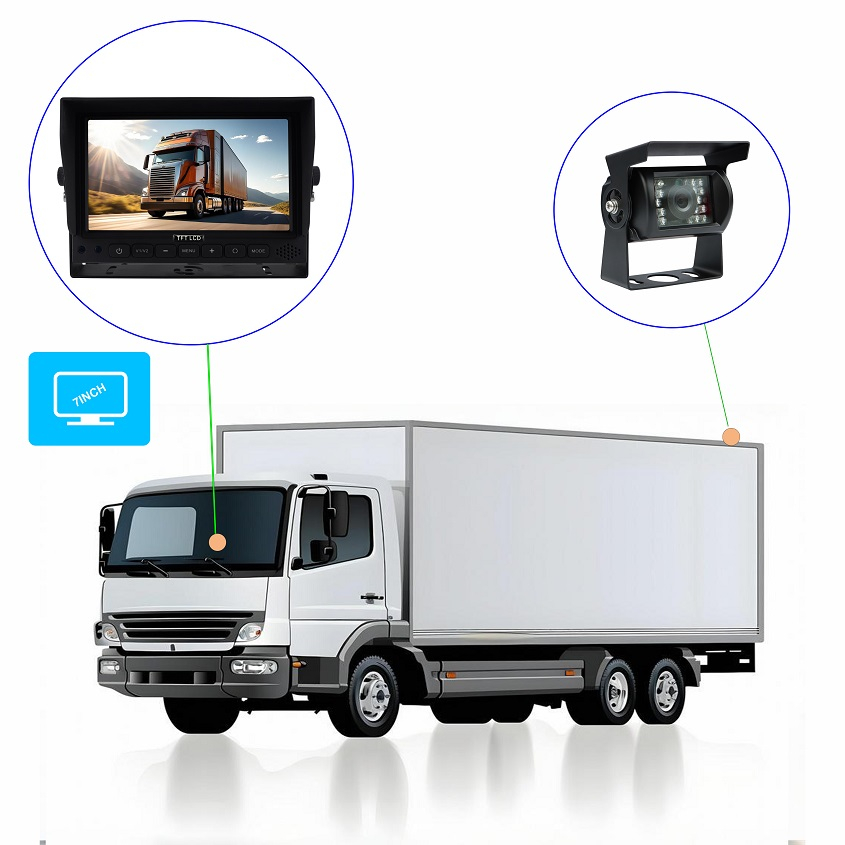

. Ideal for various in-vehicle applications with an enhanced viewing experience
Approvals & Certification: E-Mark, CE
Products Specs:
| Products Name | 7inch IPS AHD 1080P Rearview Monitor |
| Video Format | AHD/CVBS Hybrid |
| Resolution | 1024*600*RGB |
| TV System | PAL/NTSC |
| Power supply | DC 9-36V |
| Power Consumption | 7W |
| Screen ratio | 16:9 |
| Backlight luminance | LED, Luminance 500 cd/m2 |
| Signal input | 2ch AHD 1080P /720P input, 2ch CVBS input, AHD/CVBS Hybrid |
| Trigger | AV2 for reversing |
| OSD menu,Remote control | Yes |
| Connector | 4Pin or RCA optional |
| Shockproof level | 4G |
| Accessories | User manual/Remote controller/Power cable/Sunshade/Bracket |
| Operating Temperature | -20℃～70℃, RH 95% MAX |
| Storage Temperature | -30℃～80℃, RH 95% MAX |

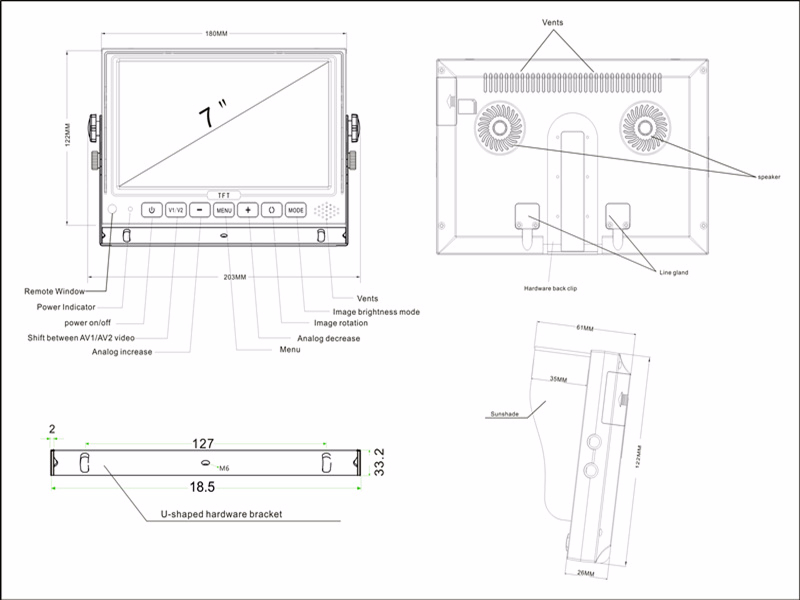

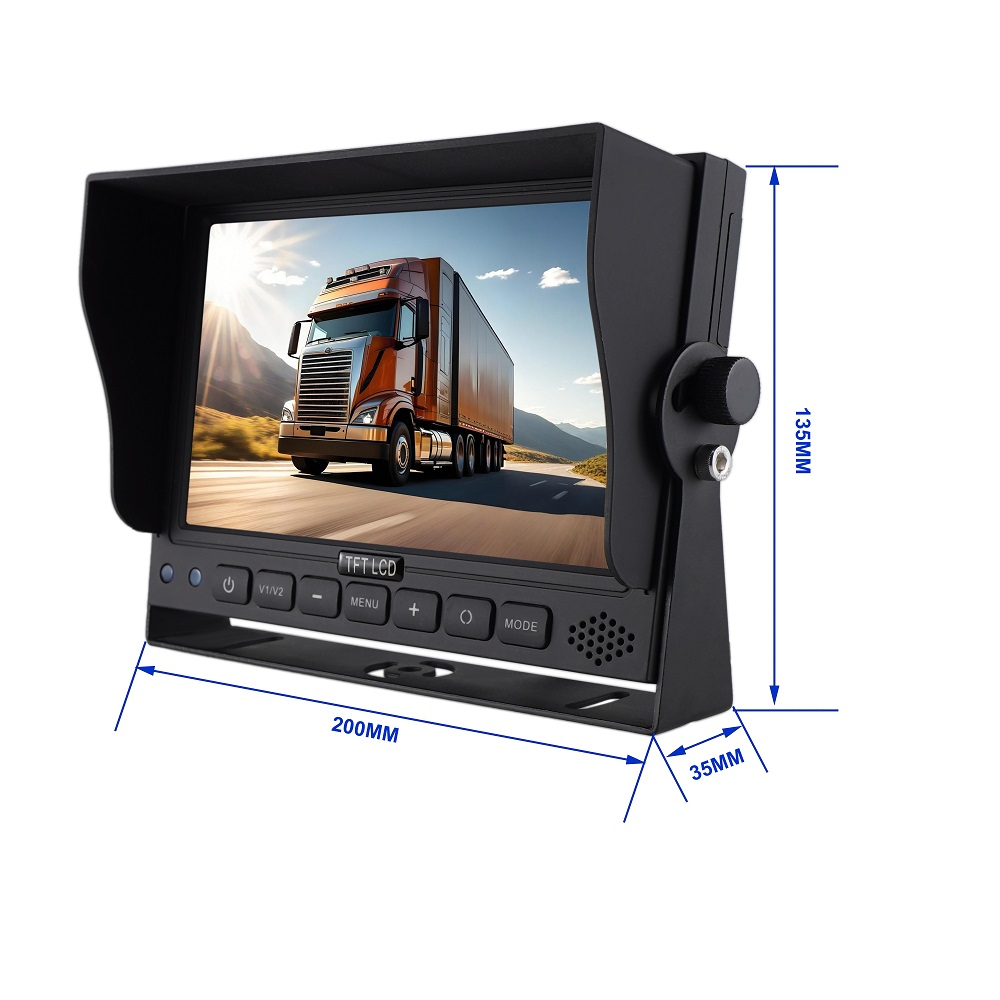

Technical Drawing:

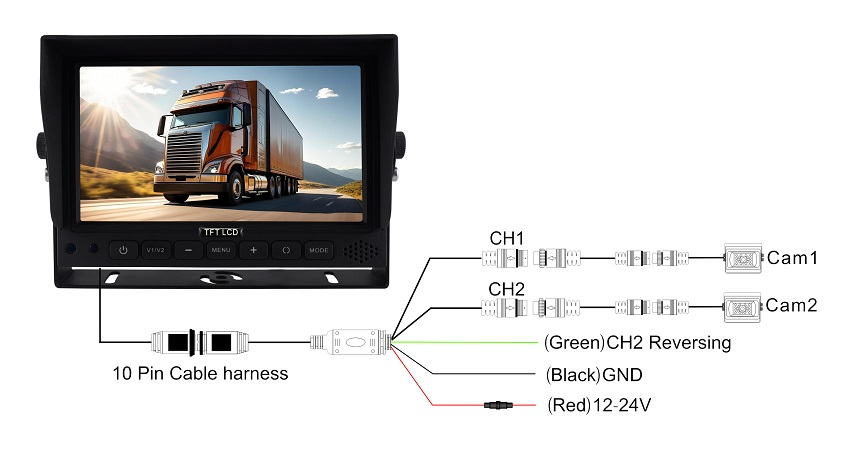

Wire Diagarm:

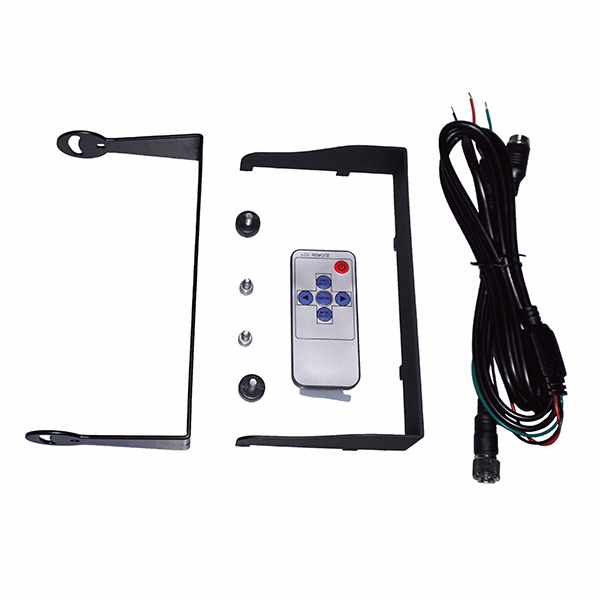

In the Box:
1 x 7" HD 1080P Monitor
1 x U-shaped mount bracket or dash mount bracket
1 x Power Harness
1 x Remote Control
1 x Screw Kit for installation
1 x Manual
