Item number: ST-TR004, AHD 2.4G Wifi Video Transmitter and Receiver Kit-1080P Long-Range Video Link for Trucks, RVs, and Trailers

  • AHD Digital Wireless Sender and Receiver Kit
  • AHD Digital Wireless Sender and Receiver Kit
  • AHD Digital Wireless Sender and Receiver Kit
  • AHD Digital Wireless Sender and Receiver Kit
  • AHD Digital Wireless Sender and Receiver Kit
  • AHD Digital Wireless Sender and Receiver Kit
Inquiry Now

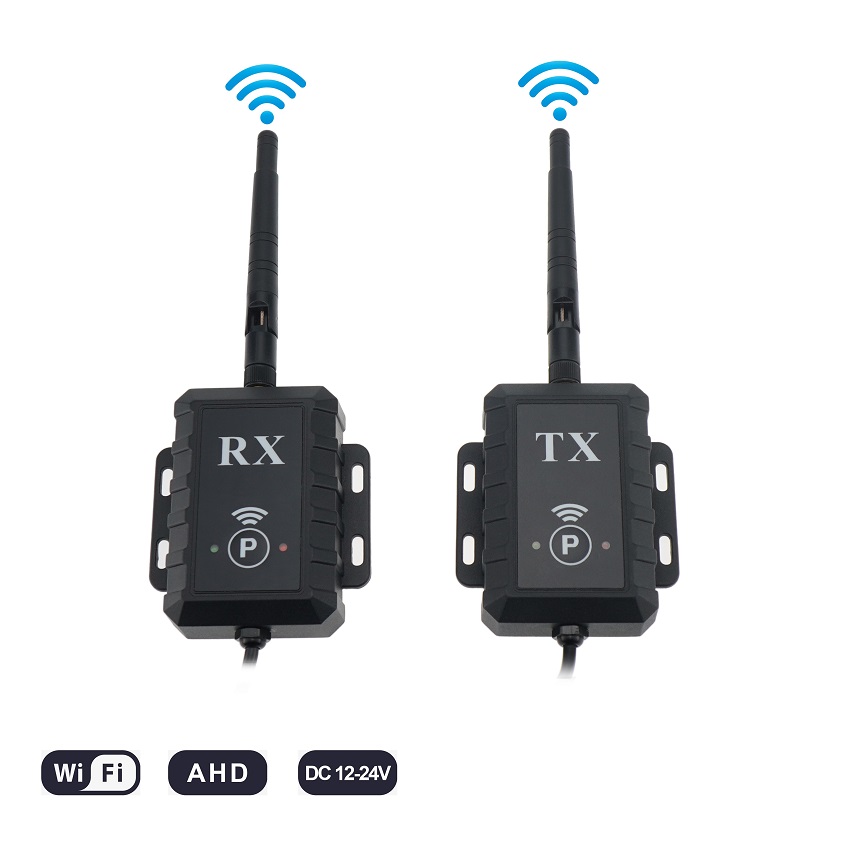

AHD Digital Wireless Sender and Receiver Kit

Overview:
AHD 2.4G Wifi Video Transmitter and Receiver Kit, IP68 waterproof level, it with a range of up to 500m will allow you to connect the work camera to the monitor via WiFi with a quality image in AHD resolution. If you have a multi-camera system or just a single-camera system, and you have found that pulling the cables is difficult (such a truck tractor), this set of AHD WiFi wireless transmitter and receiver will help you.





Key Features:

  • Heavy-Duty Digital Signal: Reliable, anti-interference long-range wireless video transmission up to 500M

  • Universal AHD Compatibility: Works seamlessly with existing 720P/1080P AHD truck cameras and monitors

  • Weatherproof Design (IP Rating): IP68 Waterproof rated for extreme conditions—ideal for mounting on trailers or exposed machinery

  • Wide Voltage Support: Compatible with DC 12-24V vehicle systems (crucial for trucks and machinery)

More Details:

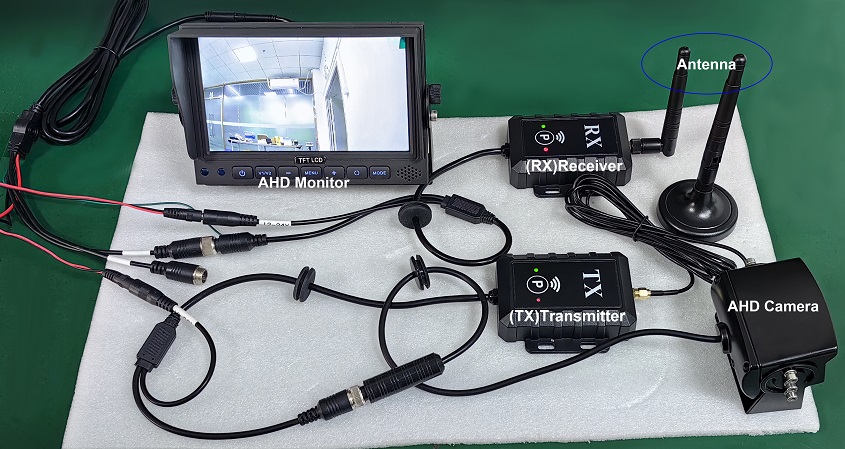

TX & RX works with our Sony IMX307 and IMX662 sensor camera, Stable signal, No interference:



Product Specs:

Category Parameter
TX video input AHD/CVBS
Casing Material Aluminium alloy

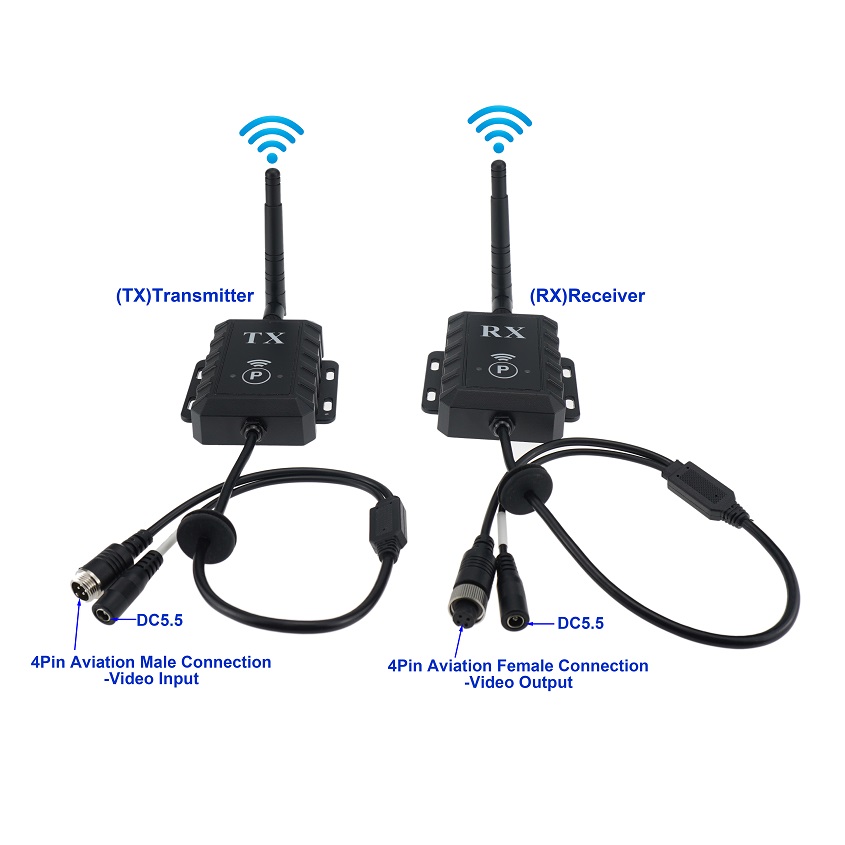

Video Input Single Channel 1.0Vp-p(±10%) 75 Ohms/AHD1080P/720P/CVBS
Video Output Single Channel 1.0Vp-p(±10%) 75 Ohms/AHD720P
Frequency Range/Modulation 2400-2483.5MHZ
Frequency 2.4G
Coding Digital, via button on unit
Transmission Range Up to 500 meters (line-of-sight)
Power supply DC 12-24V
Waterproof Level IP68
Transmission speed 12Mbps
Video Signal Delay (milliseconds) 90-120 milliseconds
Video Codec/RF Bit Rate H.264/Up to 12 Mbps
Audio Signal Transmission Yes
Transmit Power 20 dBm/100 mW
Receiver Sensitivity ' -89 dBm
Operating temperature -30° C to 70° C

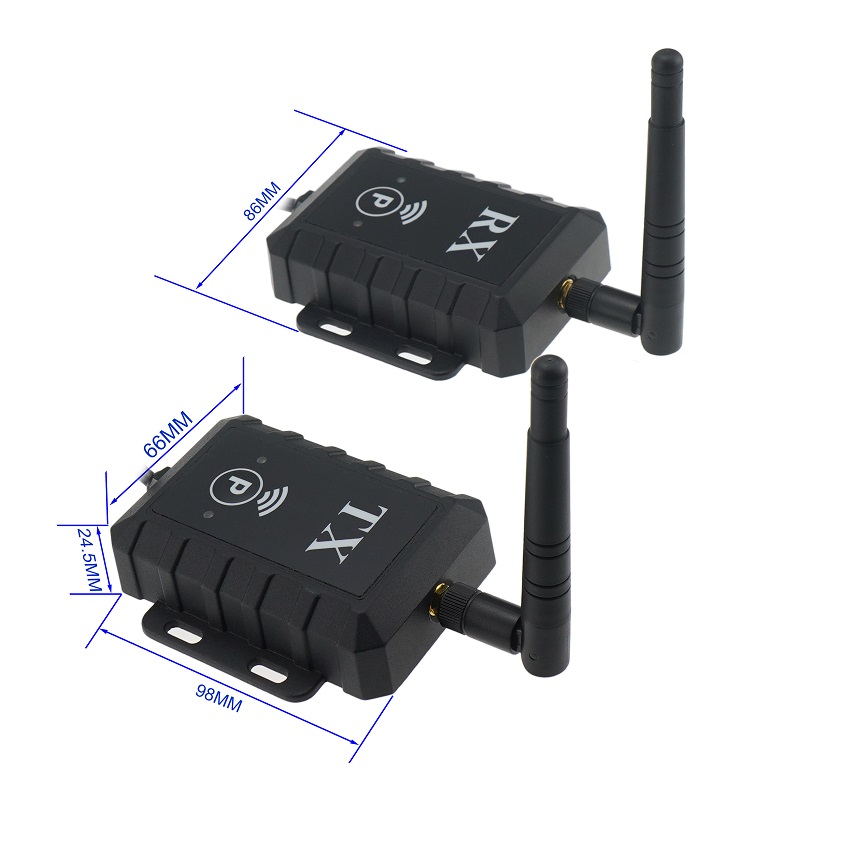

Size 98*86*24.5mm

Product Applications:

 Suitable for Truck, Trailer, Tractor, RVs, Cranes, Agricultural Machinery or anywhere running cable is not practical

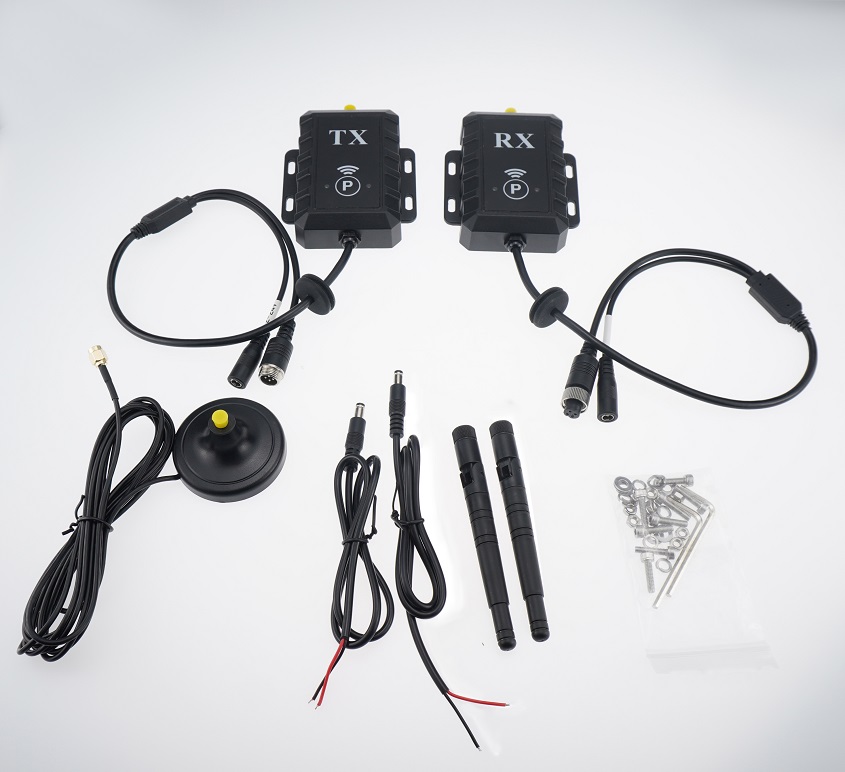

In the box:

1 x Transmitter
1 x Receiver
2 x WiFi Antenna
1 x WiFi extension antenna with adhesive attachment (adhesive sticker)
2 x Power cord for Kit
1 x Manual



If customer requires a compatible AHD monitor and camera, please visit our below links:

Heavy-Duty AHD Backup Cameras: https://standtop.com/ahd-rear-view-cameras.html

AHD Rearview Monitors: https://standtop.com/ahd-rearview-monitors.html



Why Choose an AHD Digital Wireless Sender & Receiver Kit?

  • No need to run long video cables

  • Perfect for detachable trailers or rotating machines

  • Reduces installation damage to vehicle body

  • More stable than analog wireless systems

  • High-quality image for reversing, monitoring, and recording
