7-Inch Mirror Monitor Dual Lens Camera System for RVs & Van

PRODUCT INTRODUCTION

Item number: ST-766RVS

7inch Mirror Monitor Dual Lens Camera System

Products Overview:

This is a 7" Mirror monitor camera system,7" High resolution monitor plus dual lens camera, mainly used for commercial vehicles such as RVs,Van,trailers, etc. the monitor and camera are both 1080P, bringing clear and detailed pictures, the twin lens camera is a HD 1080p cameras in a single metal housing, the top camera which with 120° Horizontal Angle view is for“Always-on" rear view,so you can have a clear view of the road behind,the bottom camera which with a 150° Horizontal Angle view designed to be a standard reverse camera.

Key Features:

7" Clip on AHD 1080p mirror monitor, touchscreen button
2 Channel,compatible with AHD and CVBS cameras inputs
Starlight AHD 1080P twin lens camera, 1 for rear view , 1 for reverse
Camera cable harness can be customized,such as 4pin min din for Vans screen
Simply installation with no need for additional mounting hardware
Rear-view and Back-view monitoring for RVs, vans, trailers, and commercial fleets

7" Mirror Monitor Parameters:

AHD and CVBS signal are compatible
AHD 1080P
Aspect ratio:16:9 image
Resolution:1024*600*RGB
2 way video input
Power supply:DC 9-36V
Brightness:500cd2
Power Consumption:4.5W
System: PAL & NTSC
OSD menu,remote control
Viewing angle: L/R 85/85 U/D 85/85
Automatic switching with trigger
Suitable for rear view cameras
Connector: 4pin aviation

Rear view & Reverse camera Parameters:

Camera housing: Solid alloy metal housing
Sensor: 1/2.7" Sony IMX307
1920*1080 AHD resolution,2MP
Rear View Camera Angle: 120°(H)
Reverse Camera Angle: 150°(H)
Video Format: PAL/NTSC
Waterproof level: IP69K
Power supply: DC12V
Connector: 4pin aviation
Cable: 2 x 600mm
Working temperature: -30℃ to 70℃
Dimensions (WHD): 48mm x 55mm x 34mm

Extension cables Parameters:

2x 4pin male to femal extension cables

6m/10m/15m/20m optional

Double-shielded pure copper wire

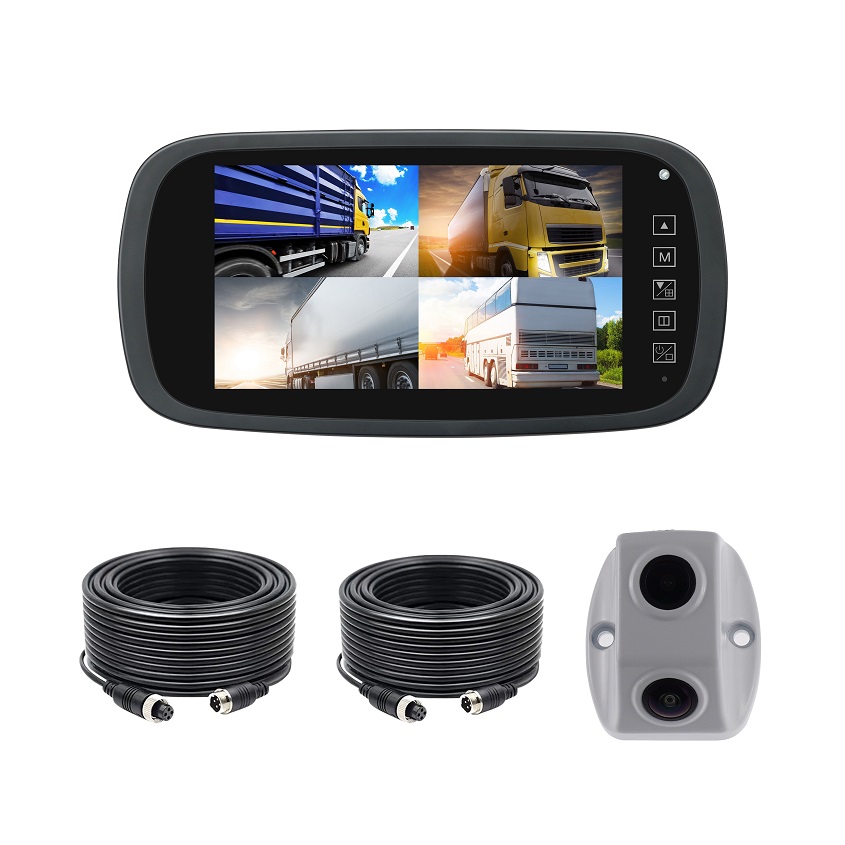

7" Quad Mirror Monitor optional:

If you need this system can use with 3-4pcs cameras, such as side camera or front camera, it need to use our 7" quad mirror monitor

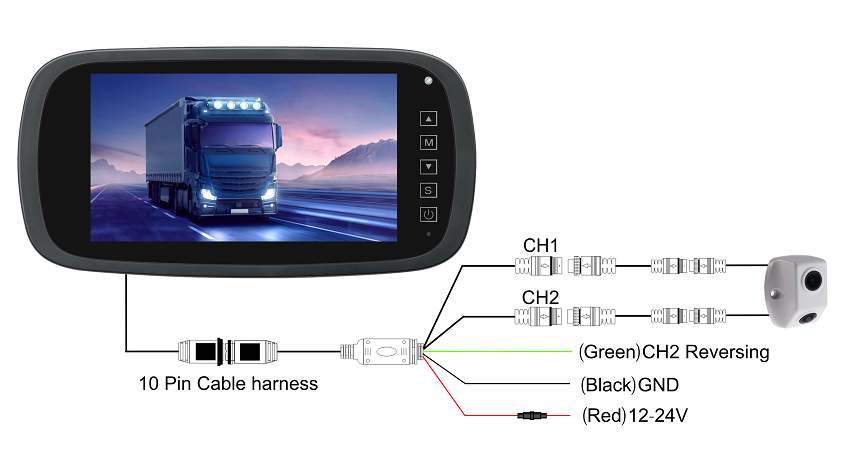

Wire Diagram:

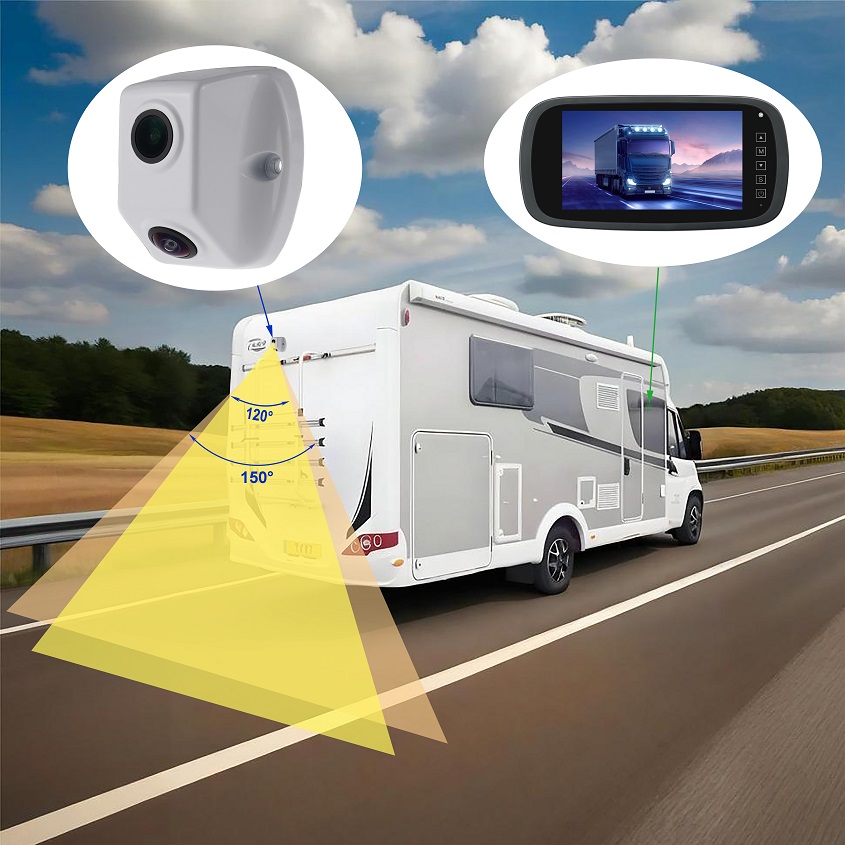

Product Applications:

Perfect for RVs, Vans,Trucks, Trailer, helping drivers avoid collisions and improve visibility in all conditions

In the box:

1 x 7" AHD Mirror Monitor
1 x AHD 1080P twin lens camera
2 x 4pin female to male connector extension cable( 6m/10m/15m/20m optional)
1 x Power cable
1 x Screw Kit for installation
1 x User manual

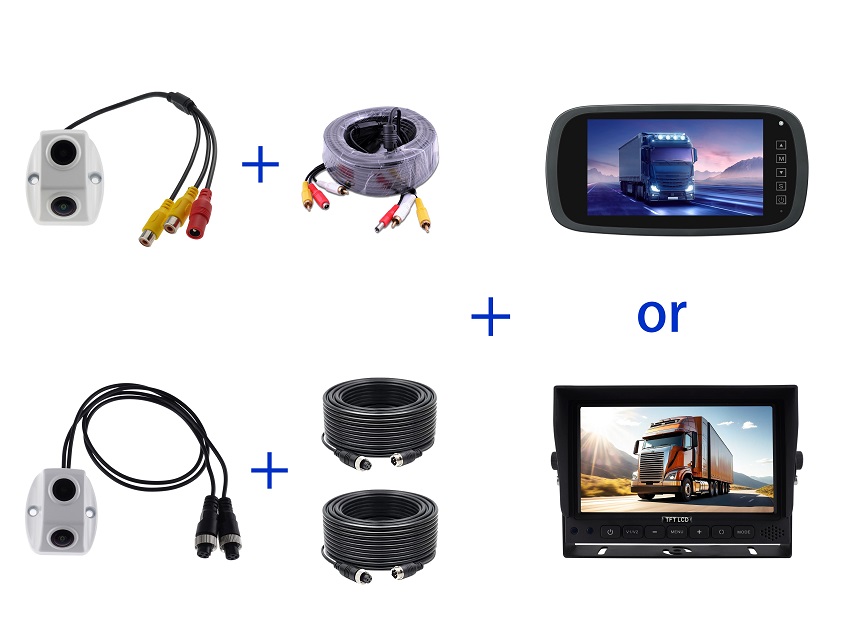

How to choose this camera kit for your RVs, Vans, Trucks?

Customers may have different preferences when choosing matching monitors and extension cables. Here are some suggestions:

Kit A: To save on cabling space and installation time, you can choose camera with RCA phono connector + 1x RCA extension cable + 1x rearview monitor, the monitor can be a dash mount monitor or a clip on rearview mirror monitor

Kit B: If you feel that connecting two extension cables is more suitable, you can choose camera with 4pin aviation connector+2x extension cable +1x rearview monitor, the monitor can be a dash mount monitor or a clip on rearview mirror monitor

RCA phono or 4pin aviation extension cable length have 10M, 15M, 20M, normal 15M was better for RVs, Vans etc

Our Suggestion Monitors:

7" AHD 1080p Mirror monitor model ST-799M, https://standtop.com/7inch-HD-1080P-mirror-monitor.html

7" AHD 1080p Dash mount monitor model ST-799M-AHD,https://standtop.com/7inch-ahd-rearview-monitor.html
