Products Overview:

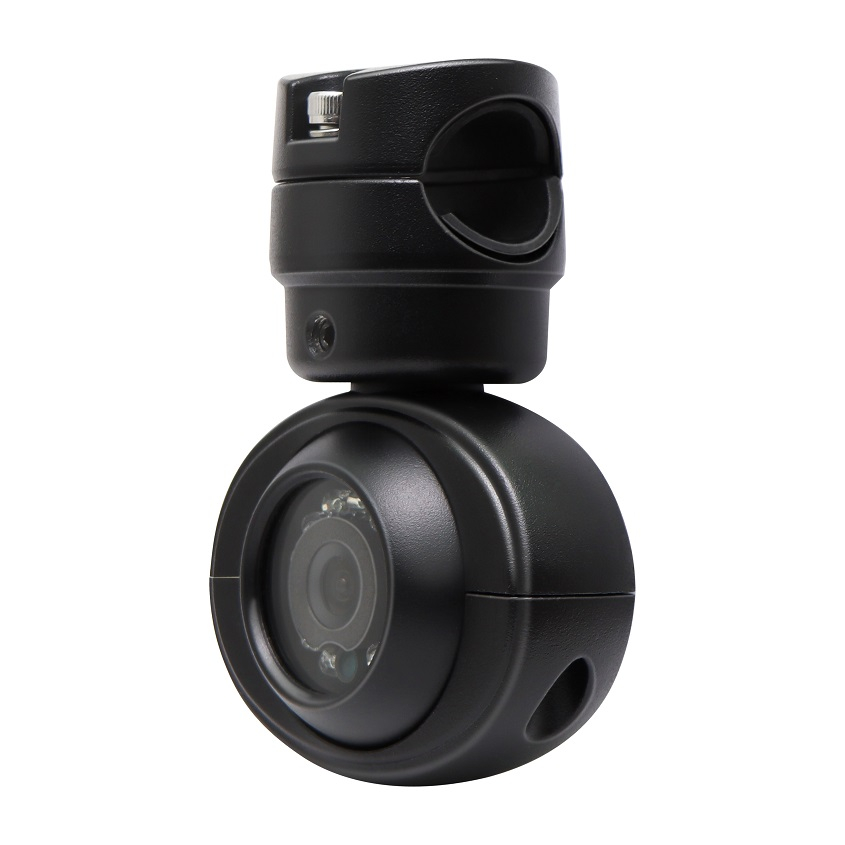

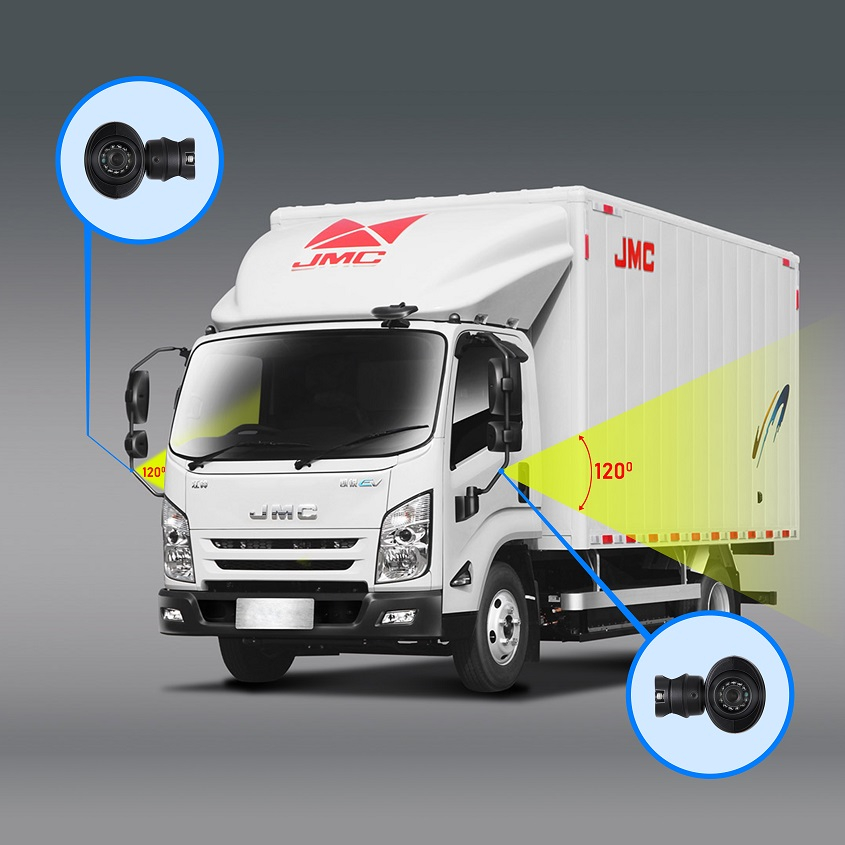

   Enhance safety and maneuverability for your fleet with the 1080p Side Mirror Arm Mount Ball Camera,designed specifically for heavy-duty trucks and RVs,this camera mounts directly to the mirror arm, providing a critical side view that effectively eliminates dangerous blind spots. The ball camera design allows for flexible, precision aiming.

Key Features:

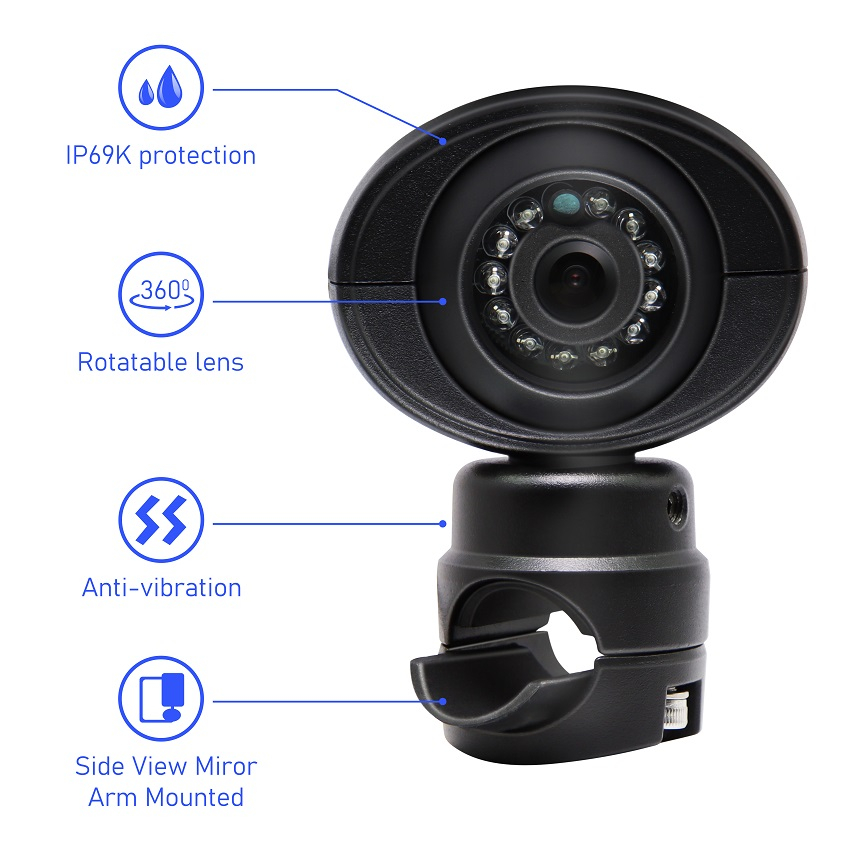

• Side mirror arm mounting, rotatable lens, adjustable viewing angle for optimal positioning

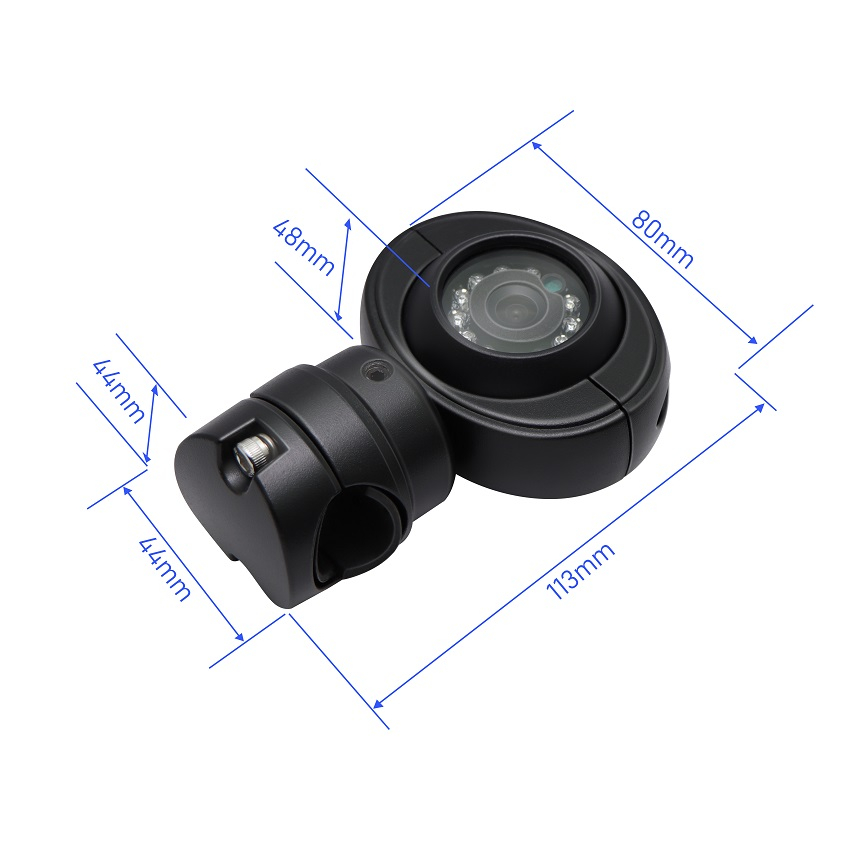

• Universal install size,Zinc alloy body
• Full HD 1080P Resolution
• IP69K Waterproof level, anti-vibration
• 12pcs Infrared LEDs ensure visibility in low-light conditions
• Shockproof Housing,Vibration-resistant for heavy-duty vehicles
• Applications for Heavy Duty Trucks,RVs,Commercial Vehicles

Product Parameters:

Image sensor: 1/2.9"CMOS Sensor

Resolution: 1920(H) x 1080(V)

TV System: PAL/NTSC

Viewing angle: 120 Degree

Power voltage: DC 12V

Waterproof Rating: IP69K

IR Leds: 12pcs

IR cut: Yes

Night vision distance: 10m

Frame rate:25fps/30fps

Power Consumption:＜3W

Minimum Illumination:0.1 Lux(day),0 Lux (with IR)

Video Output:1.0 Vp-p/75 Ohm

Connector: 4Pin aviation

Operating Temperature:-20℃～70℃, RH 95% MAX

Storage Temperature:-30℃～80℃, RH 95% MAX

Product Applications:

Perfect for Heavy Duty Trucks,RVs,Commercial Vehicles
