1080P Heavy-Duty Industrial Vehicle Camera | Sony STARVIS & IP69K Waterproof

PRODUCT INTRODUCTION

Model number: ST-866RC

1080P Sony Starvis Starlight Industrial Heavy-Duty Vehicle Camera

Products Description

1080P Heavy-Duty Industrial-Grade Vehicle Camera — 304 Stainless Steel & IP69K Rugged Housing

Designed specifically for harsh operating conditions, this Heavy-Duty Industrial-Grade Vehicle Camera delivers continuous visual reliability where standard commercial cameras fail. Encased in a solid 304 stainless steel enclosure, the camera offers superior resistance against mechanical impact, corrosive chemicals, salt spray, and abrasive dust.

Equipped with the high-sensitivity Sony STARVIS 1080P image sensor, the unit captures exceptional low-light footage without IR glare, ensuring operators maintain 360-degree situational awareness around large excavators, mining haul trucks, harbor cranes, and agricultural fleets.

Key Features

Constructed Industrial-strength with 304 Stainless Steel for superior protection against salt spray,brine,caustic cleaning solutions,and chemical fumes
Full HD 1080P Resolution, 1920*1080, 2MP pixes
IP69K Waterproof & Dustproof: Built for rain,mud,and extreme conditions
0.001Lux minimum Illumination
3 in 1 90 frame rate
In motion, the image does not have much trailing
Starlight Night Vision with WDR/HDR function
M12 4-pin avation connector, double-shielded pure copper wire
Smaller camera size is suitable for installation in various types of vehicles, Heavy Duty Trucks,Engineering vehicles,Tank trucks,Mining,Boat,also for industrial and marine environments

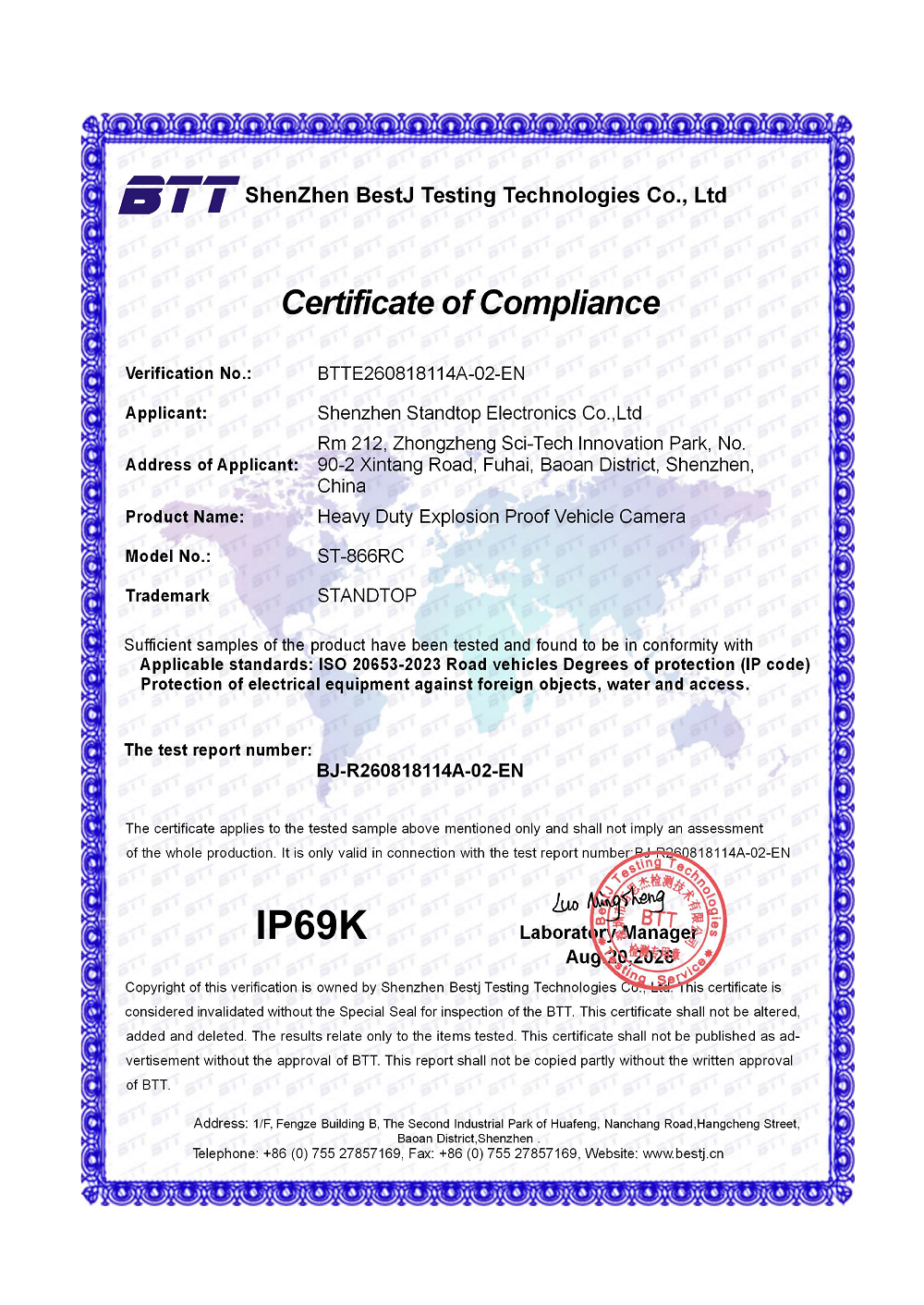

IP69K Waterproof & Dustproof Laboratory Verification (ISO 20653 Standard) – Test Result: PASS

STANDTOP ST-866RC Camera IP6KX Dust Tight and IPX9K High Pressure Washdown Laboratory Test Setup and Post Test Operation

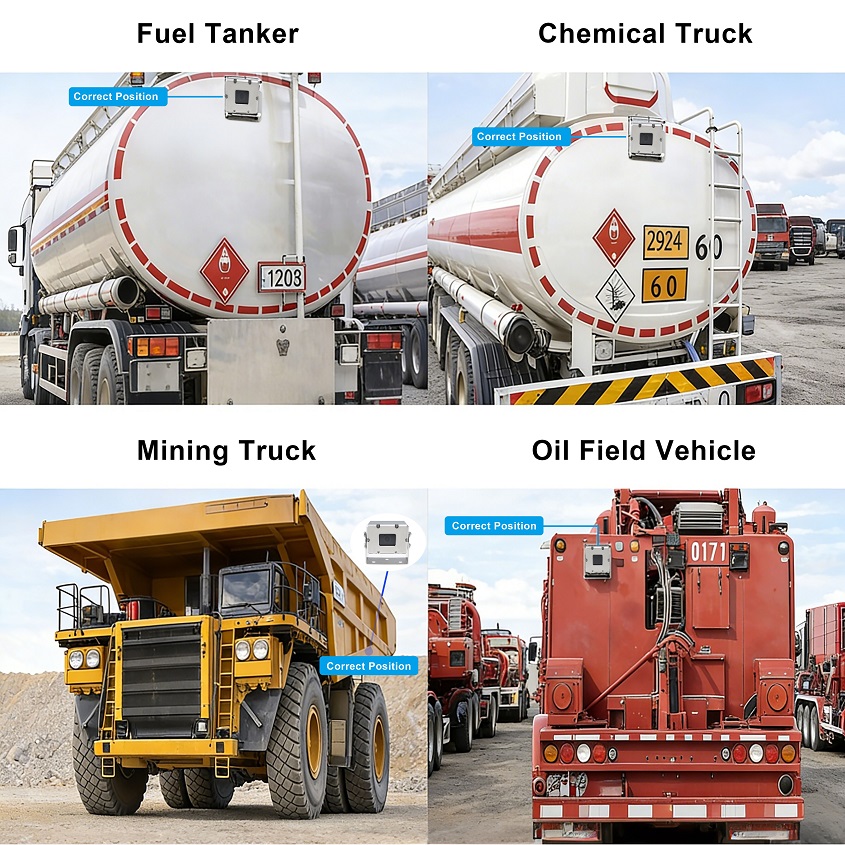

Target Industrial Applications

Mining & Quarrying Equipment: Haul trucks, wheel loaders, drilling rigs, and crushers operating in high-dust and heavy-vibration environments.
Construction & Earthmoving Machinery: Excavators, bulldozers, rollers, and concrete mixers.
Agriculture & Forestry Vehicles: Harvesters, large tractors, sprayers, and forestry forwarders exposed to mud, fertilizer, and high-pressure cleaning.
Marine & Harbor Operations: Port reach stackers, gantry cranes, and vessel dockside monitoring.
Municipal & Waste Management: Salt spreaders, street sweepers, and refuse collection vehicles handling corrosive materials.

Technical Specifications

Category	Parameter
Camera Housing and bracket	304 Stainless Steel
Image Sensor	1/2.8" Sony Starvis2 IMX662 or 1/2.9" GC 2053
Resolution	AHD 1080P,2MP pixes
Effective Pixels	1920(H) x 1080(V)
WDR function	Yes,115DB WDR(Adaptive color gradation reproduction)
TV System	PAL/NTSC
Viewing angle	120 Degree
Lens	2.8MM
Power supply	DC 12-24V
Waterproof Level	IP69K
DNR	3D
S/N Ratio	≥48dB
UTC Menu	Support
Sync System	Internal
White balance	ON
AGC	Auto
Backlight compensation	HLC
Auto Iris	Video/DC
Maximum current	60mA
Minimum Illumination	0.001Lux
Video Output	1.0 Vp-p/75 Ohm
Electronic shutter response time	1/50-1/20000
Lens protective glass material	Tempered glass
Surge protection	Support video lightning protection tube
Reverse polarity protection	Yes
Connector	4pin aviation
Mainboard size	32*32mm
Operating Temperature	-30℃～75℃, RH 95% MAX
Certificates	CE, UKCA, FCC, IP69K

Rugged Explosion Proof Construction:

Frequently Asked Questions (FAQ)

Q1: What makes this camera suitable for harsh industrial environments?

A: The camera is built with a solid 304 stainless steel enclosure and rated IP69K, providing exceptional resistance against mechanical impacts, acid/alkali corrosion, salt spray, and high-pressure steam washdowns (up to 100 bar, 80°C).

Q2: How does the Sony STARVIS sensor perform in low-light conditions?

A: The Sony STARVIS back-illuminated sensor captures clear, full-color 1080P imagery even in near-pitch darkness without relying solely on harsh IR LEDs, eliminating glare and reflections in dusty or rainy environments.

Q3: Can this camera be integrated into third-party monitors or MDVR systems?

A: Yes. It comes standard with an industry-standard 4-pin aviation connector and supports selectable AHD/CVBS video outputs (with optional IP output), making it plug-and-play compatible with most commercial monitors, split-screen displays, and Mobile DVRs.

Q4: Is the camera protected against electrical surges in heavy equipment?

A: Yes. It supports a wide DC 12V–24V input with built-in surge suppression, load-dump protection, and reverse polarity protection to handle voltage fluctuations common in industrial and construction vehicles.

Q5: Is this camera explosion-proof certified?

A: No. This camera is not ATEX or IECEx certified as an explosion-proof camera. It is designed as a rugged industrial vehicle camera with a 304 stainless steel housing for harsh-environment applications.

Q6: What is the difference between this camera and an explosion-proof camera?

A: An explosion-proof camera is specifically certified for use in defined hazardous areas according to applicable standards such as ATEX or IECEx. This model is a rugged industrial vehicle camera designed for harsh outdoor and heavy-duty applications and does not carry hazardous-area explosion-proof certification

Looking for a complete multi-camera monitoring solution?

Request our IP69K Test report?
