Universal Flush Mount 1080P AHD Car Camera (180° Horizontal View)

This premium 1080P AHD 180-degree flush mount car camera is engineered for demanding commercial vehicles, heavy-duty trucks, and RVs. Featuring a blind-hole fast installation design with high-elasticity spring steel clips, it allows for seamless mounting from the outside without rear-panel nut tightening—slashing installation time by 50%.

With a true 180° ultra-wide horizontal viewing angle, this low-profile camera completely eliminates critical blind spots. Encased in a rugged metal housing with an IP68 waterproof rating, it provides reliable HD surveillance as a front, rear, or side-view camera for fleet management and heavy-duty applications.

Key Features:

Blind-Hole Fast Installation

• Effortless Exterior Mount: Engineered for enclosed panels (such as RV fiberglass walls, box trucks, and vans) where the backside is inaccessible. No locknuts required from behind.

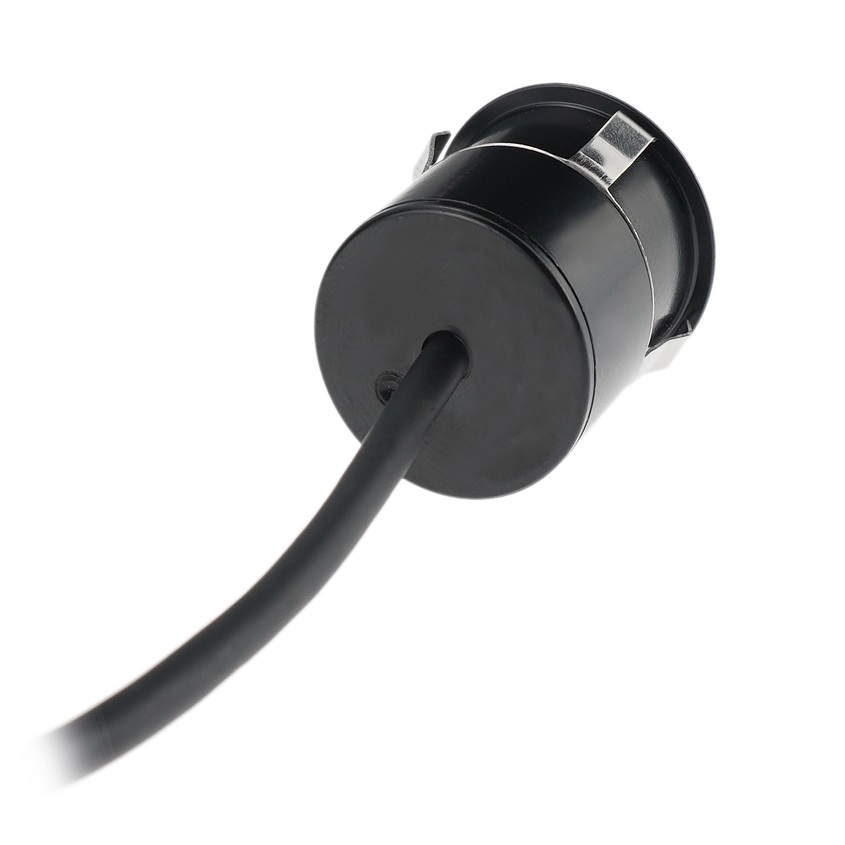

• Heavy-Duty Spring Steel Clips: High-elasticity clips ensure an anti-vibration grip that stays securely in place under harsh off-road or highway driving conditions.

True 180° Ultra-Wide & Flexible Positioning

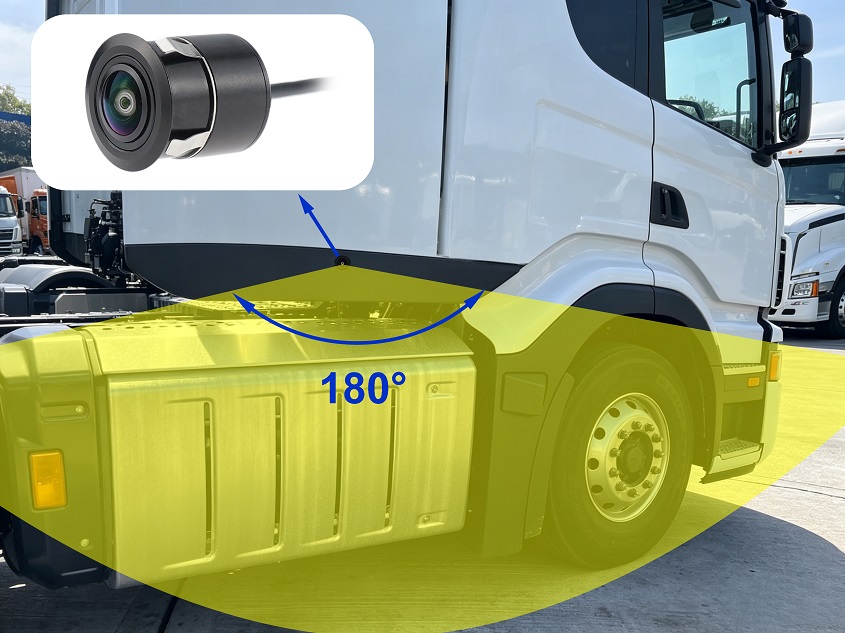

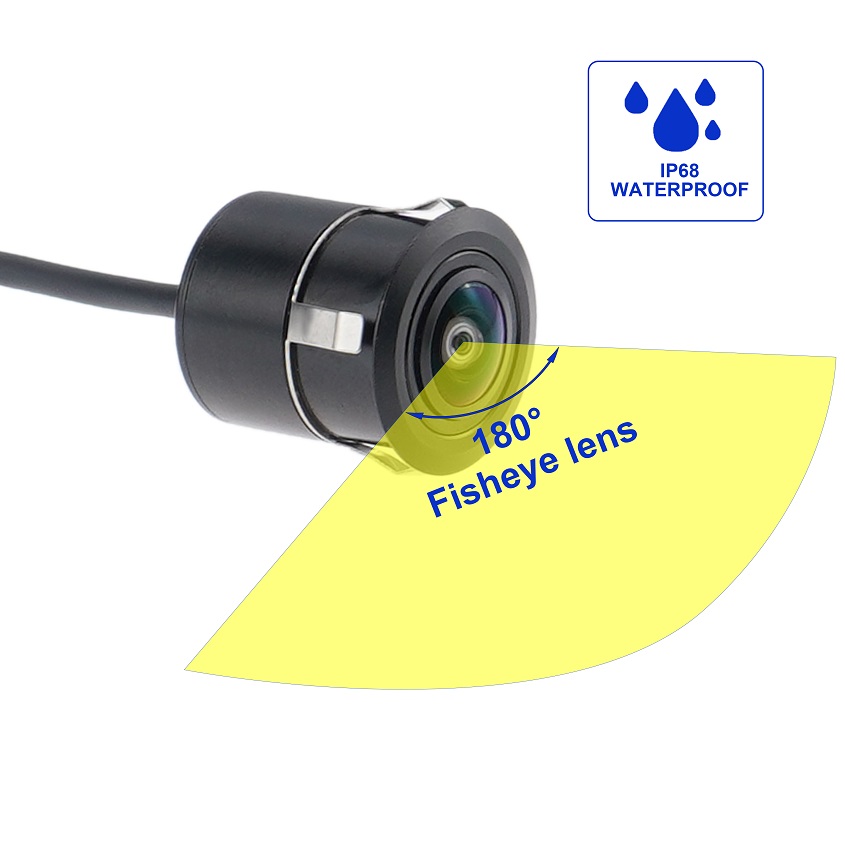

• Zero Blind Spot Coverage: The true 180-degree horizontal field of view offers full peripheral vision, making it the perfect choice for side-view blind spot monitoring.

OEM-Style Low-Profile & Vandal-Resistant Design

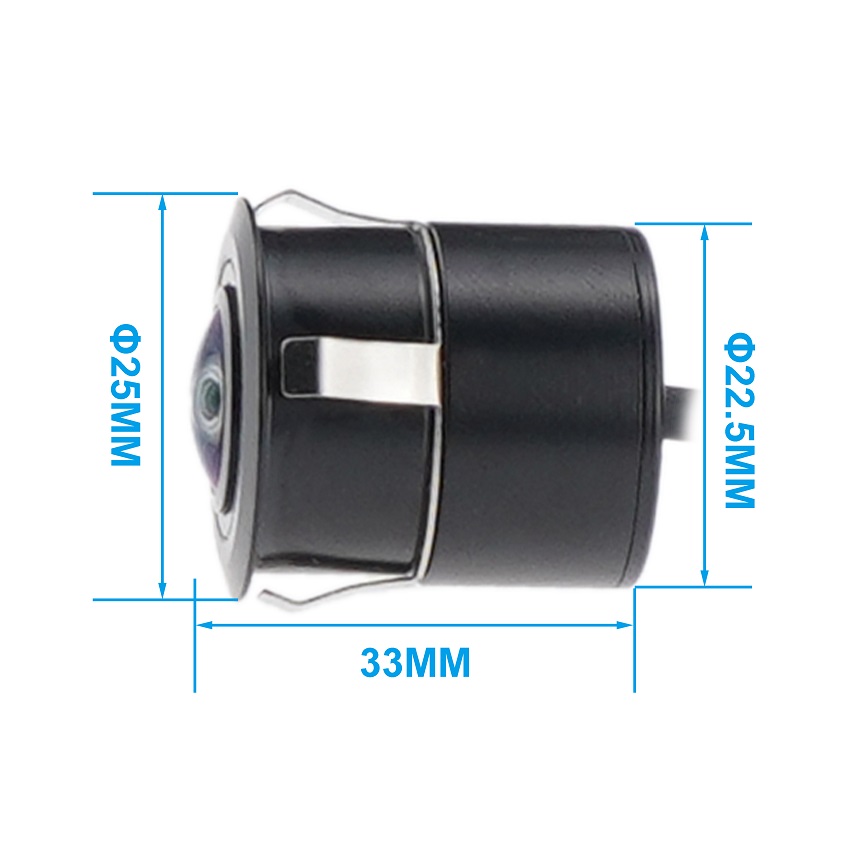

• Discreet Integration: Fits snugly into a 22.5mm hole, delivering an OEM-style finish that integrates seamlessly into the vehicle bodywork.

• Vandal-Resistant: The low-profile metal housing reduces aerodynamic drag and minimizes the risk of physical impact or intentional vandalism.

Industrial-Grade Durability

• High-Definition Imaging: Powered by a premium 1/2.9" CMOS sensor delivering crystal-clear 1080P AHD video at 25/30fps.

• All-Weather IP68 Rated: Fully sealed against heavy rain, high-pressure washdowns, and dust penetration.

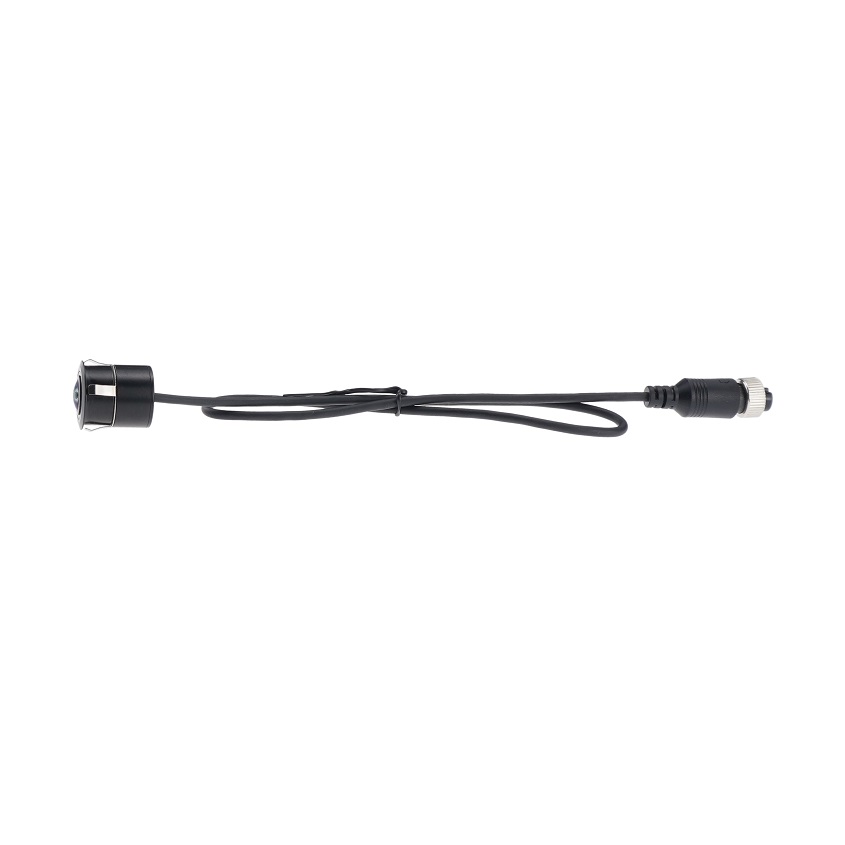

• Secure 4-Pin Aviation Connector: Features a heavy-duty, anti-loosening 4-pin connector for stable video transmission and power delivery (supports custom configurations).

Technical Specifications:

Package Includes:

• 1 x 1080P AHD 180° Flush Mount Camera (with Spring Steel Clips)

• 1 x 22.5mm Hole Saw / Drill Bit

• (Optional Extension Cable: 5m / 10m / 15m / 20m 4-pin aviation cable available upon request)

OEM/ODM Customization Capabilities:

As a 16 years vehicle safety systems manufacturer, Standtop offers tailored solutions for fleet operators and distributors:

• Connector Customization: RCA, BNC, or specialized aviation pin layouts.

• Voltage Adaptation: Standard 12V setup, with custom multi-voltage support options available for specific commercial vehicle integrations.

• System Compatibility: Seamless matching with commercial MDVRs, heavy-duty monitors, or retrofitted fleet screens.
